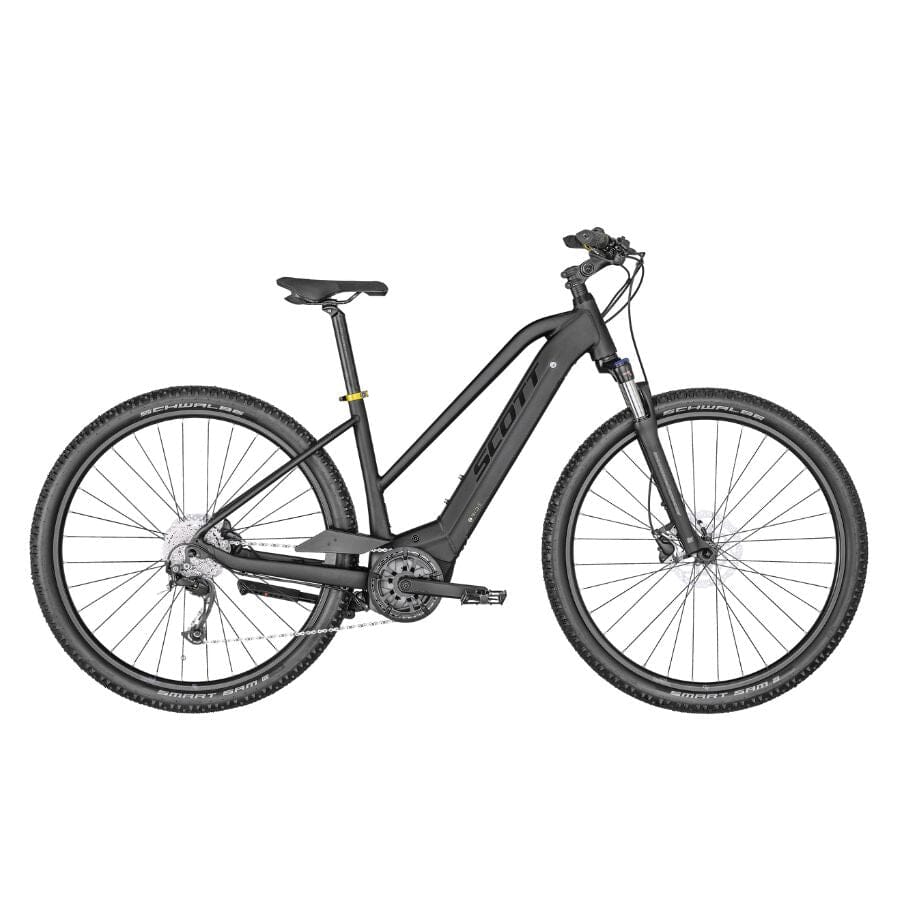

SCOTT Sub Cross eRIDE 30 Unisex 2023
Product Details
The SCOTT Sub Cross eRIDE 30 Unisex 2023 is your go-to electric bike for versatile riding, from gravel paths to neighborhood roads. With intuitive pedal-assist support and comfort-focused design, this electric bike makes everyday travel and weekend exploration easier than ever.
The Sub eRIDE 6061 alloy frame integrates the Bosch Active drive unit seamlessly into the downtube for a clean, balanced look and feel. With pedal-assist speeds up to 20 mph and a 400Wh Bosch PowerTube battery, the Sub Cross eRIDE 30 is ready to take you farther with less effort.
Up front, a 63mm travel SUNTOUR NVX fork helps smooth out bumps on light trails or city streets. An adjustable stem and ergonomic saddle ensure a comfortable fit on longer rides. Shimano’s Alivio drivetrain delivers smooth shifting across a range of gears, while the included ABUS battery lock and Purion display add security and control.
Finished with a durable Cross X17 Disc wheelset and a practical Ursus Mooi kickstand, the Sub Cross eRIDE 30 is ideal for daily riders who value comfort, capability, and reliable electric performance.
Key Features
- Frame - Sub eRIDE 6061 Alloy with integrated Bosch drive unit
- Fork - SUNTOUR NVX 30 NLO DS QR 700C, 63mm travel
- Drive Unit - Bosch Active BES2, 20mph assist
- Battery - 400Wh Bosch PowerTube
- Drivetrain - Shimano Alivio
- Wheelset - Cross X17 Disc 32h
- Additional Features - ABUS battery lock, Bosch Purion display, Ursus Mooi Central kickstand
| Specification | Detail |
|---|---|
| Frame | Sub eRIDE 6061 Alloy |
| Fork | SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel |
| Drive Unit | Bosch Active BES2 EU: 25kmh / US: 20mph |
| Battery | 400Wh PowerTube Battery |
| Display | Purion Display |
| Charger | 2A Charger |
| Rear Derailleur | Shimano Alivio RD M3100SGS 9 Speed |
| Shifters | Shimano Alivio SL-M3100 9 Speed |
| Crankset | Miranda 172.5mm |
| Chainring | 38T Chainflow / Chainprotector |
| Chain | KMC E9s NPBK |
| Cassette | Shimano CS HG400 11-36 |
| Brakes | Shimano BR-M200 Disc |
| Rotor | 180/F SM-RT10 and 160/R SM-RT10 |
| Handlebar | Syncros UC3.0 680mm / Rise 12mm / backsweep 15° |
| H'stem | Syncros UC 3.0 adjustable |
| Seatpost | Syncros 3.0 / 31.6mm / 350mm |
| Seat | Syncros Capilano |
| Headset | GW semi integrated |
| Hub (Front) | Shimano HBMT200B 32H QR CL |
| Hub (Rear) | Shimano FHRM35BZBL5 32H QR CL |
| Spokes | BLACK spokes * F: 14G / R: 13G |
| Rims | Cross X17 Disc 32h |
| Rear Tire | Schwalbe Smart Sam 29x2.25 |
| Pedals | VPE-506 |
| Extras | ABUS Battery Lock |
| Accessories | Ursus Mooi Central kickstand |
| Approx Weight (KG) | 25.7 |
| Approx Weight (LBS) | 56.66 |
| Max. System Weight | 128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| Size | XS | S | M | L |
|---|---|---|---|---|
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Head Tube Length | 170.0 mm | 170.0 mm | 170.0 mm | 170.0 mm |
| Top Tube Horizontal | 595.0 mm | 600.0 mm | 605.0 mm | 610.0 mm |
| Standover Height | 499.3 mm | 499.3 mm | 499.3 mm | 499.3 mm |
| BB Offset | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm |
| BB Height | 304.0 mm | 304.0 mm | 304.0 mm | 304.0 mm |
| Wheel Base | 1,151.2 mm | 1,156.2 mm | 1,161.2 mm | 1,166.2 mm |
| BB Center to Top of Seattube | 440.0 mm | 480.0 mm | 520.0 mm | 560.0 mm |
| Seat Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| Chainstay | 505.0 mm | 505.0 mm | 505.0 mm | 505.0 mm |
| Reach | 392.1 mm | 397.1 mm | 402.1 mm | 407.1 mm |
| Stack | 643.6 mm | 643.6 mm | 643.6 mm | 643.6 mm |
