Product Details

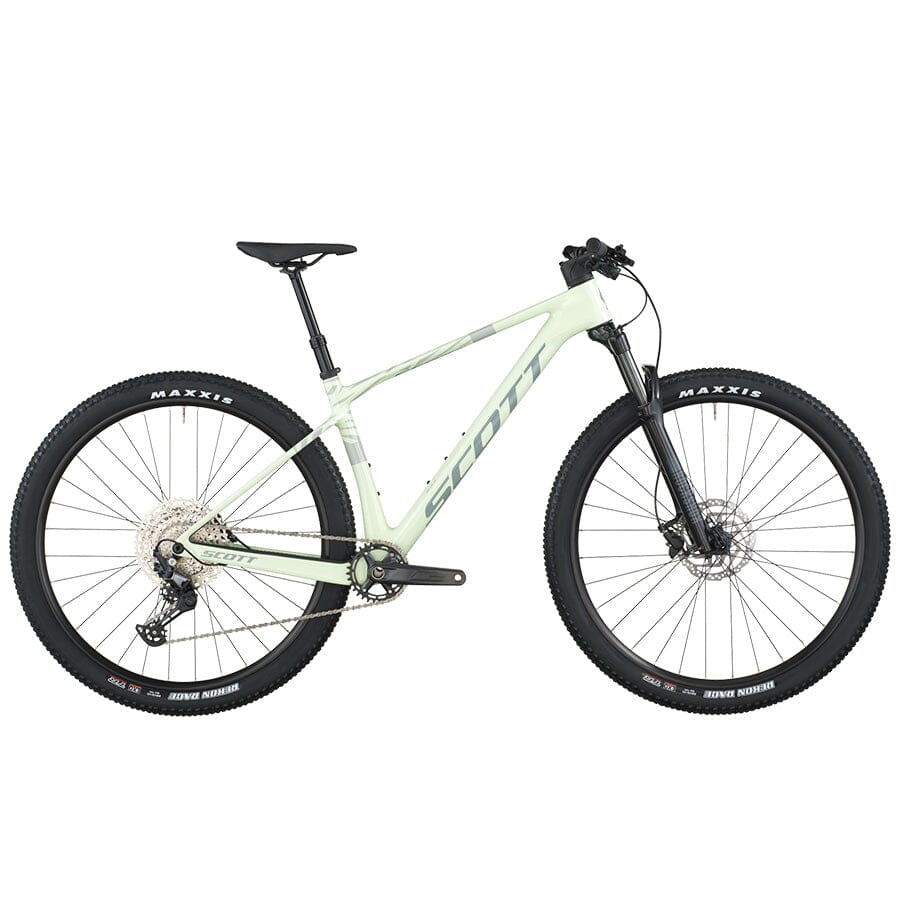

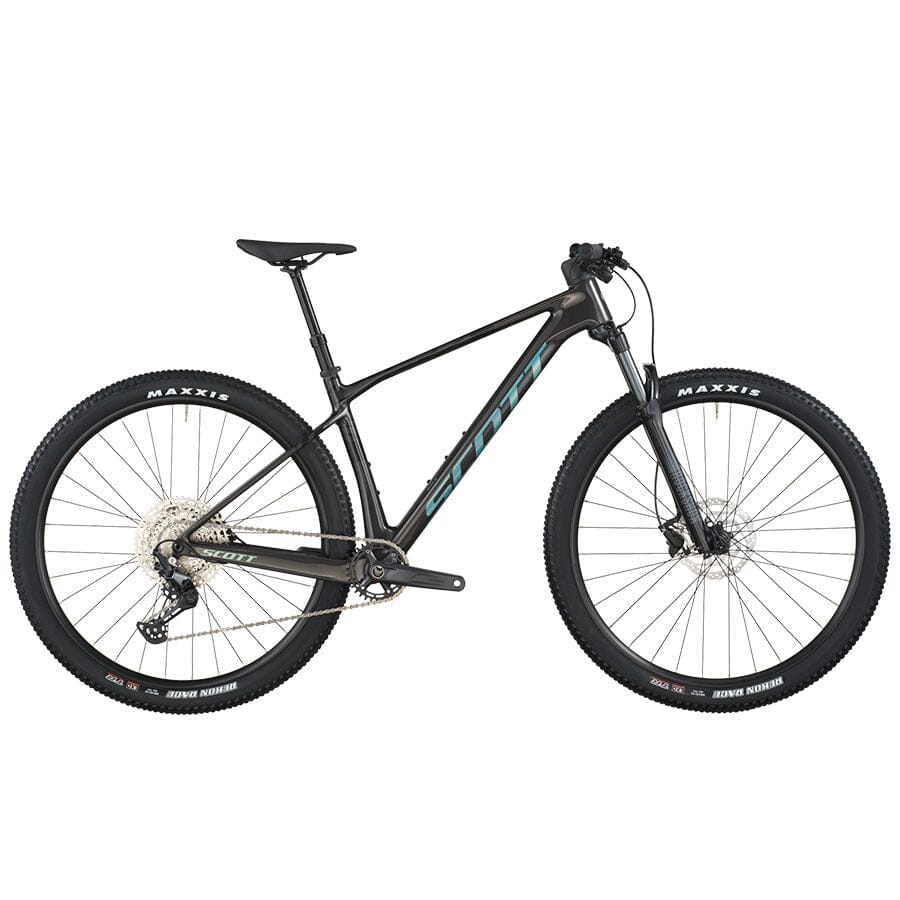

The SCOTT Scale 920 represents a whole new breed in the world of hardtail mountain bikes, balancing the Scale's legendary DNA with racing-inspired geometry and a straightforward, sharp design. This bike proudly flaunts its definitive characteristics with an aggressive look that signals its cross-country racing heritage while remaining ready for just about anything the trail demands. Built for riders seeking an accessible entry into SCOTT's flagship hardtail platform without compromising on performance or capability.
Crafted with the Scale Carbon HMF frame, this platform embodies SCOTT's uncompromising pursuit of perfection and drive for pure efficiency. Following the guiding principle of "Form follows Function," SCOTT centered the design around essentials, creating the ultimate yet most simple construction. The result is a straightforward and clear design that provides the Scale with its distinctive character, a bike engineered for cross-country performance that doesn't hide what it's built to do.
The racing-inspired geometry delivers the precise handling and efficient power transfer that defines the Scale platform, making this hardtail excel on technical climbs and fast, punchy singletrack. The RockShox Judy Air fork with 110mm of travel provides controlled suspension performance, while the reliable Shimano Deore 12-speed drivetrain offers wide-range gearing for tackling varied terrain with confidence.
Perfect for riders ready to experience SCOTT's hardtail excellence at an accessible price point, the Scale 920 pairs its lightweight carbon construction with Alex X-25 TR tubeless-ready rims for dependable performance. This is cross-country capability in its purest form—a bike that balances the essentials to create a whole new breed of XC riding experience.
Key Features
- Frame - Scale Carbon HMF with Racing-Inspired Geometry
- Suspension - RockShox Judy Air Fork (110mm)
- Drivetrain - Shimano Deore 12-Speed
- Wheelset - Alex X-25 TR Tubeless Ready Rims
| Specification | Detail |
|---|---|
| Frame | Scale Carbon HMF, Adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, 12x148mm with 55mm Chainline |
| Fork | RockShox Judy Silver TK Solo Air, 15x110mm QR axle, 51mm offset, Tapered Steerer, Reb. Adj., Lockout, 110mm travel |
| Remote System | SCOTT RideLoc Technology, Suspension & Dropper Remote, 2 Suspension modes |
| Rear Derailleur | Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed |
| Shifters | Shimano Deore SL-M6100-R, Rapidfire Plus |
| Crankset | Shimano FC-MT512-1, 55mm CL, 32T |
| Bottom Bracket | Shimano BB-MT500, shell 41x92mm |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T |
| Brakes | Shimano MT200 Disc Brake |
| Rotors | Shimano SM-RT10 CL, 180mm front / 160mm rear |
| Handlebar | Syncros Alloy 6061, T-shape Flat, 9°, 740mm, with Syncros Performance XC lock-on grips |
| Stem | Syncros DC 3.0, Syncros Cable Integration System, 0° rise, 6061 Alloy, 31.8mm, 1 1/8" |
| Seatpost | Syncros Duncan Dropper, 31.6mm, S size 100mm, M size 130mm, L & XL size 150mm |
| Seat | Syncros Belcarra Regular 2.5 |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula CL-548M, 12x148mm, Micro Spline |
| Spokes | Stainless Black 15G, 1.8mm |
| Rims | Alex X-25, 32H, 25mm, Tubeless ready |
| Front Tire | Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready |
| Rear Tire | Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready |
| Approx. Weight | 12.9 kg (Tubeless setup) |
| Approx. Weight | 28.44 lbs (Tubeless setup) |
| Max. System Weight | 130kg |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Head Tube Length (mm) | 90.0 | 95.0 | 110.0 | 120.0 |
| Top Tube Horizontal (mm) | 575.0 | 600.2 | 626.0 | 656.5 |
| Standover Height (mm) | 752.0 | 781.0 | 800.0 | 835.1 |
| BB Offset (mm) | -62.0 | -62.0 | -62.0 | -62.0 |
| BB Height (mm) | 313.0 | 313.0 | 313.0 | 313.0 |
| Wheelbase (mm) | 1105.4 | 1131.1 | 1158.0 | 1189.4 |
| BB Center to Top of Seat Tube (mm) | 390.0 | 440.0 | 480.0 | 530.0 |
| Seat Angle | 75.4° | 75.4° | 75.3° | 75.3° |
| Chainstay (mm) | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach (mm) | 418.5 | 442.3 | 463.6 | 491.2 |
| Stack (mm) | 600.3 | 604.9 | 618.9 | 628.1 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 105.0 | 105.0 | 105.0 | 105.0 |
| Fork Length (mm) | 506.0 | 506.0 | 506.0 | 506.0 |
| Maximum Seatpost Insertion (mm) | 160.0 | 210.0 | 250.0 | 300.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
