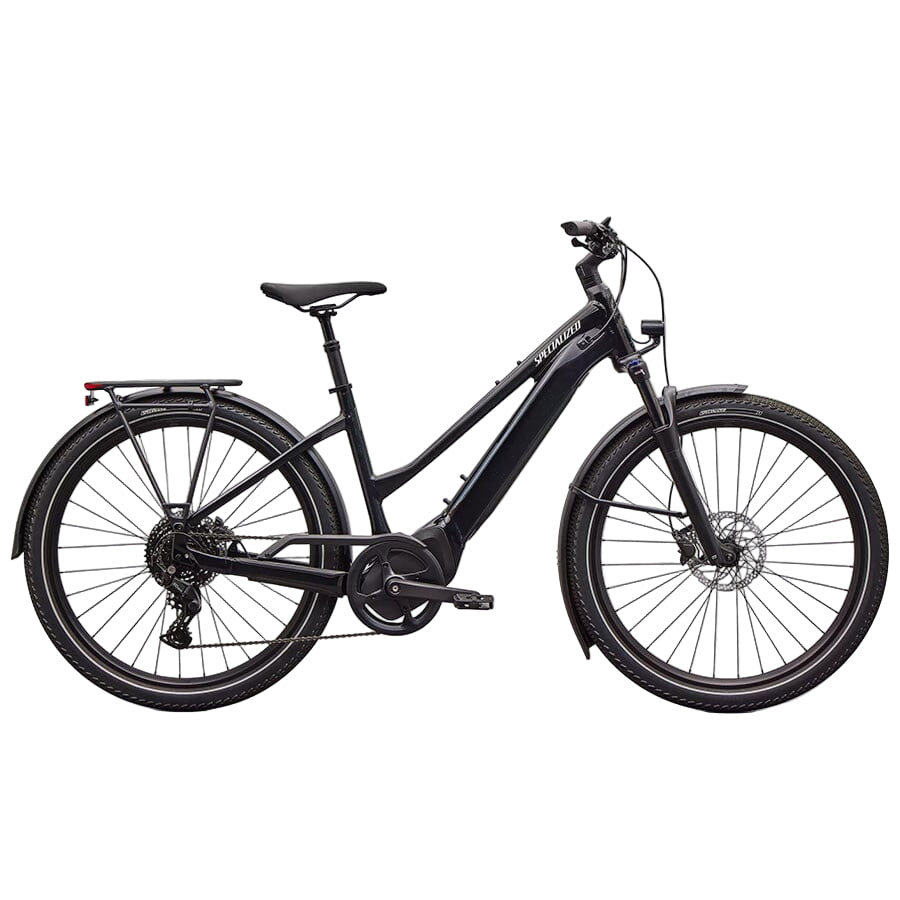

Specialized Turbo Vado 4.0 Step-Through
Product Details
The Specialized Turbo Vado 4.0 Step-Through is a high-powered electric bike designed to get you where you need to go with an unmatched combination of speed, reliability, and confidence. Whether loaded with gear, commuting to work, or heading to the gym, the Vado's full power and impressive range make every ride fast, smooth, and effortless. This class-leading e-bike combines a perfectly balanced ride feel with superior comfort and intelligent technology.
At the heart of the Vado lies Turbo technology, an advanced and fully integrated electric bike system that delivers power, natural ride feel, and anti-theft protection. The Turbo Full Power 2.0 system senses your pedaling force and multiplies it up to 4x, helping you conquer hills and distance without breaking a sweat. The 710Wh battery provides an impressive range of up to 90 miles in eco mode, ensuring you can tackle ambitious daily routes without range anxiety.
Comfort and control define the Vado experience through optimized body positioning, handling, and suspension design. An 80mm front suspension fork, high-volume tires, and a plush suspension seatpost work together to absorb bumps and vibrations, keeping you comfortable through rough terrain. Powerful Shimano hydraulic disc brakes deliver reliable stopping power, while larger tires enhance traction and stability whether navigating city streets or rougher paths.
Security features built into the Vado protect your investment through integrated anti-theft motor lock controlled via the Specialized app or personal PIN. The removable, lockable battery adds extra protection, while a motion alarm alerts you to any tampering. The MasterMind display and Specialized app provide real-time ride data, range optimization, and complete system customization, seamlessly integrating technology with practical transportation.
Key Features
- Frame: E5 Aluminum with Mid-Drive Motor Integration
- Motor: Specialized Turbo Full Power 2.0 (70Nm)
- Battery: 710Wh Battery (90-Mile Range)
- Suspension: SR Suntour MobieA32 with 80mm travel
- Drivetrain: Shimano CUES with Shimano Hydraulic Disc Brakes
- Wheelset: 650b Double-Wall Alloy Disc wheels
| Category | Specification |
|---|---|
| Motor | Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
| UI/Remote | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Battery | Specialized U2-710, integrated battery, state of charge display, 710Wh, UL |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Wiring Harness | Custom wire harness |
| Frame | E5 Aluminum, mid-drive motor, fully integrated & lockable downtube battery, internal cable routing, wheel lock mount, and front rack compatible |
| Seat Binder | Alloy, bolt-type, 34.9mm |
| Fork | SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Derailleur | Shimano RD-U4000, CUES, Gs 9-Speed, Top Normal, Shadow Design, Direct Attachment |
| Shift Levers | Shimano SL-U4000-9R, CUES, Right, 9-Speed Rapidfire, W/ Optical Gear Display |
| Cassette | Shimano CS-LG300-9, CUES, 9-Speed, 11-41T |
| Chain | Shimano LG500 |
| Crankset | Custom alloy forged crankarms |
| Chaincase | Specialized Chain Cover |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Shimano Center Lock Disc 32H, 15mm Thru Type Axle, 100mm |
| Rear Hub | Shimano Freehub, Center Lock Disc, 8-11-Speed, 12mm Thru Type Axle, 32H, 148mm |
| Spokes | DT Swiss Elemental |
| Front Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Inner Tubes | Standard 40mm SV 650Bx1.75-2.4 |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Handlebars | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Grips | Specialized Body Geometry |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Seatpost | Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Headlight | Lezyne, Ebike Mini Stvzo E300+, 300 Lumen, 160cm Wire, With Reflector |
| Taillight | Spanninga, Stvzo, Commuter Glow With Brake XEr |
| Kickstand | Specialized kickstand, 40mm mount |
| Rack | Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load |
| Fenders | Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
| Bike Lock | Turbo System Lock |
| Bell | Simple bell |
| Weight | 59 lb, 3.1 oz - Size M |
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Crank Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Handlebar Width | 680 mm | 680 mm | 680 mm | 680 mm |
| Stem Length | 60 mm | 60 mm | 75 mm | 75 mm |
| Saddle Width | 155 mm | 155 mm | 155 mm | 155 mm |
| Seatpost Length | 350 mm | 350 mm | 400 mm | 400 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Headtube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Headtube Angle | 68° | 68° | 68° | 68° |
| BB Height | 285 mm | 285 mm | 285 mm | 285 mm |
| BB Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Fork Length (Full) | 480 mm | 480 mm | 480 mm | 480 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 699 mm | 724 mm | 750 mm | 777 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Top Tube Length (Horizontal) | 585 mm | 615 mm | 645 mm | 675 mm |
| Bike Standover Height | 618 mm | 617 mm | 617 mm | 626 mm |
| Seat Tube Length | 400 mm | 450 mm | 460 mm | 500 mm |
| Seat Tube Angle (Virtual) | 75.5° | 75° | 74.5° | 74° |
