Product Details

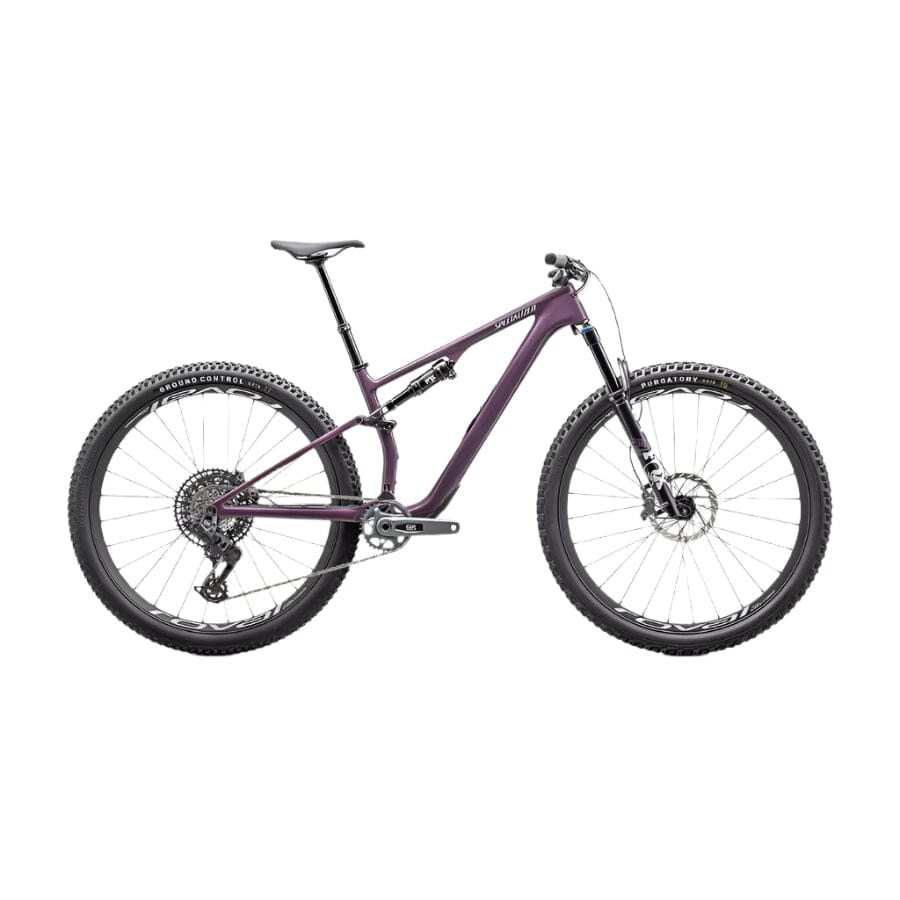

The Specialized Epic 8 EVO is built for riders who demand cross-country speed without sacrificing trail capability. With its progressive geometry, lightweight construction, and tuned suspension, it’s the most capable 120mm bike Specialized has ever created, and it's cranked up to 130mm up front to handle even rowdier terrain.
The updated chassis delivers a 12% increase in bump absorption and 20% reduction in pedal-induced bob, giving you a smoother, more efficient ride that stays composed at speed and aggressive on climbs. Add in the Ride Dynamics-tuned shock and FOX 34 Performance Elite fork, and you’ve got a machine that feels bottomless on descents yet razor-sharp on singletrack.
An integrated SWAT 4.0 system keeps your tools and essentials secure inside the downtube, while the SRAM GX Eagle AXS Transmission delivers crisp wireless shifting through everything from race days to rowdy weekends. Backed by Code Bronze Stealth 4-piston brakes and Roval Control carbon wheels, the Epic 8 EVO is ready for high-fives at the trailhead and podium finishes alike.
Key Features
- FACT 11m Carbon Frame - Progressive XC Geometry and SWAT downtube storage.
- FOX Float Performance Suspension - Custom-valved FOX Float Performance Elite shock paired with a 130mm FOX 34 Performance Elite fork for precision control and comfort.
- Roval Control Carbon Wheels - Lightweight and fast-rolling for trail and race use, with excellent stiffness and strength.
- GX Eagle AXS Transmission - Rugged, wireless drivetrain for seamless shifting and low-maintenance performance on any terrain.
*Please note that bike specifications are subject to change without prior notice
Specification | Detail |
---|---|
Frame | FACT 11m Carbon | Progressive XC Geometry | Rider-First Engineered™ | SWAT Downtube Storage | Threaded BB | 12x148mm UDH Compatible | Internal Cable Routing | 120mm Travel |
Seat Binder | Specialized Alloy | 34.9mm | Steel Bolt |
SWAT Storage | Internal Downtube Storage |
Rear Shock | Fox Float Performance Elite | Evol LV | Ride Dynamics Tuned | 2-Position Compression Adjust | 190x45mm |
Fork | Fox 34 Performance Elite | Grip X Damper | HSC/LSC/LSR Adjust | 130mm Travel | 44mm Offset | 15x110mm |
Front Brake | SRAM Code Bronze Stealth | 4-Piston Hydraulic Disc | 180/200mm Rotor |
Rear Brake | SRAM Code Bronze Stealth | 4-Piston Hydraulic Disc | 180mm Rotor |
Shift Levers | SRAM AXS Pod Controller |
Rear Derailleur | SRAM GX AXS Transmission |
Cassette | SRAM XS-1275 | 12-Speed | 10-52T |
Chain | SRAM GX Transmission |
Crankset | SRAM GX Eagle | DUB | 165/170/175mm | 32T |
Chainrings | 32T |
Bottom Bracket | SRAM DUB Threaded Wide |
Rims | Roval Control | Carbon Offset Design | 29mm Internal Width | 4mm Hook Width | Tubeless Ready | 28h |
Front Hub | Industry Nine 1/1 | 6-Bolt | 15mm Thru-Axle | 110mm Spacing | 28h |
Rear Hub | Industry Nine 1/1 | 12x148mm Thru-Axle | XD Freehub | 28h |
Spokes | Sapim D-Light |
Front Tire | Specialized Purgatory | GRID Casing | T9 Compound | 29x2.4" |
Rear Tire | Specialized Ground Control | GRID Casing | T7 Compound | 29x2.35" |
Inner Tubes | Standard | 40mm PV | 29x1.75–2.4 |
Stem | Alloy Stem | 35mm Clamp | 50mm Length |
Handlebar | Specialized Alloy | 20mm Rise | 35mm Clamp | 760mm Width |
Grips | Specialized Trail Grips |
Saddle | Body Geometry Power Sport | Steel Rails |
Seatpost | X-Fusion Manic | 30.9mm | 125/150/170mm Travel | 0mm Offset |
Weight (Size M) | 12.16kg (26 lb, 12.9 oz) |
Size | XS | S | M | L | XL |
---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 170mm | 175mm | 175mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 50mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 125mm | 125mm | 150mm | 170mm | 170mm |
Bike Standover Height | 754mm | 761mm | 766mm | 775mm | 779mm |
Seat Tube Length | 370mm | 390mm | 410mm | 450mm | 500mm |
Seat Tube Angle | 76° | 75.5° | 75° | 75° | 75° |
Top Tube Length, Horizontal | 535mm | 569mm | 605mm | 633mm | 662mm |
Stack | 606mm | 600mm | 601mm | 613mm | 632mm |
Reach | 385mm | 415mm | 445mm | 470mm | 495mm |
Head Tube Length | 92mm | 92mm | 95mm | 110mm | 130mm |
Head Tube Angle (low) | 65.4° | 65.4° | 65.4° | 65.4° | 65.4° |
Head Tube Angle (high) | 65.9° | 65.9° | 65.9° | 65.9° | 65.9° |
BB Height (low) | 322mm | 327mm | 329mm | 331mm | 331mm |
BB Height (high) | 327mm | 333mm | 335mm | 337mm | 337mm |
BB Drop (low) | 49mm | 43mm | 41mm | 39mm | 39mm |
Trail | 120mm | 120mm | 120mm | 120mm | 120mm |
Fork Length, Full | 540mm | 540mm | 540mm | 540mm | 540mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 690mm | 720mm | 751mm | 782mm | 815mm |
Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
Wheelbase | 1121mm | 1151mm | 1183mm | 1214mm | 1247mm |
