Cervelo ZFS-5 120 GX AXS
Request Info

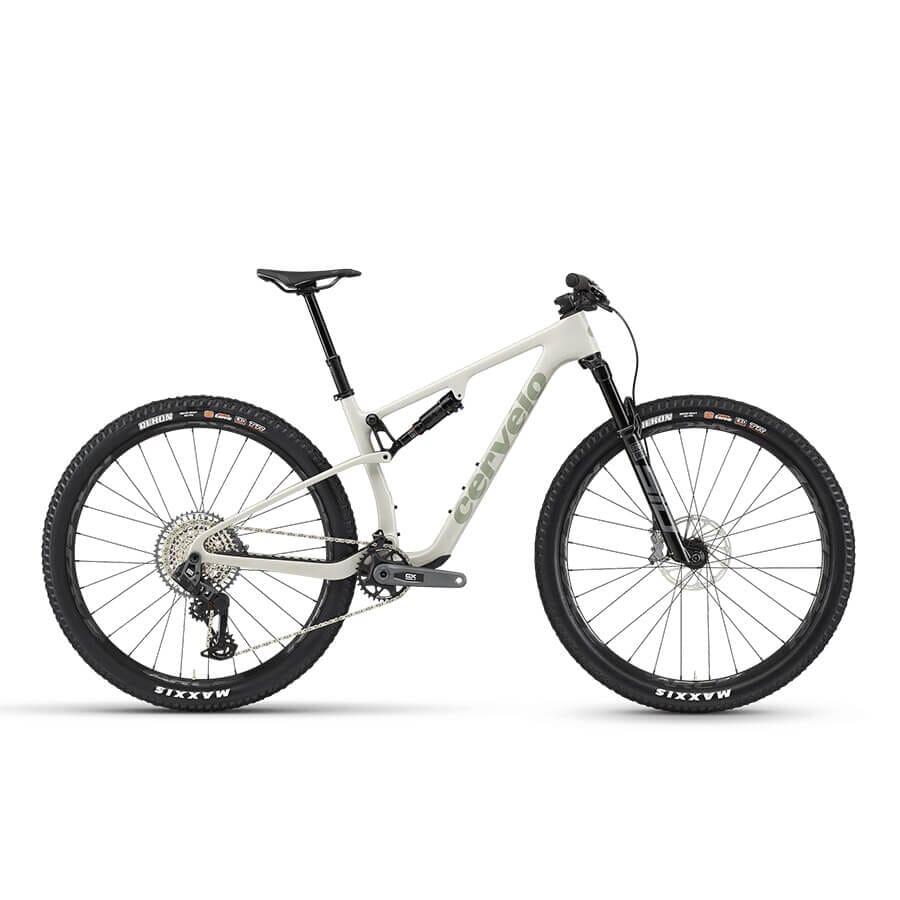

Cervelo ZFS-5 120 GX AXS
Product Details
The Cervelo ZFS-5 120 GX AXS is your trusty sidekick for today's XC courses. It's got the moves to handle pedal-powered speed and nimble agility, but it's also tough enough to tackle the rough and wild obstacles you'll find on the track. Plus, with the 120mm setup and a 66.6-degree head angle, you'll have that extra boost of confidence to push yourself harder, even when the trail turns into a bit of a rollercoaster ride.
When it comes to design, the Cervelo ZFS-5 120 GX AXS is all about that perfect balance of elegance and simplicity. Imagine it as a minimalist work of art, with clean lines and a single-pivot suspension system that keeps things sleek and efficient. And it's not just about looks; it's got brains too. Two water bottles can snugly fit inside the front triangle, so you're always hydrated and ready for the adventure. The SRAM GX AXS Transmission drivetrain provides quick, reliable shifting to make sure you get where you're going and back again.
Despite Cervelo's road-oriented roots, the ZFS-5 takes a bold step into the mountain biking world. It's equipped with a threaded BB shell and a 52.5mm chainline, offering practicality and ample clearance for tackling rugged trails. The geometry is unique, tailored to your riding style and preferences, whether you're chasing speed or seeking a more relaxed ride.
In a world of mountain bikes, the Cervelo ZFS-5 120 GX AXS is the life of the party. It brings a unique blend of style, lightweight prowess, and practicality to the XC mountain biking scene, making it a standout choice for riders who crave both performance and personality.
| *Please note that bike specifications are subject to change without prior notice | |
| FORK | Rockshox SID Select+, DebonAir spring, 3 position crown-adjusted Charger Race Day damper, tapered steerer, 15x110mm Maxle Stealth, 44mm offset, 120mm |
| SHOCK | Rockshox SIDLuxe Select+, RL 3 position damper, 190 x 45mm |
| HEADSET | FSA IS2 1-1/2 x 1-1/2 |
| THRU AXLES | Cervelo Thru-axle, 12x148 |
| WHEELS (Rear) | Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 12x148mm, XD freehub, 28H, 6 bolt, tubeless compatible |
| WHEELS (Front) | Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 15x110mm, 24H, 6 bolt, tubeless compatible |
| TIRES | Maxxis Rekon, EXO 60 TPI, 29x2.4 |
| CRANKSET | SRAM GX Eagle, 32T, Boost 148 DUB |
| BOTTOM BRACKET | SRAM DUB, BSA 73mm |
| CHAIN | SRAM GX, 12 speed |
| REAR DERAILLEUR | SRAM GX Eagle AXS, 12 speed |
| CASSETTE | SRAM GX Eagle, 10-52, 12 speed |
| SHIFTERS | SRAM GX AXS Rocker |
| HANDLEBAR | Race Face Turbine R, 35mm clamp, 780mm width, 20mm rise |
| STEM | Race Face Aeffect R Alloy, 35mm clamp, 0 degree |
| BRAKE CALIPERS | SRAM Level Bronze 4 Piston |
| BRAKE LEVERS | SRAM Level Bronze Stealth 4 Piston |
| SADDLE | Prologo Dimension NDR T4.0 |
| SEATPOST | OneUp V2 |
| BRAKE ROTOR | SRAM Centerline 6-Bolt |
| 120mm Travel | S | M | L | XL |
|---|---|---|---|---|
| Reach (mm) | 409 | 433 | 457 | 484 |
| Stack (mm) | 593 | 600 | 610 | 624 |
| Head Tube Angle | 66.6° | 66.6° | 66.6° | 66.7° |
| Front Center (mm) | 700 | 726 | 755 | 787 |
| Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
| Head Tube Length (mm) | 96 | 102 | 114 | 128 |
| Top Tube Length (mm) | 561.6 | 589.1 | 617.3 | 649.1 |
| Seat Tube Angle | 75.3° | 75.1° | 75.0° | 74.9° |
| Standover Height (mm) | 756 | 754 | 754 | 754 |
| Wheel Size | 29 | 29 | 29 | 29 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 |
| Wheelbase (mm) | 1130 | 1159 | 1190 | 1225 |
| Chainstay Length (mm) | 432 | 435 | 437 | 440 |
