Product Description

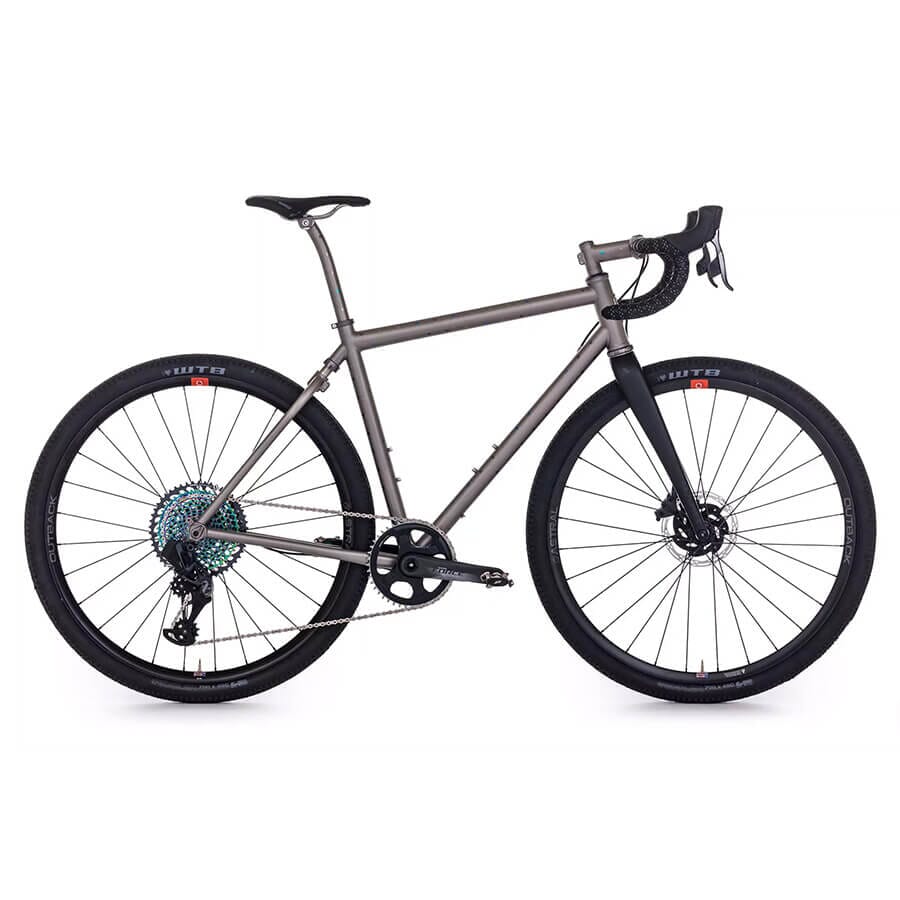

Gravel just got smoother. The new Routt YBB headlines the Moot gravel family, incorporating the Moots YBB ‘softail’ micro-suspension design, first pioneered on its mountain bikes in the 1990s. The result is the ultimate gravel bike frame.
The Moots Routt YBB is primarily designed for the cyclist looking for next-level compliance, when tackling mixed-surface rides.It features just over 20mm of rear axle travel that takes the edge off backcountry road and trail chatter, to provide supremely smooth, confident, and pleasurable pedaling experiences.
The Routt YBB boasts a bevy of performance-oriented features. Perfect rear wheel and brake alignment come courtesy of Moots' proprietary 6/4 titanium 3D-printed flat-mount disc brake mount. To provide the greatest range of tire and wheel combination compatibility, the frame and fork are designed to accommodate up to 45mm tires.
It has clearance with compact double chainrings, or up to 42 tooth clearance with 1x drivetrains. The Routt YBB frame comes with a third water bottle location as standard, plus rear fender mounts and Moots all carbon gravel/cross fork that features hidden fender eyelets for all-weather riding. The Routt YBB is also compatible with a LAUF gravel fork if you want to add more suspension on your ride.
The Routt YBB uses a US-made, seamless 3/2.5 titanium tubeset and is available in seven sizes, with custom geometry available to ensure perfect fit for every rider.
Get quicker delivery with one of the MOOTS SELECT curated build kits, which includes an etched finish that can be upgraded to a full array of finish options, including the Signature Series anodized logos and patterns.
See Specifications tab for build options and details.
REVIEWS
Specifications
Frame | Routt YBB |
Fork | Moots Flat Mount Disc Gravel Carbon (Black) |
Bar | ENVE Gravel |
Stem | Moots Ti |
Headset | Chris King I7 |
Seatpost | Moots Cinch Post |
Wheels | Astral Outback |
Tires | Panaracer Gravel King SK - Black |
Crank | Shimano GRX 2x 48/31 (170, 172.5, 175) |
Bottom Bracket | Shimano GRX Threaded |
Brakes | Shimano GRX 160/140 CL Rotors |
Saddle | Selle Italia SLR Boost TM Manganese |
Finish | Brushed |
Geometry
Size | 50 | 52 | 54 | 55 | 56 | 58 | 60 |
Reach | 365 | 361 | 371 | 373 | 381 | 388 | 399 |
Stack | 562 | 582 | 591 | 601 | 612 | 631 | 651 |
Effective Top Tube | 515 | 525 | 540 | 555 | 565 | 580 | 600 |
Seat Tube C-T | 460 | 480 | 510 | 520 | 530 | 550 | 570 |
Head Angle | 70.75 | 71 | 71.5 | 71.5 | 72 | 72 | 72.5 |
Seat Angle | 75 | 74.25 | 74 | 73.5 | 73.25 | 73 | 72.75 |
Head Tube Length | 120 | 140 | 150 | 160 | 170 | 190 | 210 |
Chainstay | 437 | 437 | 437 | 437 | 437 | 437 | 437 |
Standover | 30" | 31" | 31.6" | 31.9" | 32.4" | 33" | 33.8" |
BB Drop | 71 | 71 | 69 | 69 | 69 | 69 | 68 |
Fork Rake/Offset | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
