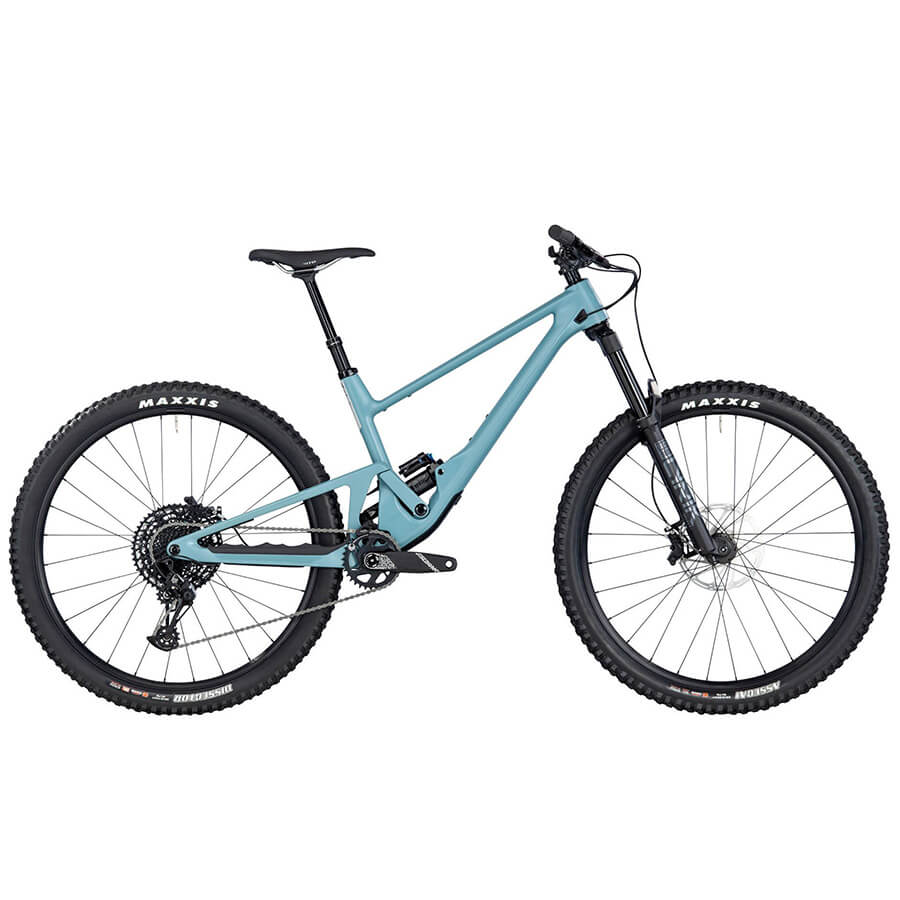

SCOR 4060 ST NX
Product Description
SCOR might be a new name in the game, but the SCOR 4060 ST NX full suspension trail mountain bike is anything but a new player. The creative and engineering minds at BMC launched SCOR as a side project of sorts and have created a bike line destined for good times.
The new SCOR ST NX trail mountain bike is fully capable of being a race bike, but the folks at BMC decided to keep the racing focus in-house and let SCOR develop with a ‘fun first’ philosophy that’s resulted in an exciting new brand that certainly deserves its own branding separate from BMC’s traditional line on mountain bikes.
Rocking an updated RockShox Lyrik Select fork with 150mm travel and a RockShox Super Deluxe Select+ shock in back with 140mm travel, the SCOR ST NX mountain bike also features a SRAM NX Eagle 1x12 drivetrain and a set of SRAM Code R hydraulic disc brakes.
A set of Maxxis Assegai/Dissector tries aboard XDX 530 wheels keep you rolling fast with dependable traction for reliable cornering and climbing chops.
A life spent playing on bikes is a life well lived. Whether that’s mastering the manual or finding the edges of traction, hucking to flat or exploring mountain tops, the SCOR 4060 ST cuts the crap and gets back to the reason we fell in love with bikes in the first place. Long live the good times, long live playtime.
The SCOR 4060 ST NX - short travel, serious fun.
REVIEWS
Specifications
| Model | 4060 ST NX |
| Frame | SCOR 4060 full carbon frame, Lower-Link Driven Instant Center Linkage, 140mm rear wheel travel, Fully guided internal cable routing, Stash box, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 mount / Chainguide |
| Fork | RockShox Lyrik Select, 150mm travel, Charger RC damper, DebonAir air spring, Compression adjust, Rebound adjust, 44mm rake |
| Rear Shock | RockShox Super Deluxe Select+, RT damper, Rebound adjust, Open / threshold mode, Trunnion mount |
| Gears | 1 x 12 |
| Chainwheel | SRAM Descendant 6K Eagle, 170mm length, 32T chainring, DUB Interface |
| Cassette | SRAM NX Eagle (PG-1230), 11-50T |
| Chain | SRAM NX Eagle |
| Rear Derailleur | SRAM NX Eagle |
| Shifters | SRAM NX Eagle Trigger |
| Brakes | SRAM Code R, Centerline rotors; 200mm |
| Handlebar | SCOR Alloy Bar, 31.8mm clamp, 800mm wide, 20mm rise, 5° up sweep - 9° back sweep |
| Stem | SCOR Alloy Stem, 3D forged, 31.6mm bar bore, 35mm lenght, 0° angle |
| Seatpost | X-Fusion Manic, S 125mm, M 150mm, L/XL 170mm travel |
| Saddle | Fizik Terra Alpaca X5 |
| Wheelset | XDX-530, 28 spokes, Sealed cartridge bearings hubs, 6061-T6 alloy rim; welded joint, 30mm internal width, Tubeless ready |
| Hubs | XDX-530, 28 spokes, Sealed cartridge bearings hubs |
| Tires | Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Terra (F) / 3C Maxx Terra (R), Casing: EXO (F) / EXO+ (R), Tubeless ready |
| Tire Clearance | Width: 64mm, Diameter: 750mm |
| Extras | Stash box, SCOR 4060 X Slicy MySublimistick Frame Protector |
| ASTM Classification | Level 4 |
Geometry
| S | M | L | XL | |
| Top Tube MM (tt) | 561 | 590 | 621 | 655 |
| Wheelbase MM (wb) | 1185 | 1210 | 1235 | 1265 |
| Seat Angle (sa) | 78 | 78 | 78 | 78 |
| Stack MM | 599 | 611 | 625 | 636 |
| BB Height MM | 338 | 338 | 338 | 338 |
| Reach MM (reach) | 436 | 461 | 485 | 516 |
| Head Tube MM (ht) | 87 | 99 | 115 | 127 |
| Head Angle (ha) | 65.5 | 65.5 | 65.5 | 65.5 |
| BB Drop MM (drop) | 29 | 29 | 29 | 29 |
| Seat Tube MM (st) | 400 | 425 | 440 | 470 |
| Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
| Front Center MM (fc) | 752 | 777 | 802 | 832 |
| Fork Length MM (fl) | 560 | 560 | 560 | 560 |
