2022 SCOTT Foil RC 20

2022 SCOTT Foil RC 20
SKU: 210000127488

2022 SCOTT Foil RC 20

$5,799.99
Brand: SCOTT Bikes
Categories: Road Bikes
More Information
Notify Me When Available contact to customize

Product Description

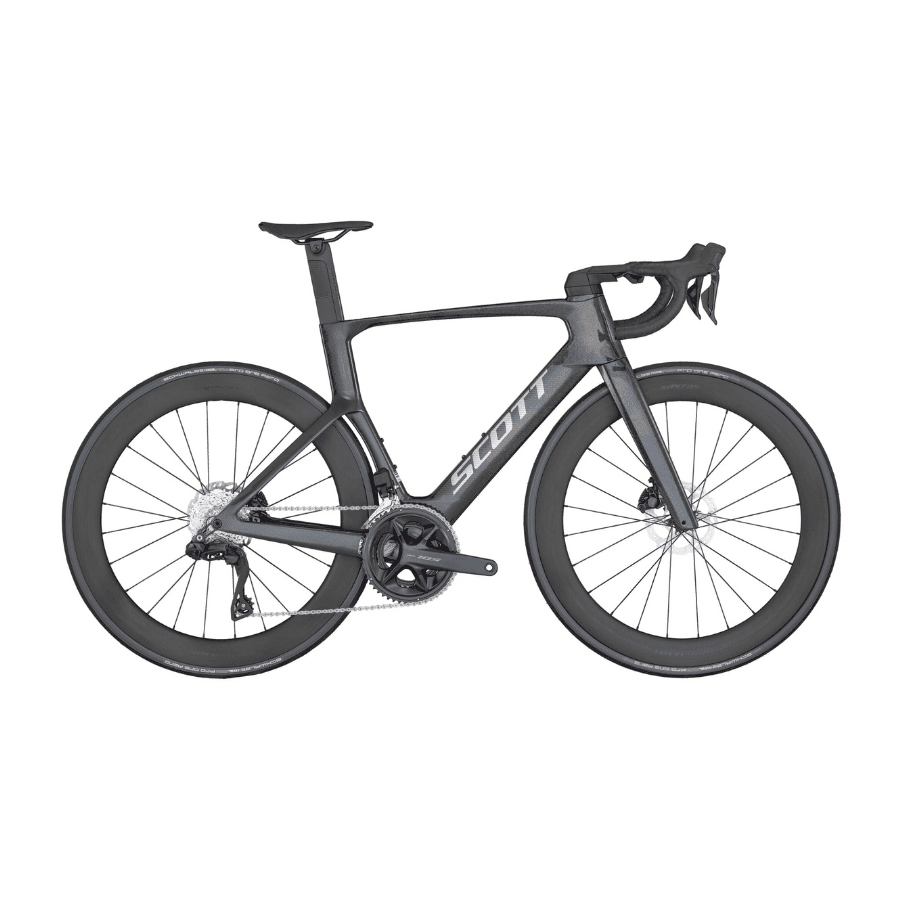

The SCOTT Foil represents SCOTT's aero road bike that has been refined to offer aero efficiency and pace while flattering the rider every chance it gets. The 2022 SCOTT Foil blends value with efficiency. Think the same HMF carbon frame that is on nearly every SCOTT Foil, with carbon wheels and wireless shifting. This is done thanks to Syncros Capital carbon wheels, SRAM Rival eTap AXS, and a Syncros Creston iC SL integrated handlebar/stem. That said, the Foil 20 isn't just about technology, it's about effortless handling.

SCOTT's Foil oozes speed. With aero tube shapes all over the bike, fork flaps that smooth aerodynamics around the front wheel, and subtle curves that are as effective as they are good-looking, SCOTT cuts zero corners. With the massive bottom bracket that portends wild speed you better be ready to fly.

The dialed geometry really brings the bike together. Precision handling means that every corner and bit of acceleration is met with eagerness, speed, and control.

KEY FEATURES

  • FOIL Disc HMF Carbon Frame
  • FOIL Disc HMX Fork
  • SRAM RIVAL eTap AXS 24 Speed
  • Syncros Capital 1.0 50 Disc Wheels
  • Schwalbe ONE Race-Guard Tires
  • Syncros Carbon/Alloy Parts

    REVIEWS

    Geometry

    2022 Scott Foil RC Geometry

    XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
    A head tube angle 70.5 ° 71.0 ° 72.0 ° 72.5 ° 73.0 ° 73.3 ° 73.3 °
    B head tube length 110.0 mm 115.0 mm 130.0 mm 150.0 mm 170.0 mm 190.0 mm 210.0 mm
    C top tube horizontal 510.0 mm 520.0 mm 535.0 mm 550.0 mm 565.0 mm 580.0 mm 595.0 mm
    D standover height 715.9 mm 729.4 mm 753.6 mm 773.5 mm 798.8 mm 812.9 mm 837.3 mm
    E BB offset -66.0 mm -66.0 mm -66.0 mm -66.0 mm -66.0 mm -66.0 mm -66.0 mm
    F BB height 273.0 mm 273.0 mm 273.0 mm 273.0 mm 273.0 mm 273.0 mm 273.0 mm
    G wheel base 972.0 mm 978.0 mm 980.0 mm 987.0 mm 994.2 mm 1,002.9 mm 1,012.0 mm
    H BB center to toptube center 400.0 mm 420.0 mm 450.0 mm 470.0 mm 490.0 mm 510.0 mm 540.0 mm
    I BB center to top of seattube 410.0 mm 430.0 mm 460.0 mm 480.0 mm 500.0 mm 520.0 mm 550.0 mm
    J seat angle 74.5 ° 74.5 ° 74.0 ° 73.6 ° 73.3 ° 73.0 ° 72.5 °
    K chainstay 410.0 mm 410.0 mm 410.0 mm 410.0 mm 410.0 mm 410.0 mm 410.0 mm
    L reach 370.6 mm 378.8 mm 384.0 mm 388.9 mm 394.5 mm 400.0 mm 403.4 mm
    M stack 502.6 mm 509.0 mm 526.7 mm 547.5 mm 568.3 mm 588.5 mm 607.7 mm
    N stem length 90.0 mm 90.0 mm 100.0 mm 110.0 mm 110.0 mm 120.0 mm 120.0 mm

    Specifications

    • Frame

      FOIL Disc HMF / F01 AERO Carbon tech.
      Road Race geometry
      Replaceable Derailleur Hanger

    • Fork

      FOIL Disc HMX
      1" Carbon steerer
      Integrated Carbon Dropout

    • Rear Derailleur

      SRAM RIVAL eTap AXS
      24 Speed Electronic Shift System

    • Front Derailleur

      SRAM RIVAL eTap AXS Electronic Shift System

    • Shifters

      SRAM RIVAL eTap AXS Electronic Shift System

    • Crankset

      SRAM RIVAL Crankset
      48/35 T

    • BB-Set

      SRAM DUB PF ROAD 86.5

    • Chain

      SRAM RIVAL

    • Cassette

      SRAM RIVAL XG1250
      10-30

    • Brakes

      SRAM RIVAL eTap AXS HRD Shift-Brake System
      Flatmount

    • Rotor

      SRAM Paceline rotor 160/F and 160/R

    • Handlebar

      Syncros Creston iC SL
      Carbon combo

    • Seatpost

      Syncros Duncan 1.0 Aero

    • Seat

      Syncros Belcarra V-Concept 2.0

    • Headset

      Syncros Integrated

    • Wheelset

      Syncros Capital 1.0 50 Disc
      24 Front / 24 Rear
      Syncros Axle w/Removable Lever with Tool

    • Front Tire

      Schwalbe ONE Race-Guard Fold
      700x28C

    • Rear Tire

      Schwalbe ONE Race-Guard Fold
      700x28C

    • Approx weights in KG

      8.22

    • Approx weights in LBS

      18.12

    • Max. System Weight

      120 kg
      The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
