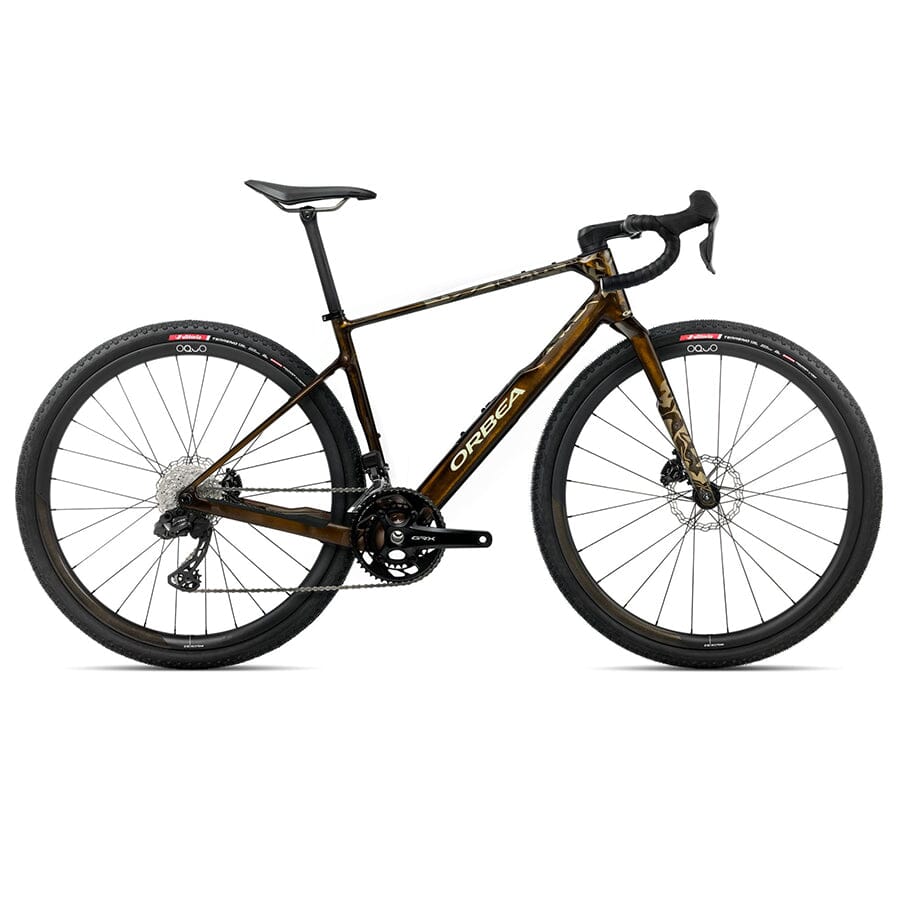

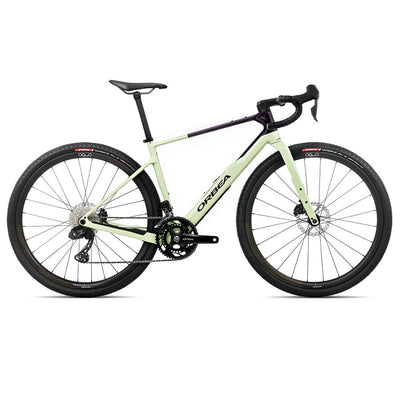

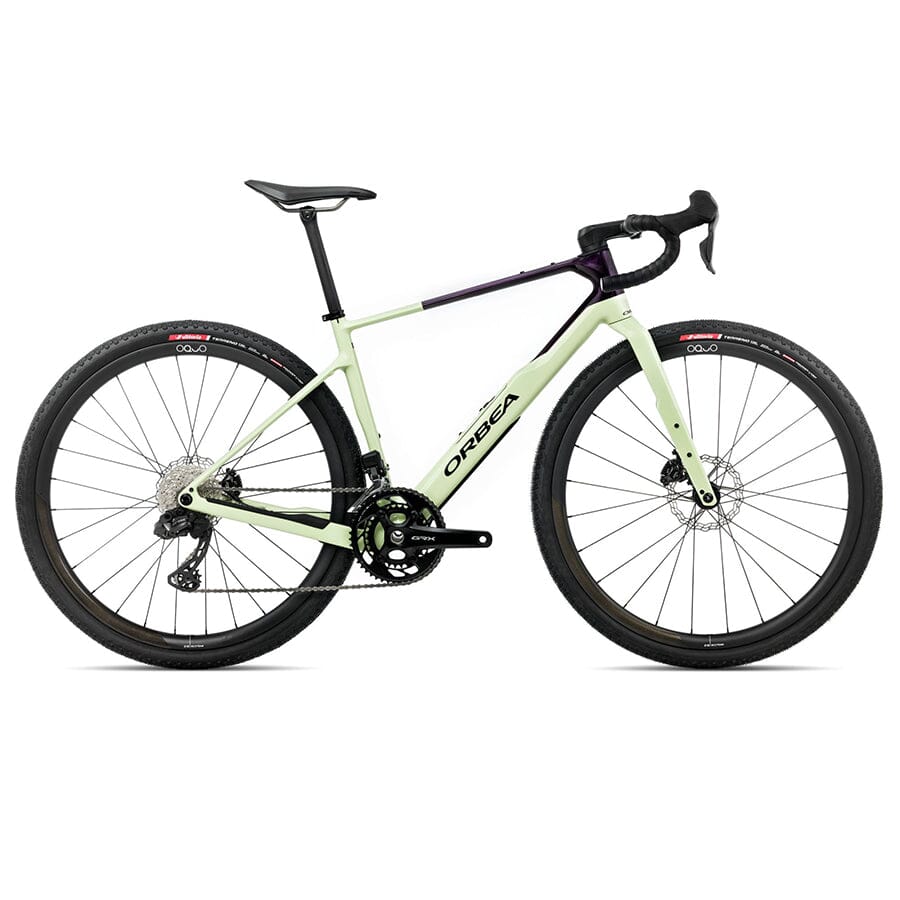

Orbea Terra M20ITEAM
Product Details
The Orbea Terra M20ITEAM is a versatile gravel and endurance bike engineered to excel across all terrain types. Designed for riders seeking adventure without compromise, it combines lightweight OMR carbon construction with gravel-optimized geometry, generous tire clearance, and high-performance components to deliver stability, comfort, and speed on both smooth tarmac and rugged trails. Whether racing to the horizon or exploring uncharted paths, the Terra is built to keep riders confident and in control over any distance.
At the core of the Terra M20ITEAM is the OMR carbon frame, featuring a vibration-damping design that filters trail chatter and enhances comfort on long rides. The geometry is tailored for endurance and precision: a slightly upright riding position, longer reach, higher stack, and extended wheelbase provide stability, centered weight distribution, and confident handling over rough surfaces. Size-specific fork trail ensures balanced steering for riders of all dimensions, while the 27.2mm seatpost flexes to absorb shocks, further improving ride quality.
The Terra M20ITEAM accommodates wide tires up to 50C, allowing for maximum traction and control, while dropper post compatibility adds confidence on technical descents. Its multiple mounting points and SWAT-ready storage options enable riders to carry all essentials securely on long adventures. The Oquo Road Control RC30TEAM wheelset paired with high-volume tires provides a stable, responsive ride for gravel, mixed surfaces, and endurance events.
Equipped with a Shimano GRX Di2 RX825 2x12 electronic drivetrain, the Terra M20ITEAM offers precise, reliable shifting for climbing, sprinting, and varied terrain performance. Hydraulic disc brakes deliver consistent stopping power in all conditions, making the bike as dependable as it is capable. Universal Derailleur Hanger (UDH) compatibility ensures easy maintenance and component swaps, enhancing long-term usability.
With its blend of endurance geometry, high-performance carbon engineering, and versatile componentry, the Orbea Terra M20ITEAM is perfect for riders who demand comfort, control, and adaptability on every adventure.
Key Features
- Frame: Orbea Terra Carbon OMR Disc, Monocoque Construction
- Drivetrain: Shimano GRX Di2 RX825 2x12
- Wheelset: Oquo Road Control RC30TEAM
| Specification | Detail |
|---|---|
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS multi mount system, fender ready |
| Fork | Orbea Terra Race ICR, full carbon, 1-1/8"–1.5" tapered, Thru Axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready |
| Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano GRX RX820 31x48T |
| Shifters | Shimano GRX Di2 RX825 |
| Cassette | Shimano Ultegra R8100 11-34T, 12-Speed |
| Rear Derailleur | Shimano GRX Di2 RX825 |
| Front Derailleur | Shimano GRX Di2 RX825 |
| Chain | Shimano M7100 |
| Handlebar | OC Gravel GR10 Carbon, Reach 70, Drop 110 |
| Stem | OC Road Performance RP11, -8º |
| Brakes | Shimano RX820 Hydraulic Disc |
| Wheels | Oquo Road Control RC30TEAM |
| Tyres | Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle | Fizik Terra Argo X3 Kium Rail 140mm |
| Handlebar Tape | Orbea Anti-Slippery / Shock Proof |
| Mudguard | N/A |
| Storage | Accessories Containers |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 410 | 440 | 470 | 505 | 540 | 575 |
| Top Tube (EFF) | 535 | 547 | 561 | 573 | 585 | 596 |
| Head Tube | 110 | 132.5 | 153.5 | 175 | 198 | 218 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| BB Height | 261 | 261 | 261 | 261 | 261 | 261 |
| Wheelbase | 1031 | 1041 | 1052 | 1061 | 1072 | 1081 |
| Head Angle | 69 | 69.5 | 70 | 70.5 | 70.8 | 71 |
| Seat Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Standover | 690 | 717 | 743 | 772 | 801 | 828 |
| Reach | 386 | 392 | 400 | 406 | 412 | 417 |
| Stack | 535 | 558 | 580 | 602 | 625 | 645 |
| Fork Length | 395 | 395 | 395 | 395 | 395 | 395 |
| Trail | 82.7 | 79.5 | 76.2 | 73 | 71.4 | 69.8 |
