Product Details

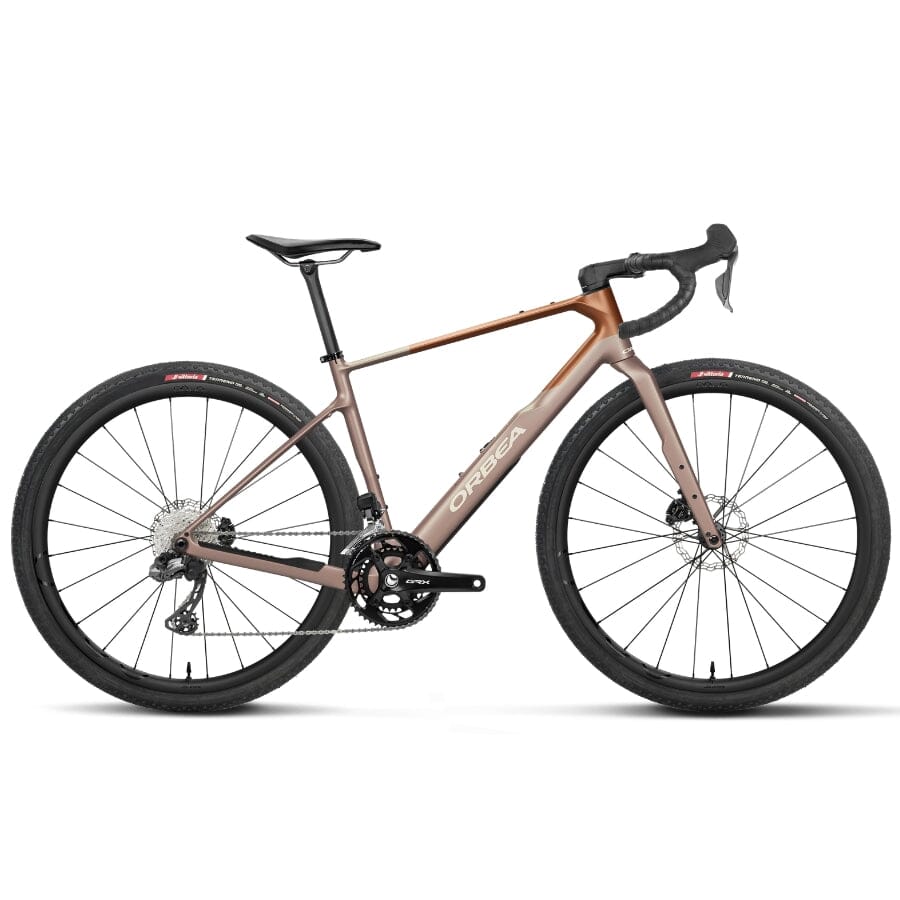

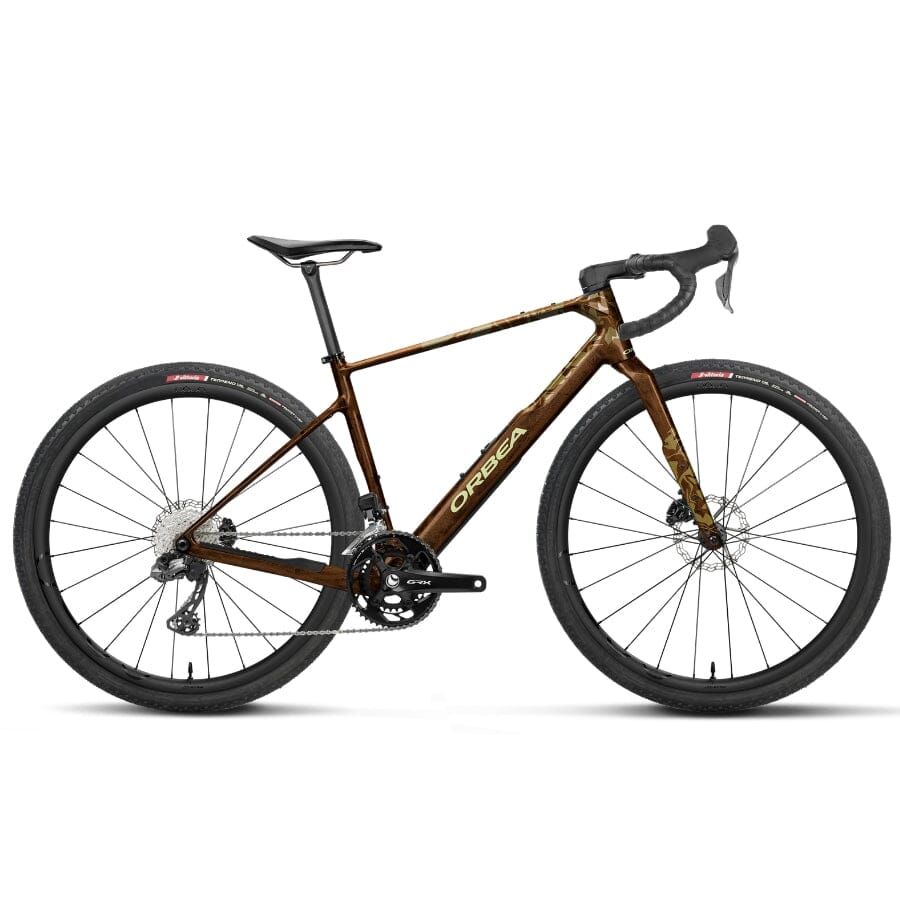

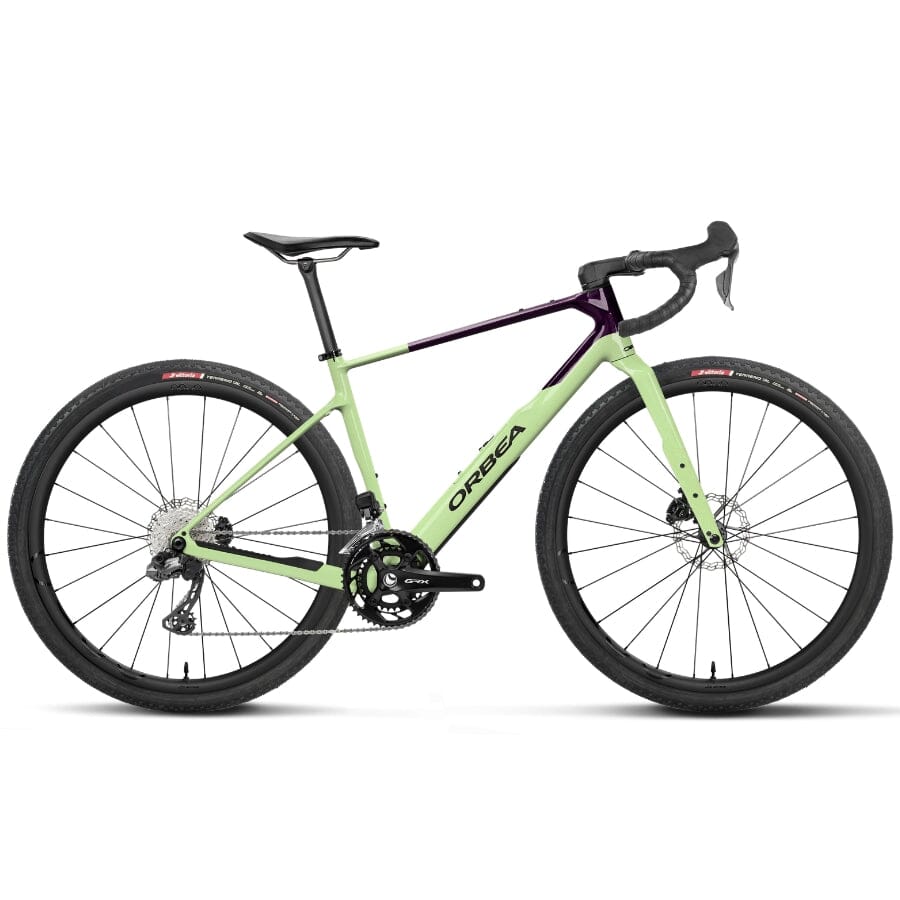

The Orbea Terra M20iTEAM is a premium gravel bike designed for riders who seek versatility, performance, and cutting-edge technology. At its core is the lightweight Orbea Terra carbon OMR frame, meticulously engineered with a monocoque construction for exceptional strength and responsiveness. The frame features integrated cable routing, a LOCKR service box for discreet storage, and a PF30 bottom bracket for optimal power transfer. Paired with the Orbea Terra ICR full carbon fork, this bike ensures precise handling and stability on diverse terrains.
Equipped with Shimano’s GRX Di2 RX825 electronic groupset, the Terra M20iTEAM provides effortless shifting with the reliability needed for gravel adventures. The 31x48t crankset, combined with the Shimano Ultegra R8100 12-speed cassette, delivers a broad gear range for tackling steep climbs, rolling terrain, or fast flats. Hydraulic disc brakes from Shimano ensure powerful and consistent braking performance, regardless of the weather or trail conditions. Vittoria Terreno Dry CX-Gravel tires mounted on Oquo Road Control RC25TEAM wheels offer a perfect balance of traction and speed, making this bike a true all-terrain performer.
Designed for comfort and control, the Terra M20iTEAM features an Easton EC90 AX Carbon handlebar with a 16º flare for added stability, and an OC Road Performance RP11 stem for precise steering. The OC Performance XP10 Carbon seatpost and Prologo Akero AGX saddle provide excellent support for long rides, reducing fatigue on extended adventures.
Whether you’re exploring gravel paths, tackling technical terrain, or clocking miles on the open road, the Orbea Terra M20iTEAM delivers the performance, reliability, and innovation to make every ride unforgettable. With its advanced components and thoughtful design, this bike invites you to venture further and push your limits with confidence.
KEY FEATURES
- Orbea Terra Carbon OMR Disc Frame
- Orbea Terra ICR Full Carbon Fork
- Shimano GRX Di2 RX825 Electronic Groupset
- Shimano Ultegra R8100 11-34t 12-Speed Cassette
- Shimano RX820 Hydraulic Disc Brakes
- Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c Tires
*Please note that bike specifications are subject to change without prior notice |
Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box |
---|---|
Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
Crankset | Shimano GRX RX820 31x48t |
Shifters | Shimano GRX Di2 RX825 |
Cassette | Shimano Ultegra R8100 11-34t 12-Speed |
Rear Derailleur | Shimano GRX Di2 RX825 |
Front Derailleur | Shimano GRX Di2 RX825 |
Chain | Shimano M7100 |
Handlebar | Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
Stem | OC Road Performance RP11, -8º |
Brakes | Shimano RX820 Hydraulic Disc |
Wheels | Oquo Road Control RC25TEAM |
Tyres | Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c |
Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
Saddle | Prologo Akero AGX black rails size 155mm |
Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
Storage | Accessories Containers |
Size | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
Seat Tube (C-T) | 405 | 438 | 471 | 504 | 537 | 570 |
Top Tube (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
Head Tube | 110 | 131 | 152 | 178 | 199 | 220 |
Chainstay | 420 | 420 | 420 | 420 | 420 | 420 |
BB Height | 263/278 | 263/278 | 263/278 | 265/280 | 265/280 | 265/280 |
BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
Wheelbase | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
Head Angle | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
Seat Angle | 74º | 74º | 73.5º | 73.5º | 73º | 73º |
Standover | 713/727 | 746/755 | 768/783 | 798/813 | 825/840 | 853/868 |
Reach | 375 | 382 | 389 | 395 | 402 | 409 |
Stack | 526 | 548 | 570 | 592 | 614 | 636 |
Fork Length | 390 | 390 | 390 | 390 | 390 | 390 |
Rake | - | - | - | - | - | - |
Trail | 66/71 | 62/68 | 59/64 | 59/64 | 56/61 | 53/58 |
