Product Details

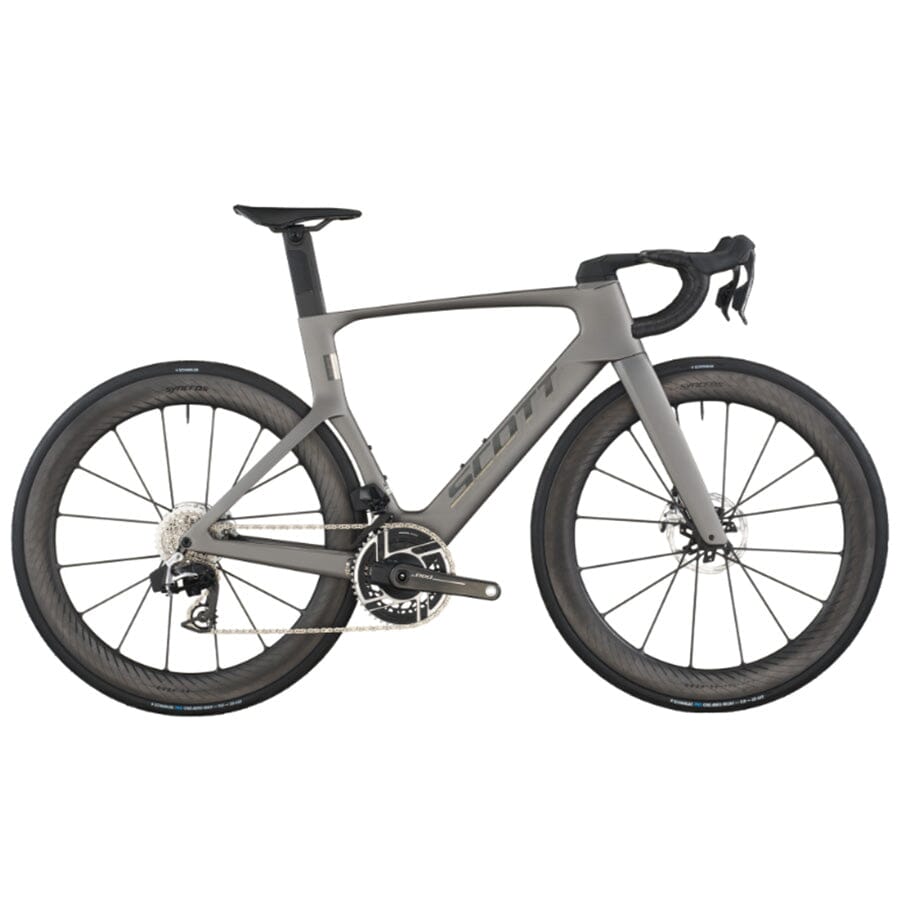

The SCOTT Foil RC Ultimate represents the fastest road bike SCOTT has ever produced, shaped by relentless aerodynamic development and refined through proprietary F01 Airfoil Technology. Every tube profile and junction is optimized to minimize drag, with performance validated through advanced computer simulation and extensive wind tunnel testing. The result is a race-focused machine designed to convert every watt into forward momentum, delivering uncompromising speed at the highest level.
An oversized head tube sits at the front of the Foil RC, acting as an aerodynamic fairing that splits oncoming air while enabling fully integrated cabling for both mechanical and electronic drivetrains. This clean integration works in tandem with dropped seatstays angled inward at 10 degrees, guiding airflow into the spinning spokes for measurable aerodynamic gains. The dropped design also conceals the disc brake calipers, further reducing drag while maintaining a sleek, modern aesthetic.
The Syncros Creston iC SL Aero cockpit is wind tunnel–optimized to match the Foil’s elite aerodynamic performance. Its refined profile slices efficiently through the air, while adaptive compliance provides comfort on the hoods and increased stiffness when riders move into the drops to sprint or attack, ensuring efficient power transfer under heavy load.
At the rear, the patented Syncros Duncan SL Aero CFT seatpost features a two-part carbon construction that flexes over rough pavement, light gravel, or cobbles. This controlled compliance keeps riders planted in the saddle, maintaining consistent power delivery without compromising the bike’s aerodynamic efficiency.
Developed from more than 300 simulated frame designs, the Foil RC Ultimate achieves a 30% reduction in carbon joints and a 9% weight savings compared to the previous generation, all while preserving the stiffness required for explosive acceleration. Finished with SRAM RED AXS wireless shifting and Zipp 454 NSW carbon wheels, the Foil RC Ultimate is built to win when speed matters most.
Key Features
- Frame – FOIL RC HMX SL carbon frame and fork
- Drivetrain – SRAM RED AXS wireless electronic 2x12
- Wheelset – Zipp 454 NSW carbon wheelset
| Specification | Details |
|---|---|
| Frame | FOIL RC HMX SL, Road Race geometry, Replaceable Derailleur Hanger, internal cable routing |
| Fork | FOIL RC HMX SL, Flatmount Disc, 1" Eccentric Carbon steerer |
| Rear Derailleur | SRAM RED AXS, 24-speed electronic shift system |
| Front Derailleur | SRAM RED AXS Electronic Shift System |
| Shifters | SRAM RED AXS HRD Shift-Brake System |
| Crankset | SRAM RED Power Meter Crankset, 48/35 |
| Bottom Bracket | SRAM DUB PF ROAD 86.5 |
| Chain | SRAM RED |
| Cassette | SRAM RED XG1290 E1, 10-33 |
| Brakes | SRAM RED AXS HRD Shift-Brake System |
| Rotor | SRAM PACELINE X rotor, 160mm front / 140mm rear |
| Handlebar | Syncros Creston iC SL Aero |
| Seatpost | Syncros Duncan SL Aero CFT |
| Seat | Syncros Belcarra V 1.0 NEO Cut Out |
| Headset | Acros AIF-626S |
| Wheelset | Zipp 454 NSW TL Carbon, Front 12x100mm / Rear 12x142mm TA, Syncros SL axle w/ removable lever & tool |
| Front Tire | Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C |
| Rear Tire | Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C |
| Approx. Weight (kg) | 6.8 |
| Approx. Weight (lbs) | 14.99 |
| Max. System Weight | 120kg |
| Measurement | XXS / 47 | XS / 49 | S / 52 | M / 54 | L / 56 | XL / 58 | XXL / 61 |
|---|---|---|---|---|---|---|---|
| Head Tube Angle | 70.5° | 71.0° | 72.0° | 72.5° | 73.0° | 73.3° | 73.3° |
| Head Tube Length (mm) | 103 | 108 | 121 | 141 | 161 | 181 | 199 |
| Top Tube Length, Horizontal (mm) | 520 | 530 | 540 | 550 | 565 | 580 | 600 |
| Standover Height (mm) | 746.4 | 759.6 | 779.4 | 801 | 820 | 838 | 853.3 |
| BB Offset (mm) | -70 | -70 | -70 | -70 | -70 | -70 | -70 |
| BB Height (mm) | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 | 274.5 |
| Wheelbase (mm) | 987.7 | 993.7 | 990.7 | 992.6 | 999.9 | 1008.6 | 1022.7 |
| BB Center to Top of Seat Tube (mm) | 451.8 | 481.9 | 502.4 | 522.6 | 542.4 | 559.8 | 572.4 |
| Seat Tube Angle | 74.5° | 74.5° | 74.0° | 73.6° | 73.3° | 73.0° | 72.5° |
| Chainstay Length (mm) | 412 | 412 | 412 | 412 | 412 | 412 | 412 |
| Reach (mm) | 380 | 388 | 389 | 389 | 394.5 | 400 | 409 |
| Stack (mm) | 505 | 511 | 527 | 548 | 568 | 589 | 606 |
| Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 | 120 |
