SCOTT Foil RC Ultimate BIKES SCOTT Bikes Tungsten Grey XS
SKU: 4273738350006
In Stock
On Sale

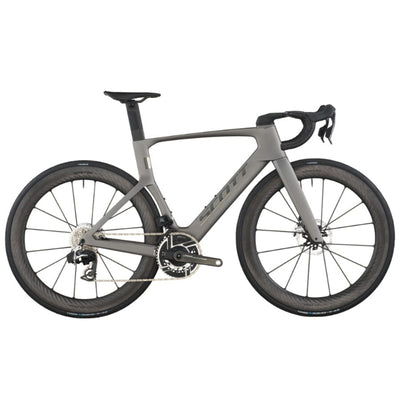

SCOTT Foil RC Ultimate

Regular price $12,999.99
Regular price $12,999.99 Sale price $12,999.99

Please note: SCOTT has updated the wheel specification on this build. Refer to the spec table to see the current wheels included with the bike or contact us for more information.

Color
Size
Your satisfaction is our top priority.

Product Details

The SCOTT Foil RC Ultimate represents the fastest road bike SCOTT has ever produced, shaped by relentless aerodynamic development and refined through proprietary F01 Airfoil Technology. Every tube profile and junction is optimized to minimize drag, with performance validated through advanced computer simulation and extensive wind tunnel testing. The result is a race-focused machine designed to convert every watt into forward momentum, delivering uncompromising speed at the highest level.

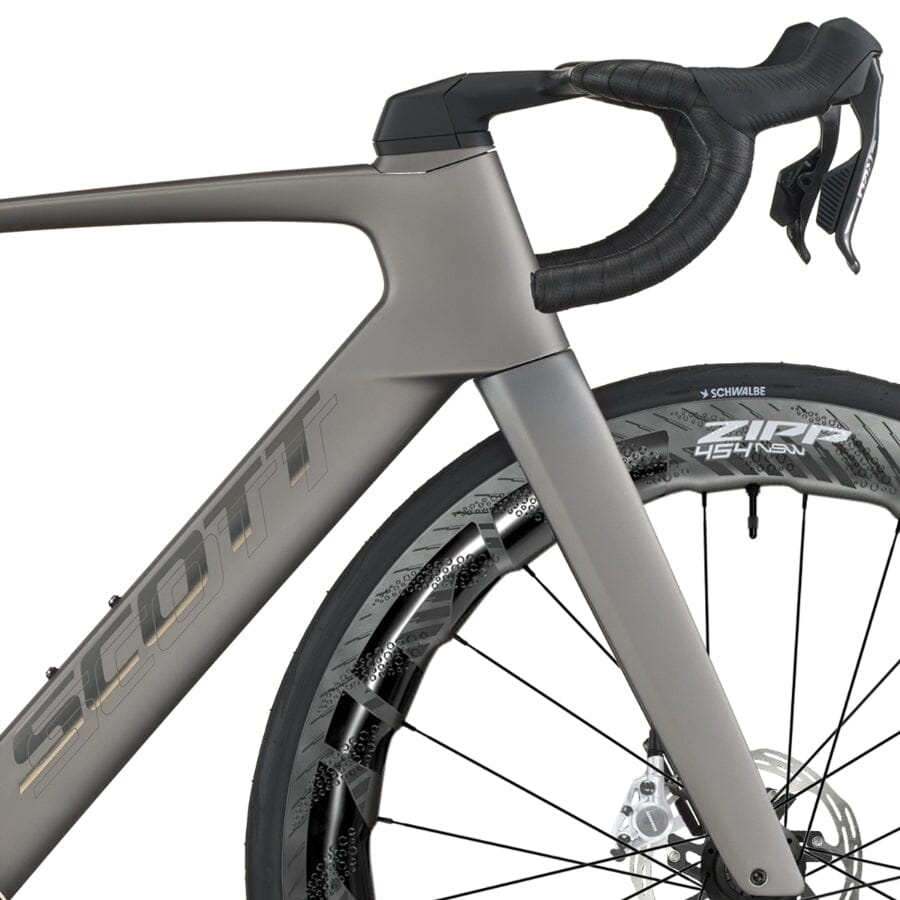

An oversized head tube sits at the front of the Foil RC, acting as an aerodynamic fairing that splits oncoming air while enabling fully integrated cabling for both mechanical and electronic drivetrains. This clean integration works in tandem with dropped seatstays angled inward at 10 degrees, guiding airflow into the spinning spokes for measurable aerodynamic gains. The dropped design also conceals the disc brake calipers, further reducing drag while maintaining a sleek, modern aesthetic.

The Syncros Creston iC SL Aero cockpit is wind tunnel–optimized to match the Foil’s elite aerodynamic performance. Its refined profile slices efficiently through the air, while adaptive compliance provides comfort on the hoods and increased stiffness when riders move into the drops to sprint or attack, ensuring efficient power transfer under heavy load.

At the rear, the patented Syncros Duncan SL Aero CFT seatpost features a two-part carbon construction that flexes over rough pavement, light gravel, or cobbles. This controlled compliance keeps riders planted in the saddle, maintaining consistent power delivery without compromising the bike’s aerodynamic efficiency.

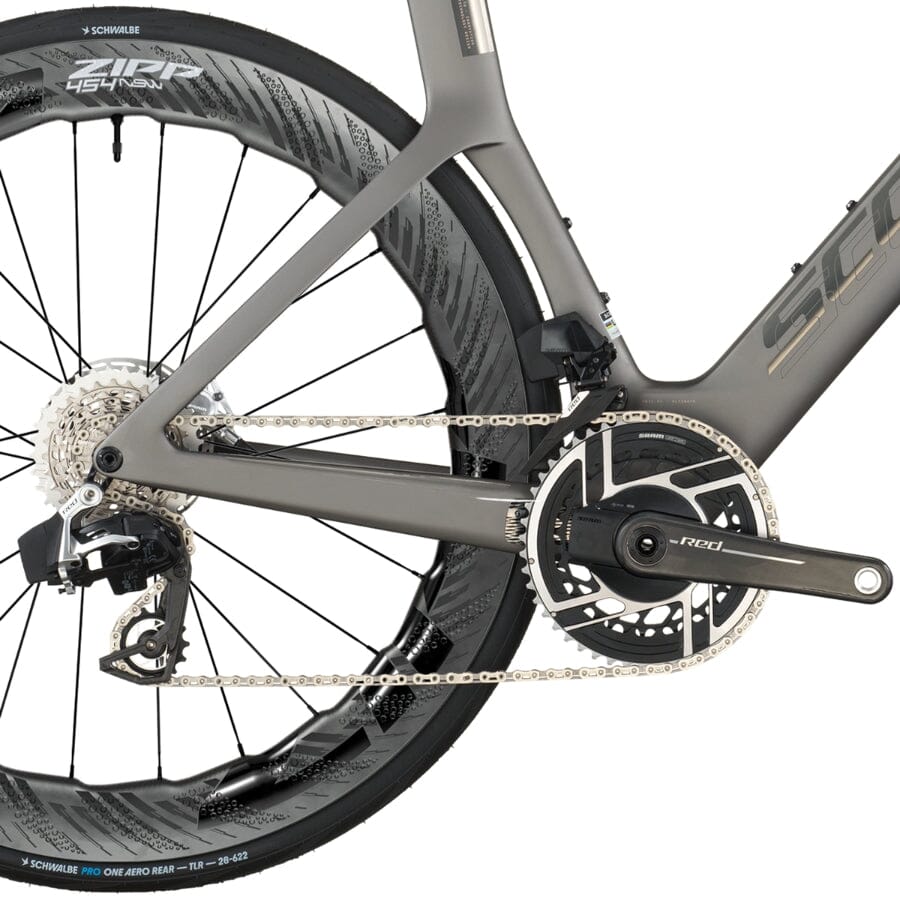

Developed from more than 300 simulated frame designs, the Foil RC Ultimate achieves a 30% reduction in carbon joints and a 9% weight savings compared to the previous generation, all while preserving the stiffness required for explosive acceleration. Finished with SRAM RED AXS wireless shifting and Zipp 454 NSW carbon wheels, the Foil RC Ultimate is built to win when speed matters most.

Key Features

  • Frame – FOIL RC HMX SL carbon frame and fork
  • Drivetrain – SRAM RED AXS wireless electronic 2x12
  • Wheelset – Zipp 454 NSW carbon wheelset
*Please note that bike specifications are subject to change without prior notice
Specification Details
Frame FOIL RC HMX SL, Road Race geometry, Replaceable Derailleur Hanger, internal cable routing
Fork FOIL RC HMX SL, Flatmount Disc, 1" Eccentric Carbon steerer
Rear Derailleur SRAM RED AXS, 24-speed electronic shift system
Front Derailleur SRAM RED AXS Electronic Shift System
Shifters SRAM RED AXS HRD Shift-Brake System
Crankset SRAM RED Power Meter Crankset, 48/35
Bottom Bracket SRAM DUB PF ROAD 86.5
Chain SRAM RED
Cassette SRAM RED XG1290 E1, 10-33
Brakes SRAM RED AXS HRD Shift-Brake System
Rotor SRAM PACELINE X rotor, 160mm front / 140mm rear
Handlebar Syncros Creston iC SL Aero
Seatpost Syncros Duncan SL Aero CFT
Seat Syncros Belcarra V 1.0 NEO Cut Out
Headset Acros AIF-626S
Wheelset Zipp 454 NSW TL Carbon, Front 12x100mm / Rear 12x142mm TA, Syncros SL axle w/ removable lever & tool
Front Tire Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Rear Tire Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Approx. Weight (kg) 6.8
Approx. Weight (lbs) 14.99
Max. System Weight 120kg
Measurement XXS / 47 XS / 49 S / 52 M / 54 L / 56 XL / 58 XXL / 61
Head Tube Angle 70.5° 71.0° 72.0° 72.5° 73.0° 73.3° 73.3°
Head Tube Length (mm) 103 108 121 141 161 181 199
Top Tube Length, Horizontal (mm) 520 530 540 550 565 580 600
Standover Height (mm) 746.4 759.6 779.4 801 820 838 853.3
BB Offset (mm) -70 -70 -70 -70 -70 -70 -70
BB Height (mm) 274.5 274.5 274.5 274.5 274.5 274.5 274.5
Wheelbase (mm) 987.7 993.7 990.7 992.6 999.9 1008.6 1022.7
BB Center to Top of Seat Tube (mm) 451.8 481.9 502.4 522.6 542.4 559.8 572.4
Seat Tube Angle 74.5° 74.5° 74.0° 73.6° 73.3° 73.0° 72.5°
Chainstay Length (mm) 412 412 412 412 412 412 412
Reach (mm) 380 388 389 389 394.5 400 409
Stack (mm) 505 511 527 548 568 589 606
Stem Length (mm) 80 90 100 110 110 120 120
