Product Details

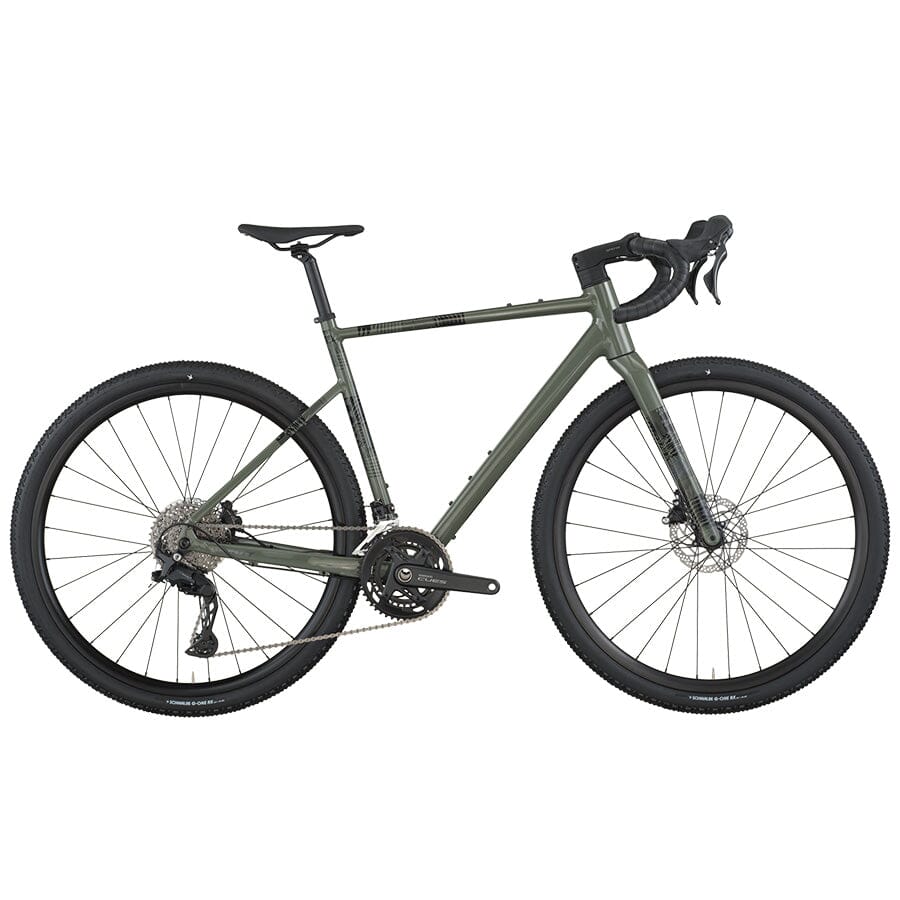

The SCOTT Speedster Gravel 20 is designed for riders ready to explore where the path gets less traveled, delivering versatile gravel performance at an accessible price point. This alloy gravel bike combines comfortable geometry engineered for all-day rides with practical features that make venturing off-road both capable and enjoyable. Whether tackling weekend gravel adventures, commuting on mixed surfaces, or discovering new routes beyond the pavement, the Speedster Gravel 20 is the one-stop solution for riders seeking adventure without compromise.
Built on the Speedster Gravel alloy frame paired with a lightweight Speedster Gravel carbon fork, this platform strikes the ideal balance between durability and performance. The fully internal cable routing maintains clean aesthetics while protecting cables from the elements and trail debris, ensuring reliable shifting and braking even when conditions get rough. The comfortable endurance geometry provides a confident, relaxed riding position that reduces fatigue on extended gravel explorations.
Room for big tires defines the Speedster Gravel 20's versatility, accommodating the included Schwalbe G-One RX tires that deliver excellent traction and cushioning across varied terrain. The reliable Shimano CUES 6000 Disc drivetrain with 20-speed gearing provides the range needed for tackling steep gravel climbs and fast rolling sections, while the Alex Race X25 Disc wheelset offers dependable performance whether navigating washboard fire roads or smooth hardpack.
Perfect for riders seeking their first dedicated gravel bike or a capable do-everything machine for mixed-surface riding, the SCOTT Speedster Gravel 20 delivers adventure-ready performance with practical features that make off-road exploration accessible and enjoyable for all-day rides.
Key Features
- Frame - Speedster Gravel Alloy with Speedster Gravel Carbon Fork
- Drivetrain - Shimano CUES 6000 Disc 20-Speed
- Wheelset - Alex Race X25 Disc with Schwalbe G-One RX Tires
| Specification | Detail |
|---|---|
| Frame | Speedster Gravel, D.Butted 6061 Alloy, SCOTT Gravel Geometry, Replaceable UDH Derailleur Hanger, Internal Cable Routing, Syncros Fender Kit Ready |
| Fork | 1 1/4"-1 1/2" Eccentric Carbon Steerer, Speedster Gravel HMF Flatmount Disc |
| Rear Derailleur | Shimano CUES RD-U6020-10, 20 Speed |
| Front Derailleur | Shimano CUES FD-U6030 |
| Shifters | Shimano CUES BR-RS405 / ST-U6030-10/11 |
| Crankset | Shimano CUES FC-U6040-2-46/32T |
| Bottom Bracket | Shimano BB-RS500 |
| Chain | Shimano CN-LG500 |
| Cassette | Shimano CS-LG400-10, 11-39T |
| Brakes | Shimano BR-RS405 Hydraulic Disc |
| Rotors | Shimano SM-RT300S Center Lock, 160mm Front / 160mm Rear |
| Handlebar | Syncros Creston 2.0 X, Alloy 31.8mm |
| Stem | Syncros RR2.5 1 1/4", Four Bolt, 31.8mm |
| Seatpost | Syncros RR2.5 27.2 / 350mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Headset | Acros AIF-1133 |
| Front Hub | Formula Team II CL Disc, 28H |
| Rear Hub | Formula Team II CL Disc, 28H |
| Rims | Alex Race X25 Disc, 28 Front / 28 Rear |
| Spokes | Black 2mm |
| Front Tire | Schwalbe G-One RX, 700x45C |
| Rear Tire | Schwalbe G-One RX, 700x45C |
| Weight | Approx. 11.3 kg / 24.91 lbs |
| Max System Weight | 120 kg (Total weight including bike, rider, equipment, and additional luggage) |
| Measurement | XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 |
|---|---|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length (mm) | 98.0 | 108.0 | 128.0 | 148.0 | 168.0 | 188.0 | 208.0 |
| Top Tube Horizontal (mm) | 512.6 | 524.1 | 538.6 | 561.1 | 577.6 | 587.5 | 600.4 |
| Standover Height (mm) | 747.0 | 762.0 | 786.0 | 806.0 | 825.0 | 844.0 | 869.0 |
| BB Offset (mm) | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 |
| BB Height (mm) | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 |
| Wheel Base (mm) | 1,019.5 | 1,026.9 | 1,037.7 | 1,044.9 | 1,056.4 | 1,067.0 | 1,071.3 |
| BB Center To Toptube Center (mm) | 430.0 | 450.0 | 480.0 | 500.0 | 520.0 | 540.0 | 570.0 |
| BB Center To Top Of Seattube (mm) | 470.0 | 490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 |
| Seat Angle | 75.0° | 74.5° | 74.0° | 73.0° | 72.5° | 72.5° | 72.5° |
| Chainstay (mm) | 435.0 | 435.0 | 435.0 | 439.0 | 439.0 | 439.0 | 439.0 |
| Reach (mm) | 372.3 | 376.3 | 380.3 | 385.4 | 390.4 | 394.4 | 401.4 |
| Stack (mm) | 523.7 | 533.1 | 551.9 | 574.8 | 593.7 | 612.6 | 631.5 |
| Stem Length (mm) | 73.0 | 83.0 | 93.0 | 103.0 | 103.0 | 113.0 | 113.0 |
