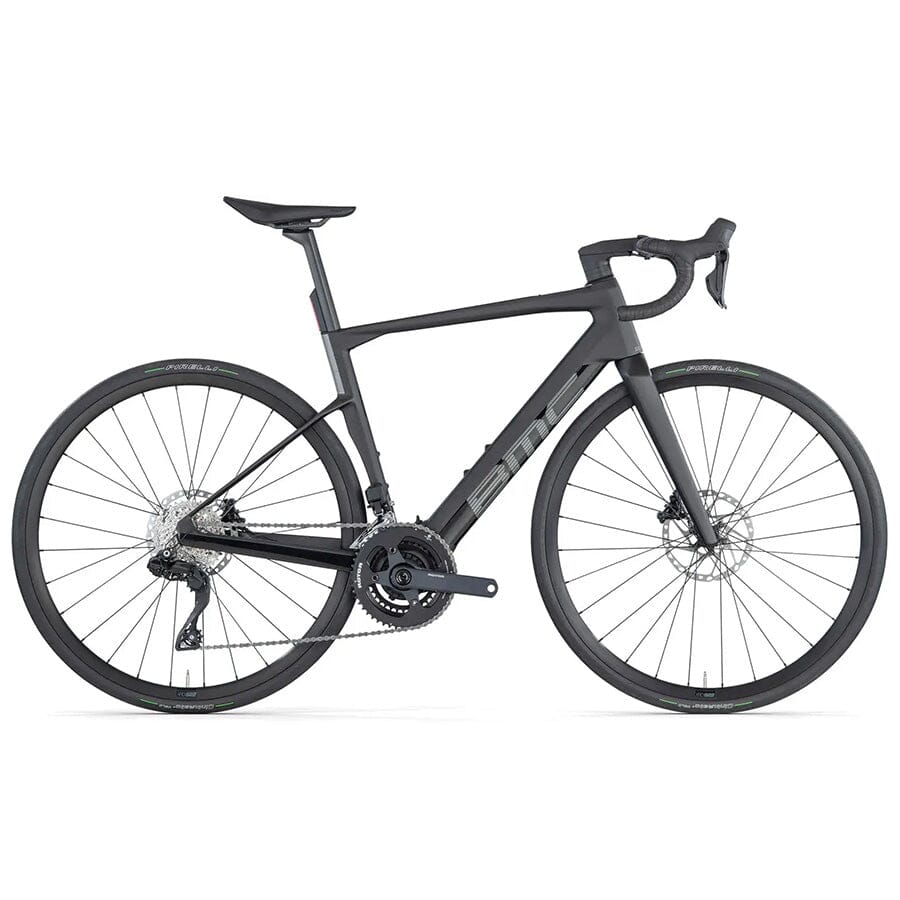

BMC Roadmachine 01 AMP THREE
Product Details
The BMC Roadmachine 01 AMP THREE electric road bike represents the evolution of endurance cycling, designed for riders who demand the freedom to push limits and explore beyond traditional boundaries. Continuing the prestigious Roadmachine lineage, this premium electric road bike combines a technically refined design with the exceptionally light and quiet Class 3 TQ-HPR50 system, seamlessly integrated into the premium carbon frame for an uncompromising aesthetic and natural ride experience.
Built around BMC's most capable version of the Tuned Compliance Concept Endurance technology, the Roadmachine 01 AMP THREE delivers the ultimate balance between comfort and performance. This advanced engineering takes the edge off the roughest roads, absorbing vibrations and impacts while maintaining the stiffness needed for efficient power transfer. The result is a fast yet forgiving ride that enables longer distances and harder efforts without compromise.
The powerful TQ-HPR50 drive unit extends every journey with smooth, natural pedal assist that feels intuitive and responsive. The integrated 360Wh TQ battery provides substantial range while maintaining clean frame lines, complemented by integrated safety features including a custom BMC backlight connected directly to the battery. The advanced ICS2 integration system delivers significant weight savings, high stiffness, and clean aesthetics with integrated device mounts for popular accessories.
Perfect for riders seeking to expand their riding horizons, the Roadmachine 01 AMP THREE combines reliable Shimano 105 Di2 electronic shifting with tubeless-ready XRD-522 wheels and generous tire clearance. This electric road bike transforms every route into a possibility, delivering the performance details needed to make every road your reality.
Key Features
- Frame – Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance
- Motor – TQ-HPR50 Drive Unit Class 3 with TQ Battery 360Wh (UL Certified)
- Drivetrain – Shimano 105 Di2 Electronic Shifting
- Wheelset – XRD-522 Tubeless Ready (25mm Internal Width)
| Category | Specification |
|---|---|
| Frame | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Internal Cable Routing | ICS Technology Stealth Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Roadmachine 01 AMP | 01 Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Drive Unit | TQ-HPR50 Drive Unit |
| Battery Pack | TQ Battery | 360 Wh | Certified by UL LLC | NYC Lithium-Ion Battery Safety Guidelines |
| Display | TQ Display | 2" O-LED | Bluetooth / ANT+ |
| Charger | TQ-HPR50 4A Charger |
| Stem | BMC ICS2 | Integrated Cockpit System Technology |
| Handlebar | BMC RAB 02 | Ergo Top Shape | Compact Bend |
| Seatpost | Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
| Saddle | Fizik Argo Tempo R5 | 150mm |
| Crankset | Rotor eVegast |
| Chainrings | 50-34T |
| Cassette | SHIMANO (CS-HG710) | 11-36T |
| Chain | SHIMANO CN-M8100 |
| Front Derailleur | SHIMANO 105 Di2 (FD-R7150) |
| Rear Derailleur | SHIMANO 105 Di2 (RD-R7150) |
| Shifters | SHIMANO 105 Di2 (ST-R7170) |
| Gears | 2 x 12 |
| Brakes | SHIMANO 105 (BR-R7170) |
| Rotors | SHIMANO SM-RT64 | Centerlock | 180/180mm |
| Rims | XRD-522 | Tubeless Ready | 25 mm |
| Hubs | XRD-522 (F/R) |
| Tires | Pirelli Cinturato Velo TLR | 32mm |
| Tubeless Info | Tubeless Ready Rims | Tubetype Tires |
| Accessories | Integrated Rear Light |
| Tire Clearance | Up to 38mm measured (frameset clearance) but limited to 34mm measured by front derailleur |
| Weight (w/o pedals) | 13.1 Kg |
| System Weight Limit | 120 Kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <162 | 162–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width (mm) | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
| Fork Length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
| Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4° | 71.4° | 72.2° | 72.2° | 72.2° | 72.2° |
| Rear Center (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Seat Tube (mm) | 420 | 460 | 500 | 525 | 545 | 575 |
| Seatpost Length (mm) | 330 | 380 | 380 | 380 | 380 | 430 |
| Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height (mm) | 728 | 755 | 786 | 810 | 829 | 850 |
| Stem Angle | -12.5° | -12.5° | -12.5° | -12.5° | -12.5° | -12.5° |
| Stem Length (mm) | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube (mm) | 519 | 535 | 544 | 556 | 568 | 581 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
