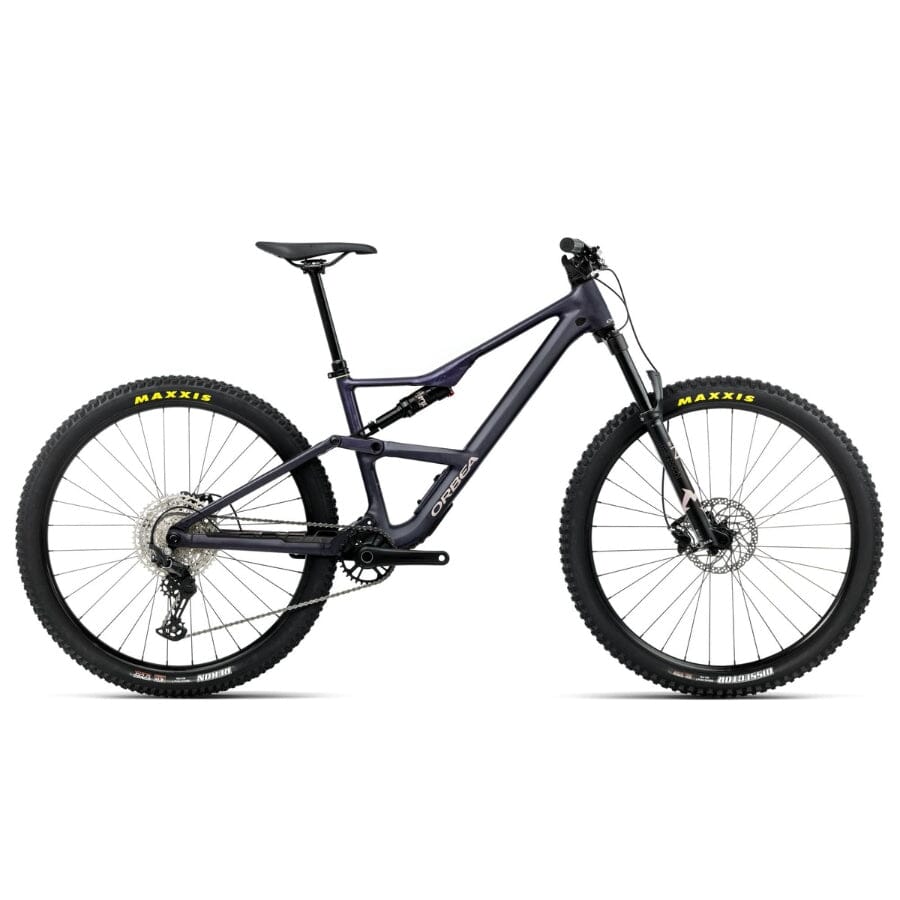

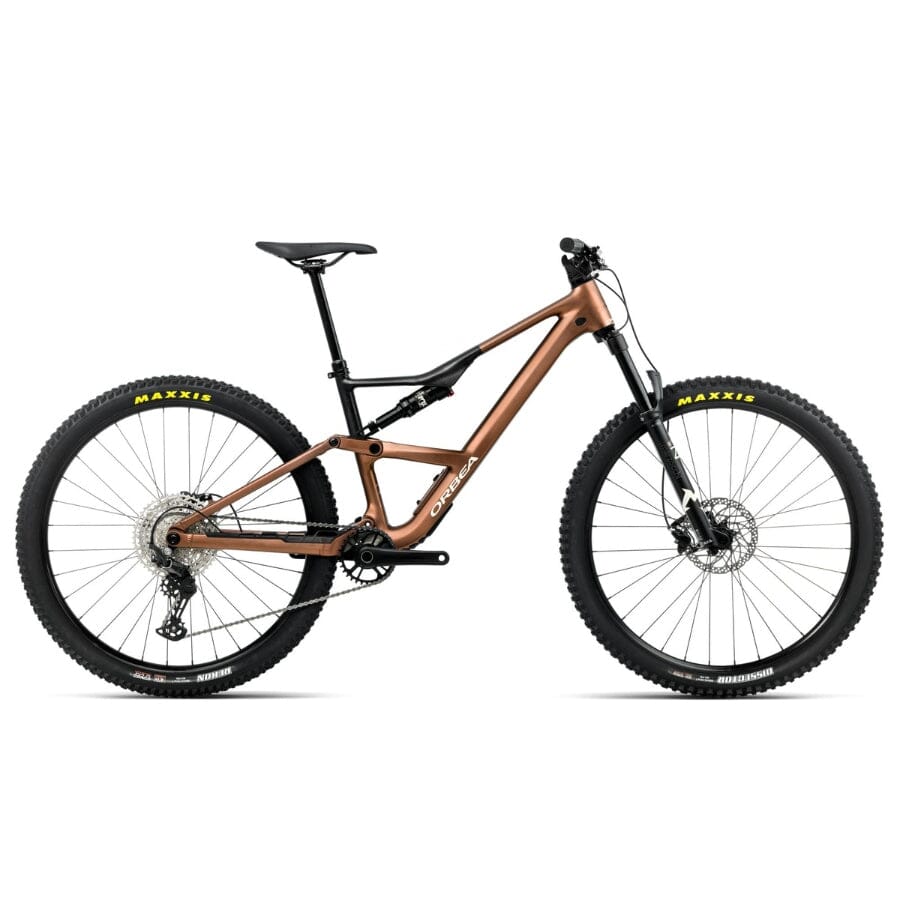

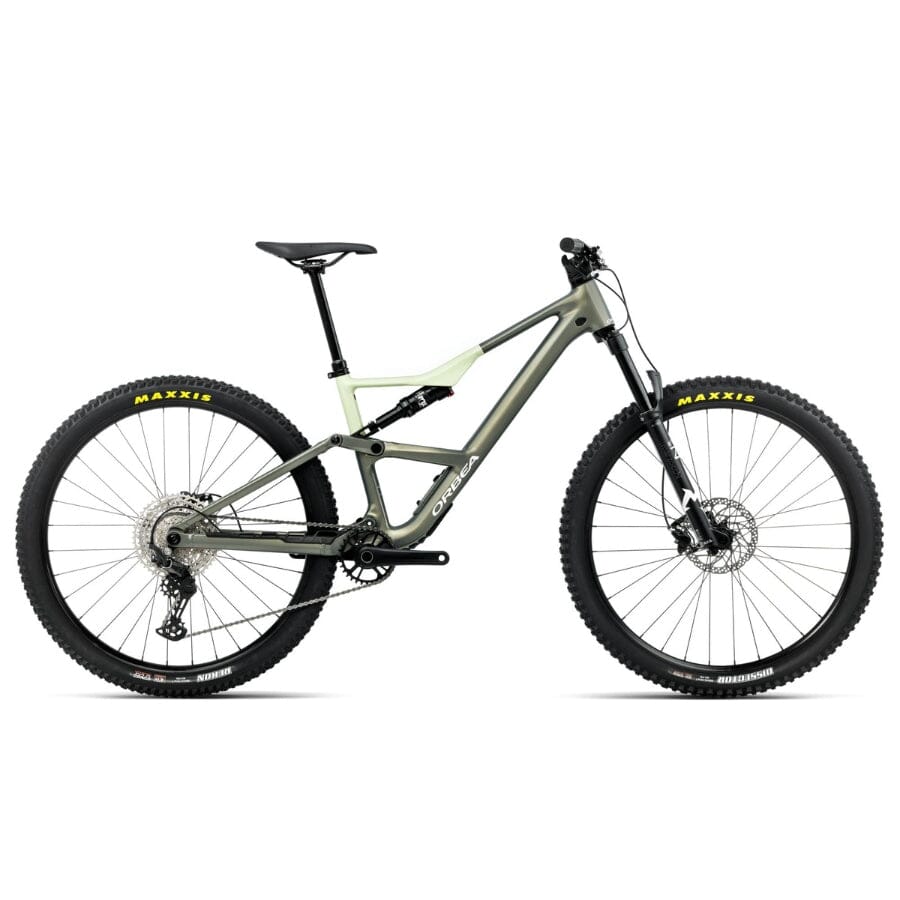

Orbea Occam SL H30
Product Details
The Orbea Occam SL H30 is built for riders who dream big and ride far, designed to match any vision of adventure, whether that means razor efficiency and instinctive handling or floating jumps, railing high mountain corners, and pulling up over technical features. This lightweight and efficient trail machine is made to cover serious ground with speed and flow, adapting to whatever adventure the trail throws your way.
Built around the advanced Orbea Occam Hydro frame with concentric pivot design, this no-compromise trail machine delivers 140mm of front and rear travel with fast trail geometry that balances climbing efficiency with descending confidence. The innovative concentric pivot design provides linear-progressive suspension feel that remains neutral and confident under braking, with consistency across rough terrain and repeated hits. Advanced anti-squat tuning ensures exceptional pedaling efficiency, making the Occam SL climb with surprising agility for a 140mm bike.
The adjustable geometry system allows riders to fine-tune their setup to match terrain and riding style. The headset angle adjusts ±0.75 degrees using offset headset cups, allowing riders to choose between a slacker 64.5-degree setting for aggressive trail shredding or a steeper 66-degree angle for more reactive XC-style handling. The steep 78-degree seat angle ensures an efficient pedaling position, while the uninterrupted seat tube accommodates up to 230mm of dropper post travel.
Perfect for adventurous riders seeking the ideal balance of lightweight performance and capability, the Occam SL H30 features reliable Shimano Deore M6100 shifting, Marzocchi Bomber Z2 fork with remote lockout, and Fox Float Performance shock with custom tuning. The fully guided internal cable routing eliminates noise and simplifies maintenance, while thoughtful details like integrated tool storage keep everything needed right at hand.
Key Features
- Frame – Orbea Occam Hydro with Concentric Pivot and Adjustable Geometry
- Suspension – Marzocchi Bomber Z2 140 Rail Remote Fork and Fox Float Performance Custom Shock
- Drivetrain – Shimano Deore M6100 12-Speed
- Brakes – Shimano Deore Hydraulic Disc
- Wheelset – Alloy Tubeless Ready 29" (32H)
| Specification | Detail |
|---|---|
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Shock | Fox Float Performance Remote Push-lock Evol custom tune 210x50mm |
| Fork | Marzocchi Bomber Z2 140 Rail Remote Push-Lock QR15x110 |
| Steerer tube | FSA 1-1/2" Integrated Aluminium Cup |
| Vinyl Frame Protector | N/A |
| Crankset | Forged alloy, 32t |
| Shifters | Shimano Deore M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Rear derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Computer Mount | N/A |
| Brakes | Shimano MT201 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Alloy, Tubeless, 29", 29c, 32H |
| Tyres (Front) | Maxxis Dissector 2.40" 60TPI Rigid EXO/TR |
| Tyres (Rear) | Maxxis Rekon 2.4" 60 TPI Rigid EXO/TR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Saddle | Selle Royal 2058 DRN |
| Grips | OC Lock On |
| Remote lockout | OC Squidlock MC20 Remote, Dropper, Suspension 2 Pos |
| Storage | Accesories Containers |
| Tools | N/A |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 415 | 430 | 460 |
| Top Tube (EFF) | 570 | 595 | 622 | 650 |
| Head Tube | 95 | 100 | 110 | 120 |
| Chainstay | 439 | 439 | 439 | 439 |
| BB Drop | 38 | 38 | 38 | 38 |
| BB Height | 342 | 342 | 342 | 342 |
| Wheelbase | 1191 | 1218 | 1245 | 1276 |
| Head Angle | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat Angle | 78 | 78 | 78 | 78 |
| Rake | 44 | 44 | 44 | 44 |
| Reach | 440 | 465 | 490 | 515 |
| Stack | 610 | 615 | 623 | 633 |
| Fork Length | 554 | 554 | 554 | 554 |
