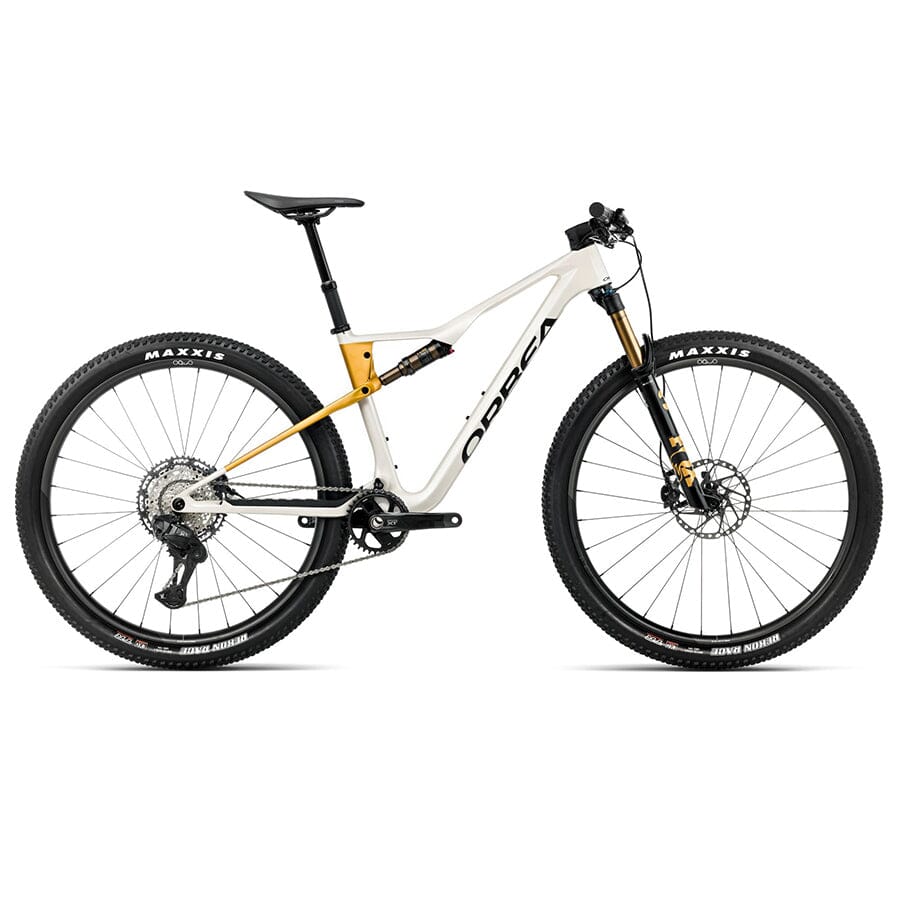

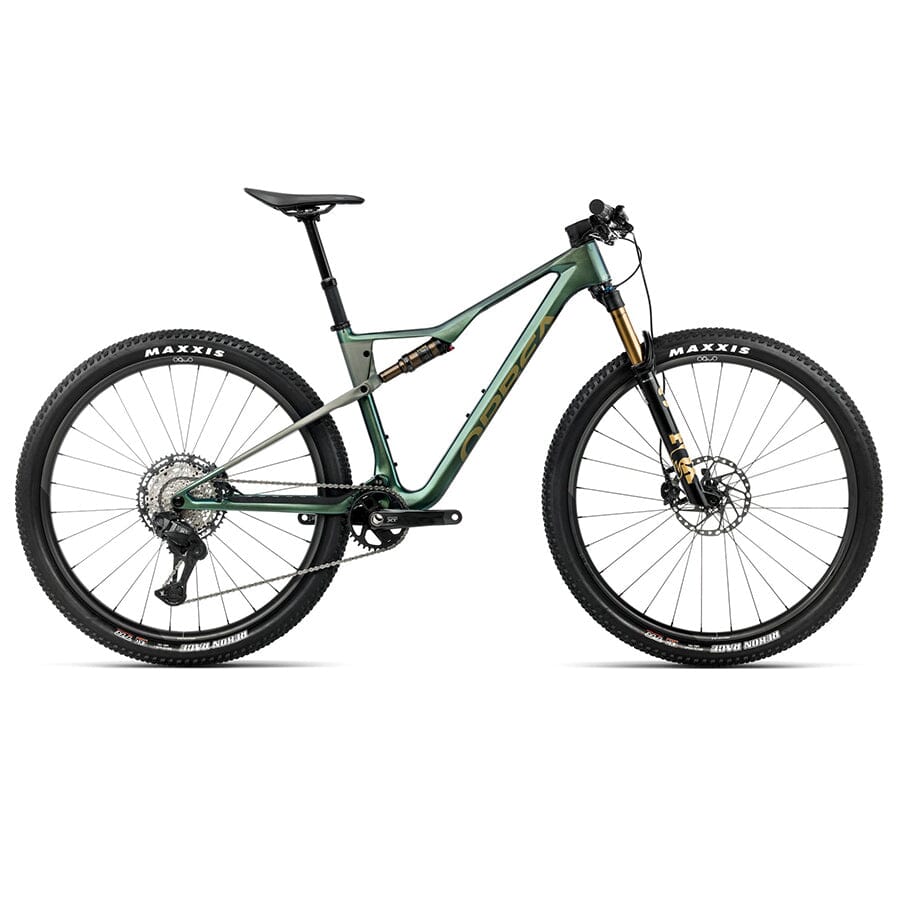

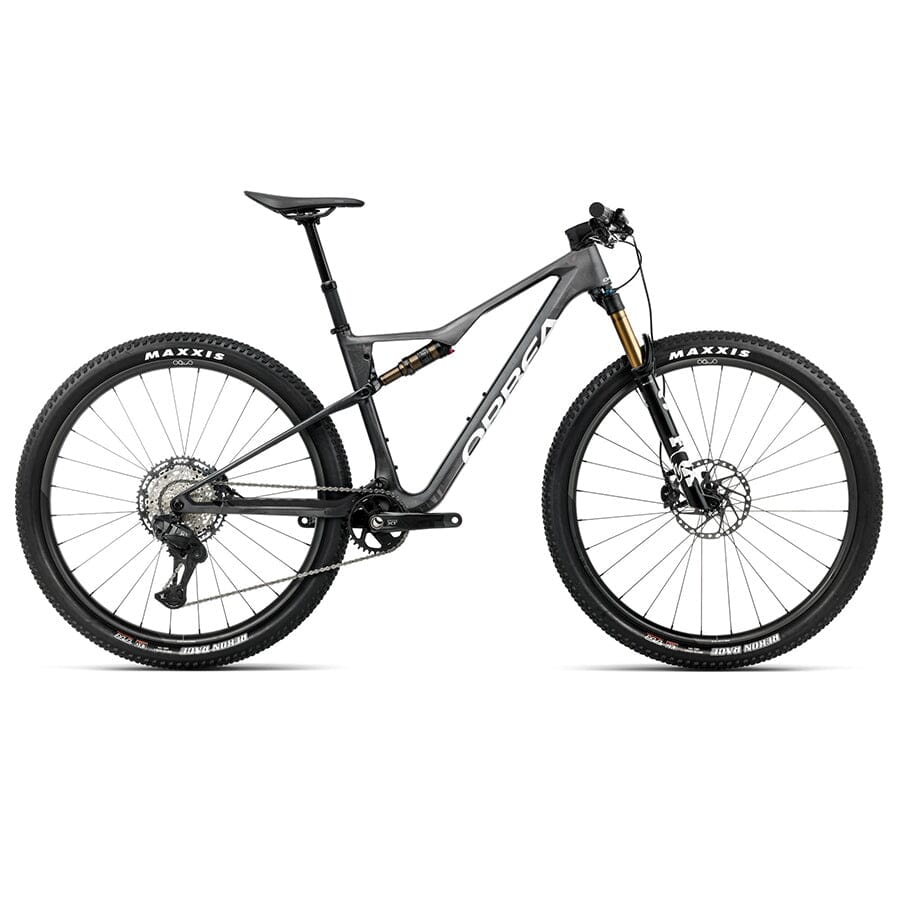

Orbea Oiz M10
Product Details
The Orbea Oiz M10 is a high-performance cross-country machine, engineered for riders who demand speed, efficiency, and control across rugged trails. Built around the lightweight Orbea Oiz Carbon OMR frame, this bike combines durability with advanced geometry to deliver exceptional responsiveness and stability. Rear suspension is handled by a Fox Float SL Factory shock with 120mm of travel, custom tune, and remote push-lock, providing seamless adaptability on technical terrain. Up front, the Fox 34 Float SC Factory fork with 120mm travel and FIT4 remote-adjust enhances precision and control, making tight corners and rocky sections more manageable.
The Oiz M10 is powered by Shimano XT components, ensuring smooth, reliable performance across every trail. The Shimano XT M8200 crankset with a 34T chainring, paired with 12-speed XT shifters, delivers a wide gear range for effortless climbs and thrilling descents. XT M8200 hydraulic disc brakes provide consistent, powerful stopping power, giving riders confidence on technical terrain. Oquo Mountain Performance MP30TEAM wheels combined with Maxxis Rekon Race 2.40” WT tires balance speed, traction, and durability for a versatile ride on varied surfaces.
The cockpit features Orbea OC Mountain Performance MP10 carbon handlebars and MP21 stem for an ergonomic, clean setup. The OC Squidlock MP11 remote lockout allows quick adjustments to both suspension and dropper, maintaining smooth flow on changing terrain. Riders can fine-tune their fit with the Fizik Vento Argo X5 saddle and OC Mountain Control MC22 dropper post, optimizing comfort and control over long rides.
Whether racing competitively or exploring new trails, the Orbea Oiz M10 delivers precision engineering, agile handling, and the versatility to push limits in cross-country performance.
Key Features
- Frame: Orbea Oiz Carbon OMR
- Suspension: Fox 34 Float SC Factory 120mm FIT4 Remote Fork, Fox Float SL Factory 120mm Shock with Custom Tune & Remote Push-Lock
- Drivetrain: Shimano XT M8100 12-Speed, M8120 Crankset 32T
- Wheelset: Oquo Mountain Performance MP30TEAM with Maxxis Rekon Race 2.40” WT
| Specification | Detail |
|---|---|
| Frame | Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock |
| Shock | Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm |
| Fork | Fox 34 Float SL Factory 120, Grip SL, Remote-Adj Push to Lock, QR15x110, Kashima |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Shimano XT M8200 34t |
| Shifters | Shimano XT M8250 |
| Cassette | Shimano CS-M8200 10-51t, 12-Speed |
| Rear Derailleur | Shimano XT M8250 SGS |
| Chain | Shimano M8100 |
| Handlebar | OC Mountain Performance MP10 Carbon, Width 760 |
| Stem | OC Mountain Performance MP21, -6º |
| Brakes | Shimano XT 8200 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Oquo Mountain Performance MP30TEAM |
| Tyres | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Saddle | Fizik Vento Argo X5 Aluminium, 140mm |
| Grips | OC Lock On |
| Remote Lockout | OC Squidlock MP11, Suspension + Dropper |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 432 | 460 | 510 |
| Top Tube (EFF) | 575 | 598 | 623 | 650 |
| Head Tube | 90 | 90 | 100 | 115 |
| Chainstay | 432 | 432 | 432 | 432 |
| BB Height | 333 | 333 | 333 | 333 |
| BB Drop | 42 | 42 | 42 | 42 |
| Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Head Angle | 67º | 67º | 67º | 67º |
| Seat Angle | 76.5º | 76.5º | 76.5º | 76.5º |
| Standover | 731 | 741 | 741 | 750 |
| Reach | 425 | 450 | 472 | 496 |
| Stack | 596 | 596 | 606 | 619 |
| Fork Length | 531 | 531 | 531 | 531 |
| Rake | 44 | 44 | 44 | 44 |
