Product Details

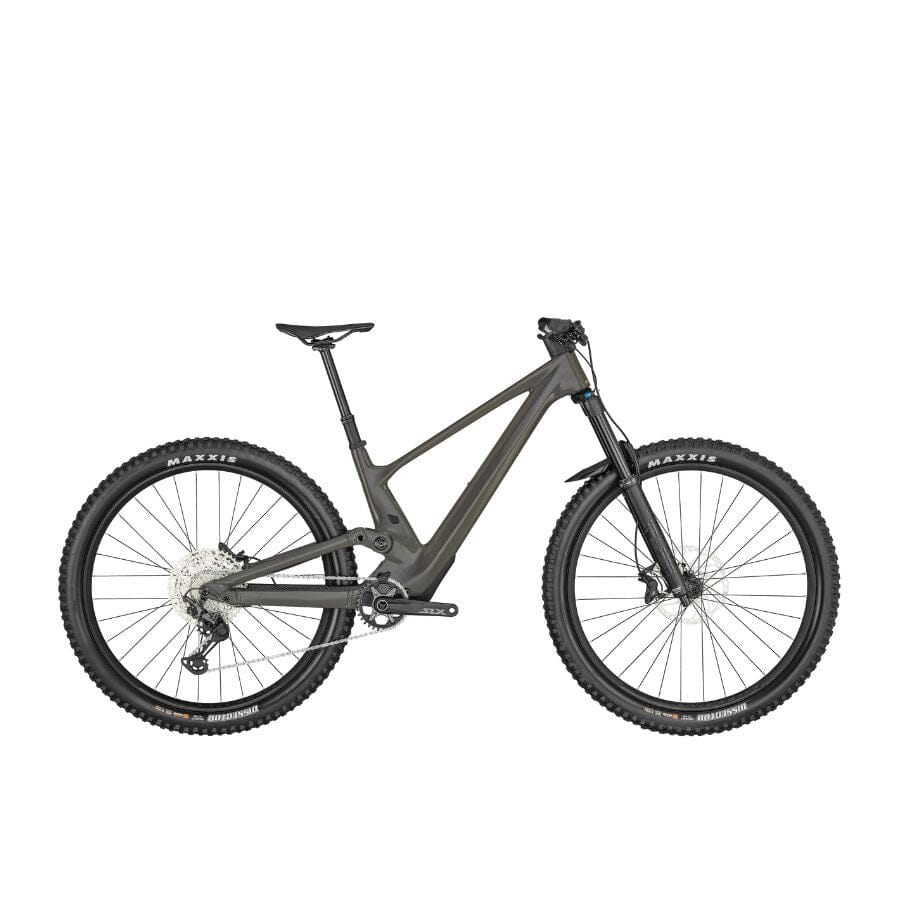

The new SCOTT Genius 920 has undergone a bold redesign, elevating this trail bike to unprecedented levels of performance and versatility. Embracing the philosophy of “any trail, any time,” the SCOTT Genius 920 is built to excel in a variety of terrains, offering exceptional handling and comfort. This trail bike features an innovative suspension system, cutting-edge design, and top-tier geometry, making it an ideal choice for riders who demand both capability and fun. Equipped with a Shimano SLX-XT drivetrain and Shimano Deore brakes, it ensures reliable and smooth shifting, along with precise stopping power, whether you’re tackling steep descents or technical climbs.
At the heart of the SCOTT Genius is its Integrated Suspension Technology. This advanced design hides the rear shock inside the frame, resulting in a sleek, streamlined appearance. By lowering the shock’s position, SCOTT has achieved a lower center of gravity, which enhances the bike’s stability and stiffness around the bottom bracket. This innovative placement not only improves the bike’s handling but also avoids adding extra weight. Access to the shock is facilitated by a downtube door, which can be opened with a push of a button. This feature not only provides easy access but also offers robust protection for the bottom bracket.
The SCOTT Genius 920 comes with the TwinLoc shock adjustment lever, a game-changing feature that allows riders to adjust both the fork and rear shock from the handlebars. The three-position lever offers versatility: the wide-open setting is optimized for descending, the middle ‘traction’ setting improves climbing efficiency and pedal clearance, and the full lockout is perfect for smooth roads. For those looking to tailor their ride, customization options are available, including changes to wheels, saddles, and tires, ensuring the SCOTT Genius is perfectly suited to your individual riding style and needs.
KEY FEATURES
- Alloy 6061 Frame
- Fox Float Rhythm Air 160mm Fork
- SCOTT Twinloc Suspension Remote
- Syncros X30S Wheels
- Syncros Duncan 1.5 Dropper Post
- Maxxis Dissector Tires
*Please note that bike specifications are subject to change without prior notice |
Model | Genius 920 |
FRAME | Genius Carbon HMF Mainframe with Alloy 6061 Swingarm, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
FORK | FOX 36 Float Rhythm Air Grip, 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 160mm travel |
REAR SHOCK | FOX NUDE 5T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Custom large Air volume / DPS / Reb. Adj., Travel 150-100-Lockout / T185X55mm |
REMOTE SYSTEM | SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes |
REAR DERAILLEUR | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
SHIFTERS | Shimano Deore SL-M6100-IR / Rapidfire Plus, Ispec EV clamp |
CRANKSET | Shimano SLX FC-M7120-1 / Hollowtech 2, 55mm CL / 32T |
CHAINGUIDE | SCOTT custom |
BB-SET | Shimano BB-MT500 / shell 41x92mm |
CHAIN | Shimano Deore CN-M6100 |
CASSETTE | Shimano Deore CS-M6100-12 / 10-51 T |
BRAKES | Shimano Deore M6120 4 Piston Disc |
ROTOR | Shimano SM-RT64 CL / 203/F and 180/R |
HANDLEBAR | Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm, Syncros Endurance lock-on grips |
STEM | Syncros AM 1.5, Syncros Cable Integration System, 4° rise / 7050 Alloy / 31.8mm / 1 1/8" |
SEATPOST | Syncros Duncan Dropper Post 1.5, 31.6mm / S size 140mm / M size 160mm / L size 170mm / XL size 200mm |
SEAT | Syncros Tofino 2.0 Regular, CRMO rails |
HEADSET | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
HUB (FRONT) | Formula CL-811 / 15x110mm |
HUB (REAR) | Formula CL-148M / 12x148mm |
SPOKES | Stainless Black 15G / 1.8mm |
RIMS | Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready |
FRONT TIRE | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
REAR TIRE | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
EXTRAS | Syncros Fork Fender |
APPROX WEIGHTS IN KG | 14.8 (Tubeless setup) |
APPROX WEIGHTS IN LBS | 32.63 (Tubeless setup) |
MAX. SYSTEM WEIGHT | 128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
S | M | L | XL | ||
A | HEAD TUBE ANGLE (+0.6° HEADSET SETTING) | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
B | HEAD TUBE LENGTH | 90.0 MM | 100.0 MM | 120.0 MM | 135.0 MM |
C | TOP TUBE HORIZONTAL | 570.1 MM | 602.2 MM | 631.3 MM | 659.3 MM |
D | STANDOVER HEIGHT | 728.5 MM | 738.5 MM | 753.5 MM | 768.5 MM |
E | BB OFFSET | -33.0 MM | -33.0 MM | -33.0 MM | -33.0 MM |
F | BB HEIGHT | 342.5 MM | 342.5 MM | 342.5 MM | 342.5 MM |
G | WHEEL BASE | 1,182.0 MM | 1,216.0 MM | 1,249.0 MM | 1,281.0 MM |
I | BB CENTER TO TOP OF SEATTUBE | 380.0 MM | 410.0 MM | 440.0 MM | 470.0 MM |
J | SEAT ANGLE | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
K | CHAINSTAY | 440.0 MM | 440.0 MM | 440.0 MM | 440.0 MM |
L | REACH | 430.0 MM | 460.0 MM | 485.0 MM | 510.0 MM |
M | STACK | 617.0 MM | 626.1 MM | 644.2 MM | 657.8 MM |
N | STEM LENGTH | 40.0 MM | 40.0 MM | 50.0 MM | 50.0 MM |
0 | TRAIL | 125.8 MM | 125.8 MM | 125.8 MM | 125.8 MM |
P | FORK LENGTH | 571.0 MM | 571.0 MM | 571.0 MM | 571.0 MM |
Q | MAXIMUM SEATPOST INSERTION | 173.0 MM | 204.0 MM | 234.0 MM | 265.0 MM |
R | CRANK LENGTH | 170.0 MM | 175.0 MM | 175.0 MM | 175.0 MM |
