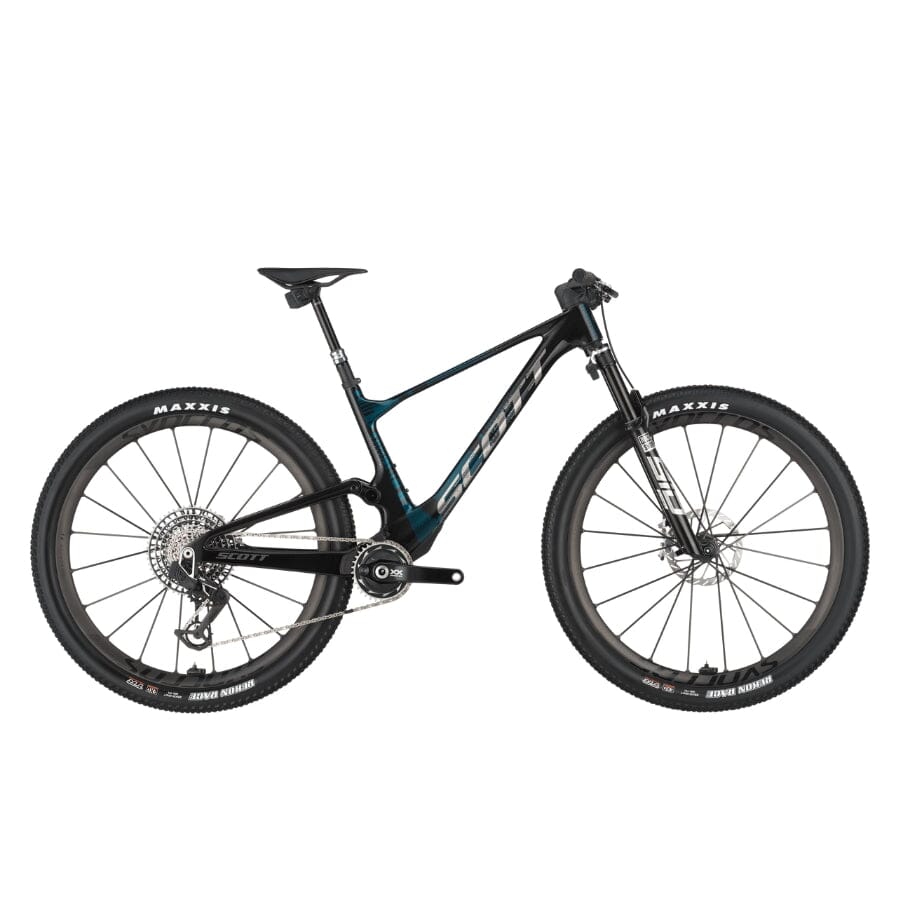

SCOTT Spark RC SL
Product Details
The SCOTT Spark RC SL represents the perfect blend of top-notch carbon engineering, never-before-seen levels of integration, and just the right amount of secret sauce. SCOTT set out to make this platform faster than ever before, both up and down the hill, and the result is nothing short of extraordinary. By increasing travel, perfecting geometry, and applying direct input from the world's best athletes, SCOTT has created the cross-country race bike of all cross-country race bikes.
Built with SCOTT's most advanced Spark RC Carbon HMX SL frame featuring integrated suspension technology, the Spark RC SL represents the pinnacle of lightweight construction without sacrificing strength. The refined flex pivot system and adjustable head angle can be tuned to match any rider's preferences or race course demands, while the Syncros Cable Integration System maintains clean, purposeful aesthetics with reliable performance when every second counts.
This SL-level build elevates performance to the highest tier with RockShox's revolutionary SID Ultimate Flight Attendant fork paired with the SIDLuxe Ultimate Flight Attendant Custom shock. The intelligent suspension system automatically adjusts to terrain conditions in real-time, ensuring optimal performance without rider input. The flagship SRAM XX SL Eagle AXS Transmission delivers the lightest, most precise wireless shifting available, while the full-carbon Syncros Silverton SL2-30 CL wheelset provides ultimate weight savings and stiffness.
Perfect for elite racers and enthusiasts who demand the absolute best, the Spark RC SL delivers race-winning performance at the highest level. This is the cross-country weapon that transforms every ride into an opportunity to experience the pinnacle of mountain bike technology.
Key Features
- Frame - Spark RC Carbon HMX SL Frame with Integrated Suspension Technology
- Suspension - RockShox SID Ultimate Flight Attendant Fork and SIDLuxe Ultimate Custom Shock
-
Drivetrain - SRAM XX SL Eagle AXS Transmission 12-Speed Wireless Drivetrain
- Wheelset - Syncros Silverton SL2-30 CL Full Carbon Wheelset
| Specification | Detail |
|---|---|
| Frame | Spark RC Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline Lightest 120mm frame 1870g (w/shock) |
| Fork | RockShox SID Ultimate Flight Attendant Electronically controlled Suspension FA Race Day damper 3 Modes 15x110mm Maxle Stealth / 44mm offset /Tapered steerer Lockout / Reb. Adj. / 120mm travel |
| Rear Shock | RockShox SIDLuxe Ultimate Flight Attendant Custom Electronically controlled Suspension 3 Modes Lockout-Pedal-Descend Solo Air / Reb. Adj./ Lockout / Travel 120mm / T165X45mm |
| Remote System | Automatic electrionic suspension system,that listens to the rider and responds in real-time |
| Rear Derailleur | SRAM XX SL Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Shifters | SRAM AXS Rocker Pod Controller |
| Crankset | SRAM XX SL Eagle AXS Transmission Carbon crankarm / Spider Power Meter DUB / 55mm CL / 34T |
| Chainguide | SCOTT custom |
| BB-Set | SRAM DUB PF 92 MTB / shell 41x92mm |
| Chain | SRAM CN XX SL Eagle Transmission |
| Cassette | SRAM XX SL Eagle XS 1299 Transmission 10-52 |
| Brakes | SRAM Level Ultimate Stealth 4-Piston Disc |
| Rotor | SRAM HS2 CL Rotors 180/F and 160/R |
| Handlebar | Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips |
| Seatpost | Rock Shox Reverb AXS 31.6mm / S size 100mm / M L & XL size 125mm |
| Seat | Syncros Belcarra SL Regular 1.0 Carbon rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Wheelset | Syncros Silverton SL2-30 CL full Carbon F: 15x110mm R: 12x148mm / 30mm Tubeless ready rim DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen T30 and T25 Tools |
| Front Tire | Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO |
| Rear Tire | Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO |
| Extras | SRAM AXS Powerpack SRAM TyreWiz Syncros Tubeless Handlebar Tool |
| Accessories | Syncros Eco Sealant Transport Axle |
| Approx weight in KG | 10.7 (Tubeless setup) |
| Approx weight in LBS | 23.59 (Tubeless setup) |
| Max. System Weight | 128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.2° | 67.2° | 67.2° | 67.2° |
| Head Tube Length (mm) | 90.0 | 90.0 | 105.0 | 115.0 |
| Top Tube Horizontal (mm) | 562.0 | 590.0 | 614.0 | 642.0 |
| Standover Height (mm) | 758.0 | 765.0 | 776.0 | 799.0 |
| BB Offset (mm) | -45.0 | -45.0 | -45.0 | -45.0 |
| BB Height (mm) | 330.0 | 330.0 | 330.0 | 330.0 |
| Wheelbase (mm) | 1,129.0 | 1,159.0 | 1,190.0 | 1,231.0 |
| BB Center to Top of Seattube (mm) | 415.0 | 440.0 | 490.0 | 540.0 |
| Seat Angle | 75.9° | 76.1° | 76.6° | 76.9° |
| Chainstay (mm) | 437.5 | 437.5 | 437.5 | 437.5 |
| Reach (mm) | 411.0 | 441.0 | 471.0 | 501.0 |
| Stack (mm) | 602.5 | 602.5 | 616.0 | 625.0 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 115.0 | 115.0 | 115.0 | 115.0 |
| Fork Length (mm) | 530.0 | 530.0 | 530.0 | 530.0 |
| Maximum Seatpost Insertion (mm) | 150.0 | 175.0 | 225.0 | 275.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
