2022 Scor 4060 Z LT XT
Product Description

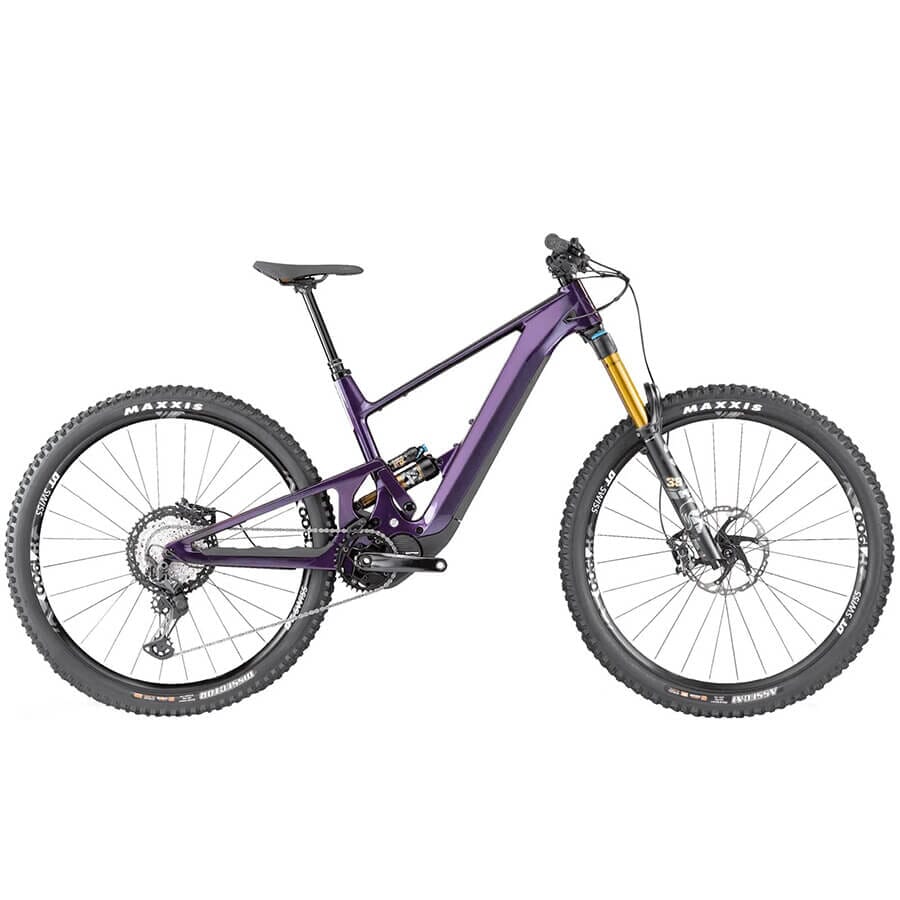

The 2022 Scor 4060 Z LT XT is your ticket to conquering rugged trails and unlocking thrilling adventures. With formidable power and the ability to push boundaries, this enduro bike takes you to new heights and ensures you're ready to tackle even the most challenging terrain. Crafted with a full-carbon frame, equipped with top-tier suspension, and boasting a stellar component lineup, this bike leaves no room for compromise.
Experience lightning-fast descents and conquer challenging climbs with ease, thanks to the 4060 Z LT XT's exceptional capabilities. This bike is designed for those who crave adrenaline-packed rides and demand nothing but the best from their equipment. With its unmatched performance and cutting-edge features, it's time to elevate your off-road adventures to the next level.
REVIEWS
Specifications
| *Please note that bike specifications are subject to change without prior notice |
| Frame | SCOR 4060 Z full carbon frame Lower-Link Driven Instant Center Linkage 160mm rear wheel travel Fully guided internal cable routing Boost 148 SRAM Universal Derailleur Hanger Lower ISCG 05 mount / Chainguide |
| Fork | Fox Float 38 Factory Series E-Bike 170mm travel Grip2 damper Low & high-speed compression adjust Low & high-speed rebound adjust 44mm rake E-MTB rated |
| Rear Shock | Fox Float X Factory Series Compression adjust Rebound adjust 2 position adjust |
| Shifters | Shimano Deore XT (SL-M8100-R) |
| Rear Derailleur | Shimano Deore XT (RD-M8100) 12 speed |
| Brakes | Shimano Deore XT (BR-M8120) BL-M8100 levers SM-RT86 rotors; 203mm |
| Cranks | Shimano Deore XT (FC-M8150) 165mm length 34T chainring (SM-CRE80-12-B) |
| Cassette | Shimano Deore XT (CS-M8100-12) 10-51T |
| Chain | Shimano Deore XT (CN-M8100) |
| Wheelset | DT Swiss H 1900 Spline 30mm internal width Tubeless ready |
| Hubs | DT Swiss 370 Ratchet LN freehub Straightpull spoke interface Boost Spacing |
| Tires | Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R) Casing: EXO+ (F) / Double Down (R) Tubeless ready |
| Stem | Burgtec Enduro MK3 3D forged and fully CNC machined 31.6mm bar bore 35mm length 0° angle |
| Handlebars | SCOR Carbon Bar 31.8mm clamp 800mm wide 20mm rise 5° up sweep - 7.5° back sweep |
| Saddle | Fizik Terra Alpaca |
| Seat Post | Bikeyoke Divine S 125mm, M/L 160mm, XL 185mm travel Triggy Alpha lever |
Geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack (mm) | 601 | 612 | 626 | 637 |
| Reach (mm) | 435 | 459 | 485 | 515 |
| Seat Tube Length | 400 | 425 | 440 | 470 |
| Top Tube (mm) | 562 | 590 | 621 | 655 |
| Chainstay | 435 | 435 | 435 | 435 |
| Wheelbase | 1206 | 1230 | 1255 | 1285 |
| BB Drop | 19 | 19 | 19 | 19 |
| BB Height | 350 | 350 | 350 | 350 |
| Head Tube (mm) | 87 | 99 | 115 | 127 |
| HT Angle | 63.8 | 63.8 | 63.8 | 63.8 |
| Fork Length | 580 | 580 | 580 | 580 |
| Front Center | 773 | 798 | 823 | 853 |
| Fork Rake | 44 | 44 | 44 | 44 |
| ST Angle Effective | 77.9 | 77.9 | 77.9 | 77.9 |
| ST Angle at 750mm | 76.5 | 76.5 | 76.5 | 76.5 |
| Standover Height (mm) | 722 | 731 | 739 | 749 |
