2023 Orbea OIZ H20
Product Details

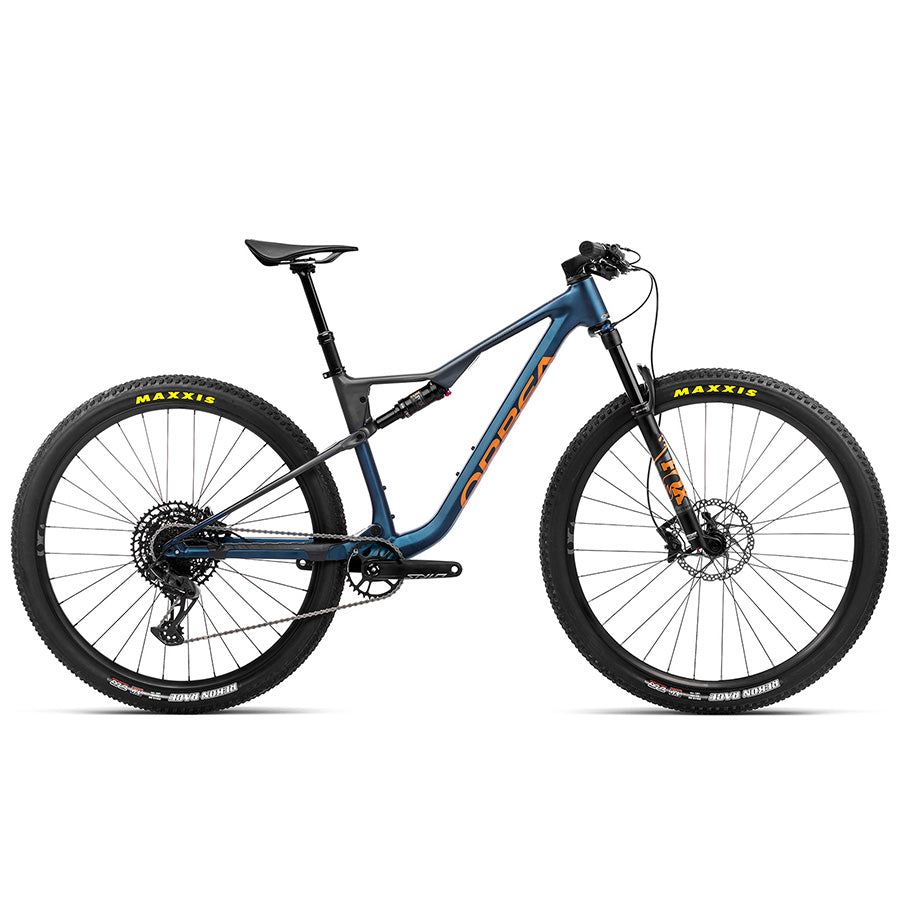

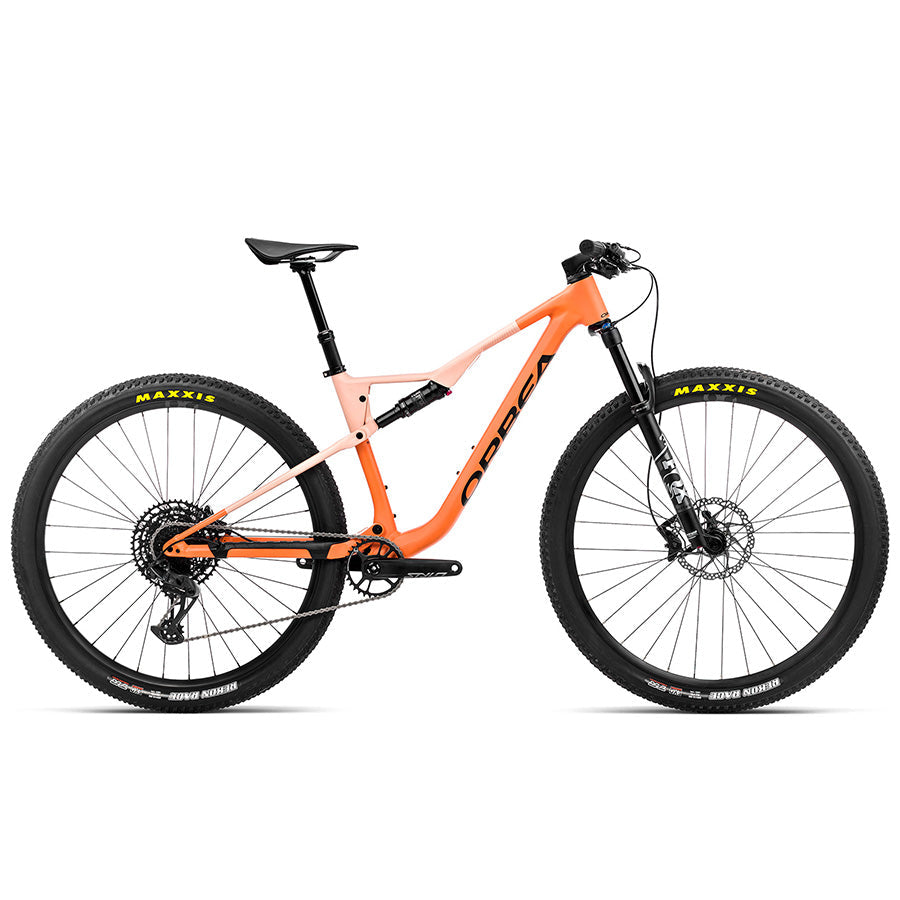

Orbea makes some of the finest aluminum bikes available, and that is on full display with the Orbea Oiz H20 mountain bike. Smoothed alloy welds mean the frame has the same polished look as the carbon frames. Add in its XC race geometry and lockout lever on the handlebar, and the new Oiz can take you farther without compromise
The Oiz H20 uses a quality alloy frame. This is thanks to generations of racing technology at the highest levels. Its modern geometry was developed using feedback from the Team KMC Orbea team. And every model receives not only Fox suspension but Orbea’s own Squidlock lever; this provides a three-position suspension lockout and dropper remote that makes adjustments easy.
Want to customize your Orbea Oiz H20? The Contender Custom Program can get you exactly the tires, wheels, saddle, and more you might want.
The Orbea Oiz H20 cross-country bike uses:
- Orbea hydro aluminum frame with a 120mm Fox shock
- Fox Float 32 Stepcast fork with 120mm suspension
- OC Squidlock three-position suspension and dropper remote
- SRAM NX Eagle 12s drivetrain
- Alloy, Tubeless-Ready 32H wheels
- OC MC20 dropper post
- Maxxis Rekon Race tires
| *Please note that bike specifications are subject to change without prior notice |
| Model | OIZ H20 |
| Frame | Orbea Oiz Hydro High Polished, Alloy link, Boost, PF BB, UFO2, I-Line shock |
| Shock | Fox i-line DPS Performance 120mm, Remote Push-Unlock Evol custom, tune190x45mm |
| Fork | Fox 32 Float Rhythm 120 Remote, Push-Unlock QR15x110 |
| Crankset | SRAM Stylo 6K Eagle Dub Boost 32t Steel |
| Headset | FSA 1-1/2” Integrated Aluminium Cup |
| Handlebar | Alloy, 31.8mm, Flat, 740mm, Sweep 9 |
| Stem | OC Mountain Performance MP21, -6o |
| Shifters | SRAM GX Eagle Lunar |
| Brakes | Shimano M6100 Hydraulic Disc |
| Rear Derailleur | SRAM GX Eagle Lunar |
| Chain | SRAM NX Eagle 12-Speed |
| Wheels | Alloy, Tubeless, 25c, 32H |
| Cassette | SRAM PG-1230 Eagle 11-50t 12-Speed |
| Tyres Maxxis | Rekon Race 2.35” 120 TPI Exo TLR |
| Seatpost | OC Mountain Control MC20, 31.6mm, Dropper |
| Saddle | Selle Italia Model X FecAlloy Rail, 145x248mm |
| Seatpost | Lever OC Squidlock MP20-D Dropper Remote |
| SIZE | S | M | L | XL | |
| 1 | SEAT TUBE (C-T) | 405 | 432 | 460 | 510 |
| 2 | TOP TUBE (EFF) | 575 | 598 | 623 | 650 |
| 3 | HEAD TUBE | 90 | 90 | 100 | 115 |
| 4 | CHAINSTAY | 432 | 432 | 432 | 432 |
| 5 | BB HEIGHT | 333 | 333 | 333 | 333 |
| 6 | BB DROP | 42 | 42 | 42 | 42 |
| 7 | WHEELBASE | 1138 | 1163 | 1189 | 1219 |
| 8 | HEAD ANGLE | 67º | 67º | 67º | 67º |
| 9 | SEAT ANGLE | 76.5º | 76.5º | 76.5º | 76.5º |
| 10 | STANDOVER | 731 | 741 | 741 | 750 |
| 11 | REACH | 425 | 450 | 472 | 496 |
| 12 | STACK | 596 | 596 | 606 | 619 |
| 13 | FORK LENGTH | 531 | 531 | 531 | 531 |
| RAKE | 44 | 44 | 44 | 44 |
