Otso Arctodus SLX
Request Info

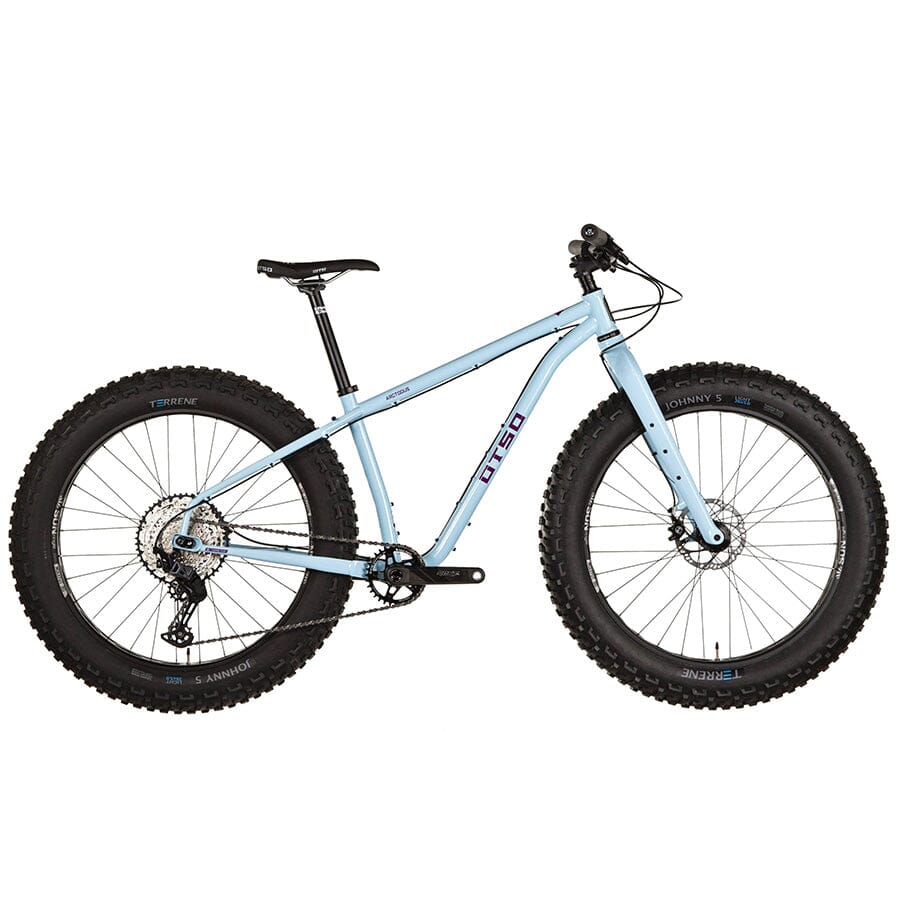

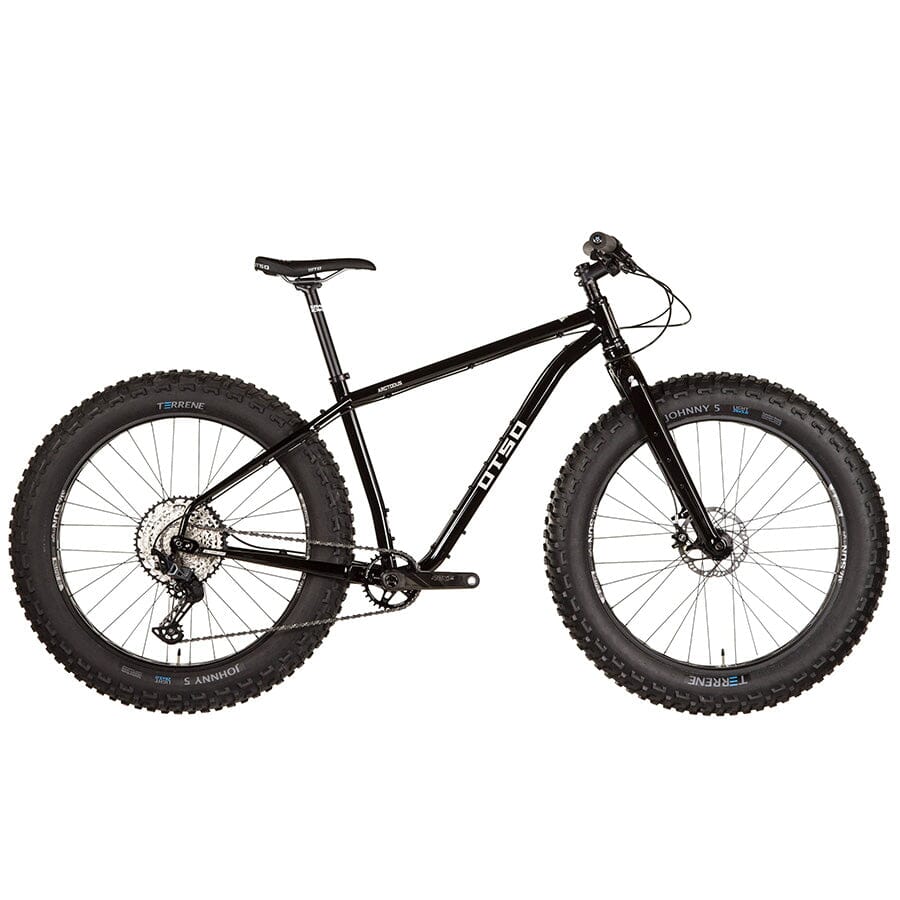

Otso Arctodus SLX
Product Details
The Otso Arctodus, named after the ferocious short-faced bear of ancient North America, is tough and adaptable. The frame is constructed from Chromoly steel and the fat fork is lithic carbon which provides clearance for 26x5in tires. This build features the same tuning chip found on the Otso Voytek allowing the rider to dial in their wheelbase or swap the wheelset for 29 or 27.5 plus.
Our Arctodus build includes Shimano SLX M6100 brakes for increased performance, reliability, and easy maintenance.
Designed as a destination fat bike, the frame and carbon fork are covered with braze-ons to allow virtually endless cargo configurations. Utilize this bike to traverse snow-covered trails or for added comfort and stability on rough terrain.
| *Please note that bike specifications are subject to change without prior notice |
| Frame | Chromoly with Tuning Chip™ dropout system |
| Fork | Lithic carbon fat fork, suspension corrected, tapered steerer tube, 485mm axle-to-crown, 51mm offset |
| Headset | Wolf Tooth Performance Headset, ZS44/EC44 |
| Rear derailleur | Shimano SLX M7100, 12-speed |
| Front derailleur | None, 1x only bike |
| Shifters | Shimano SLX M7100 Trigger, 12-speed |
| Cassette | Shimano SLX M7100, 10-51t, 12-speed |
| Brakes | Shimano 6100 |
| Cranks | Race Face Aeffect with Wolf Tooth CAMO System P2 (+4mm offset) spider, 30T chainring |
| Bottom bracket | Race Face, BSA 100mm |
| Handlebar | Race Face Ride, 740mm riser |
| Grips | Wolf Tooth grips |
| Stem | Aluminum |
| Seatpost | Aluminum, 31.6mm |
| Seat | WTB Volt Medium, 142mm width |
| Wheels | Lithic Rhyolite 90 26" 84mm with Lithic Hubs |
| Tires | Terrene Johnny 5 Light 26"x4.8" |
| Chain | Shimano SLX 12-speed |
| Frame Size | Small | Medium | Large | X-Large |
| Recommended rider height | 4'9"-5'5" | 5'5"-5'9" | 5'9"-6'1" | 6'1"-6'7" |
| Recommended rider inseam | 29"-32" | 31"-33" | 32"-35" | 34"-37" |
| Effective top tube | 589mm | 610mm | 632mm | 657mm |
| Nominal head tube angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
| Head tube length | 90mm | 90mm | 100mm | 120mm |
| Nominal seat tube angle | 74° | 74° | 74° | 74° |
| Seat tube length | 380mm | 420mm | 465mm | 510mm |
| Bottom bracket drop | 80mm | 80mm | 80mm | 80mm |
| Chainstay length | 440-460mm | 440-460mm | 440-460mm | 440-460mm |
| Wheelbase | 1119-1139mm | 1140-1160mm | 1162-1182mm | 1189-1209mm |
| Trail | 94mm | 94mm | 94mm | 94mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm |
| Rigid fork axle to crown length | 485mm | 485mm | 485mm | 485mm |
| Stack | 607mm | 607mm | 617mm | 635mm |
| Reach | 415mm | 435mm | 455mm | 475mm |
| Standover | 707mm | 736mm | 773mm | 810mm |
