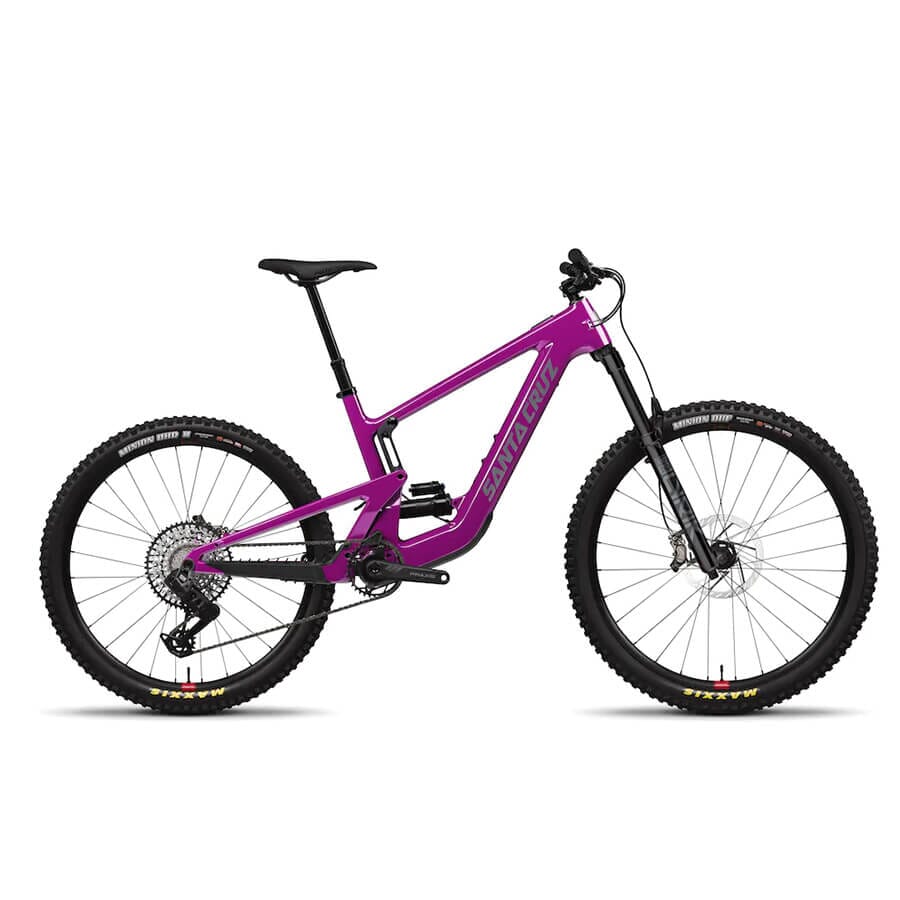

Santa Cruz Heckler SL C GX AXS Transmission Kit
Request Info
Santa Cruz Heckler SL C GX AXS Transmission Kit
Product Details
The Santa Cruz Heckler SL C GX AXS Kit revolutionizes the world of e-biking by offering an extraordinary fusion of speed, agility, and power. It emerges as a nimble and effective option for riders in pursuit of an invigorating trail adventure. Thanks to its lightweight construction, this e-bike maintains an impressive balance between power and range, solidifying its position as a superb choice for those desiring versatility during their trail journeys.
At the heart of the Heckler SL is the FAZUA RIDE 60 drive unit, which provides a surprising amount of power while maintaining a stealthy presence on the bike. With the ability to choose from three power modes at your fingertips, you have the freedom to fine-tune your ride to match your preferences and needs. This e-bike seamlessly combines the renowned on-trail traits of a Santa Cruz with a 150mm VPP suspension, mixed wheel size compatibility, and progressive geometry. The result is a natural-handling trail bike that effortlessly incorporates the added advantage of electric assistance.
The Santa Cruz Heckler SL GX AXS Kit is a top-tier trail machine boasting a lightweight Carbon C frame and versatile MX wheel size, ensuring a nimble and controlled ride. Its SRAM GX Eagle AXS T-Type 12-speed rear derailleur and SRAM AXS Pod Bridge shifter provide precise gear shifts, while SRAM Code Bronze Stealth brakes offer reliable stopping power. With components designed for performance and responsiveness, the Heckler SL is the perfect choice for riders seeking an exceptional trail experience.
| *Please note that bike specifications are subject to change without prior notice |
| Model | GX AXS |
|---|---|
| Weight (lbs/kg) | 42.57 lbs / 19.31 kg |
| Material | Carbon C |
| Travel | 150mm |
| Wheel Size | MX |
| Rear Shock | RockShox Super Deluxe Select+, 210x55 |
| Fork | RockShox Lyrik Select+, 160mm |
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Bridge |
| Cassette | SRAM GX Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, 12spd |
| Chainguide | OneUp Chainguide |
| Headset | Cane Creek 40 IS Integrated Headset |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
| Front Hub | DT Swiss 370, 12x110, Torque Cap, 6-Bolt, 28h |
| Front Rim | Reserve 30|SL AL 6069 29" |
| Rear Hub | DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Rim | Reserve 30|SL AL 6069 27.5" |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 200mm |
| Brakes | SRAM Code Bronze Stealth |
| Crankset | Praxis eTor AL, 104BCD, 165mm |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | WTB Silverado Medium, CroMo |
| Seatpost | OneUp V2 Dropper Post, 31.6 |
| Grips | Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar |
| Battery | FAZUA 430 Wh Integrated Battery |
| Drive Unit | FAZUA RIDE60 |
| Battery Charger | FAZUA Charger |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | hi/lo | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
| Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
| Head Tube Angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
| Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
| BB Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
| BB Drop (front) | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 |
| BB Drop (rear) | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 |
| Wheelbase | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
| Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
| Head Tube Length | 100 | 110 | 120 | 140 | 155 |
| Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
| Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
| Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
