SCOTT Genius ST 920
Request Info

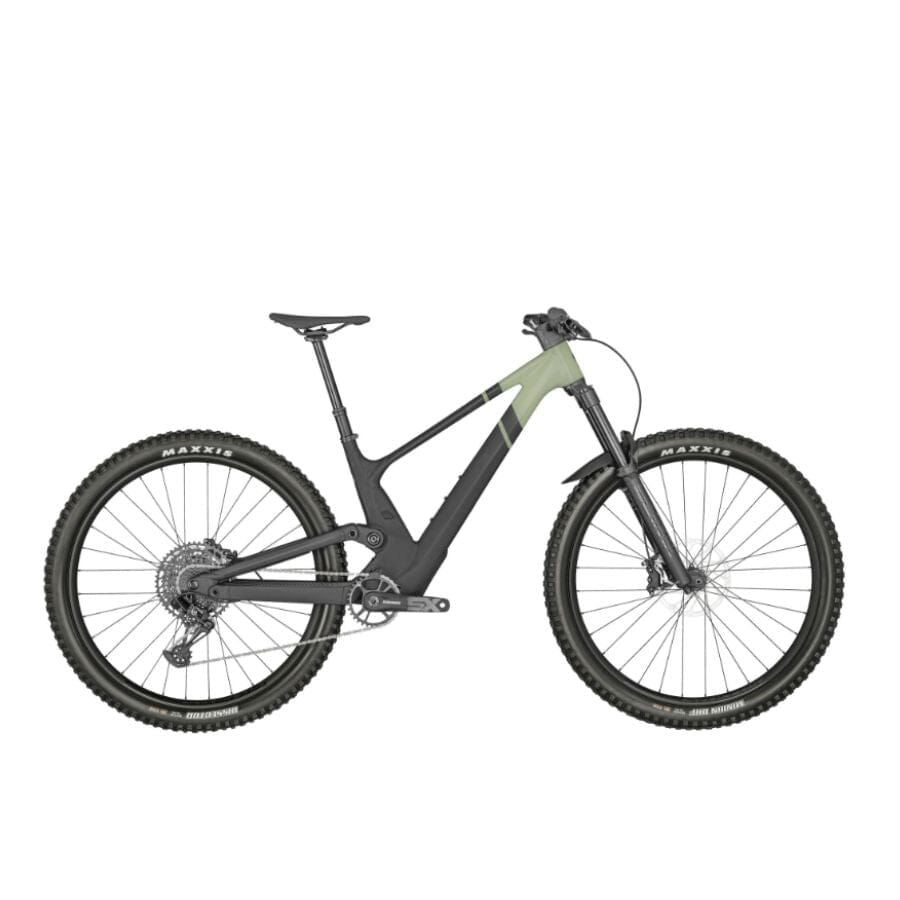

SCOTT Genius ST 920
Product Details
You might initially hesitate about having a suspension remote on your handlebars, but the new SCOTT Genius ST 920 trail bike will quickly change your mind. Featuring the Fox Float X shock with onboard Ramp Adjust control, this bike is meticulously designed to ensure you speed down the mountain with ease and precision. The Genius ST 920 is all about delivering high performance and ultimate control, making your downhill rides not just faster but also smoother and more enjoyable.
At the core of the SCOTT Genius ST 920 is its innovative Integrated Suspension Technology, a sophisticated system that conceals the rear shock within the frame. This unique design places the shock inside the frame, contributing to a lower center of gravity and enhancing the bike's stability and handling. A built-in sag indicator on the non-drive side of the bike’s rocker link ensures precise adjustments, while the lower mounting position of the shock adds stiffness around the bottom bracket area without any extra weight. This clever integration not only improves performance but also protects the shock from external elements.
Accessing the shock is straightforward, thanks to a downtube door that opens at the push of a button, doubling as durable bottom bracket protection. The Genius ST 920 leverages the Fox Float X shock with a unique adjustment lever instead of SCOTT’s usual TwinLoc suspension remote. This lever allows you to fine-tune the shock's behavior, making it more progressive or linear depending on your needs. For plush, ground-hugging performance, keep the shock in 'Descend' mode. Switch to the 'Ramp Control' setting for flow trails with lots of compressions, berms, and drops, effectively simulating the addition or removal of a volume spacer with just a flip of a switch. The SCOTT Genius ST 920 trail bike redefines versatility and adaptability on the trails, ensuring you have the best ride possible, no matter the terrain.
KEY FEATURES
- Genius Alloy Frame
- RockShox Lyrik 160mm
- FOX FLOAT X Nude, TracLoc, 150mm
- SRAM NX-SX Eagle 12 Speed
- SRAM DB8 4 Piston Disc Brakes
- Maxxis Foldable Tires
| *Please note that bike specifications are subject to change without prior notice | |
| Model | Genius ST 920 |
| FRAME | Genius Alloy 6061, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| FORK | RockShox Lyrik Air Rush RC Damper, 15x110mm Maxle Stealth, 44mm offset / Tapered steerer, Comp & Reb. Adj. / 160mm travel |
| REAR SHOCK | FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Climb-Traction Control-Descend, Custom large Air volume / Comp & Reb. Adj. Travel 150-100-Climb / T185X55mm |
| REMOTE SYSTE | MTracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes |
| REAR DERAILLEUR | SRAM NX Eagle 12 Speed |
| SHIFTERS | SRAM SX Eagle Trigger |
| CRANKSET | SRAM SX Eagle DUB, 55mm CL / 32T |
| BB-SET | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| CHAIN | SRAM CN SX Eagle |
| CASSETTE | SRAM SX-PG1210 / 11-50 T |
| BRAKES | SRAM DB8 4 Piston Disc |
| ROTOR | SRAM Centerline CL Rotors 200/F and 180/R |
| HANDLEBAR | Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 8° / 780mm, Syncros Endurance lock-on grips |
| STEM | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| SEATPOST | Syncros Duncan Dropper Post 1.5, 31.6mm / S size 140mm / M size 160mm, L size 170mm / XL size 200mm |
| HUB (FRONT) | Formula CL-811 / 15x110mm |
| HUB (REAR) | Formula CL-148S / 12x148mm |
| SPOKES | Stainless Black 15G / 1.8mm |
| RIMS | Syncros X-30S / 32H / 30mm / Sleeve Joint |
| FRONT TIRE | Maxxis Minion DHF / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| REAR TIRE | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| EXTRAS | Syncros Fork Fender |
| APPROX WEIGHTS IN KG | 15.8 (Tubeless setup) |
| APPROX WEIGHTS IN LBS | 34.83 (Tubeless setup) |
| MAX. SYSTEM WEIGHT | 128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
| S | M | L | XL | ||
| A | HEAD TUBE ANGLE (-0.6° HEADSET SETTING) | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
| B | HEAD TUBE LENGTH | 90.0 MM | 100.0 MM | 120.0 MM | 135.0 MM |
| C | TOP TUBE HORIZONTAL | 570.1 MM | 602.2 MM | 631.3 MM | 659.3 MM |
| D | STANDOVER HEIGHT | 728.5 MM | 738.5 MM | 753.5 MM | 768.5 MM |
| E | BB OFFSET | -33.0 MM | -33.0 MM | -33.0 MM | -33.0 MM |
| F | BB HEIGHT | 342.5 MM | 342.5 MM | 342.5 MM | 342.5 MM |
| G | WHEEL BASE | 1,195.0 MM | 1,229.0 MM | 1,263.0 MM | 1,294.0 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 380.0 MM | 410.0 MM | 440.0 MM | 470.0 MM |
| J | SEAT ANGLE | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° |
| K | CHAINSTAY | 440.0 MM | 440.0 MM | 440.0 MM | 440.0 MM |
| L | REACH | 430.0 MM | 460.0 MM | 485.0 MM | 510.0 MM |
| M | STACK | 617.0 MM | 626.1 MM | 644.2 MM | 657.8 MM |
| N | STEM LENGTH | 40.0 MM | 40.0 MM | 40.0 MM | 40.0 MM |
| 0 | TRAIL | 125.8 MM | 125.8 MM | 125.8 MM | 125.8 MM |
| P | FORK LENGTH | 571.0 MM | 571.0 MM | 571.0 MM | 571.0 MM |
| Q | MAXIMUM SEATPOST INSERTION | 173.0 MM | 204.0 MM | 234.0 MM | 265.0 MM |
| R | CRANK LENGTH | 170.0 MM | 170.0 MM | 170.0 MM | 170.0 MM |
