Product Details

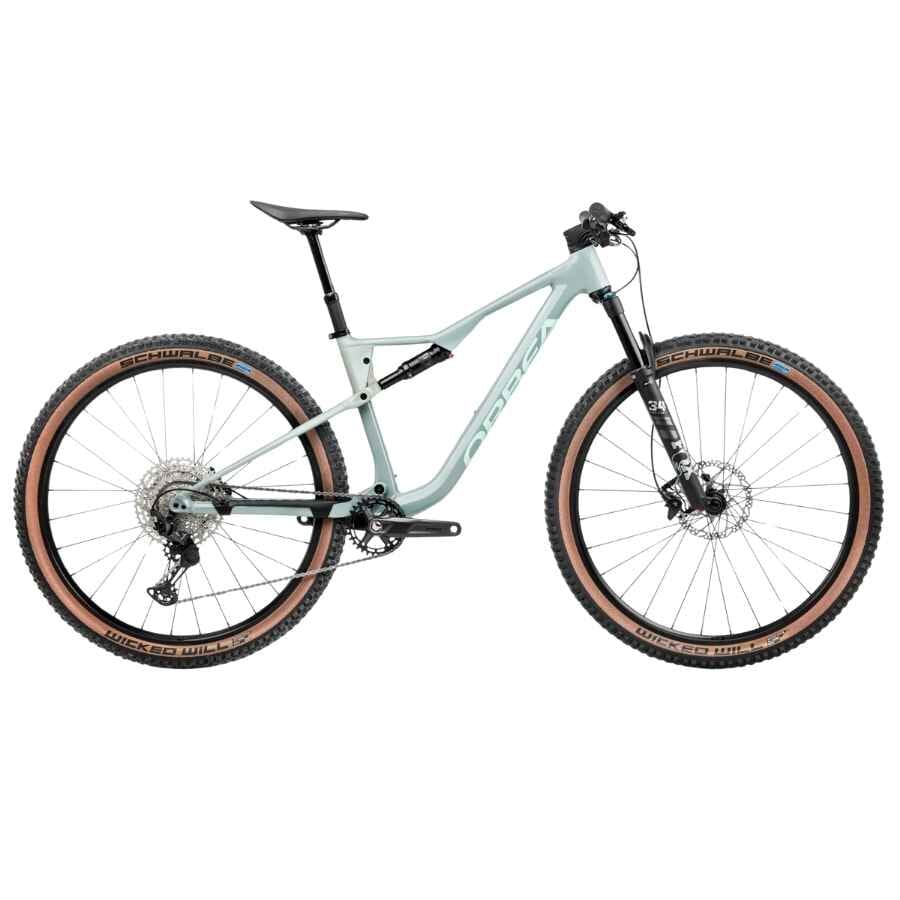

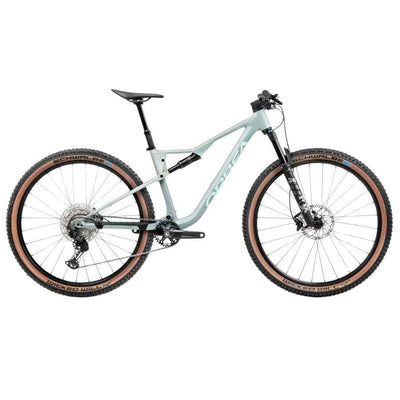

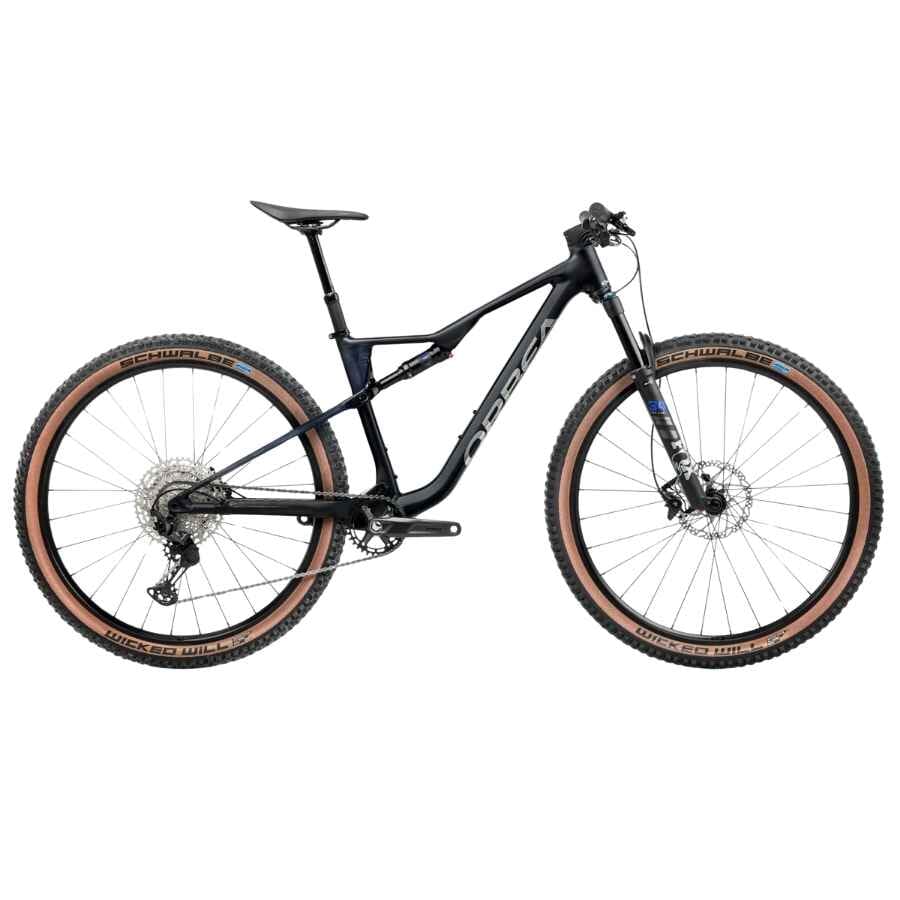

The Orbea Oiz H10 is a feather-light, race-ready mountain bike built to conquer climbs and dominate descents with confidence and speed. Designed with modern geometry and 120mm of race-tuned suspension, the Oiz delivers efficient power transfer, maximum traction, and sharp handling to help you attack every trail and corner. Whether you’re pushing hard uphill or flying downhill, this bike balances stiffness and control for a smooth, fast ride on the toughest terrain.
Constructed with advanced materials and precision engineering, the Oiz offers unbeatable efficiency and durability without compromise. Its steep seat tube and longer reach position you perfectly for aggressive climbing and stable descents. The patented I-Line shock lockout routing keeps your suspension responsive and clean, while Shimano’s 12-speed drivetrain and Fox suspension components provide reliable, high-performance control. From the race course to rugged trails, the Orbea Oiz is ready to fly.
Key Features:
-
Race-Tuned Suspension: 120mm of efficient travel with a regressive curve for smooth pedaling and control
-
Advanced Frame Design: Lightweight, stiff yet compliant frame with integrated I-Line shock lockout cable
-
High-Performance Components: Shimano XT 12-speed drivetrain, Fox Float SL suspension, and Schwalbe Wicked Will Evo tires
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame | Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock |
| Shock | Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm |
| Fork | Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110 |
| Steerer tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Shimano MT512 32t |
| Shifters | Shimano Deore M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Rear derailleur | Shimano XT M8100 SGS Shadow Plus |
| Chain | Shimano M6100 |
| Handlebar | OC Mountain Performance MP30, Width 760 |
| Stem | OC Mountain Performance MP21, -6º |
| Brakes | Shimano MT410 Hydraulic Disc |
| Wheels | Alloy, 26c, 28H, TLR |
| Tyres | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Saddle | Fizik Vento Argo X5 Aluminium 140mm |
| Remote lockout | OC Squidlock MP11, Suspension + Dropper |
| Specification | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 410 | 432 | 460 | 510 |
| Top Tube (EFF) | 568 | 594 | 619 | 645 |
| Head Tube | 90 | 95 | 105 | 115 |
| Chainstay | 436 | 436 | 436 | 436 |
| BB Drop | 42 | 42 | 42 | 42 |
| BB Height | 333 | 333 | 333 | 333 |
| Wheelbase | 1142 | 1169 | 1195 | 1223 |
| Head Angle | 67º | 67º | 67º | 67º |
| Seat Angle | 76.5º | 76.5º | 76.5º | 76.5º |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 729 | 743 | 746 | 743 |
| Reach | 425 | 450 | 472 | 496 |
| Stack | 596 | 600 | 610 | 619 |
| Fork Length | 531 | 531 | 531 | 531 |
