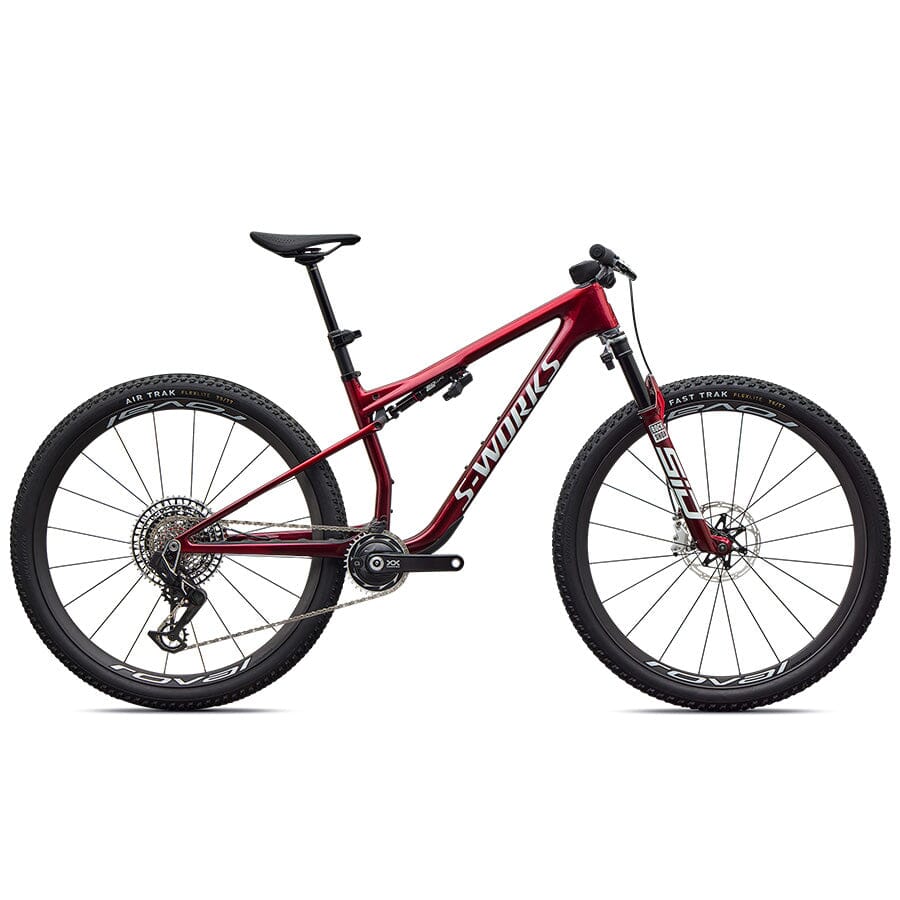

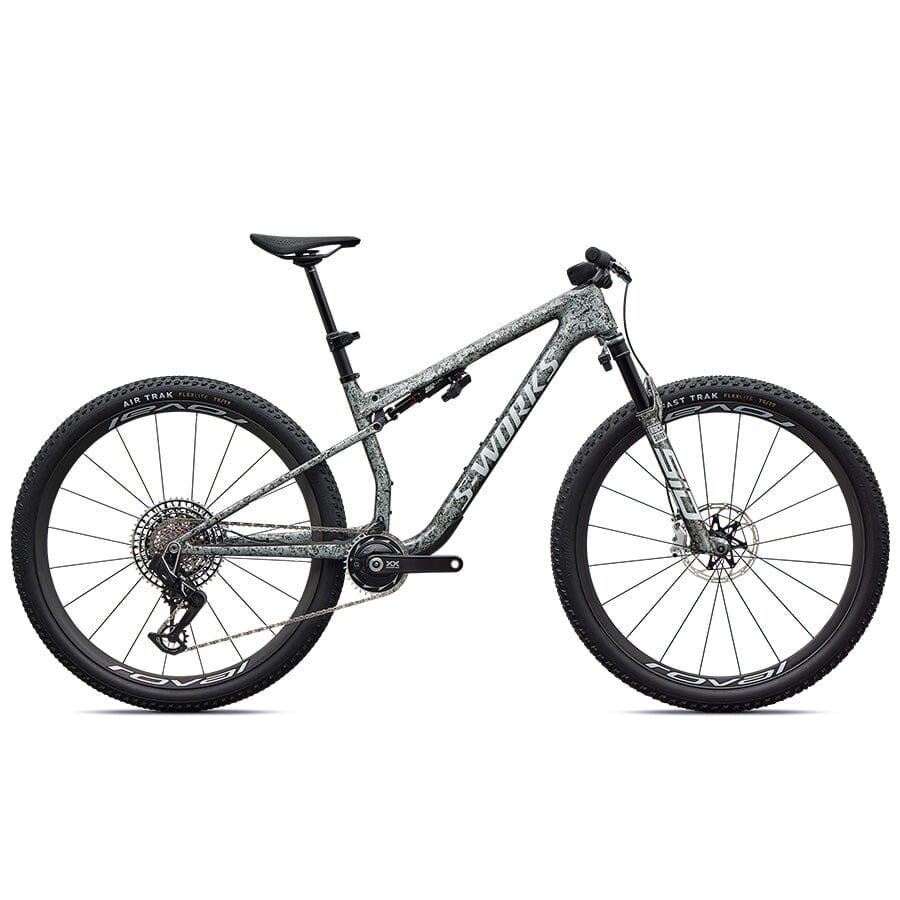

Specialized S-Works Epic 9
Product Details
The Specialized S-Works Epic 9 is the culmination of over two decades of World Cup-winning innovation, engineered to be the lightest, fastest, and most capable cross-country race bike ever created. Developed by the Specialized Science Club and validated at the highest level of competition, the Epic 9 is designed to eliminate inefficiency, maximize momentum, and deliver speed where it matters most, on real-world race courses.
At its core is the S-Works FACT 12m carbon frame, weighing just 1,589 grams, making it the lightest full-suspension cross-country frame ever produced. Advanced FEA optimization and obsessive gram-saving design reduce weight without compromising stiffness or control, ensuring every watt is translated into forward motion. Paired with 120mm of front and rear travel, the Epic 9 delivers unmatched capability for modern XC terrain.
Refined suspension kinematics and 11% lower friction create a ride that is both supple and efficient. The Dynamic Trio suspension system, Wide Open, Magic Middle, and Sprint-On-Lock, allows riders to seamlessly adapt to changing terrain, balancing pedaling efficiency with traction and control. Combined with race-proven geometry tuned using Body Geometry data, the Epic 9 offers stability on descents, precision in corners, and explosive acceleration on climbs.
Equipped with a SRAM XX Transmission drivetrain, RockShox Flight Attendant suspension, and Roval World Cup wheels, the Epic 9 is a no-compromise race machine built to perform at the highest level.
Key Features
- Frame - S-Works FACT 12m Carbon, Progressive cross-country Race Geometry, 120mm Travel
- Suspension - RockShox SID Ultimate Flight Attendant Fork & SIDLuxe Ultimate Flight Attendant Rear Shock
- Drivetrain - SRAM XX Eagle Transmission
- Wheelset - Roval World Cup Wheels with DT Swiss 180 Hubs
| Specification | Detail |
|---|---|
| Frame | S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, optimized for wireless drivetrain |
| SWAT | SWAT BOX 2.0 ASSY |
| Seat Binder | Specialized Alloy 34.9, Ti Bolt |
| Fork | RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel |
| Rear Shock | RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm |
| Rear Brake | SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor |
| Front Brake | SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor |
| Bottom Bracket | CeramicSpeed Alpha, DUB |
| Crankset | SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB, SM:165mm, M-XL:170mm, 34T |
| Shift Levers | SRAM AXS POD Ultimate Controller |
| Cassette | SRAM CS-1299, 12 speed, 10-52t |
| Rear Derailleur | SRAM XX SL Eagle AXS |
| Chain | SRAM XX SL Eagle Transmission 12-Speed Flattop Chain |
| Rear Wheel | Roval Control World Cup, mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss 180 internals, Roval carbon spokes with Ti end pieces |
| Front Wheel | Roval Control World Cup, mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval carbon spokes with Ti end pieces |
| Rear Tire | Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35 |
| Front Tire | Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35 |
| Inner Tubes | Specialized TPU inner tube |
| Seatpost | RockShox Reverb AXS, 30.9mm, S:125mm, M/L:150mm, XL:175mm |
| Handlebars | Roval Control SL Integrated cockpit, 60mm/70mm x -6° integrated stem, 8° backsweep, 2° upsweep, 760mm width |
| Saddle | Specialized S-Works Power EVO Mirror, carbon rails, SM:155mm, M-XL:143mm |
| Grips | Specialized Trail Grips |
| Product ID | 274030 |
| Weight | 9.66 kg (21 lb, 4.7 oz) |
| Weight Size | MD |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Crank Length (mm) | 165 | 170 | 170 | 170 |
| Handlebar Width (mm) | 760 | 760 | 760 | 760 |
| Stem Length (mm) | 60 | 70 | 70 | 70 |
| Saddle Width (mm) | 155 | 143 | 143 | 143 |
| Seatpost Length (mm) | 100 | 125 | 125 | 125 |
| Stack (mm) | 589 | 599 | 612 | 639 |
| Reach (Low) (mm) | 427 | 457 | 487 | 512 |
| Reach (High) (mm) | 432 | 462 | 492 | 517 |
| Head Tube Length (mm) | 92 | 105 | 120 | 150 |
| Head Tube Angle (Low) (°) | 66.5° | 66.5° | 66.5° | 66.5° |
| Head Tube Angle (High) (°) | 66.9° | 66.9° | 66.9° | 66.9° |
| Bottom Bracket Height (mm) | 328 | 330 | 330 | 330 |
| BB Drop (Low) (mm) | 47 | 45 | 45 | 45 |
| BB Drop (High) (mm) | 42 | 40 | 40 | 40 |
| Trail (mm) | 115 | 115 | 115 | 115 |
| Fork Length (mm) | 516 | 516 | 516 | 516 |
| Fork Rake / Offset (mm) | 44 | 44 | 44 | 44 |
| Front Center (mm) | 711 | 746 | 782 | 819 |
| Chainstay Length (mm) | 435 | 435 | 438 | 442 |
| Wheelbase (mm) | 1142 | 1178 | 1217 | 1258 |
| Top Tube Length (mm) | 566 | 599 | 632 | 664 |
| Frame Standover Height (mm) | 740 | 746 | 749 | 756 |
| Seat Tube Length (mm) | 390 | 410 | 455 | 505 |
| Seat Tube Angle (°) | 76.5° | 76.5° | 76.5° | 76.5° |
| Seatpost Max Insertion (mm) | 190 | 220 | 260 | 315 |
| Seatpost Min Insertion (mm) | 80 | 80 | 80 | 80 |
| Saddle Height for Effective STA (mm) | 690 | 735 | 780 | 825 |
