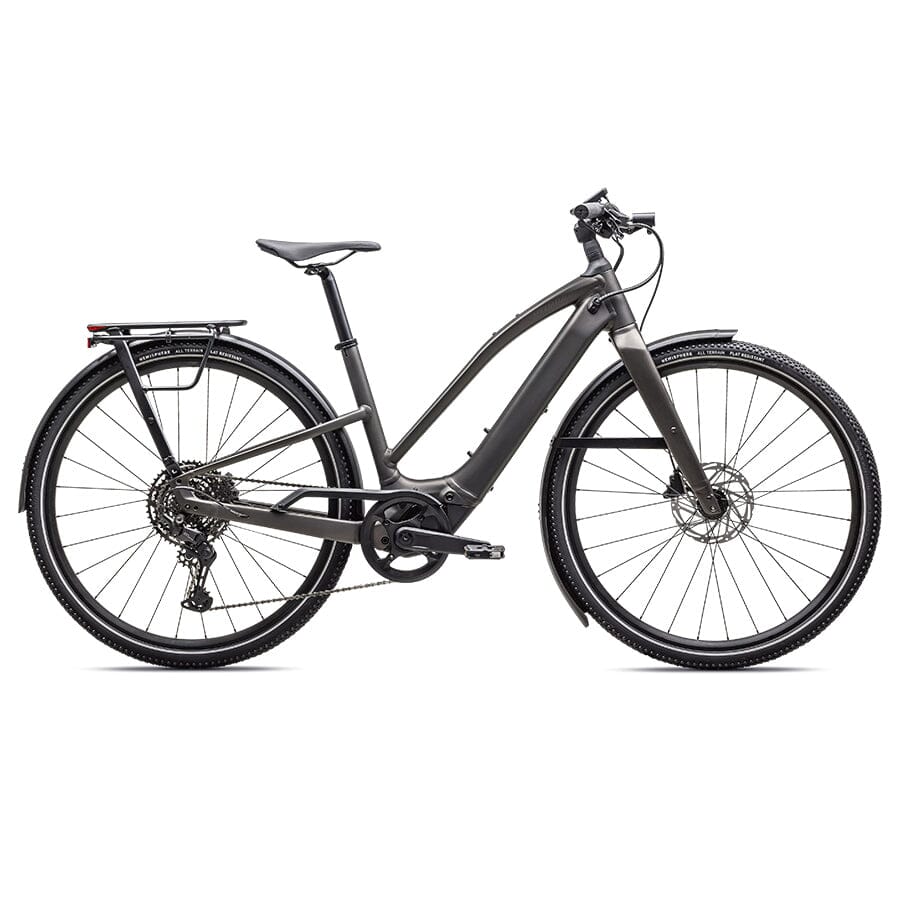

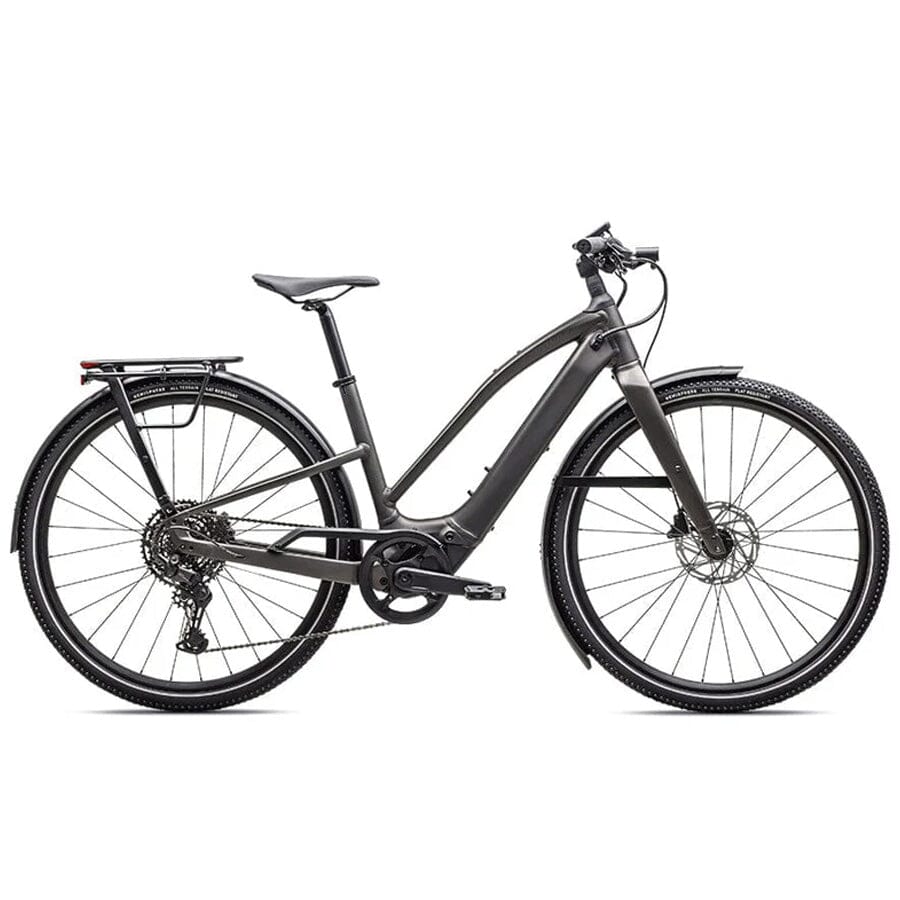

Specialized Turbo Vado SL 4.0 Step-Through
Product Details
The Specialized Turbo Vado SL 4.0 Step-Through redefines what an e-bike can be, calling it just an "e-bike" is an insult to this high-performance machine. Carefully engineered to make fitness fun and commuting electric, nothing delivers more power, speed, and range at such lightweight than the all-new Turbo Vado SL 2. With an ultra-light alloy step-through frame, Future Shock suspension for an ultra-smooth ride, ergonomic positioning for telepathic handling, and a super-light electric motor with supernatural power, the bike riders have been dreaming about is finally here.
Built on the lightweight alloy Vado SL step-through frame weighing as light as 20kg, this e-bike combines effortless mounting and dismounting with unmatched performance. The Specialized SL 1.2 system delivers 320 watts of power naturally for seamless amplification of rider effort, with unmatched efficiency that provides up to 5 hours of range. An optional 160Wh Range Extender battery extends ride time up to 6+ hours, leaving range anxiety at home for all-day adventures.
The revolutionary Future Shock 3.1 suspension system provides 20mm of ultra-light, patented suspension travel that delivers a smoother ride while maintaining speed, safety, and confidence on any road surface. Ergonomics inspired by the world's best riders and 50 years of Specialized know-how create nimble, confident control through carefully optimized fit, geometry, and tire selection. The step-through design enhances accessibility without compromising the bike's legendary handling precision.
Perfect for fast commuting, fitness riding, and urban exploration, the Vado SL 4.0 Step-Through offers unmatched versatility as the lightest MIK HD compatible e-bike ever made. Multiple mounting points accommodate racks, panniers, child seats, and trailer compatibility for transforming this nimble commuter into a capable cargo carrier. Integrated technology including Apple Find My, Turbo System Lock anti-theft, personal fitness metrics, and ride customization through the Specialized App and Mastermind H3 head unit unlock performance potential while keeping the ride secure.
Key Features
- Frame: Alloy Vado SL Step-Through
- Motor: Specialized SL 1.2 System (320W)
- Battery: SL2-520 Integrated 520Wh Battery
- Drivetrain: Shimano Cues 10-Speed
-
Wheelset: 700c Double-Wall Alloy
| Specification | Detail |
|---|---|
| Motor | Specialized 1.2 SL System |
| Battery | Specialized SL2-520, Fully Integrated, 520Wh |
| UI / Remote | Mastermind H3 w/ Handlebar Remote, ANT+/Bluetooth®, Built-In System Lock, Apple Find My, 2.1” Customizable Display |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Wiring Harness | Custom Specialized wiring harness w/ chargeport |
| Frame | 2025 Vado SL Step-Through |
| Seat Binder | Alloy, 38.6mm |
| Fork | 2024 Vado SL |
| Front Brake | Tektro HD-R285 Hydraulic Disc |
| Rear Brake | Tektro HD-R285 Hydraulic Disc |
| Shift Levers | Shimano CUES SL-U6000, 10-Speed |
| Rear Derailleur | Shimano CUES RD-U6000, 10-Speed |
| Cassette | Shimano CUES CS-LG400 Linkglide 11-48T, 10-Speed |
| Chain | KMC EGlide 10-Speed |
| Crankset | SRAM FC S699 Alloy S:165mm M-L:170mm XL:175mm) |
| Chainring | Praxis 44T, Narrow-Wide, BCD 104mm, CL 49.8mm |
| Chainguard | Specialized Custom Chainguard |
| Rims | 700c Double-Wall Alloy, 27mm Internal Width |
| Front Hub | Alloy, 6-Bolt, 24H, 12x100mm Thru-Axle |
| Rear Hub | Alloy, 6-Bolt, 28H, 12x142mm |
| Spokes | DT Swiss J-Bend |
| Front Tire | Specialized Hemisphere 700x47c, Flat Protection, Reflective Sidewalls |
| Rear Tire | Specialized Hemisphere 700x47c, Flat Protection, Reflective Sidewalls |
| Stem | Specialized Stealth Alloy w/ Integrated Display & Light Mount S/M: 60mm 17° L/XL: 75mm 15.5° |
| Handlebar | Specialized Alloy, 9° Backsweep, 15mm Rise, 31.8mm |
| Grips | Specialized Body Geometry Contour, Lock-On |
| Saddle | Bridge Sport, Steel Rails, 155mm |
| Seatpost | Specialized Alloy, Single Bolt, 30.9mm |
| Pedals | Specialized Commuter w/ Grip Tape & Reflectors |
| Headlight | Lezyne eBike Hecto STVZO E350+ |
| Taillight | Spanninga STVZO Commuter Glow with Brake XEr |
| Rear Rack | Turbo SL Rack, MIK HD Compatible, 27kg Max Load |
| Fenders | Specialized Custom Alloy, 700c, Sandblast Anodized Black |
| Kickstand | Specialized Kickstand, 40mm Mount |
| Bell | Simple Bell |
| Compliance Certification | Certified to UL 2849 (e-system) and/or UL 2271 (battery) as applicable |
| Weight | 20.54 kg / 45 lb 4.5 oz (Size MD) |
| Size | S | M | L |
|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 75mm |
| Saddle Width | 155mm | 155mm | 155mm |
| Seatpost Length | 350mm | 400mm | 400mm |
| Stack | 614mm | 623mm | 656mm |
| Reach | 375mm | 405mm | 430mm |
| Head-Tube Length | 115mm | 125mm | 160mm |
| Head-Tube Angle | 69° | 69° | 69° |
| B-B Height | 291mm | 291mm | 291mm |
| B-B Drop | 70mm | 70mm | 70mm |
| Trail | 85mm | 85mm | 85mm |
| Fork Length (full) | 430mm | 430mm | 430mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm |
| Front-Center | 641mm | 674mm | 712mm |
| Chain-Stay Length | 470.5mm | 470.5mm | 470.5mm |
| Wheelbase | 1103mm | 1136mm | 1174mm |
| Top-Tube Length (horizontal) | 563mm | 595mm | 630mm |
| Bike Stand-Over Height | 650mm | 631mm | 651mm |
| Seat-Tube Length | 410mm | 440mm | 480mm |
| Seat-Tube Angle | 73° | 73° | 73° |
