SCOTT Spark RC Team
Product Details
The SCOTT Spark RC Team is a purpose-built XC race machine engineered for competitors who demand every advantage on the trail. Developed in collaboration with SCOTT's pro-team riders, this bike translates pedal power into race-winning speed without stretching your budget. It's the evolution of SCOTT's most successful cross-country racing platform, refined and ready for everything the trail demands.
At the core sits the HMF carbon frame, placing it among the lightest 120mm XC race bikes available. However, SCOTT didn't chase weight at the expense of capability. Instead, the frame leverages decades of carbon expertise to balance stiffness, controlled flex, and durability. Strategic material placement reinforces the bottom bracket for explosive power transfer while keeping mass low and centralized, improving stability and cornering precision. The result is an intelligently light chassis where every gram removed serves a specific performance purpose.

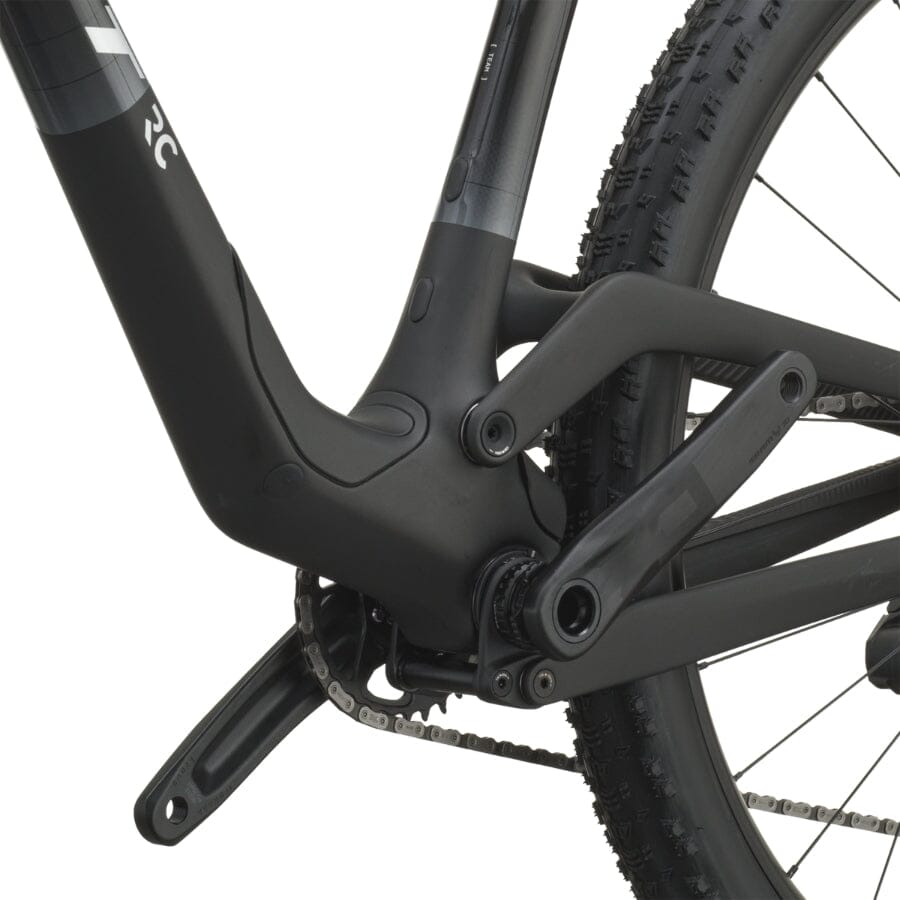

The ride dynamics are where the Spark RC truly excels. SCOTT engineered the frame as a complete system where lateral, vertical, and torsional flex work together seamlessly to suppress tire chatter and restore traction on technical terrain. The proprietary flex-pivot kinematic system ensures predictable bottom-out behavior while maximizing small-bump sensitivity, delivering a planted, responsive feel that builds rider confidence at speed.

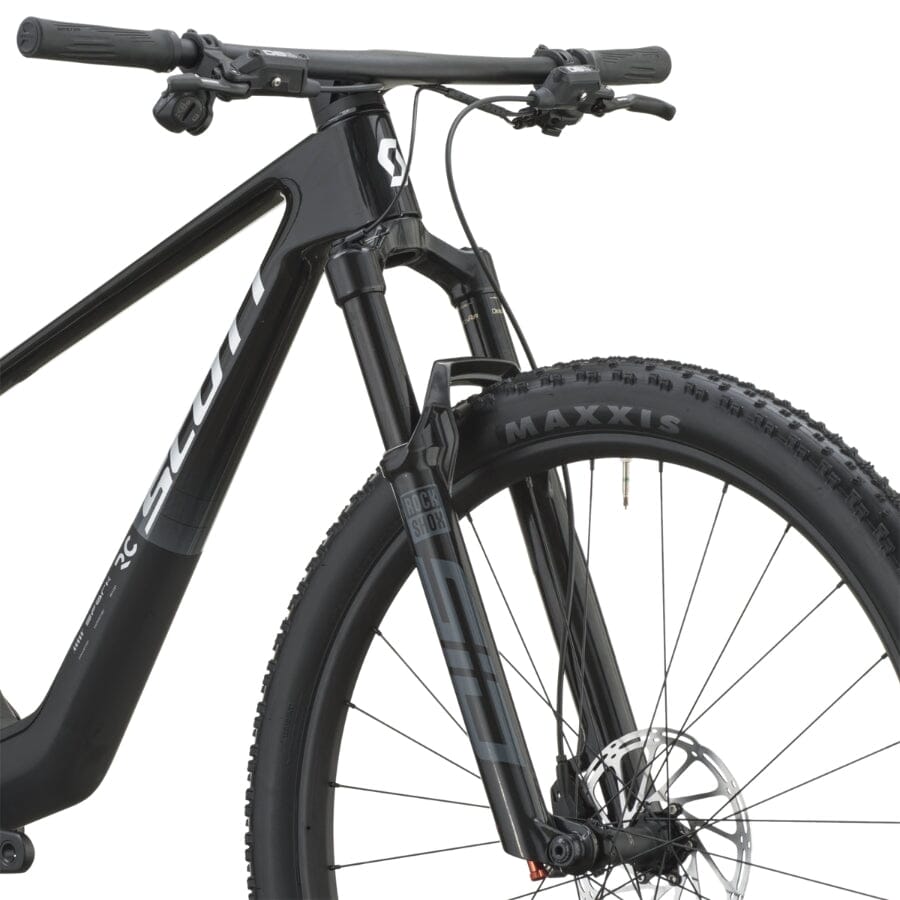

Suspension performance comes from a RockShox SID 120mm fork paired with a custom-tuned SIDLux Select+ shock, both offering 3-position adjustability. This featherweight combination gives you the ability to lock into your lines with confidence while staying planted through unpredictable sections.
Seamless integration defines the user experience. The innovative Syncros OCT cable-routing system organizes every cable through dedicated, color-coded ducts for effortless setup and maintenance. Equipped with SRAM's S1000 Eagle AXS 12-speed wireless transmission, the Spark RC Team delivers the performance and consistency that XC racers demand.
Key Features
-
Frame - Spark RC HMF Carbon
-
Suspension - RockShox SID 120mm Air Fork with SIDLux Select+ Shock and 3-position adjustability
- Drivetrain - SRAM S1000 Eagle AXS 12-Speed Wireless Transmission
| Specification | Detail |
|---|---|
| Frame | Spark RC HMF Carbon Gen5, adjustable head angle and fork lock, Syncros Octopus cable integration system Gen2, BSA BB, UDH interface, 12x148mm with 55mm chainline |
| Travel | Front: 120mm, Rear: 120mm |
| Fork | RockShox SID 3P Air, Rush RL 3P Damper, 15x110mm Maxle Stealth, tapered steerer, rebound adjustment, lockout |
| Rear Shock | RockShox SIDLuxe Select+, 3P Lockout-Pedal-Descend, Solo Air, rebound adjustment, lockout, bearing hardware 20x8mm, 190x45mm |
| Remote System | SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension Modes |
| Rear Derailleur | SRAM S1000 Eagle AXS Transmission 12-Speed Wireless Electronic Shift System |
| Shifters | SRAM AXS Pod Controller |
| Crankset | SRAM Eagle 70 Transmission, DUB, 55mm Chainline, 34T |
| Chainguide | Spark RC Gen5 chainguide |
| BB-Set | SRAM DUB BSA 73 MTB Wide |
| Chain | SRAM Eagle 70 Transmission |
| Cassette | SRAM Eagle XS-1270 Transmission, 10-52T |
| Brakes | SRAM DB6 4-Piston |
| Front Disc Rotor | SRAM Centerline CL, 180mm |
| Rear Disc Rotor | SRAM Centerline CL, 160mm |
| Grips | Syncros XC Lock-On, ready for Tubeless Plug Kit Storage |
| Handlebar | Syncros IC-M100-AL2, -10° angle, 7° backsweep, 740mm width |
| Seatpost | Syncros Dropper Post SP-M100-AL2, 31.6mm |
| Seat | Syncros Celista Cut Out |
| Headset | Syncros - Acros Angle Adjust ±0.5°, fork lock & cable routing Gen2 system, IS52 |
| Front Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Extras | Syncros Tool, SRAM AXS Powerpack |
| Approx Weight in KG | 12.5kg Tubeless |
| Approx Weight in LBS | 27.56lbs Tubeless |
| Max. System Weight | 130kg |
| Weight Limit Notes | The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| MEASUREMENT | S | M | L | XL |
|---|---|---|---|---|
| Fork Rake | 44 | 44 | 44 | 44 |
| Wheel OD | 753 | 753 | 753 | 753 |
| Head Tube Angle | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 |
| Head Tube Length | 88 | 88 | 95 | 112 |
| Top Tube Horizontal | 572.3 | 573 | 573.7 | 610.8 | 610.1 | 609.4 | 636 | 636.7 | 637.5 | 665 | 665.8 | 666.7 |
| Standover Height | 732.7 | 474.2 | 766.7 | 790.4 |
| BB Offset | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 |
| BB Height | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 |
| Wheel Base | 1159.1 | 1154.7 | 1150.2 | 1184.1 | 1179.7 | 1175.2 | 1212 | 1207.5 | 1203.1 | 1244 | 1239.5 | 1235 |
| BB Center To Top Of Seattube | 385 | 410 | 460 | 510 |
| Seat Angle | 76.5 | 76.4 | 76.3 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 |
| Chainstay | 434 | 434 | 434 | 434 |
| Reach | 429.1 | 430 | 430.9 | 454.2 | 455 | 455.9 | 479.2 | 480 | 480.8 | 504.2 | 505 | 505.7 |
| Stack | 590 | 591.1 | 592.1 | 590 | 591.1 | 592.2 | 596.3 | 597.5 | 598.6 | 611.8 | 613 | 614.2 |
| Trail | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 |
| Fork Length | 531 | 531 | 531 | 531 |
| Maximum Seatpost Insertion | 295 | 320 | 370 | 420 |
