XDS X-LAB RS7
Contender Signature Service
A complimentary $300 value covering professional assembly, tuning, inspection, and careful re-packaging by our technicians.
Product Details
The X-LAB RS7 blends aerodynamic efficiency with real-world rideability, delivering a carbon road platform built for speed, responsiveness, and everyday versatility. Designed for riders who demand performance without compromise, the RS7 brings race-level DNA into a bike that is equally at home on training rides, weekend endurance loops, or daily commutes.
At its core, the RS7 features a full carbon frame and fork constructed from Toray T700 carbon, engineered to balance stiffness, comfort, and structural efficiency. Its performance-oriented geometry delivers sharp, responsive handling when you push the pace, while maintaining stability and comfort over longer distances. The result is a bike that feels fast, confident, and composed in every riding scenario.
The RS7 is built around a philosophy of accessible performance, pairing a Shimano 105 R7100 12-speed drivetrain with a Branta C45 Base carbon wheelset for smooth, reliable shifting and efficient power transfer. A Branta alloy crankset with integrated power meter and Apple Find My connectivity brings advanced ride tracking and security features typically reserved for higher-tier platforms, offering exceptional value without compromise.

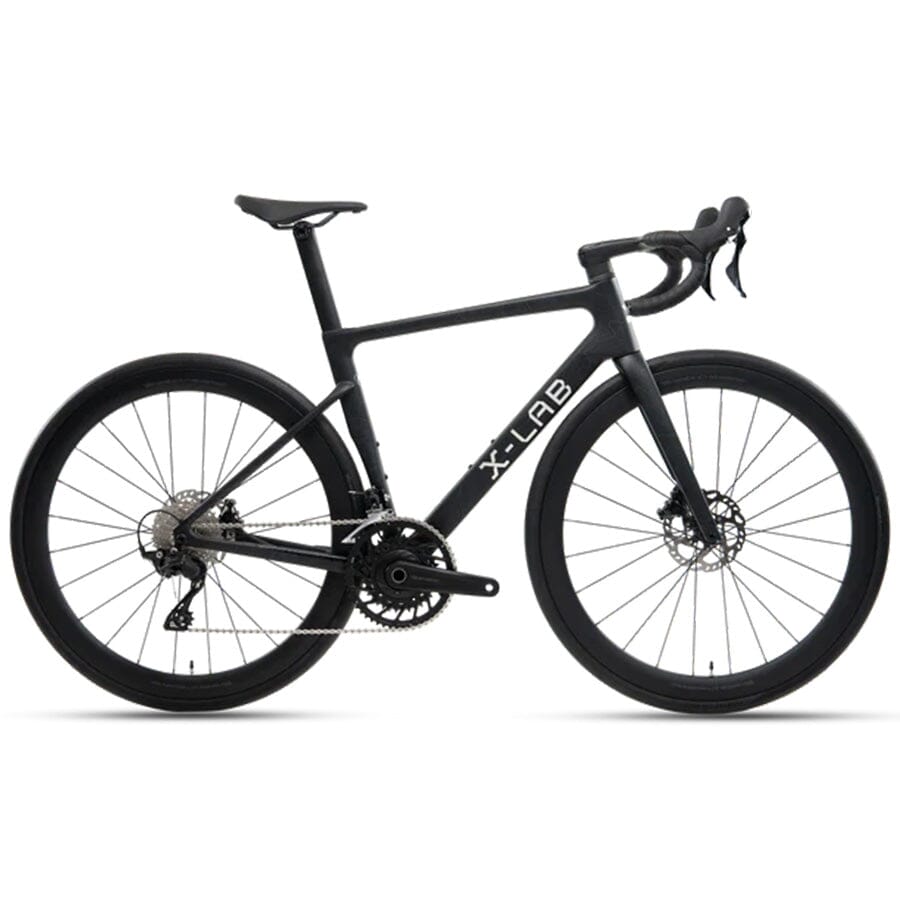

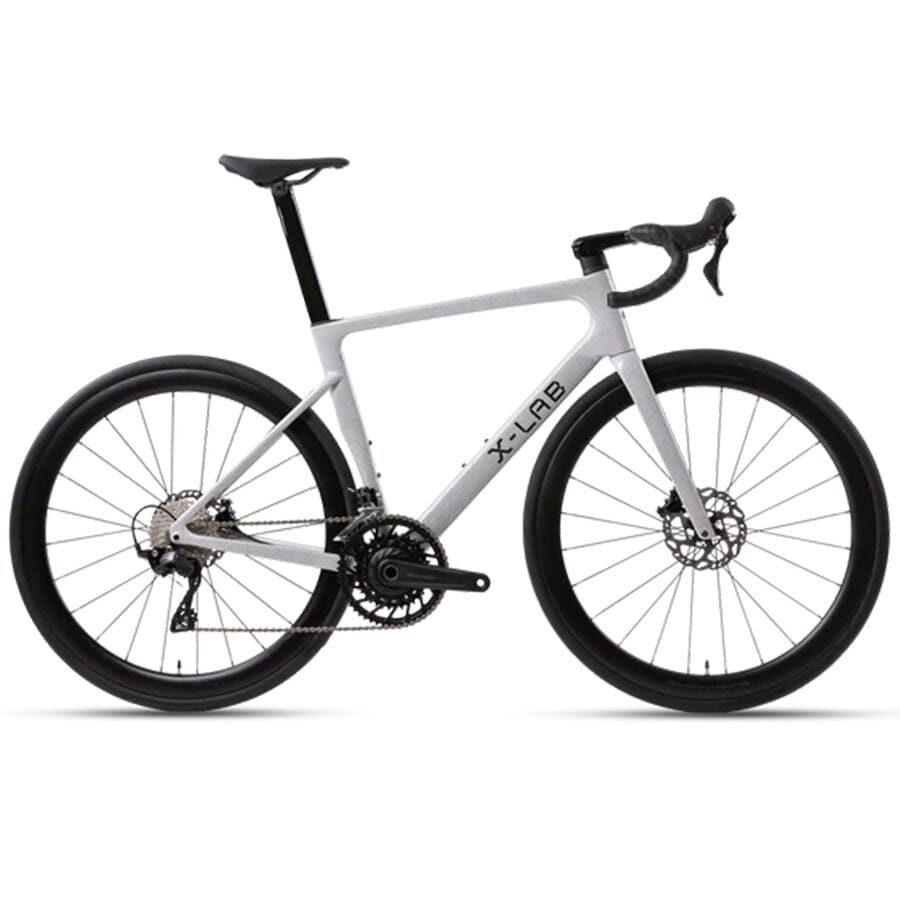

Visually, the RS7 stands apart with its refined Singularity Black and Angel Wing White colorways, inspired by the contours of the French Alps. Subtle topographical detailing beneath the finish gives the frame depth and identity, creating a bike that is understated yet unmistakably premium.
Key Features
- Frame – XDS Carbon Frame, Toray T700
- Drivetrain – Shimano 105 RD-R7100 12-Speed
- Wheelset – Branta C45 Base Carbon Wheelset, Stainless Steel Spokes
| Specification | Detail |
|---|---|
| Frame | XDS Carbon Frame, Toray T-700 |
| Fork | XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle |
| Handlebar / Stem | Branta Carbon Integrated |
| Seatpost | XDS Carbon Seatpost, Aero Profile |
| Rear Derailleur | Shimano 105 RD-R7100 |
| Front Derailleur | Shimano 105 FD-R7100 |
| Shifters | Shimano 105 ST-R7120 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | CS-R9012, 12-Speed, 11-34T |
| Crankset | Branta Alloy Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apply Find My Anti-Theft Technology |
| Bottom Bracket | BSA 24mm |
| Rotors | Shimano SM-RT70, F:160mm R:160mm |
| Chain | SUMC SX12 |
| Wheelset | Branta C45 Base Carbon Wheelset, Stainless Steel Spokes |
| Tires | Branta R332, 700x32C, 60TPI |
| Saddle | Branta R302, Steel Rails |
| Weight | 8.49 kg / 18.67 lbs (Size L) |
| Size Options | XS / S / M / L / XL / XXL |
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube Length (mm) | 420 | 440 | 470 | 490 | 510 | 530 |
| Top Tube Length (mm) | 500 | 515 | 531 | 550 | 570 | 590 |
| Head Tube Length (mm) | 130 | 135 | 145 | 160 | 175 | 200 |
| Seat Tube Angle (°) | 75° | 75° | 75° | 74° | 74° | 74° |
| Head Tube Angle (°) | 70° | 72° | 73° | 73° | 73° | 74° |
| Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 973 | 976 | 982 | 993 | 1006 | 1016 |
| Bottom Bracket Drop (mm) | 72 | 72 | 70 | 70 | 68 | 68 |
| Stack (mm) | 526 | 535 | 546 | 561 | 574 | 602 |
| Reach (mm) | 360 | 370 | 380 | 390 | 400 | 412 |
| Front Center (mm) | 574 | 577 | 581 | 593 | 606 | 616 |
| Standover (mm) | 737 | 752 | 772 | 789 | 807 | 830 |
| Fork Rake / Offset (mm) | 55 | 55 | 45 | 45 | 45 | 45 |
| Trail (mm) | 65 | 58 | 62 | 60 | 58 | 52 |
| Handlebar Width (mm) | 360 | 360 | 380 | 380 | 400 | 400 |
| Stem Length (mm) | 90 | 100 | 110 | 110 | 120 | 120 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
| Seat Post Length (mm) | 300 | 300 | 350 | 350 | 400 | 400 |
