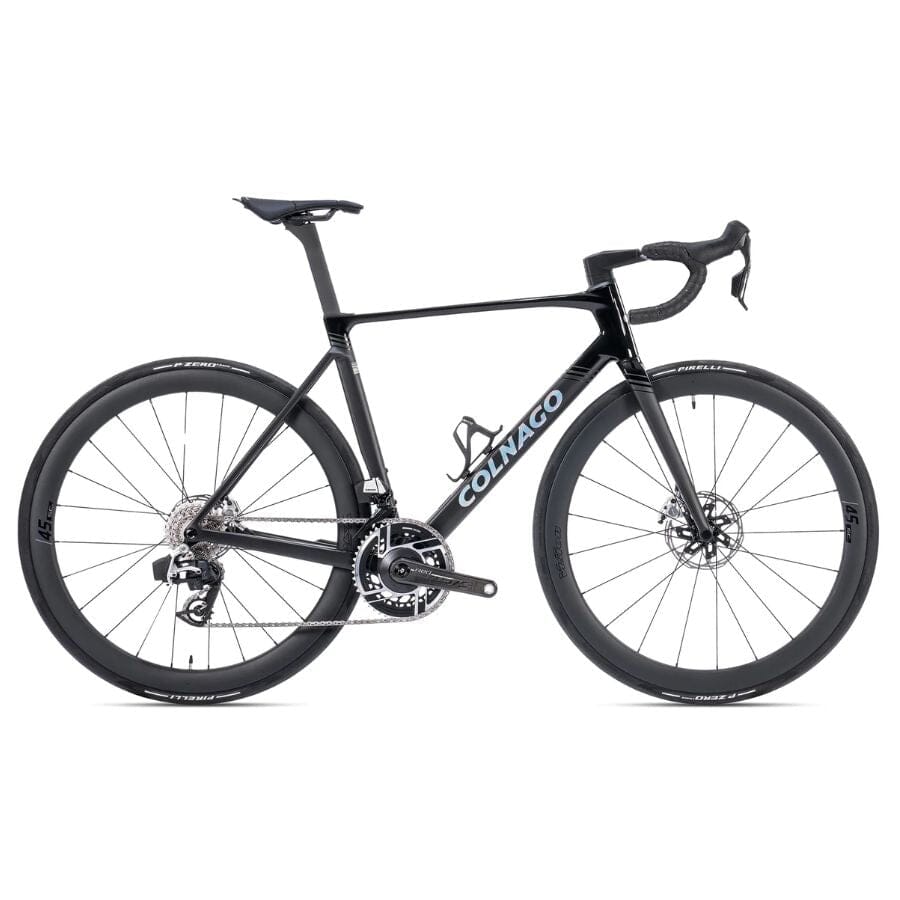

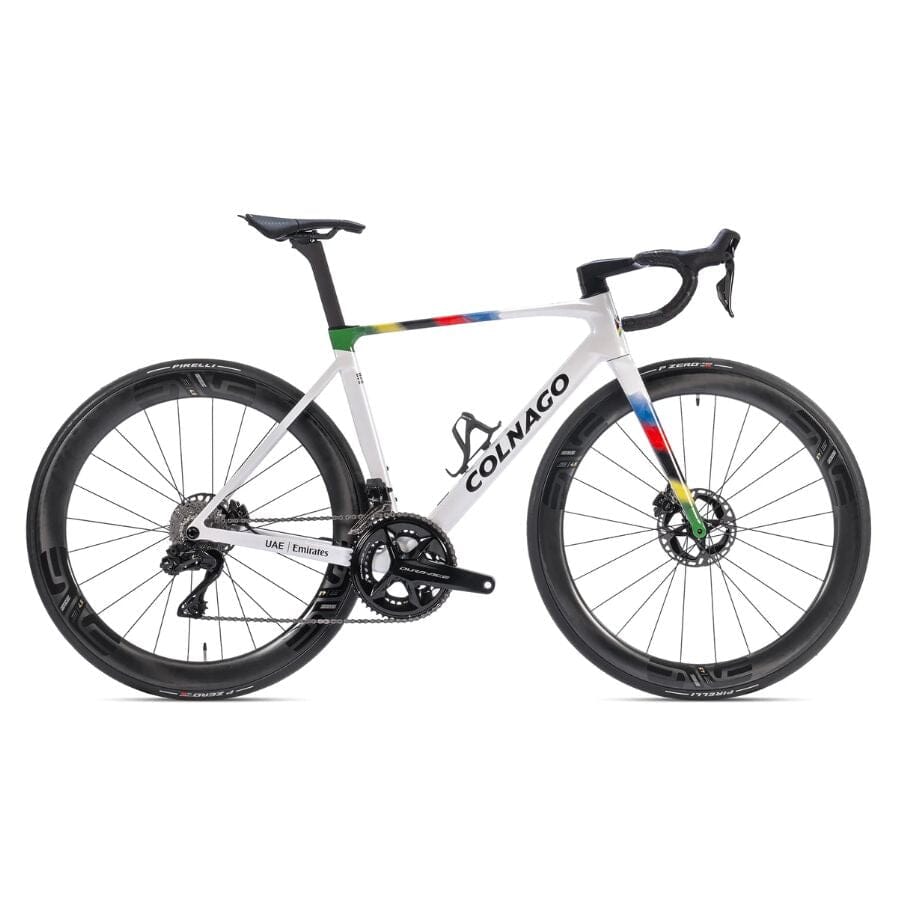

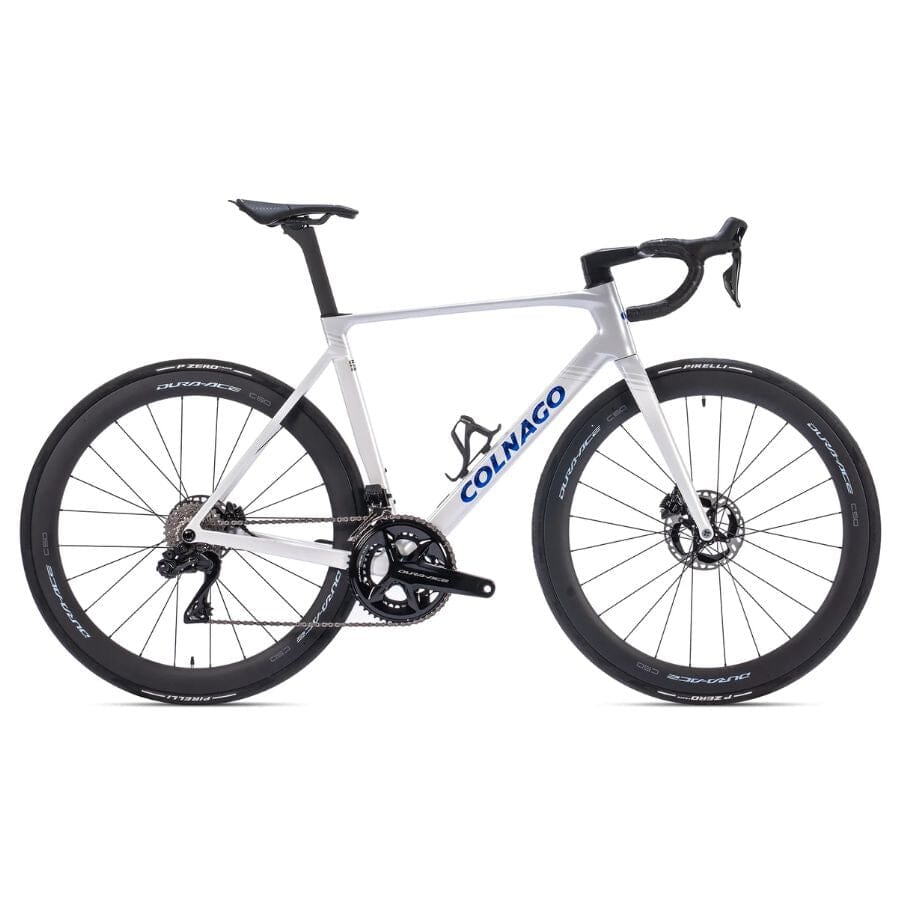

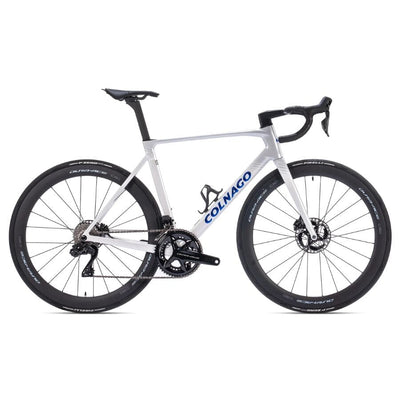

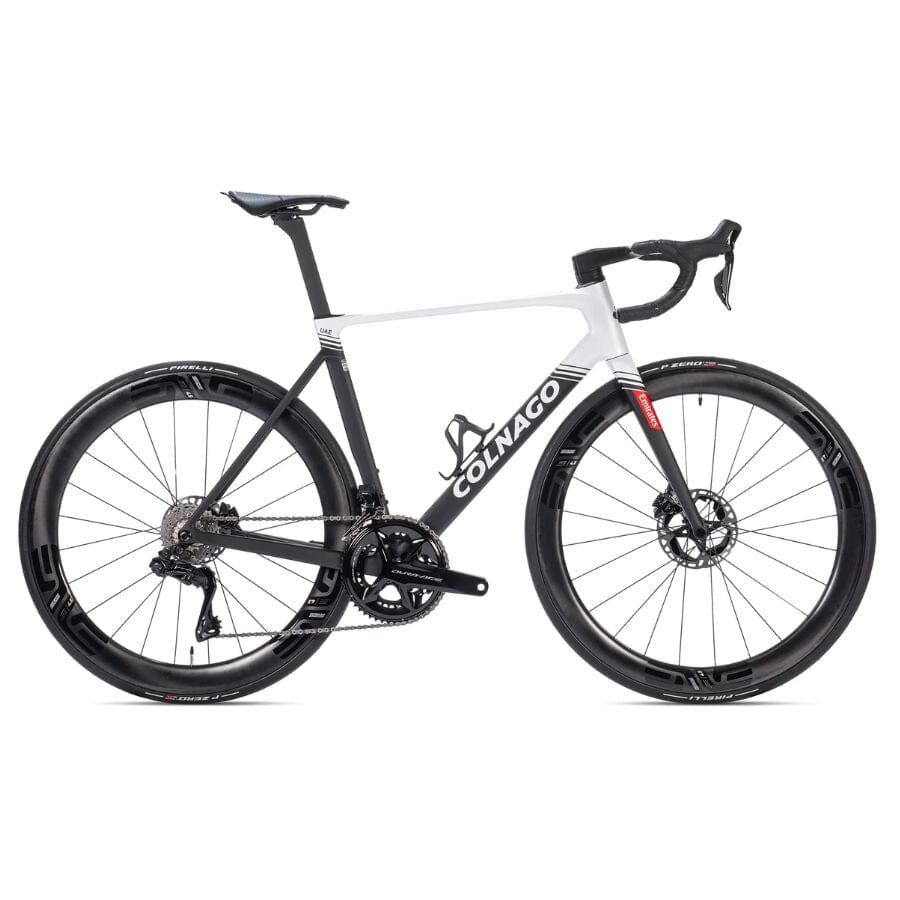

Colnago V5Rs Disc Frameset
Product Details
The Colnago V5Rs represents the ultimate evolution in racing bike design, created to dominate WorldTour competition with riders like Pogačar. This groundbreaking frame weighs just 685 grams ready-to-paint, making it the lightest bike in Colnago's legendary history while maintaining the stiffness and responsiveness demanded by professional racers. The frame kit is 12.5% lighter than its predecessor without sacrificing any structural integrity. Advanced carbon fiber lamination techniques ensure every area of the frame is optimized for strength, durability, and minimal weight.
What makes the V5Rs special is how it balances multiple performance factors perfectly. The thin, high-performance profiles reduce the frontal area by 13% compared to previous models, delivering aerodynamic performance that rivals dedicated aero frames. The narrower head tube cuts through air more efficiently, while the new lightweight fork provides more precise steering and accommodates up to 32mm tires for better grip and handling on varied surfaces. This isn't just about being light—it's about creating the perfect tool for winning races at the highest level.
KEY FEATURES
- 685g Ultra-Light Carbon Frame – Lightest Colnago ever with advanced lamination techniques and 12.5% weight reduction over predecessor
- Aerodynamic Thin Profiles – 13% smaller frontal area with wind tunnel-tested design approaching dedicated aero frame performance
- Professional Racing Geometry – Optimized stiffness and responsiveness with 32mm tire clearance for versatile racing conditions
| Frame | Colnago V5Rs Monocoque carbon frame |
| Fork | Carbon fork for disc brakes, integrated cables, Semi-Circular section |
| Headset | 1"1/8 and 1"1/4 - SLT Treated Bearings |
| Through Axles | Diameter: 12 mm, length 100 mm (front) - 142 mm (rear) |
| Maximum Tyre Size | 32 mm (nominal width) |
| Measurement | 420 | 455 | 485 | 510 | 530 | 550 | 570 |
|---|---|---|---|---|---|---|---|
| Reach | 371 mm | 377 mm | 384 mm | 390 mm | 397 mm | 404 mm | 411 mm |
| Stack | 509 mm | 523 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Top Tube (O) | 503 mm | 514 mm | 530 mm | 544 mm | 564 mm | 578 mm | 595 mm |
| Fork Length | 377 mm | 377 mm | 377 mm | 377 mm | 377 mm | 377 mm | 377 mm |
| Head Tube Length (Hs) | 101 mm | 112 mm | 127 mm | 146 mm | 162 mm | 181 mm | 199 mm |
| Head Tube Angle (Ss) | 70.6° | 71.5° | 72.3° | 72.5° | 73.0° | 73.0° | 73.5° |
| Seat Tube Angle (Sc) | 75.50° | 75.30° | 74.80° | 74.50° | 73.8° | 73.5° | 73.3° |
| Chainstay Length (C) | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Front Center (A) | 579 mm | 581.5 mm | 586.5 mm | 596.5 mm | 600 mm | 612.5 mm | 622 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
