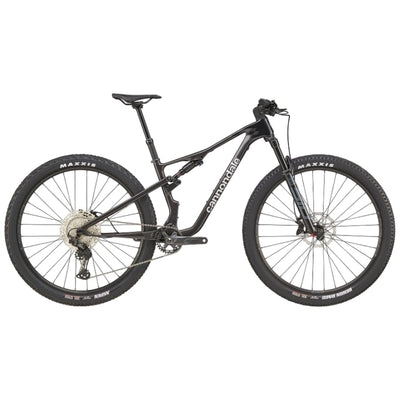

Cannondale Scalpel Carbon 4
Request Info
Cannondale Scalpel Carbon 4
Product Details
The Cannondale Scalpel Carbon 4 is built for riders who crave both speed and technical capability. Designed on a superlight carbon frame with 120mm of FlexPivot suspension, it blends race-winning efficiency with trail-ready stability. The geometry combines a slack 66.6° head tube for confident descending with a steep 75.5° seat tube for climbing power, while size-specific chainstays keep every rider centered and balanced. Whether chasing podiums or pushing the limits on rough trails, the Scalpel 4 delivers traction, control, and precision in every corner.
Outfitted with a Shimano Deore/XT 12-speed drivetrain, RockShox SID 120mm fork and SIDLuxe Select+ rear shock, and Shimano MT501 hydraulic disc brakes, it’s ready for aggressive riding at any pace. Stan’s NoTubes Crest S2 tubeless-ready rims are wrapped in Maxxis Rekon Race and Aspen WT 2.4” tires for a fast, grippy wheel setup, while the DownLow dropper seatpost keeps you in control on technical descents. Every detail, from the kinematics to the carbon layup, is engineered to make the Scalpel 4 devilishly fast and supremely capable.
Key Features
-
Advanced Carbon Frame — FlexPivot suspension and Proportional Response geometry deliver speed, traction, and control.
-
Race-Ready Build — Shimano Deore/XT drivetrain, RockShox SID suspension, and hydraulic disc brakes.
-
Tubeless-Ready Wheels — Stan’s Crest S2 rims with Maxxis 2.4” tires for lightweight speed and grip.
*Please note that bike specifications are subject to change without prior notice
| Specification | Detail |
|---|---|
| Frame | Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native |
| Fork | RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR |

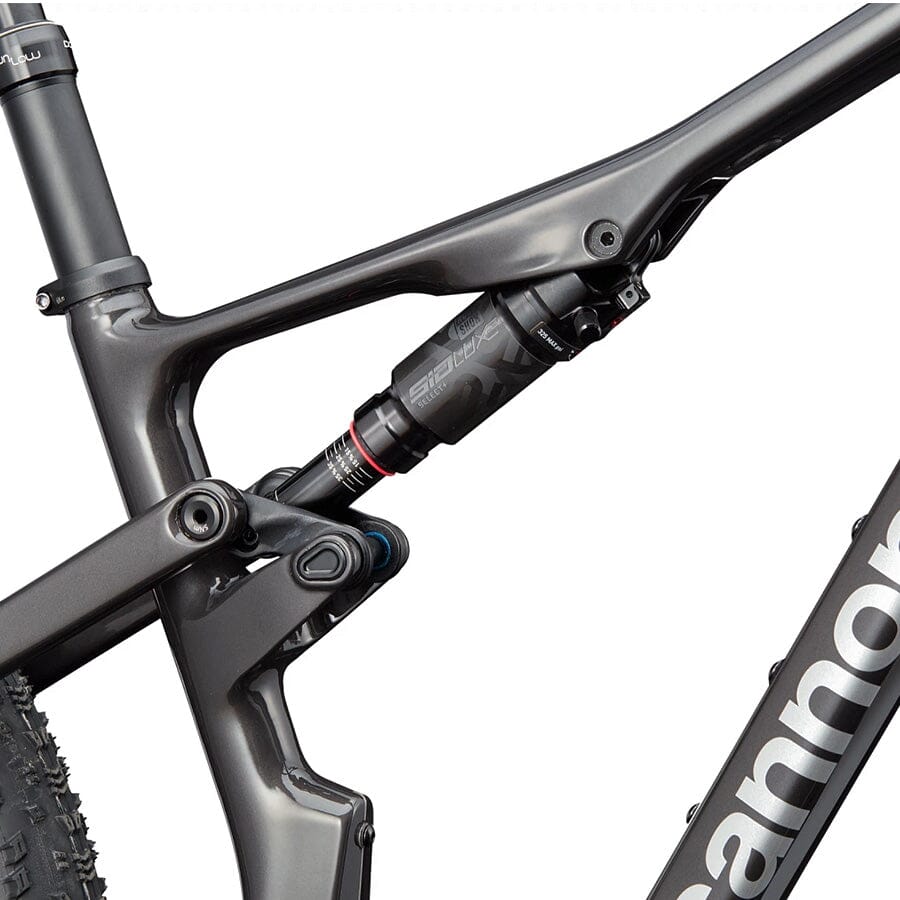

| Rear Shock | RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45 |
| Rear Derailleur | Shimano XT |
| Shifters | Shimano Deore 6100, 12-speed |
| Chain | Shimano Deore, 12-speed |

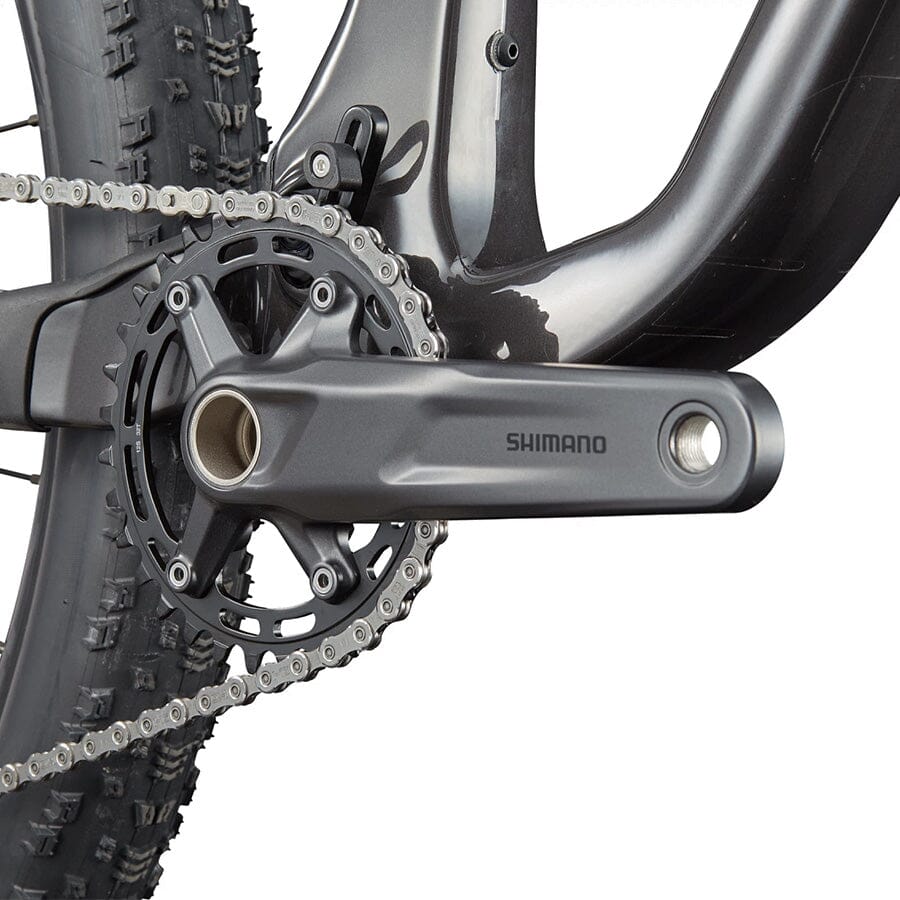

| Crank | Shimano M5121, 32T |

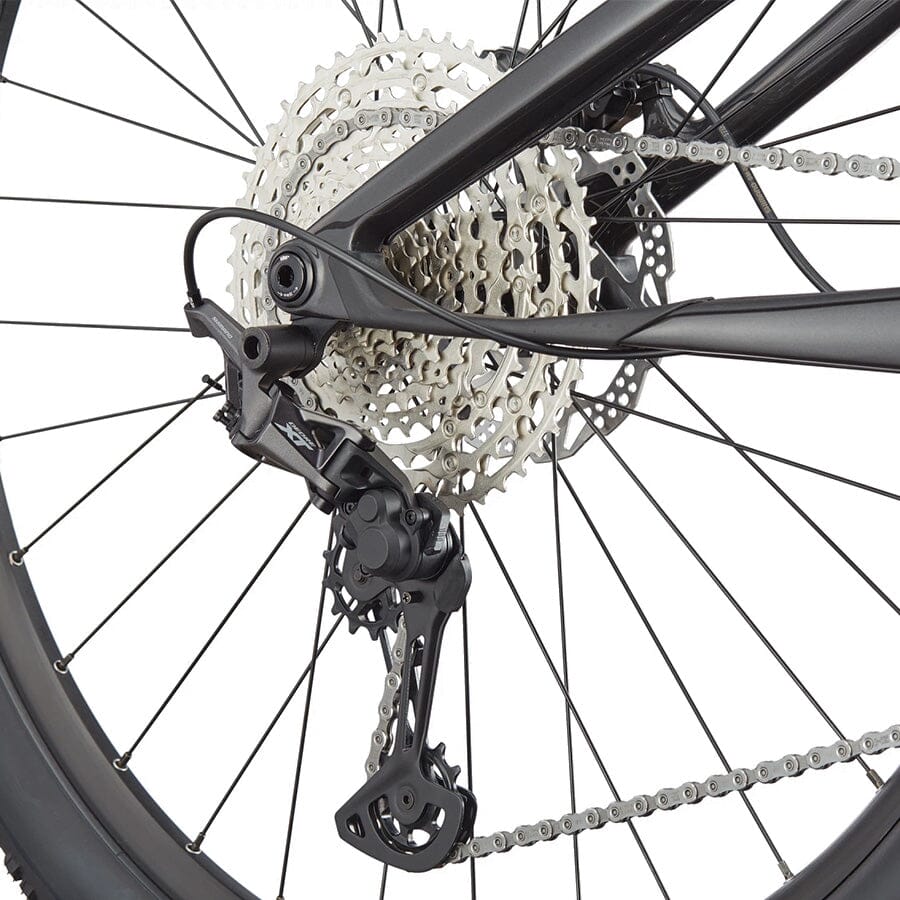

| Rear Cogs | Shimano Deore, 10-51, 12-speed |
| Bottom Bracket | Shimano BSA 73mm |
| Brakes | Shimano MT501 hydraulic disc, 180/160mm RT54 rotors |
| Brake Levers | Shimano MT501 hydraulic disc |
| Rims | Stan's NoTubes Crest S2, 32h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tire Size | 2.4 |
| Wheel Size | 29 |
| Hubs | (F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano MT410B, 12x148mm thru-axle |
| Tires | (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready |
| Handlebar | Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Grips | Cannondale XC Silicone |

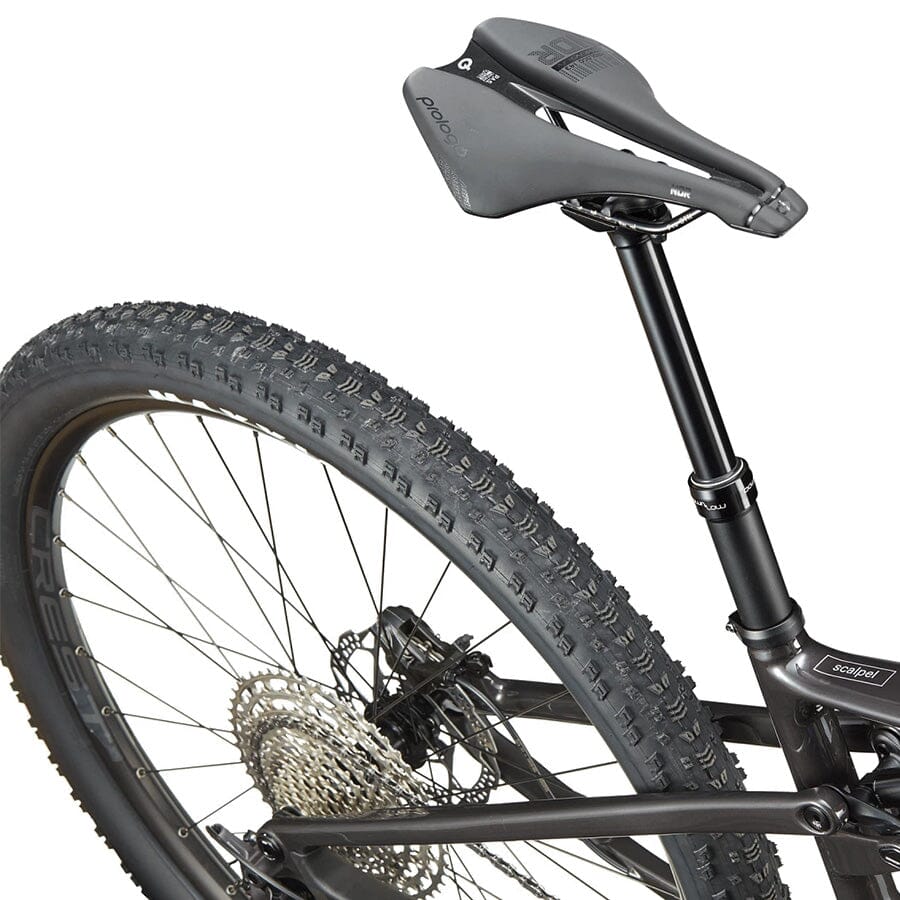

| Saddle | Prologo Dimension NDR, STN rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Sizing | 5'1"-5'5" | 5'4"-5'9" | 5'9"-6'0" | 5'11"-6'5" |
| Wheel Size | 29" | 29" | 29" | 29" |
| Seat Tube Length | 38.0 | 40.0 | 44.5 | 50.0 |
| Top Tube Horizontal | 57.9 | 59.7 | 62.5 | 66.9 |
| Top Tube Actual | 53.6 | 55.6 | 58.4 | 63.0 |
| Head Tube Angle | 66.6° | 66.6° | 66.6° | 66.6° |
| Seat Tube Angle | 69.2° | 71.0° | 71.7° | 71.7° |
| Seat Tube Angle Effective | 75.5° | 75.5° | 75.5° | 75.5° |
| Standover | 73.6 | 74.4 | 75.2 | 76.3 |
| Head Tube Length | 9.0 | 9.0 | 10.0 | 11.0 |
| Wheelbase | 114.0 | 116.9 | 120.2 | 124.5 |
| Front Center | 70.9 | 73.4 | 76.3 | 80.2 |
| Chain Stay Length | 43.4 | 43.8 | 44.2 | 44.6 |
| Bottom Bracket Drop | 4.2 | 4.2 | 4.2 | 4.2 |
| Bottom Bracket Height | 33.4 | 33.4 | 33.4 | 33.4 |
| Fork Rake | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 11.2 | 11.2 | 11.2 | 11.2 |
| Stack | 59.7 | 59.7 | 60.7 | 61.6 |
| Reach | 42.5 | 45.0 | 47.5 | 51.0 |
