Cervélo Áspero-5 Force
Product Details

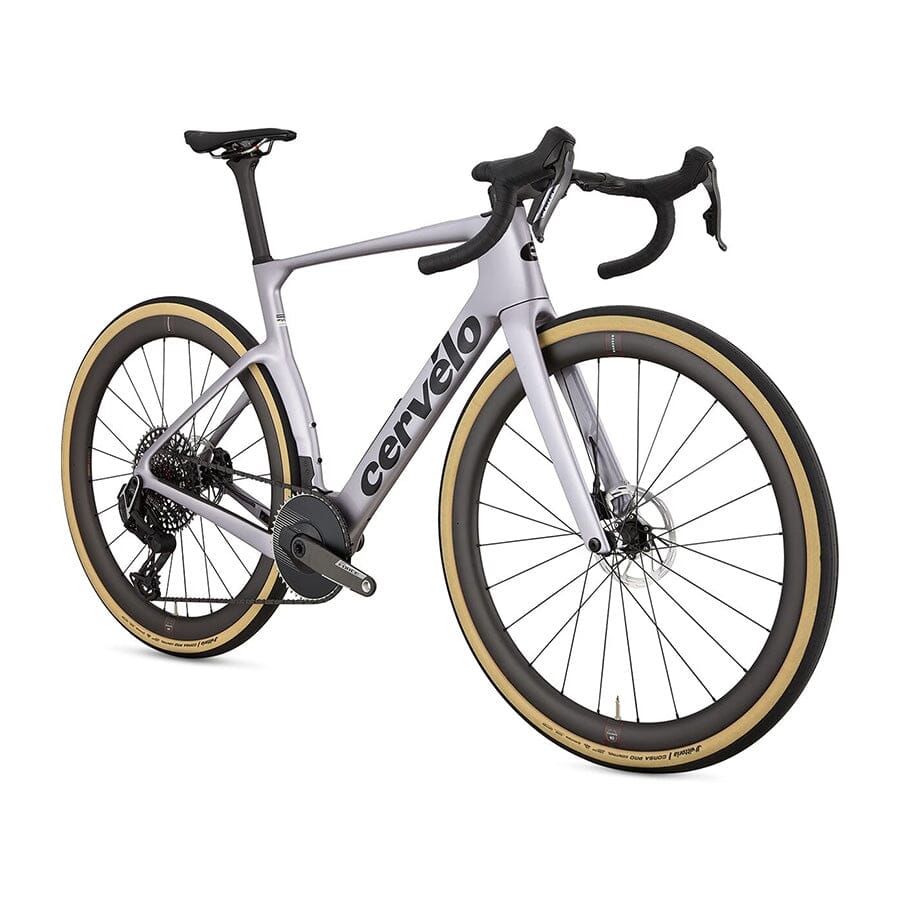

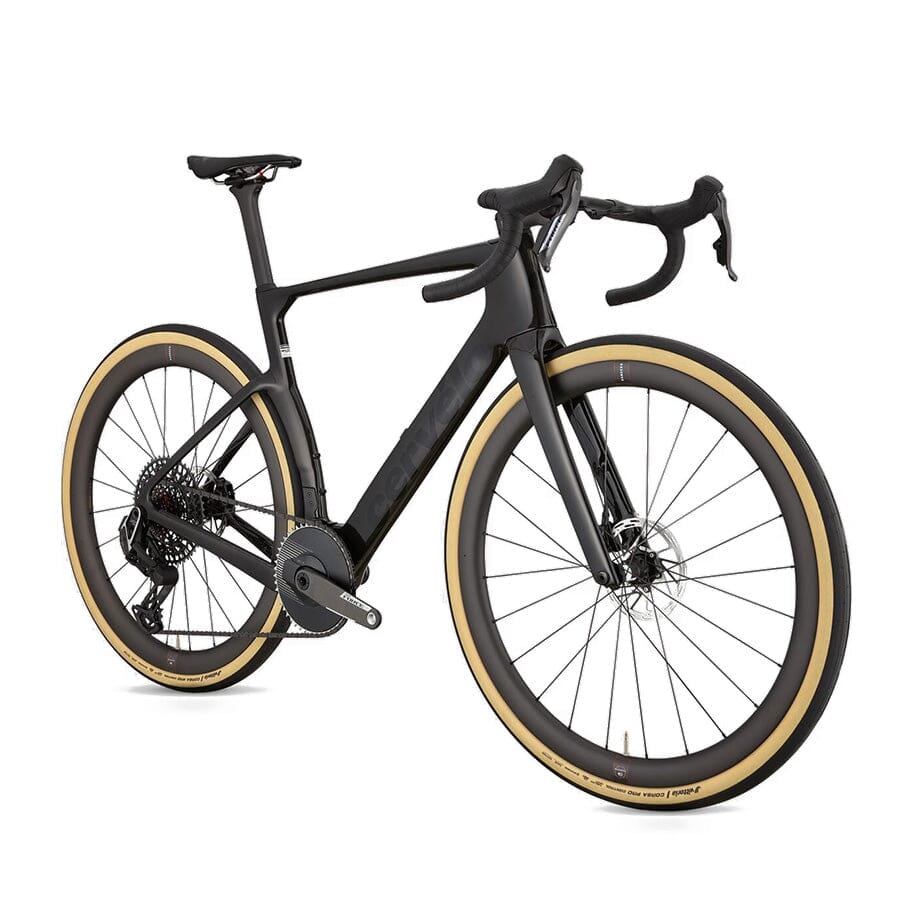

The Cervélo Áspero-5 Force is a high-performance gravel race bike designed for riders seeking aerodynamic efficiency, low weight, and race-focused capability across a wide range of terrain. Built around Cervélo’s premium carbon frame platform, the Áspero-5 incorporates aerodynamic tube shaping, fully integrated cable routing, and an aero-focused cockpit designed to reduce drag while maintaining the handling characteristics required for modern gravel racing.
According to Cervélo, the latest Áspero-5 delivers substantial aerodynamic gains over the previous generation while also reducing frame weight. The platform combines race-oriented efficiency with practical features including integrated downtube storage and a threaded T47 bottom bracket for simplified serviceability and long-term reliability.
The bike's Mixed & Matched Tire Geometry allows riders to tailor handling characteristics through tire selection. It can be configured with equal tire sizes up to 45mm for balanced stability and control, or with a slight front-to-rear tire size differential to optimize responsiveness for smoother and less technical race courses.
Equipped with the SRAM Force 1 AXS E1 wireless drivetrain, integrated power meter, and Reserve 44|40 TA GR carbon wheels with DT Swiss 350 hubs, the Áspero-5 Force is built to deliver efficient power transfer, precise shifting, and confident performance on everything from fast gravel roads to demanding race terrain.
Key Features:
- Cervélo All-Carbon Frame: Aerodynamically optimized gravel race platform
- Integrated Downtube Storage: Internal storage solution for tools and ride essentials
- SRAM Force 1 AXS E1 Drivetrain: Wireless electronic shifting with integrated power meter
- Reserve 44|40 TA GR Carbon Wheels: Lightweight carbon wheelset with DT Swiss 350 hubs
- Mixed & Matched Tire Geometry: Handling can be tuned through tire size selection
- T47 Threaded Bottom Bracket: Service-friendly threaded interface
- Wide Tire Clearance: Accommodates gravel tires up to 45mm (frame-dependent configuration)
- Race-Focused Design: Developed for competitive gravel riding and endurance events
| Component | Specification |
|---|---|
| Fork | Cervélo All-Carbon, Tapered Aspero-5 Fork |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Seatpost | Cervélo SP27 Carbon |
| Seatpost Sizing | 48cm - 0mm 51cm - 0mm 54cm - 0mm 56cm - 0mm 58cm - 0mm 61cm - 15mm |
| Left Shifter/Brake | SRAM Force AXS E1 |
| Right Shifter/Brake | SRAM Force AXS E1 |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Brake Rotors | SRAM Paceline Centerlock |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
| Bottom Bracket | SRAM DUB Wide Ceramic, T47 BBright |

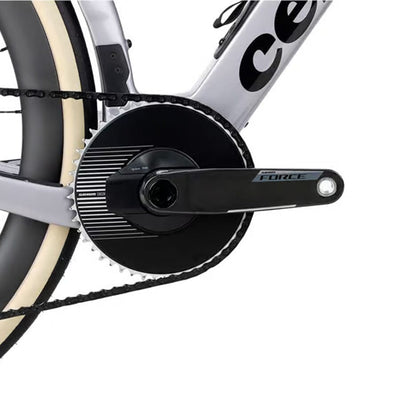

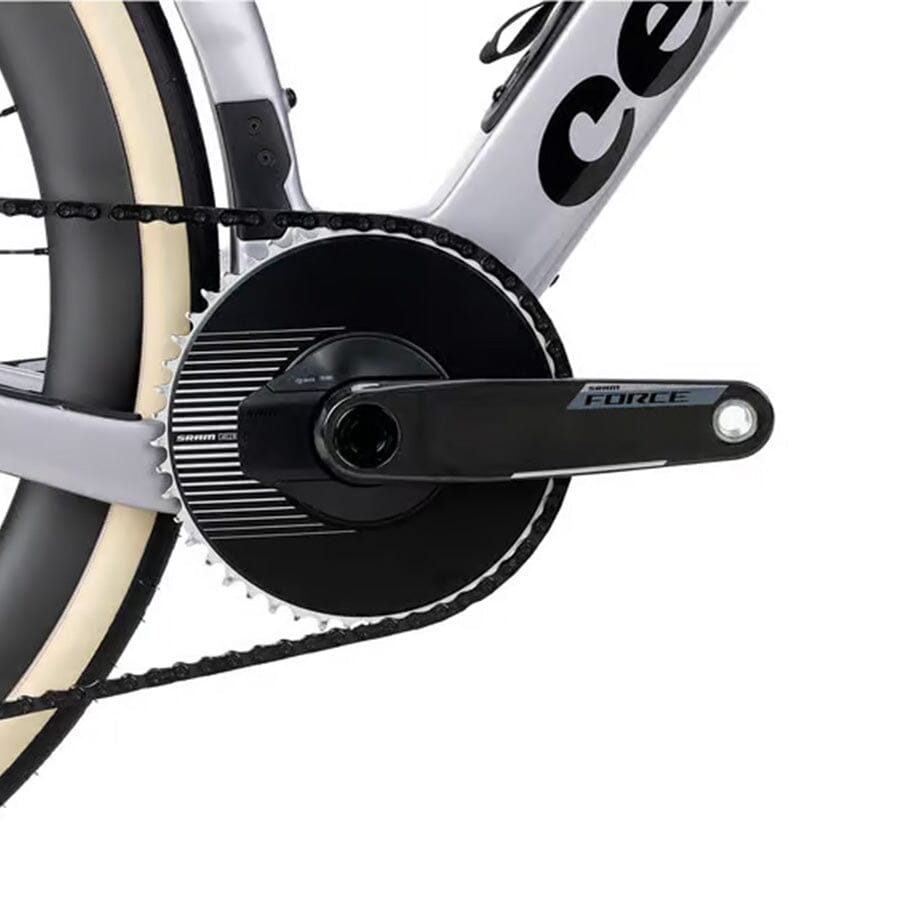

| Crankset | SRAM Force 1 AXS E1, 48T Aero, DUB Wide, with power meter |
| Crank Sizing |
54cm, 56cm - 170mm 58cm, 61cm - 172.5mm |

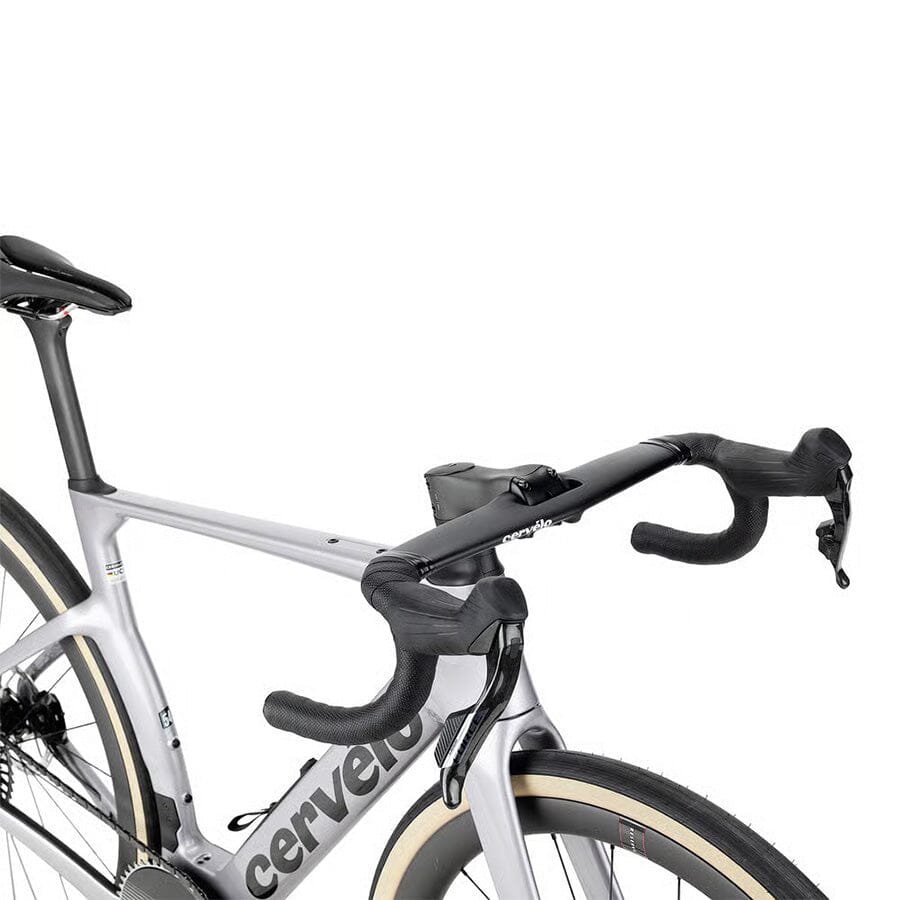

| Handlebar | Cervélo HB16 Carbon, 31.8mm clamp |
| Handlebar Sizing |
48cm - 38cm 51cm - 38cm 54cm - 40cm 56cm - 40cm 58cm - 42cm 61cm - 42cm |
| Stem | Cervélo ST31 Carbon |
| Stem Sizing |
48cm - 70mm 51cm - 80mm 54cm - 90mm 56cm - 90mm 58cm - 100mm 61cm - 100mm |
| Saddle | Prologo Nago R4 PAS TiRox |
| Cassette | SRAM X0 Eagle, T-Type, 10-52T, 12-Speed |
| Chain | SRAM X0 Eagle, T-Type |
| Front Wheel | Reserve 40TA GR, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 44TA GR, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
| Tire | Vittoria Corsa Pro Control TLR G2.0 700x42c |
| Max Tire Width | 45mm |
| Accessories |
Arundel Mandible Water Bottle Cage (2) Cervélo Front Computer/Accessory Mount 887 In-Frame Storage Rolls (Flat Kit + Inner Tube) Rear Accessory Mount Smartpak Top Tube Bag 400A |
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach (mm) | 369 | 377 | 386 | 395 | 404 | 413 |
| Stack (mm) | 500 | 525 | 550 | 575 | 600 | 625 |
| Head Tube Angle | 70.6° | 71.1° | 71.6° | 71.6° | 71.6° | 71.6° |
| Front Center (mm) | 584 | 593 | 602 | 619 | 636 | 653 |
| Bottom Bracket Drop (mm) | 80 | 80 | 80 | 80 | 78 | 78 |
| Head Tube Length (mm) | 75 | 99 | 122 | 148 | 177 | 203 |
| Top Tube Length (mm) | 516 | 531 | 552 | 574 | 591 | 607 |
| Seat Tube Angle | 74.1° | 73.6° | 73.1° | 72.6° | 72.6° | 72.6° |
| Standover Height (mm) | 720 | 753 | 779 | 801 | 826 | 851 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset (mm) | 57.5 | 54.5 | 51.5 | 51.5 | 51.5 | 51.5 |
| Wheelbase (mm) | 993 | 1002 | 1012 | 1029 | 1047 | 1064 |
| Chainstay Length (mm) | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 |
