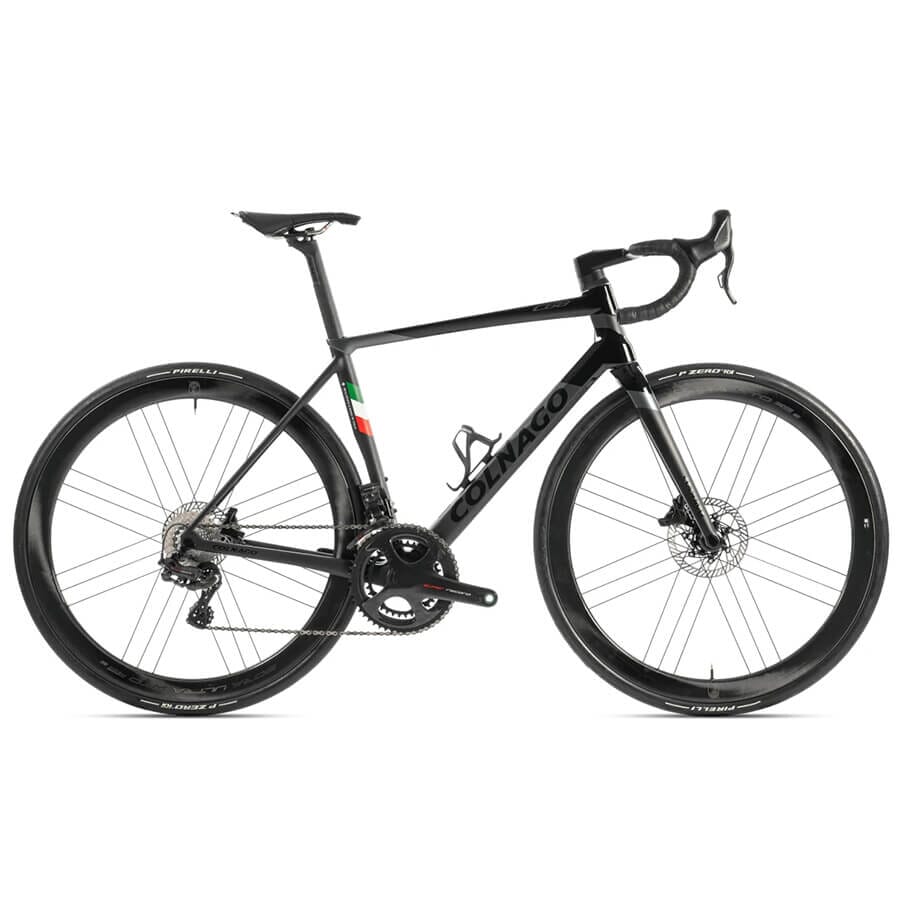

Colnago C68 Allroad Disc Frameset
Product Details
The Colnago C68 Allroad Disc Frameset represents Colnago's first model specifically designed to deliver smooth, confident performance on both asphalt and dirt roads. This versatile frameset is for riders who see cycling as everyday exploration, blending the legendary craftsmanship of Italian handmade construction with modern gravel capability. Handcrafted in Italy using Colnago's iconic modular carbon frame tradition, the C68 Allroad continues a legacy that dates back to the early 1990s when Colnago became the first brand to introduce carbon frames to professional teams.
The C68 Allroad frameset accommodates tires up to 35mm thanks to reinforced lower chainstays, providing the versatility to tackle road and gravel with equal confidence. The Allroad-specific geometry features a higher stack and shorter reach compared to its road counterpart, creating a more upright, comfortable position ideal for technical trails and long-distance riding. The larger diameter steerer tube compared to the C64 delivers greater rigidity and improved handling precision on challenging terrain.
Colnago's legendary modular frame construction shines through eight carbon modules that are hand-assembled in Italy through precision joints and interlocks. The innovative banding process applies carbon bands manually at module junctions, which are then filed and polished to achieve a monocoque appearance while maintaining the superior properties of modular construction. This jealously guarded artistry from the same hands that built bikes for cycling's greatest champions ensures exceptional quality and attention to detail.
Perfect for riders seeking a versatile, handcrafted Italian frameset that excels on mixed terrain, the C68 Allroad features thoughtful details like the integrated multitool in the headset top cap and upgraded T47 bottom bracket with larger diameter bearings for improved durability and reduced friction. This frameset represents the perfect fusion of Colnago's racing heritage with modern adventure-ready capability.
Key Features
- Frame – Handmade Modular Carbon Construction with 8 Modules
- Geometry – Allroad-Specific with Higher Stack and Shorter Reach
- Tire Clearance – Up to 35mm with Reinforced Lower Chainstays
- Bottom Bracket – T47 Standard with Improved Durability
- Craftsmanship – Handmade in Italy with Innovative Banding Process
| Specification | Detail |
|---|---|
| Series | C Series |
| Model | C68 Allroad |
| Frame | Modular carbon frame construction: 8 carbon parts |
| Fork | Carbon fork for disc brakes, integrated cables, 1"1/8 section |
| Headset | ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings |
| Seatpost | Carbon seatpost, 0.15 offset, "D-Shape" section |
| Through Axles | Diameter: 12 mm; Length: 100 mm (Front) / 142 mm (Rear) |
| Weight Limit | 120 kg (combined bike, rider, and load) |
| Size | 430 | 460 | 490 | 520 | 550 | 580 |
|---|---|---|---|---|---|---|
| Fork | 379 | 379 | 379 | 379 | 379 | 379 |
| Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Seat Tube Angle (°) | 75.5 | 75 | 74.5 | 74 | 73.5 | 73 |
| Front Center (mm) | 586 | 594 | 602 | 609 | 618 | 631 |
| Chainstay Length (mm) | 412 | 412 | 415 | 415 | 417 | 417 |
| Headtube Length (mm) | 117 | 136 | 157 | 177 | 198 | 219 |
| Headtube Angle (°) | 70.6 | 71 | 71.5 | 72 | 72.5 | 72.5 |
| BB Drop (mm) | 76 | 76 | 74 | 74 | 72 | 72 |
| Effective Top Tube (mm) | 506 | 521 | 537 | 554 | 572 | 591 |
| Stack (mm) | 523 | 543 | 563 | 583 | 603 | 623 |
| Reach (mm) | 370 | 375 | 380 | 386 | 393 | 400 |
| *Please note that bike specifications are subject to change without prior notice |
| Build | Price |
| C68 Allroad Shimano ULT. 8170, Fulcrum Racing 600DB | $10,729.95 |
| C68 Allroad, Shimano ULT. 8170, Fulcrum WIND Carbon | $11,789.95 |
| C68 Allroad, Shimano Dura Ace 9270, Fulcrum Racing 600DB | $14,369.95 |
| C68 Allroad, Shimano Dura Ace 9270, Fulcrum WIND Carbon | $15,399.95 |
| C68 Allroad, Shimano Dura Ace 9270, Dura-Ace Carbon | $16,399.95 |
| C68 Allroad, Shimano Dura Ace 9270, ENVE WS SES 3.4C | $18,989.95 |
| C68 Allroad, Sram Force AXS, Fulcrum Racing 600DB | $10,289.95 |
| C68 Allroad, Sram Force AXS, Fulcrum WIND Carbon | $11,419.95 |
| C68 Allroad, Sram Red AXS, Fulcrum Racing 600DB | $13,289.95 |
| C68 Allroad, Sram Red AXS, Fulcrum WIND Carbon | $14,319.95 |
| C68 Allroad, Campagnolo Super Record EPS, Campagnolo Bora Ultra WTO | $18,639.95 |
| Additional | Price |
| CC.01 Integrated Handlebar | $964.95 |
| Upcharge for PowerMeter Red eTap AXS | $1,199.00 |
| Upcharge for PowerMeter Shimano Dura Ace Di2 | $1,606.00 |
