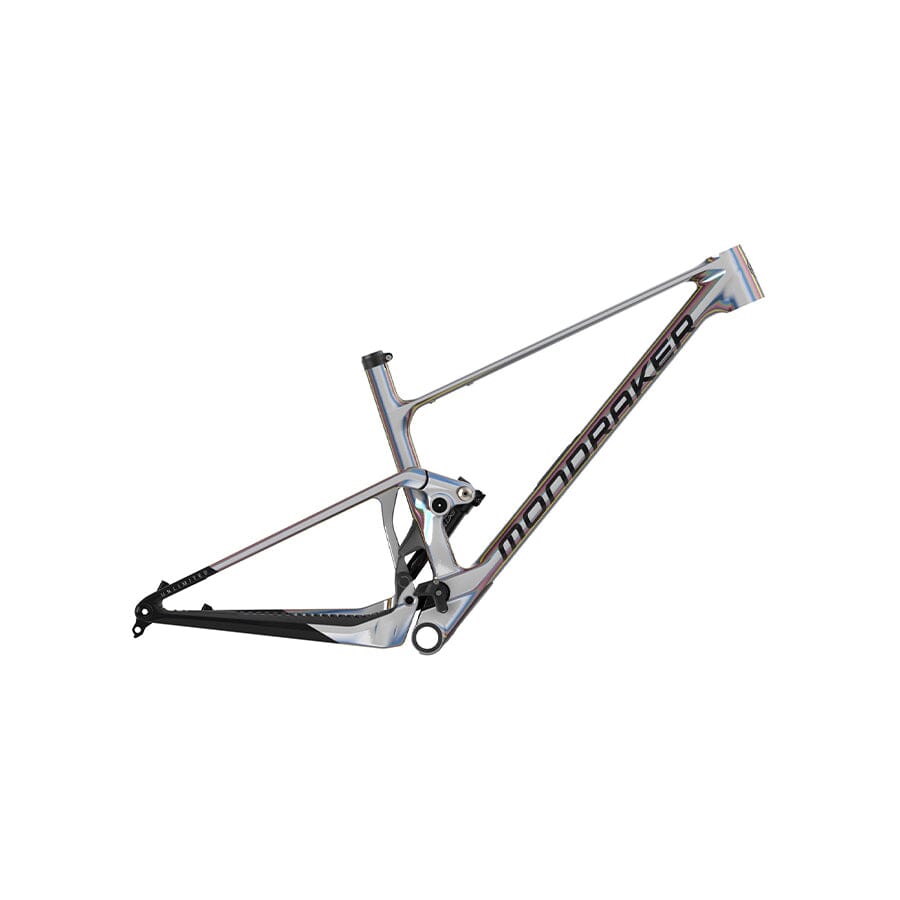

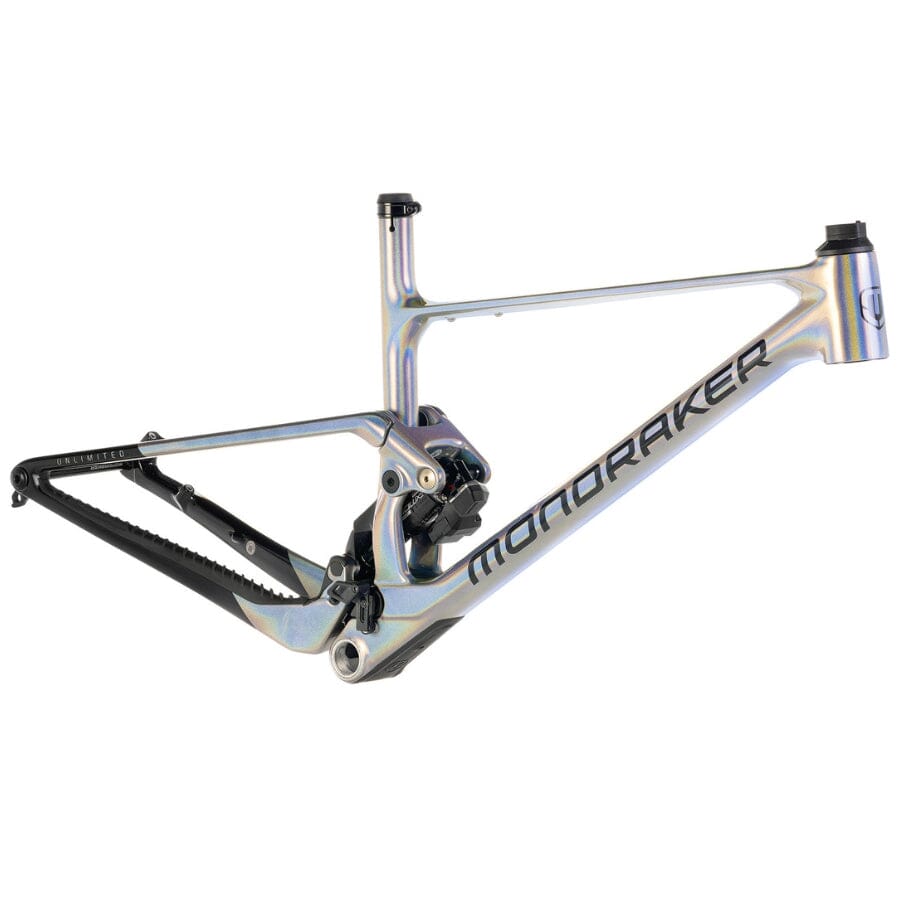

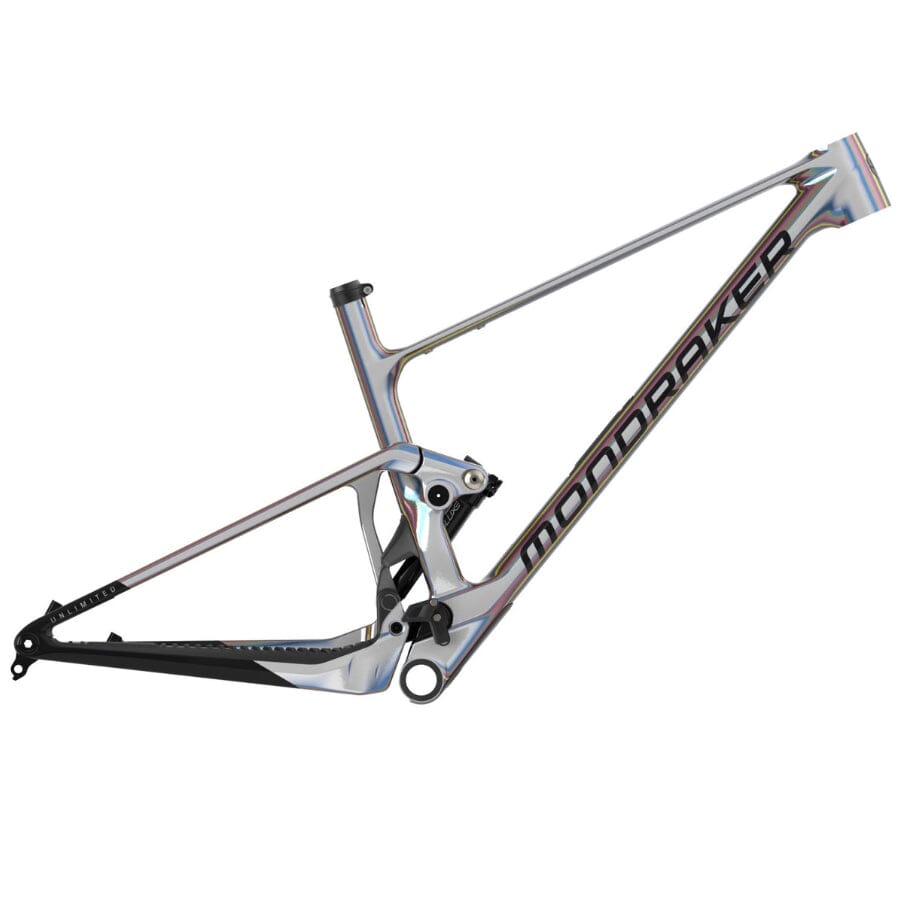

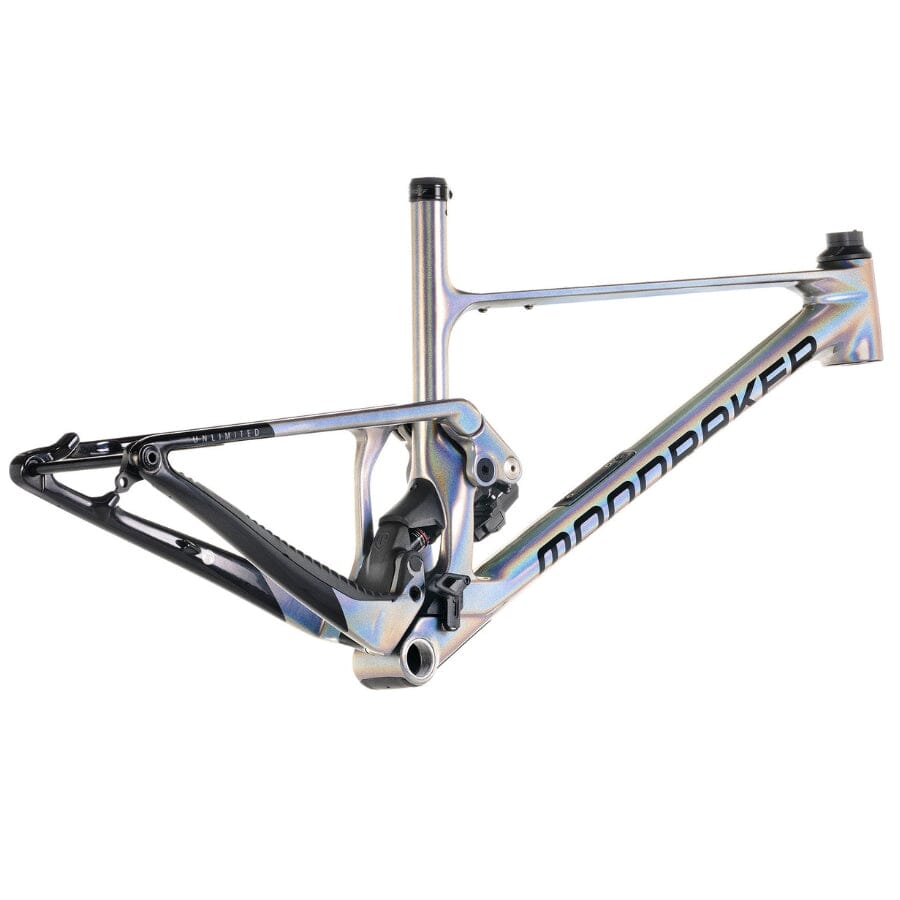

Mondraker F-Podium Unlimited Frameset
Product Details
The Mondraker F-Podium Unlimited Frameset represents the evolution of cross-country benchmarks, combining cutting-edge performance with stunning visual artistry. Named after Element 77 on the periodic table and the goddess Iris, personification of the rainbow, this limited edition masterpiece features an iridescent metallic finish that shifts through a full spectrum of hues as it moves through light. The silvery white base reveals breathtaking color transformations that capture the magic of the rainbow itself, ensuring riders shine brighter than anyone else in the pack.
Built around the completely redesigned F-Podium 29 Stealth Air full carbon frame weighing under 2kg, this bike showcases Mondraker's Updated Zero Suspension System in its most refined form. The reworked architecture positions the rear shock lower in the frame for a more minimalist aesthetic, while the far more compact rear triangle, smaller dropouts, and slender seat stays create a structure that's more rigid, stronger, and tougher than ever before. This total redesign contributes to exceptional stiffness and strength without weight penalties.
The Updated Zero Suspension System has been completely reworked to keep setting benchmarks from grassroots racing to World Cup podiums. More reactive overall while providing better acceleration and feedback from the very first pedal stroke, the system delivers improved performance whether training mid-week or racing at the weekend. Fast, light, and stiff, the Updated Zero keeps the rear wheel firmly under control at all times with superior initial sensitivity, more progressive kinematics, and reduced unsprung weight.
Perfect for elite racers and discerning riders who refuse to compromise on performance or aesthetics, the F-Podium Unlimited Iridium pairs its revolutionary frame with the premium RockShox SID Luxe Ultimate 3P Remote DebonAir shock for flawless suspension performance. True to Mondraker's DNA with no sacrifices and no compromises, this is cross-country racing evolution at its finest.
Key Features
- Frame: F-Podium 29 Stealth Air Full Carbon (Under 2kg) with XCO Optimized Updated Zero Suspension System
- Suspension: RockShox SID Luxe Ultimate 3P Remote Pull DebonAir Shock
- Design: Limited Edition Iridium Colorway with Rainbow-Shifting Metallic Finish
- Architecture: Redesigned Compact Rear Triangle with Enhanced Rigidity
| Specification | Detail |
|---|---|
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount |
| Sizes | S: 410mm / M: 440mm / L: 470mm / XL: 500mm |
| Rear Shock | Rockshox SID Luxe Ultimate 3P Remote in Pull DebonAir, 165x45mm, 3-position remote, low-speed rebound, air preload, trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | Medium compression, medium rebound, Lockout 430, 1 Token |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs with blocklock |
| Fork Remote | RockShox TwistLoc Ultimate FullSprint 125 A1 |
| Derailleur Hanger | Sram UDH |
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 576 mm | 601 mm | 629.4 mm | 657.8 mm |
| Bottom Bracket Drop | -40 mm | -40 mm | -40 mm | -40 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Seat Tube Angle | 72.5° | 72.9° | 73.2° | 73.5° |
| Effective Seat Tube Angle | 76.2° | 76.2° | 76.2° | 76.2° |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Stack | 594.6 mm | 594.6 mm | 608.3 mm | 622.1 mm |
