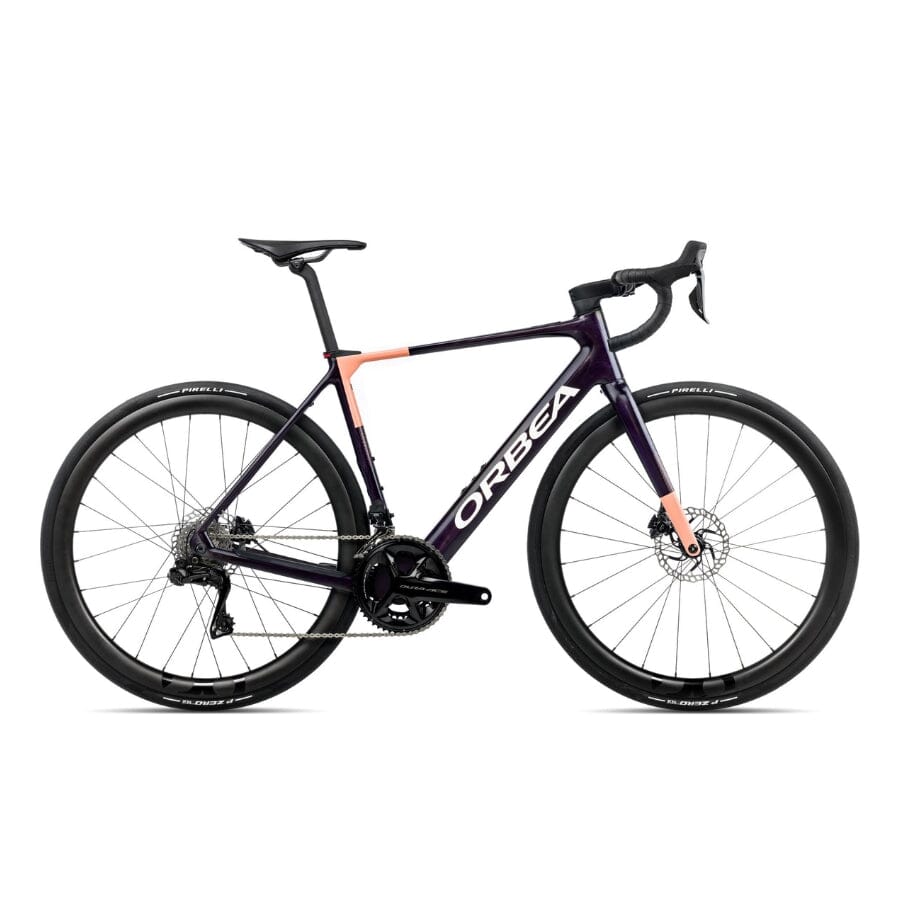

Orbea Gain M10i 20mph 2025
Product Details
The Orbea Gain M10i 20mph 2025 represents the pinnacle of natural electric road performance, where cutting-edge technology and rider synergy create an experience that feels effortlessly sublime. This premium machine delivers invisible assistance that amplifies your abilities without overwhelming the pure joy of cycling. Every pedal stroke feels enhanced yet authentic, transforming challenging rides into flowing adventures where you remain fully connected to the road while experiencing newfound freedom on every gradient.
Constructed from Orbea's flagship OMR Carbon monocoque structure, the Gain M10I showcases meticulous engineering that prioritizes both performance and integration. The revolutionary Mahle X20 motor hub system provides 50Nm of whisper-quiet assistance that responds intuitively to your riding style, delivering power precisely when needed while disappearing completely at higher speeds. The sophisticated power delivery algorithm ensures seamless transitions that maintain the natural rhythm of pure cycling.
The premium specification elevates every aspect of the riding experience, featuring Shimano's flagship Dura-Ace Di2 electronic drivetrain for lightning-fast, precise shifting that matches the bike's refined character. Carbon 42mm wheels provide the perfect balance of aerodynamic efficiency and ride quality, while the Mahle iX350 battery delivers exceptional range for extended adventures. Advanced integration includes ICR cable routing, automatic motor connection, and built-in lighting systems that enhance both functionality and aesthetics.
Designed for discerning cyclists who refuse to compromise on performance or riding experience, the Gain M10I transforms every outing into an opportunity to rediscover the pure pleasure of cycling. This is electric road perfection, where technology serves the rider's passion rather than defining it, creating endless possibilities for joyful performance on every ride.
Key Features
- Frame – Orbea Gain Carbon OMR Monocoque with Advanced Integration
- Motor – Mahle X20 Hub Motor (50Nm)
- Battery - Mahle iX350 (353Wh)
- Drivetrain – Shimano Dura-Ace Di2
- Wheelset – Carbon 42mm Wheels
| Specification | Detail |
|---|---|
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug |
| Fork | Gain OMR carbon fork, 700x35 maximum tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Crankset | Shimano Dura-Ace R9200 34x50t |
| Headset | FSA 1-1/2” Integrated Aluminium Cup |
| Handlebar | OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125 |
| Handlebar Plugs | Orbea Anti-Slippery/Shock Proof |
| Stem | OC Road Performance RP10, -8º |
| Shifters | Shimano R9270 |
| Brakes | Shimano R9270 Hydraulic Disc |
| Rear Derailleur | Shimano Dura-Ace Di2 R9250 |
| Front Derailleur | Shimano Dura-Ace Di2 R9250 |
| Chain | Shimano CN-9100 |
| Wheels | Carbon 42, Tubeless, 21c |
| Cassette | Shimano Dura-Ace R9200 11-30t 12-Speed |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Tyres | Pirelli P ZERO Race SmartEVO TLR 700x30c |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Vento Antares R1 Carbon Rail 140mm |
| Front Light | Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO |
| Motor | Mahle motor hub X20, ALC |
| Battery | Mahle iX350 36V 353Wh |
| Range Extender | N/A |
| Display | Mahle Pulsar One monochrome ANT+ LEV |
| Remote | Mahle ONE Head Unit (BT/ANT+) |
| Charger | Mahle Active Charger up to 4A |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 430 | 460 | 490 | 515 | 540 | 570 |
| Top Tube (EFF) | 516 | 535 | 555 | 569 | 587 | 602 |
| Head Tube | 113 | 136 | 158 | 181 | 203 | 225 |
| Chainstay | 415 | 415 | 415 | 415 | 415 | 415 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| BB Height | 263 | 263 | 263 | 265 | 265 | 265 |
| Wheelbase | 984 | 998 | 1011 | 1022 | 1035 | 1047 |
| Head Angle | 71º | 71.2º | 71.5º | 72º | 72.2º | 72.5º |
| Seat Angle | 74.5º | 74º | 73.5º | 73.5º | 73.2º | 73.2º |
| Rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Standover | 728 | 756 | 782 | 803 | 830 | 844 |
| Reach | 370 | 378 | 386 | 394 | 402 | 410 |
| Stack | 525 | 547 | 569 | 591 | 613 | 635 |
| Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
| Trail Length | 64.5 | 63.3 | 61.4 | 58 | 57 | 55 |
