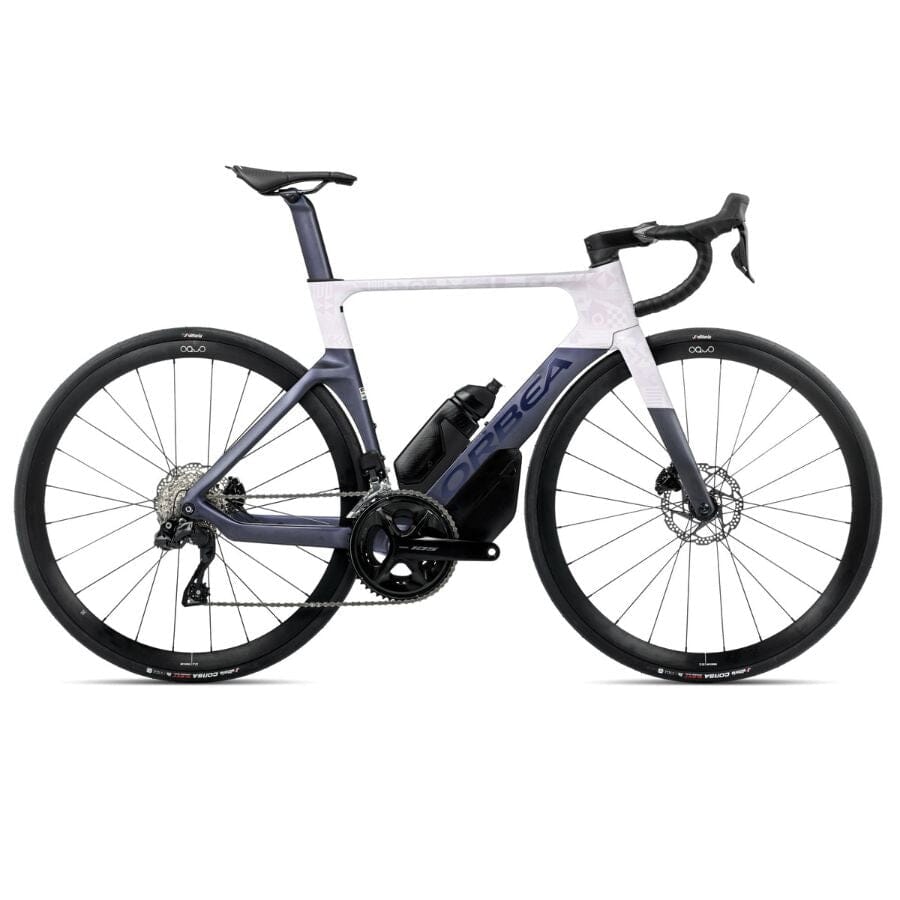

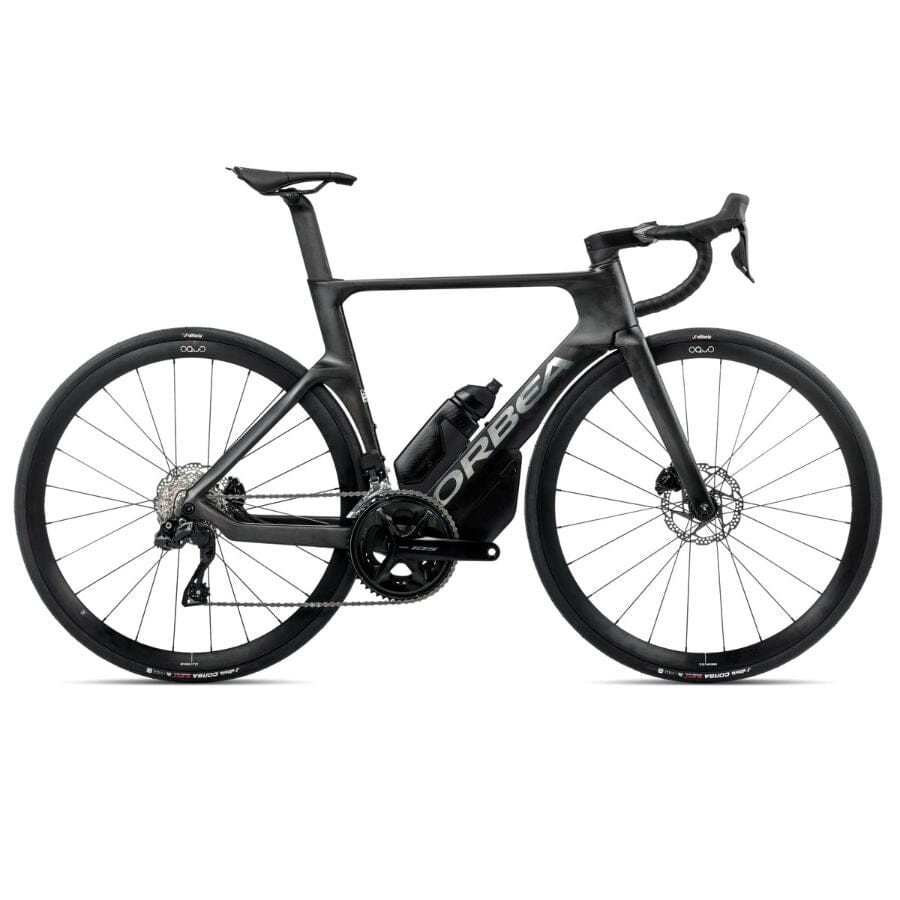

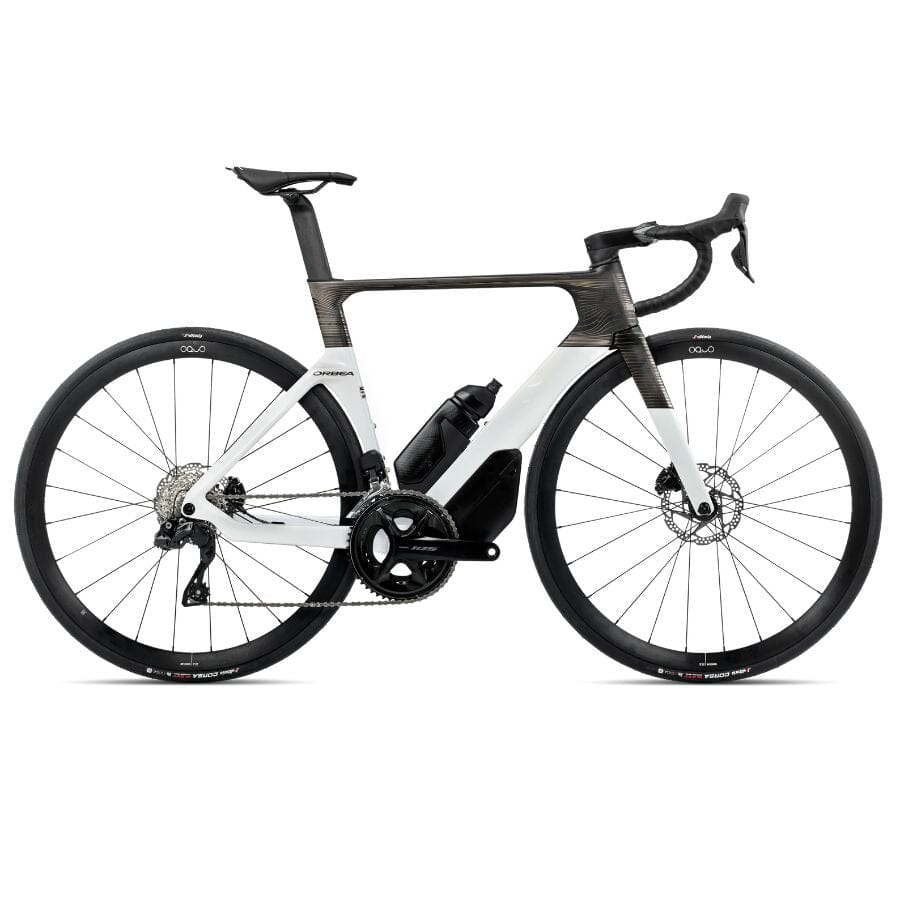

Orbea Orca Aero M30iLTD
Product Details
The Orbea Orca Aero M30iLTD represents the pinnacle of aerodynamic efficiency, engineered for riders who demand every possible advantage when chasing speed becomes an obsession. This race-bred machine features cutting-edge wind-cheating technology through sophisticated OMX carbon construction, where every surface has been meticulously shaped to slice through air resistance with scientific precision.
Advanced aerodynamic optimization defines every aspect of this frame's design philosophy. The horizontal top tube and chainstays work in harmony with the specially tuned down tube profile, optimized specifically for 25–28mm tire combinations to maximize airflow efficiency. Innovative integrated storage solutions, including the strategically positioned toolbox behind the front wheel and aerodynamically enhanced bottle placement, actually improve wind-cutting performance while adding essential race-day functionality.
The race-focused geometry delivers immediate responsiveness through a shorter wheelbase and chainstays that enhance acceleration and cornering precision. Monocoque OMX carbon construction concentrates stiffness in critical power transfer zones while maintaining the compliance needed for extended racing efforts. The reliable Shimano 105 mechanical drivetrain provides precise, cable-actuated shifting performance that professionals trust, while the premium OQUO RP35PRO wheelset paired with Vittoria Corsa tires delivers the ultimate combination of aerodynamic advantage and rolling efficiency.
Perfect for competitive cyclists who understand that marginal gains determine race outcomes, the Orca Aero M30 I LTD transforms aerodynamic theory into measurable speed advantages. This is pure racing technology refined for riders who refuse to compromise when pursuing personal bests and podium positions.
Key Features
- Frame - Advanced OMX Carbon with Aerodynamic Optimization and Integrated Storage
- Aerodynamics - Wind Tunnel-Tested Design Saves Up to 15 Watts at 40km/h
- Drivetrain - Shimano 105 Mechanical with 36x52t Crankset and 12-Speed Cassette
- Wheels - Premium OQUO RP35PRO with Vittoria Corsa Tires
| Specification | Detail |
|---|---|
| Frame | Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible. |
| Fork | Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout. |
| Steerer tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano 105 R7100 36x52t |
| Shifters | Shimano Di2 R7170 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Rear derailleur | Shimano 105 Di2 R7150 |
| Front derailleur | Shimano 105 Di2 R7150 |
| Chain | Shimano M6100 |
| Handlebar | OC Road Aero RA11 Carbon, Reach 80, Drop 125 |
| Stem | OC Road Performance RP10, -8º |
| Brakes | Shimano R7170 Hydraulic Disc |
| Rotors | 160mm Front /160mm Rear |
| Wheels | Oquo Road Performance RP35PRO |
| Tires | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Seatpost | OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment |
| Saddle | Prologo Scratch-M5 Pas T2.0 size 140mm |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Hydration | OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10 |
| Storage | OC Aero Toolbox TB01PP |
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 459 | 474 | 499 | 524 | 544 | 564 | 589 |
| Top Tube (EFF) | 507.6 | 520.8 | 532.9 | 545.5 | 557.5 | 573.1 | 587 |
| Head Tube | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 | 173.2 | 200.4 |
| Chainstay | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| BB Drop | 76 | 76 | 76 | 74 | 74 | 74 | 74 |
| BB Height | 260/263 | 260/263 | 260/263 | 262/265 | 262/265 | 262/265 | 262/265 |
| Wheelbase | 966.2 | 971 | 974.8 | 976.1 | 986.4 | 996.9 | 1010.8 |
| Head Angle | 71º | 71.5º | 72.2º | 72.8º | 73º | 73.2º | 73.2º |
| Seat Angle | 74.5º | 74º | 73.7º | 73.5º | 73.5º | 73.2º | 73.2º |
| Rake | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Standover | - | - | - | - | - | - | - |
| Standover (28-622) | 720 | 731.5 | 753.1 | 778 | 797 | 814.6 | 838.8 |
| Reach | 370 | 376 | 380 | 385 | 391 | 398 | 404 |
| Stack | 496 | 505 | 523 | 542 | 562 | 580 | 606 |
| Fork Length | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Trail | 64.9/66 | 61.8/62.8 | 57.5/58.4 | 59/59.9 | 57.8/58.7 | 56.5/57.4 | 56.5/57.4 |
