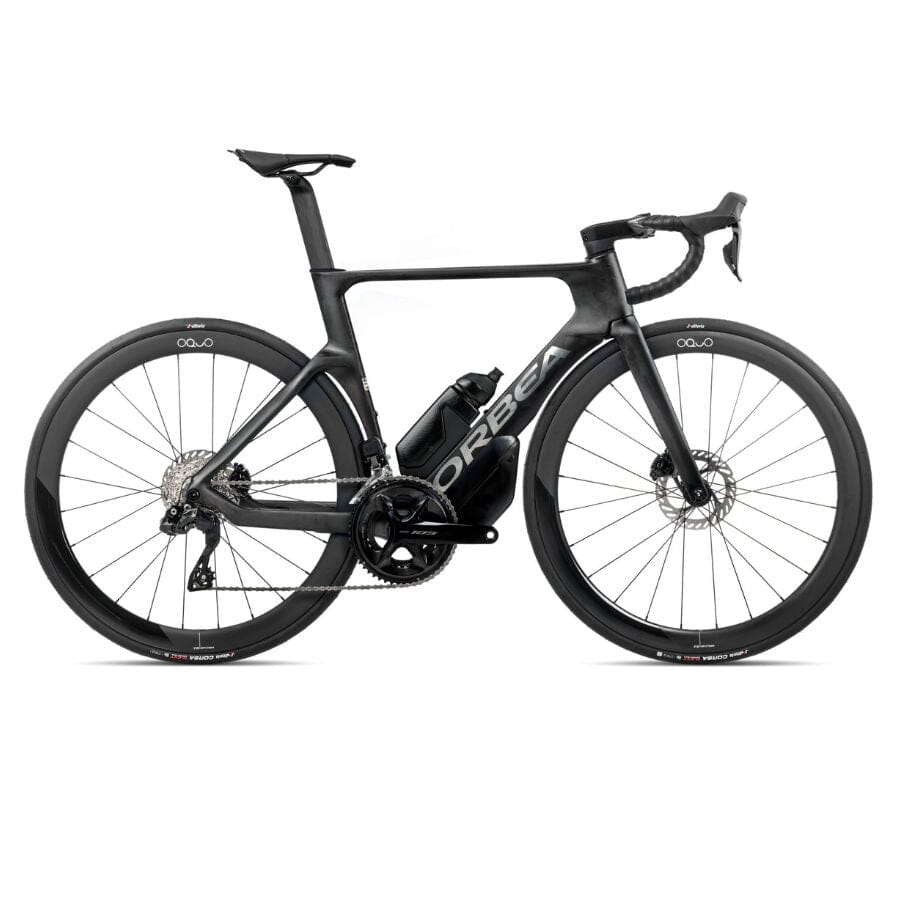

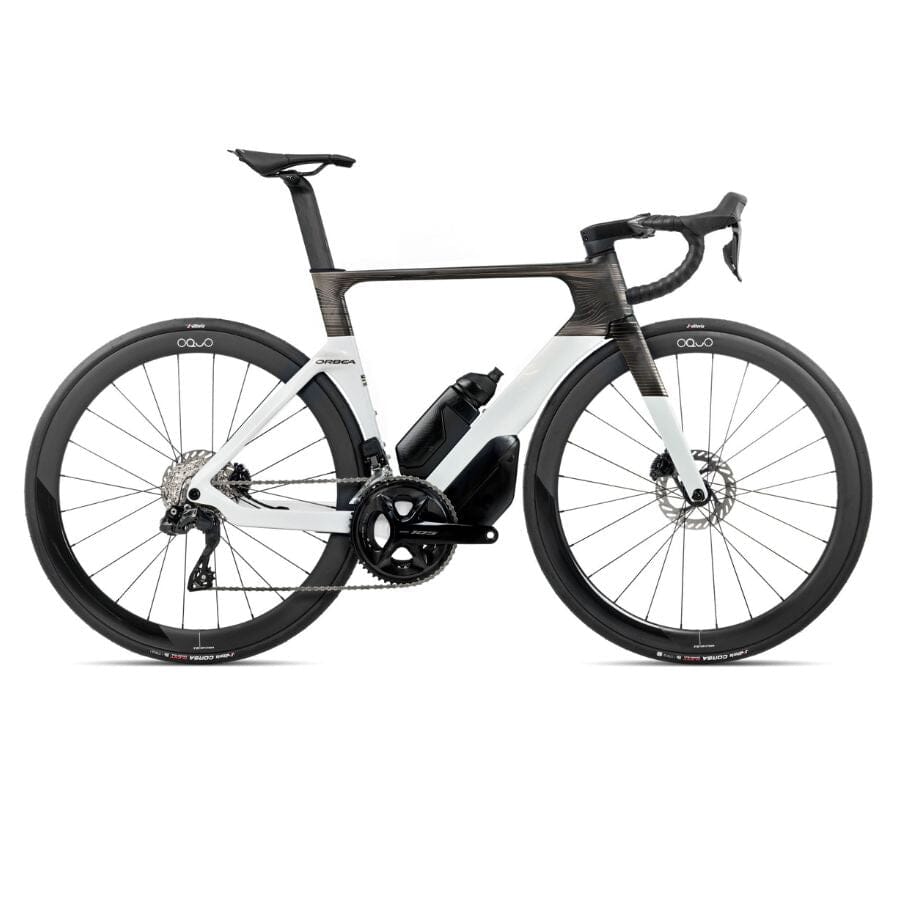

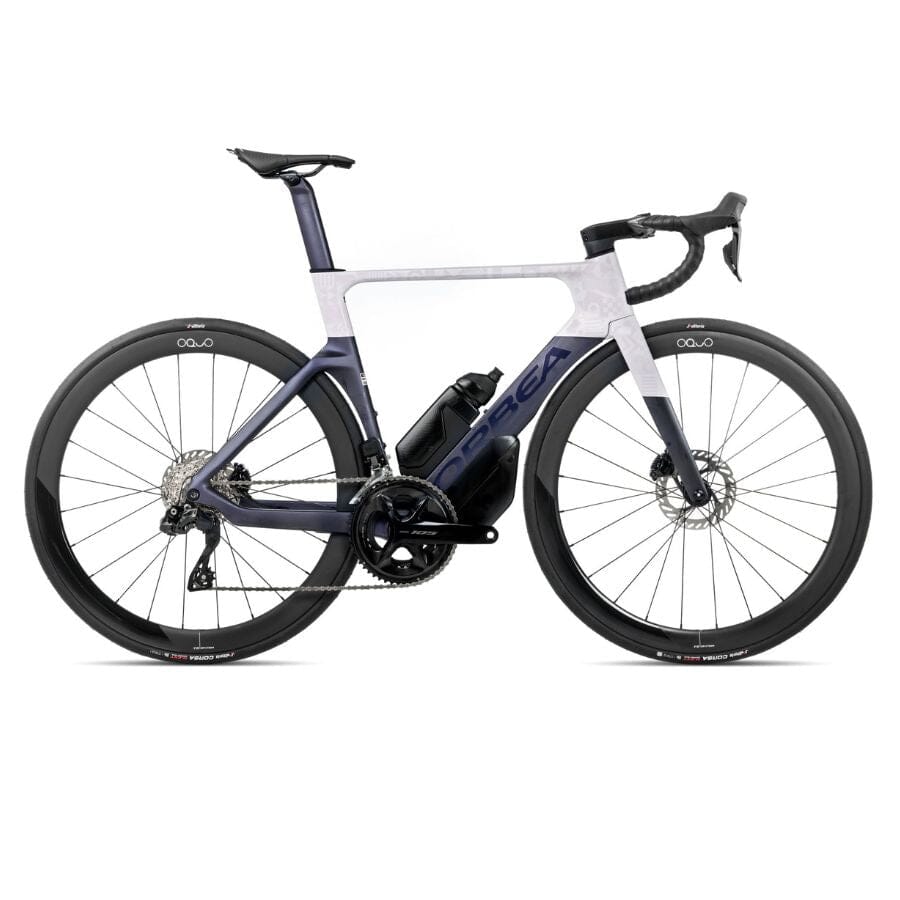

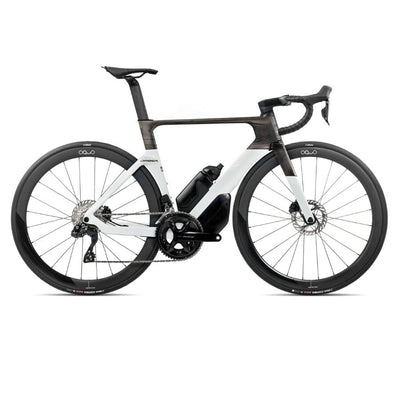

Orbea Orca Aero M35iLTD PWR
Product Details
The Orbea Orca Aero M35i LTD is built for pure speed and efficiency, featuring advanced aerodynamic shaping that cuts through the wind with measurable advantages. This premium OMX carbon frame uses sophisticated airflow optimization, from the horizontal top tube and chainstays to the aerodynamically tuned down tube profile designed specifically for 25–28mm tires. The integrated toolbox behind the front wheel and optimized bottle placement actually improve aerodynamics while adding practical storage. Race-focused geometry with a shorter wheelbase and chainstays delivers responsive handling and better acceleration.
What sets the Orca Aero M35i LTD apart is how it combines free speed with exceptional power transfer. The monocoque OMX carbon construction provides stiffness exactly where you need it for maximum efficiency, while the Shimano 105 Di2 electronic drivetrain with integrated 4iiii power meter lets you monitor and optimize your performance. Premium OQUO RP45 wheels and Vittoria Corsa tires complete the package.
KEY FEATURES
- Advanced OMX Carbon Aerodynamics – Saves up to 15 watts at 40km/h with optimized airflow and integrated storage solutions
- Shimano 105 Di2 with 4iiii Power Meter – Electronic shifting with integrated power measurement and 36x52t crankset for racing performance
- Premium OQUO RP45 Wheels – High-performance wheelset with aerodynamic profile and Vittoria Corsa tires for maximum speed
| Frame | Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible. |
| Fork | Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout. |
| Steerer tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano 105 R7100 36x52t w/left side 4iiii Power Meter |
| Shifters | Shimano Di2 R7170 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Rear derailleur | Shimano 105 Di2 R7150 |
| Front derailleur | Shimano 105 Di2 R7150 |
| Chain | Shimano M6100 |
| Handlebar | OC Road Aero RA11 Carbon, Reach 80, Drop 125 |
| Stem | OC Road Performance RP10, -8º |
| Brakes | Shimano R7170 Hydraulic Disc |
| Rotors | 160mm Front /140mm Rear |
| Wheels | Oquo Road Performance RP45TEAM |
| Tyres | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Seatpost | OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment |
| Saddle | Prologo Scratch-M5 Pas T2.0 size 140mm |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Hydration | OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10 |
| Storage | OC Aero Toolbox TB01PP |
| Measurement | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 459 | 474 | 499 | 524 | 544 | 564 | 589 |
| Top Tube (EFF) | 507.6 | 520.8 | 532.9 | 545.5 | 557.5 | 573.1 | 587 |
| Head Tube | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 | 173.2 | 200.4 |
| Chainstay | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| BB Drop | 76 | 76 | 76 | 74 | 74 | 74 | 74 |
| BB Height | 260/263 | 260/263 | 260/263 | 262/265 | 262/265 | 262/265 | 262/265 |
| Wheelbase | 966.2 | 971 | 974.8 | 976.1 | 986.4 | 996.9 | 1010.8 |
| Head Angle | 71º | 71.5º | 72.2º | 72.8º | 73º | 73.2º | 73.2º |
| Seat Angle | 74.5º | 74º | 73.7º | 73.5º | 73.5º | 73.2º | 73.2º |
| Rake | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Standover (28-622) | 720 | 731.5 | 753.1 | 778 | 797 | 814.6 | 838.8 |
| Reach | 370 | 376 | 380 | 385 | 391 | 398 | 404 |
| Stack | 496 | 505 | 523 | 542 | 562 | 580 | 606 |
| Fork Length | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Trail | 64.9/66 | 61.8/62.8 | 57.5/58.4 | 59/59.9 | 57.8/58.7 | 56.5/57.4 | 56.5/57.4 |
