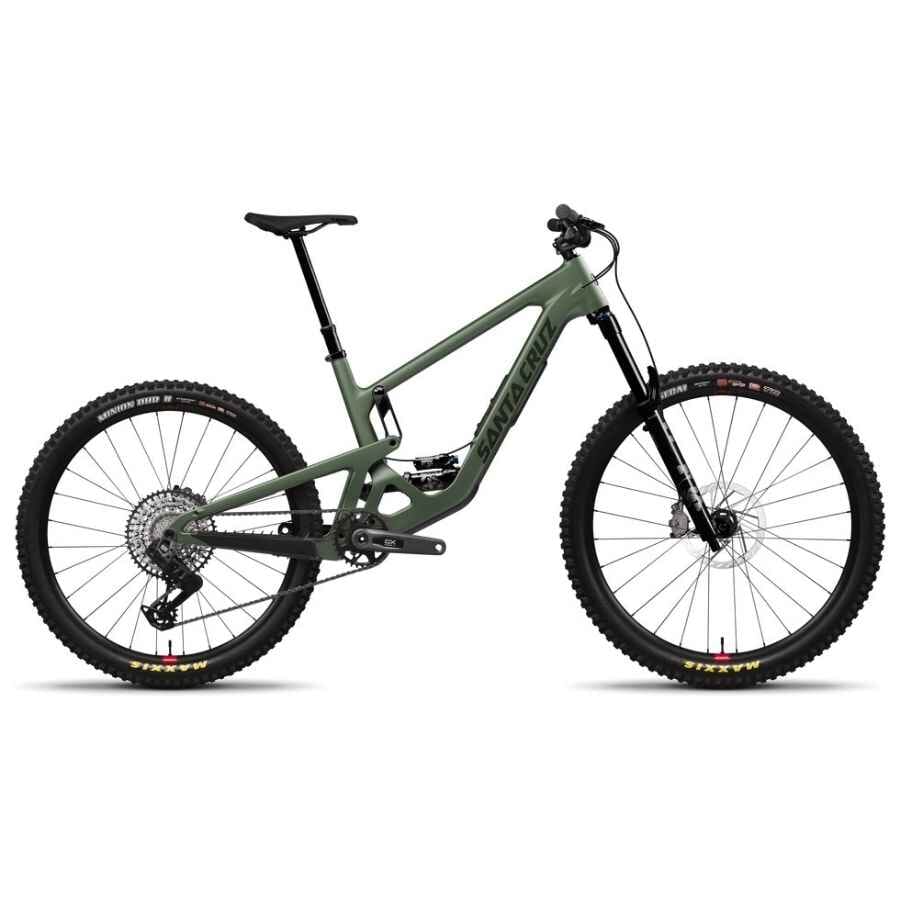

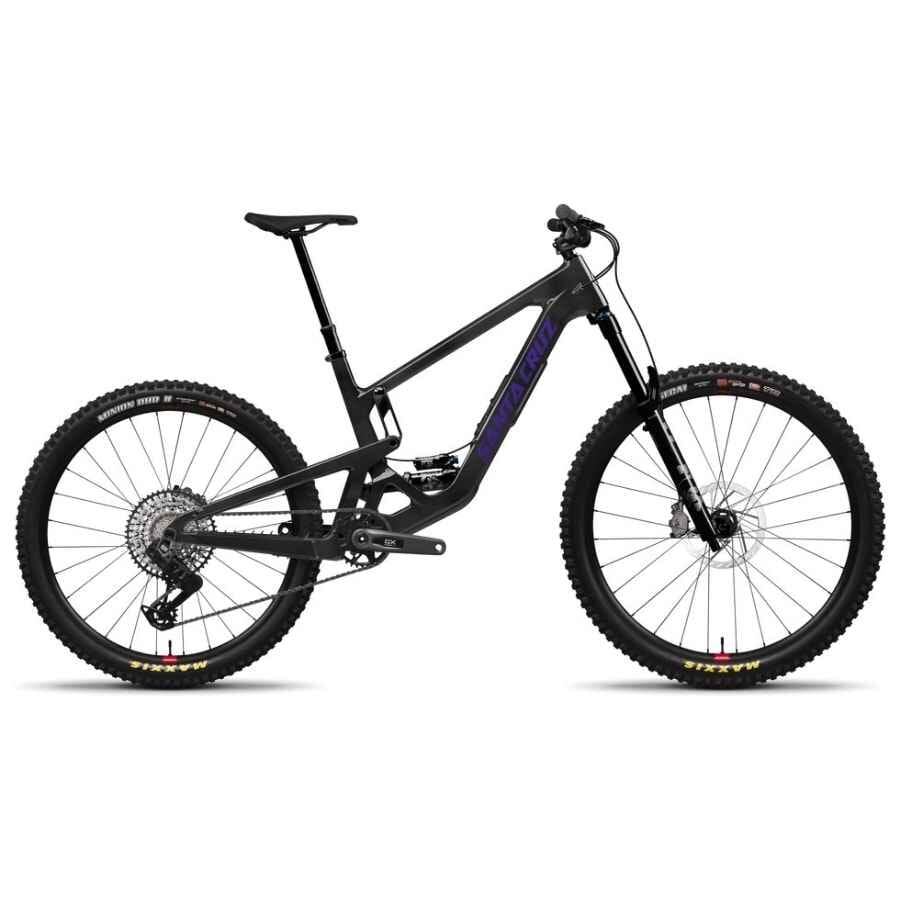

Santa Cruz Bronson 5 C GX AXS
Contender Signature Service
A complimentary $300 value covering professional assembly, tuning, inspection, and careful re-packaging by our technicians.
Request Info
Santa Cruz Bronson 5 C GX AXS
Product Details
Built for riders who refuse to choose between climbing prowess and descending mayhem, the Santa Cruz Bronson 5 C GX AXS is the "one bike" answer to a quiver full of compromises. Its Carbon C frame pairs 150mm of refined VPP rear travel with a 160mm fork, and thanks to a reworked suspension layout with lower anti-squat, it pedals with surprising calm before coming alive the moment gravity takes over.
At the heart of the ride is the mixed-wheel MX setup: a 29" front wheel that rolls over chunder and holds a line through rough sections, matched to a nimble 27.5" rear that snaps out of corners and flicks off lips with ease. It's a combination that rewards playful riders while still keeping things planted when the trail gets serious.
Suspension duties fall to FOX's Performance Elite kit—a 36 fork running the Grip X2 damper up front and a Float X out back—giving you a supple, controlled feel whether you're soaking up braking bumps or landing deep into travel. Shifting comes courtesy of SRAM's wireless GX Eagle AXS Transmission, with crisp electronic shifts across a 10-52T range that flattens steep climbs. SRAM Maven Bronze brakes haul you down from speed with genuine authority, and the Reserve 30|SL AL wheelset—wrapped in grippy Maxxis Assegai and Minion DHR II rubber—keeps traction high on loose, rocky, and off-camber ground. A OneUp dropper rounds out a cockpit that's ready to session from the first lap.
From bike park berms to backyard jump lines to all-day backcountry missions, the Bronson 5 C GX AXS is happiest when you're pushing the pace and looking for the next thing to send.
Key Features:
- 150mm VPP Suspension – Reworked kinematics for efficient climbing and composed, plush descending
- Mixed 29"/27.5" Wheels – Front-wheel confidence meets rear-wheel playfulness
- SRAM GX Eagle AXS Transmission – Wireless 12-speed shifting with a wide 10-52T range
- SRAM Maven Bronze Brakes – Serious four-piston stopping power for steep, fast terrain
- Reserve 30|SL AL Wheels – Tubeless-ready alloy wheels built to take a beating
| Specification | Detail |
|---|---|
| Fork | FOX 36 Float Performance Elite, Grip X2, 160mm |
| Shock | FOX Float X Performance Elite, 230x57.5 |
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Shifter | SRAM AXS Pod Controller |
| Crankset | SRAM GX Eagle DUB T-Type Crankset, 32t |
| Cassette | SRAM XS-1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Front Brake | SRAM Maven Bronze |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Handlebars | Santa Cruz Carbon Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise |
| Stem | OneUp Enduro Stem, 42mm |
| Grips | Santa Cruz Bicycles House Grips |
| Headset | Cane Creek 50 IS Integrated Headset |
| Seatpost | OneUp Dropper Post, 31.6 |
| Saddle | SDG Bel-Air V3 Lux-Alloy |
| Front Rim | Reserve 30|SL AL |
| Front Hub | DT Swiss 370, 15x110, 6-Bolt, 28h |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Rim | Reserve 30|SL AL |
| Rear Hub | DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Headset | Integrated (IS41/52) |
| Seat Post Diameter | 31.6mm |
| Seat Clamp Diameter | 36.4mm |
| Rear Brake Mount | 180mm PM |
| Bottom Bracket Shell | 73mm Threaded |
| Max Tire Clearance | 2.5" |
| Max Chainring Size | 36t |
| Water Bottle Mounts | 1 |
| Shock Length | 230mm |
| Shock Stroke | 57.5mm |
| Shock Bushing Size Front | 40x10 (standard bushing) |
| Shock Bushing Size Rear | 30x8 (roller bearing) |
| Fork Offset | 44mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | hi/lo | 435/432 | 460/457 | 480/478 | 500/498 | 525/523 |
| Stack | hi/lo | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle | hi/lo | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Seat Tube Length | hi/lo | 380 | 405 | 430 | 460 | 500 |
| Front Center | hi/lo | 771 | 800 | 825 | 853 | 883 |
| BB Height | hi/lo | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop (front) | hi/lo | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop (rear) | hi/lo | 10/13 | 10/13 | 10/13 | 10/13 | 10/13 |
| Wheelbase | hi/lo | 1208 | 1240 | 1267 | 1299 | 1331 |
| Rear Center | hi/lo | 437 | 439 | 442 | 445 | 448 |
| Head Tube Length | hi/lo | 110 | 120 | 130 | 150 | 160 |
| Top Tube Length | hi/lo | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Angle | hi/lo | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height | hi/lo | 721 | 723 | 725 | 727 | 731 |
