Product Details

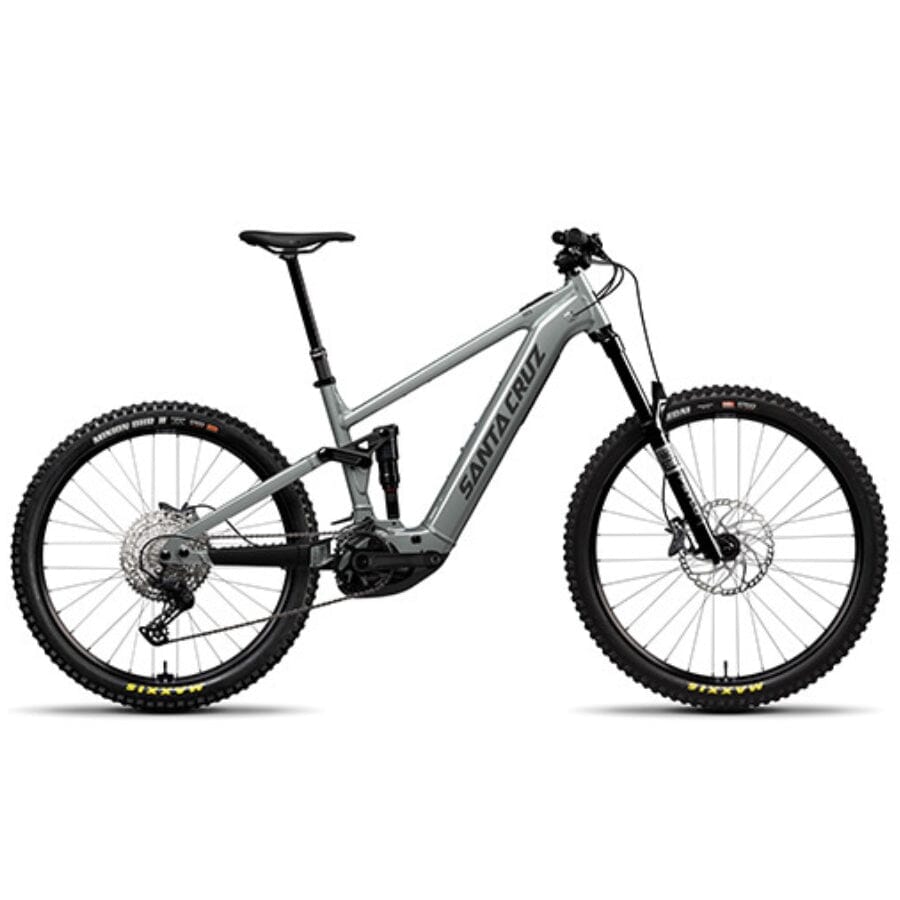

The Santa Cruz Vala 1 AL MX 70 brings full power electric performance to the heart of the trail with a premium all-new aluminum chassis, refined suspension kinematics, and the latest Bosch drive system. Built around a mixed wheel setup, 150mm of rear travel, and a 160mm fork, the Vala AL is purpose-built for serious riders who want confidence on the descents and support on the climbs.
At its core is the Bosch Performance Line CX motor delivering 85Nm of torque, paired with a 600Wh integrated battery for big days and big terrain. Compatible with the Bosch PowerMore 250Wh range extender, it’s ready for even longer missions. The updated VPP-based 4-bar suspension layout is tuned specifically for electric mountain biking, providing active pedaling support, strong braking performance, and plush travel through rough trail.
The Vala AL rolls on a mixed wheel (MX) platform, 29" up front for stability and 27.5" out back for quick handling, giving riders the best of both worlds. Size-specific chainstays ensure the ride feel is consistent across the range, while internal frame storage and long dropper compatibility bring practical, ride-enhancing details into the spotlight.
Key Features
- Aluminum Frame + Bosch Power: Full power Bosch Performance CX system paired with a durable, accessible alloy chassis
- SRAM 70 Kit Drivetrain: Reliable, trail-tuned 12-speed performance with smart gearing for all-mountain riding
- MX Wheels + Vala Suspension: Mixed wheels and 4-bar linkage deliver balanced handling and capable traction across any terrain
| Specification | Detail |
|---|---|
| Frame | Aluminum MX, 150mm Travel, 4-Bar |
| Rear Shock | RockShox Super Deluxe Base, 205x60 |
| Fork | RockShox Zeb Base, 160mm |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12spd |
| Shifter | SRAM 90 Eagle T-Type, Single Click, 12spd |
| Cassette | SRAM XS 1270 Eagle T-Type, 10-52t |
| Chain | SRAM 70 Eagle T-Type, Flattop, 12spd |
| Chain Guide | OneUp Chainguide |
| Headset | FSA IS-2/47/42 ACB |
| Front Tire | Maxxis Assegai, 29x2.5", 3C MaxxGrip, EXO+ |
| Rear Tire | Maxxis Minion DHRII, 27.5x2.5", DoubleDown |
| Front Hub | SRAM MTH 716, 15x110, 6-Bolt, 32h |
| Front Rim | Reserve 30|HD AL |
| Rear Hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rear Rim | Reserve 30|HD AL |
| Front Rotor | SRAM Centerline, 220mm |
| Rear Rotor | SRAM Centerline, 200mm |
| Brakes | SRAM DB8 |
| Crankset | E13 Helix eSpec, 160mm |
| Handlebar | Santa Cruz Alloy |
| Stem | OneUp Forged, 42mm |
| Saddle | WTB Silverado Medium, Steel |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Grips | Santa Cruz Bicycles House Grips |
| Battery | Bosch PowerTube Battery 600Wh |
| Drive Unit | Bosch Performance CX BDU38 |
| Size | S / HI | M / HI | L / HI | XL / HI | XXL / HI | S / LO | M / LO | L / LO | XL / LO | XXL / LO |
|---|---|---|---|---|---|---|---|---|---|---|
| Reach (mm) | 435 | 460 | 480 | 500 | 525 | 432 | 456 | 477 | 497 | 522 |
| Stack (mm) | 623 | 632 | 641 | 655 | 668 | 626 | 636 | 644 | 657 | 671 |
| HT Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 | 64.2 | 63.9 | 63.9 | 63.9 | 63.9 | 63.9 |
| HT Length (mm) | 110 | 120 | 130 | 145 | 160 | 110 | 120 | 130 | 145 | 160 |
| Rear Center (mm) | 439 | 440 | 443 | 446 | 450 | 440 | 441 | 444 | 447 | 451 |
| Front Center (mm) | 771 | 801 | 825 | 852 | 883 | 771 | 801 | 825 | 852 | 883 |
| BB Height (mm) | 344 | 344 | 344 | 344 | 344 | 340 | 340 | 340 | 340 | 340 |
| F/R BB Drop (mm) | 29/11 | 29/11 | 29/11 | 29/11 | 29/11 | 32/17 | 32/17 | 32/17 | 32/17 | 32/17 |
| Wheelbase (mm) | 1210 | 1241 | 1268 | 1298 | 1333 | 1211 | 1242 | 1269 | 1298 | 1334 |
| EF. TT Length (mm) | 573 | 601 | 622 | 645 | 674 | 574 | 602 | 623 | 646 | 675 |
| ST Length (mm) | 380 | 400 | 420 | 460 | 500 | 380 | 400 | 420 | 460 | 500 |
| EF. ST Angle (deg) | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 | 77.2 | 77.2 | 77.2 | 77.2 | 77.2 |
| ST Angle / Saddle HT | 77.1 / 680mm | 77.1 / 730mm | 77.1 / 780mm | 77.1 / 830mm | 77.1 / 870mm | 76.8 / 680mm | 76.8 / 730mm | 76.8 / 780mm | 76.8 / 830mm | 76.8 / 870mm |
| Standover (mm) | 741 | 735 | 735 | 734 | 728 | 736 | 730 | 730 | 730 | 723 |
