SKU: 210000127554

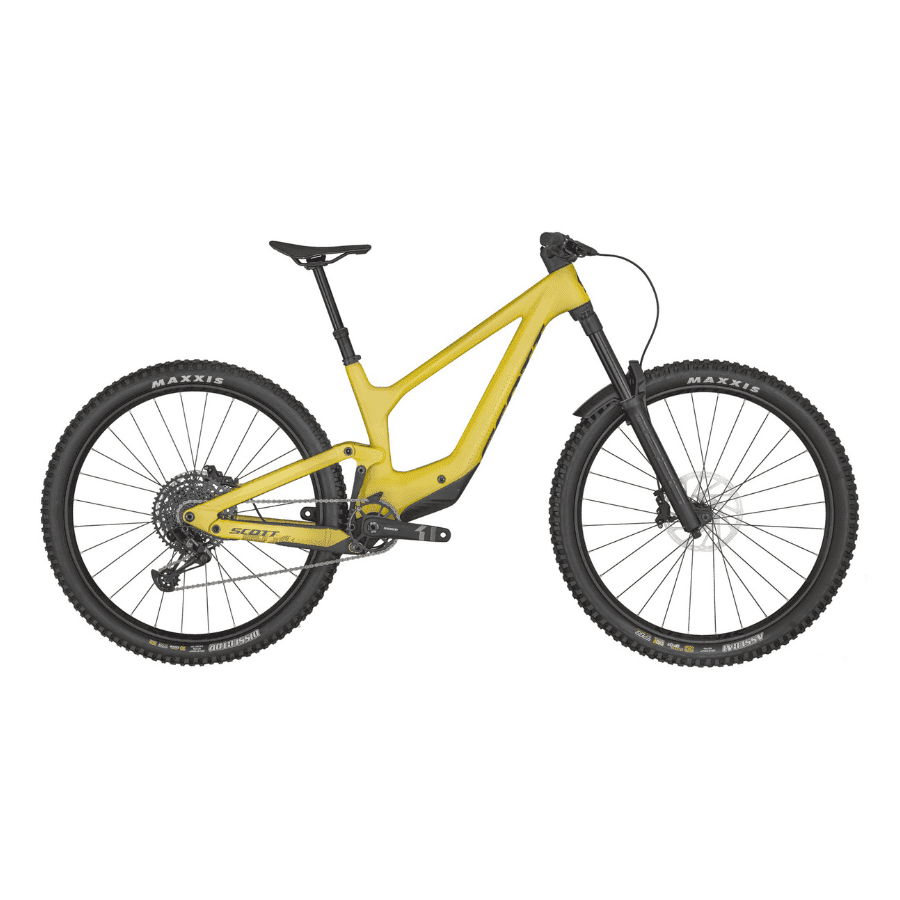

2022 SCOTT Ransom 920

SKU: 210000127554

2022 SCOTT Ransom 920

$4,299.99
Categories:
More Information
call to customize

Product Description

One long travel enduro bike to rule them all! With 170mm smooth suspension travel front and rear in unison with SCOTT’s TwinLoc suspension system, you can point the 2022 SCOTT Ransom 920 down the mountain and let it eat up whatever lies below. Combined with a durable alloy frame, once aboard the Ransom 920 you can reap the rewards of partaking in what was previously coded as risky behavior.

SCOTT is about flexibility and versatility which is why the Ransom 920 frame is able to fit both 27.5” and 29” wheels. Flip a chip on the shock mount when moving between wheel sizes and you’re ready to rumble down the trail. We love the simplicity of this feature because it means that you don’t have to change forks which saves you time and money.

When you’re on the hunt for the best dirt on the mountain there is always some climbing involved. On the uphills you’ll come to appreciate the Ransom 920’s low weight. The bike comes in at a shocking 15.95kg (with tubes), a benchmark for the industry. However, do not fear, the lack of weight doesn't have a negative impact on the bike's sturdiness. SCOTT crafted an alloy frame with strategic reinforcement in key areas. Enduro frames need to be ready for the worst and the SCOTT Ransom 920 is prepared to take a beating.

SCOTT’s TwinLoc suspension system was implemented in this enduro machine in order to provide the ideal trail experience for every type of rider and terrain. Lockout suspension with the flick of a switch to dominate the climbs, enter a supportive suspension for rolling terrain, and experience full suspension on the descents. This triple setting suspension system alone sets the SCOTT Ransom 920 out as a state of the art enduro weapon.

Come on into Contender Bicycles and explore even more features offered by the 2022 SCOTT Ransom 920.

KEY FEATURES:

  • Ransom Alloy SL Frame
  • FOX 38 Float Performance 170mm Fork
  • FOX Nude T EVOL, TwinLoc, 170mm
  • SRAM NX Eagle 12 Speed
  • Shimano 4 Piston Disc Brakes
  • Syncros Revelstoke 2.5 TR Wheels
  • Maxxis Kevlar Tires
  • Syncros Dropper Post and Parts

REVIEWS

Geometry

2022 Scott Ransom Geometry

S S M M L L XL XL
LOW BB / 29" WHEEL HIGH BB / 27.5" WHEEL LOW BB / 29" WHEEL HIGH BB / 27.5" WHEEL LOW BB / 29" WHEEL HIGH BB / 27.5" WHEEL LOW BB / 29" WHEEL HIGH BB / 27.5" WHEEL
A head tube angle 64.5 ° 65.0 ° 64.5 ° 65.0 ° 64.5 ° 65.0 ° 64.5 ° 65.0 °
B head tube length 100.0 mm 100.0 mm 100.0 mm 100.0 mm 115.0 mm 115.0 mm 130.0 mm 130.0 mm
C top tube horizontal 571.1 mm 569.7 mm 604.2 mm 602.7 mm 634.7 mm 633.2 mm 671.3 mm 669.7 mm
D standover height 744.6 mm 733.9 mm 746.3 mm 736.5 mm 760.9 mm 751.6 mm 776.5 mm 767.4 mm
E BB offset -22.0 mm -15.0 mm -22.0 mm -15.0 mm -22.0 mm -15.0 mm -22.0 mm -15.0 mm
F BB height 353.5 mm 346.5 mm 353.5 mm 346.5 mm 353.5 mm 346.5 mm 353.5 mm 346.5 mm
G wheel base 1,182.9 mm 1,181.4 mm 1,215.9 mm 1,214.4 mm 1,249.2 mm 1,247.8 mm 1,288.5 mm 1,287.1 mm
H BB center to toptube center
I BB center to top of seattube 420.0 mm 420.0 mm 440.0 mm 440.0 mm 470.0 mm 470.0 mm 500.0 mm 500.0 mm
J seat angle 75.0 ° 75.5 ° 75.0 ° 75.5 ° 75.0 ° 75.5 ° 75.0 ° 75.5 °
K chainstay 437.9 mm 436.0 mm 437.9 mm 436.0 mm 437.9 mm 436.0 mm 437.9 mm 436.0 mm
L reach 406.3 mm 412.0 mm 439.5 mm 445.0 mm 466.5 mm 472.0 mm 499.5 mm 505.0 mm
M stack 613.6 mm 609.8 mm 613.6 mm 609.8 mm 627.6 mm 623.4 mm 641.3 mm 637.0 mm
N stem length 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm 50.0 mm
0 trail 122.5 mm 112.3 mm 122.5 mm 112.3 mm 122.5 mm 112.3 mm 122.5 mm 112.3 mm

Specifications

  • Frame

    Ransom Alloy SL 6011
    Custom butted / VLK Virtual 4 Link kinematic
    27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj.
    TBC Trunnion box construction / Boost 12x148mm
  • Fork

    FOX 38 Float Performance Air / Grip
    3-Modes / 15x110mm QR axle
    44mm offset / tapered steerer
    Reb. Adj. / Lockout / 170mm travel
  • Rear Shock

    FOX NUDE T EVOL Trunnion
    SCOTT custom w. travel / geo adj.
    3 modes: Lockout-Traction Control-Descend
    custom large air volume / DPS / Reb. Adj.
    Travel 170-120-Lockout / 205X65mm
  • Remote System

    SCOTT TwinLoc TSP Technology
    Suspension-Seatpost Remote
    below Bar / 3 modes / integ. Grip clamp
  • Rear Derailleur

    SRAM NX / Eagle 12 Speed
  • Shifters

    SRAM NX Eagle Trigger
  • Crankset

    SRAM NX Eagle DUB Boost
    32T
  • Chainguide

    SCOTT Chainguide
  • BB-Set

    SRAM DUB PF integrated / shell 41x92mm
  • Chain

    SRAM CN NX Eagle
  • Cassette

    SRAM NX / PG1210 / 11-50 T
  • Brakes

    Shimano M6120 4 Piston Disc
  • Rotor

    Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
  • Handlebar

    Syncros Hixon 1.5 Rise / Alloy 20140D.B.
    20mm rise / 8° / 780mm
    Syncros Pro lock-on grips
  • H'stem

    Syncros XM1.5 / Alloy 6061
    integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"
  • Seatpost

    Syncros Duncan 2.0 Dropper Post
    31.6mm / S 125mm / M 150mm / L & XL 170mm
  • Seat

    Syncros Kaslo 2.0
    Crmo Rails
  • Headset

    Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8"
    OD 50/62mm / ID 44/56mm
  • Wheelset

    Syncros Revelstoke 2.5 6 Bolt
    F: 15x110mm, R: 12x148mm Boost
    30mm Tubeless ready rim 28Hr
    Syncros Axle w/Removable Lever with Tool
  • Front Tire

    Maxxis Assegai / 2.6" / 60TPI Foldable / EXO / TR / 3C Maxx Terra
  • Rear Tire

    Maxxis Dissector / 2.6" / 120TPI Foldable / EXO+/ TR / 3C Maxx Terra
  • Extras

    Fox 38 Fender
  • Approx weights in KG

    15.95 (with tubes)
  • Approx weights in LBS

    35.16 (with tubes)
  • Max. System Weight

    128 kg
    The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
