SCOTT Ransom 920
Product Details
The SCOTT Ransom 920 is built for riders who want maximum downhill confidence paired with the versatility to tackle massive climbs, technical enduro stages, and aggressive all-mountain terrain. Engineered around SCOTT’s latest gravity-focused platform, the Ransom 920 blends progressive geometry, advanced suspension kinematics, and durable component choices into a bike designed to thrive when the trails become steep, rough, and fast.

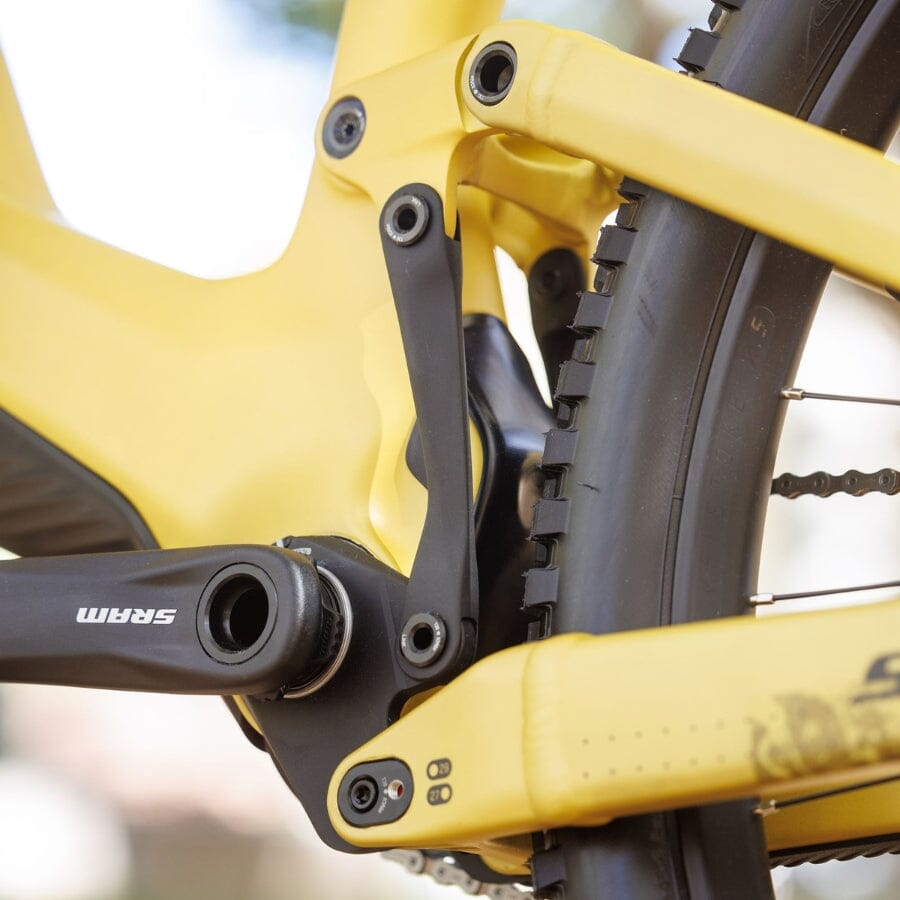

At the heart of the bike is SCOTT’s Ransom Carbon HMF main frame paired with a robust Alloy 6061 swingarm. Combined with Integrated Suspension Technology and a sophisticated 6-link suspension layout, the chassis delivers impressive downhill stability, traction, and control while still maintaining efficient pedaling characteristics for long days in the mountains. The result is a bike that feels planted and composed through rough terrain without becoming sluggish on climbs or transitions.
Suspension duties are handled by a 170mm RockShox Zeb Select+ fork featuring the Charger 3 damper alongside a FOX Float X Nude rear shock with SCOTT’s TracLoc remote system. Riders can instantly switch between Climb, Ramp Control, and Descend modes to adapt the bike’s suspension characteristics for changing terrain and riding demands. Whether grinding uphill or charging into technical descents, the Ransom remains balanced, supportive, and confidence inspiring.
The geometry is purpose-built for modern enduro riding, combining high-speed stability with agility in tighter terrain. Adjustable head angle settings, mullet wheel compatibility, and advanced shock adaptability allow riders to fine-tune the bike’s handling to match personal preferences or race conditions.
A SRAM NX Eagle 12-speed drivetrain delivers reliable shifting performance across demanding terrain, while SRAM DB8 four-piston brakes paired with oversized 200mm rotors provide dependable stopping power for steep descents and heavy braking zones. Maxxis Assegai and Dissector tires mounted to Syncros Revelstoke tubeless-ready wheels further reinforce the bike’s aggressive gravity intentions with exceptional grip and durability.
SCOTT also incorporates thoughtful integration features throughout the frame. Internal storage within the downtube houses the Syncros Matchbox Kit for carrying essential repair tools and ride necessities without the need for additional packs or straps. Integrated cable routing creates a clean and quiet cockpit, while the adjustable travel Syncros Duncan dropper post helps optimize rider positioning on technical terrain.
The SCOTT Ransom 920 is a highly capable carbon enduro bike engineered for riders who prioritize downhill performance, suspension versatility, and all-day confidence across demanding mountain terrain.
Key Features
-
Integrated Suspension Platform- 6-link suspension design with FOX Float X Nude shock delivers efficient climbing and exceptional downhill control
-
Gravity-Focused Geometry- Adjustable head angle and mullet compatibility allow riders to tailor handling for aggressive terrain
-
Long-Travel Suspension- 170mm RockShox Zeb Select+ fork provides confidence and control on rough descents
-
Trail-Ready Components- SRAM NX Eagle drivetrain and SRAM DB8 four-piston brakes offer reliable performance in demanding conditions
-
Integrated Storage System- Built-in Syncros Matchbox storage keeps essential tools and repair gear cleanly tucked inside the frame
*Please note that bike specifications are subject to change without prior notice
| Component | Specification |
|---|---|
| Frame | Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm Integrated Suspension Technology 6 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready |
| Fork | RockShox Zeb Select+ Charger 3 HSC - LSC - LSR adjustable / 15x110mm Maxle stealth axle 42mm offset / Tapered Steerer 170mm travel |
| Rear Shock | FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 170-130-Climb / T205X65mm / Bearing Hardware |
| Remote System | TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes |
| Rear Derailleur | SRAM NX Eagle 12 Speed |
| Shifters | SRAM SX Eagle Trigger |
| Crankset | SRAM X1 1000 Eagle DUB Boost 32T / Chainline 55mm |
| Chainguide | SCOTT custom |
| BB-Set | SRAM DUB PF integrated / shell 41x92mm |
| Chain | SRAM CN SX Eagle |
| Cassette | SRAM NX / PG1210 / 11-50 T |
| Brakes | SRAM DB8 4 Piston Disc |
| Rotor | SRAM Centerline Rotors F&R 200mm |
| Handlebar | Syncros Hixon 2.0 Alloy 6061 D.B. Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips |
| H'stem | Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 40mm |
| Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |
| Seat | Syncros Tofino 2.0 Crmo Rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Wheelset | Syncros Revelstoke 2.5 6 Bolt F: 15x110mm R: 12x148mm Boost 30mm Tubeless ready rim 28Hr Syncros Axle w/Removable Lever with Tool |
| Front Tire | Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp |
| Rear Tire | Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra |
| Extras | RS Zeb Fender |
| Accessories | Syncros IS Matchbox Kit Syncros Multi-tool Matchbox 8 |
| Approx weight in KG | 16.4 (Tubeless setup without Matchbox IS) |
| Approx weight in LBS | 36.16 (Tubeless setup without Matchbox IS) |
| Max. System Weight | 128 kg |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head tube angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head tube length | 95.0 mm | 100.0 mm | 115.0 mm | 125.0 mm |
| Top tube horizontal | 569.9 mm | 598.7 mm | 624.4 mm | 649.1 mm |
| Standover height | 719.2 mm | 725.4 mm | 736.7 mm | 755.3 mm |
| BB offset | -25.0 mm | -25.0 mm | -25.0 mm | -25.0 mm |
| BB height | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm |
| Wheel base | 1,206.6 mm | 1,238.8 mm | 1,270.4 mm | 1,299.8 mm |
| BB center to top of seattube | 380.0 mm | 410.0 mm | 440.0 mm | 470.0 mm |
| Seat angle | 77.0 ° | 77.2 ° | 77.4 ° | 77.6 ° |
| Chainstay | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm |
| Reach | 428.0 mm | 458.0 mm | 483.0 mm | 508.0 mm |
| Stack | 614.8 mm | 619.3 mm | 632.8 mm | 641.7 mm |
| Stem length | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
| Trail | 135.5 mm | 135.5 mm | 135.5 mm | 135.5 mm |
| Fork length | 581.0 mm | 581.0 mm | 581.0 mm | 581.0 mm |
| Maximum Seatpost Insertion | 184.5 mm | 214.6 mm | 244.7 mm | 274.6 mm |
| Crank Length | 165.0 mm | 170.0 mm | 170.0 mm | 170.0 mm |
