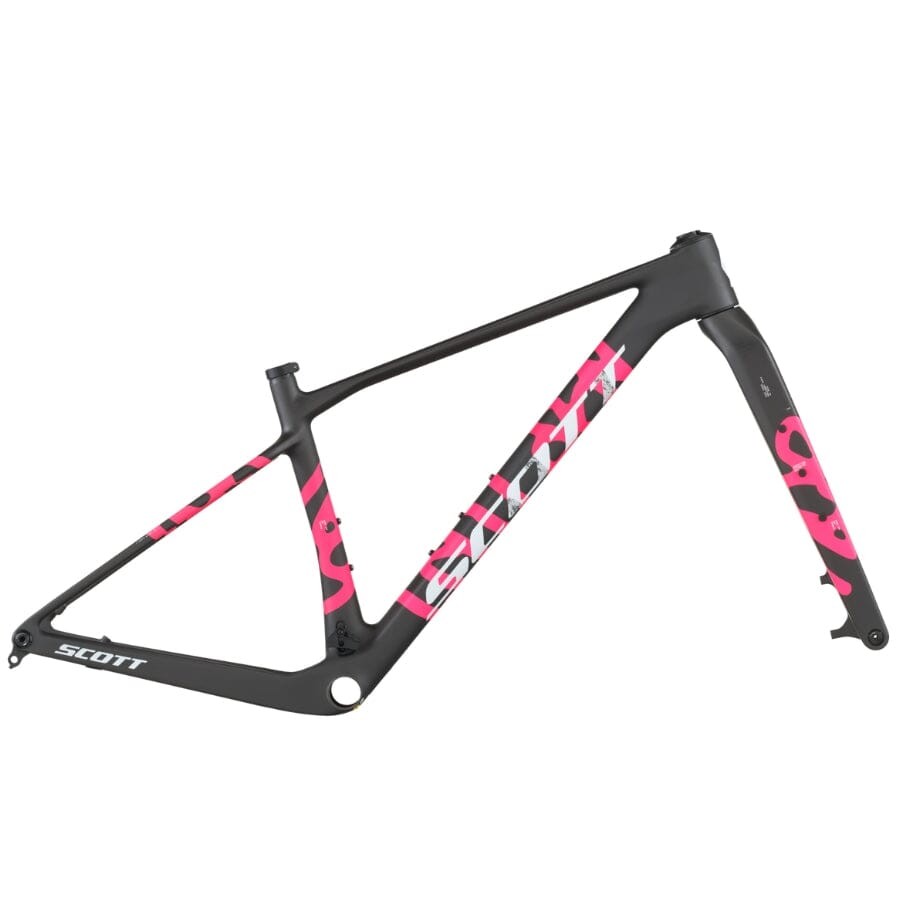

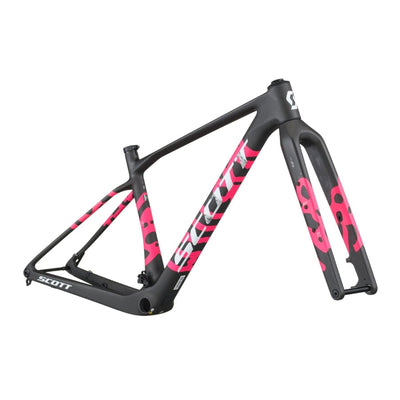

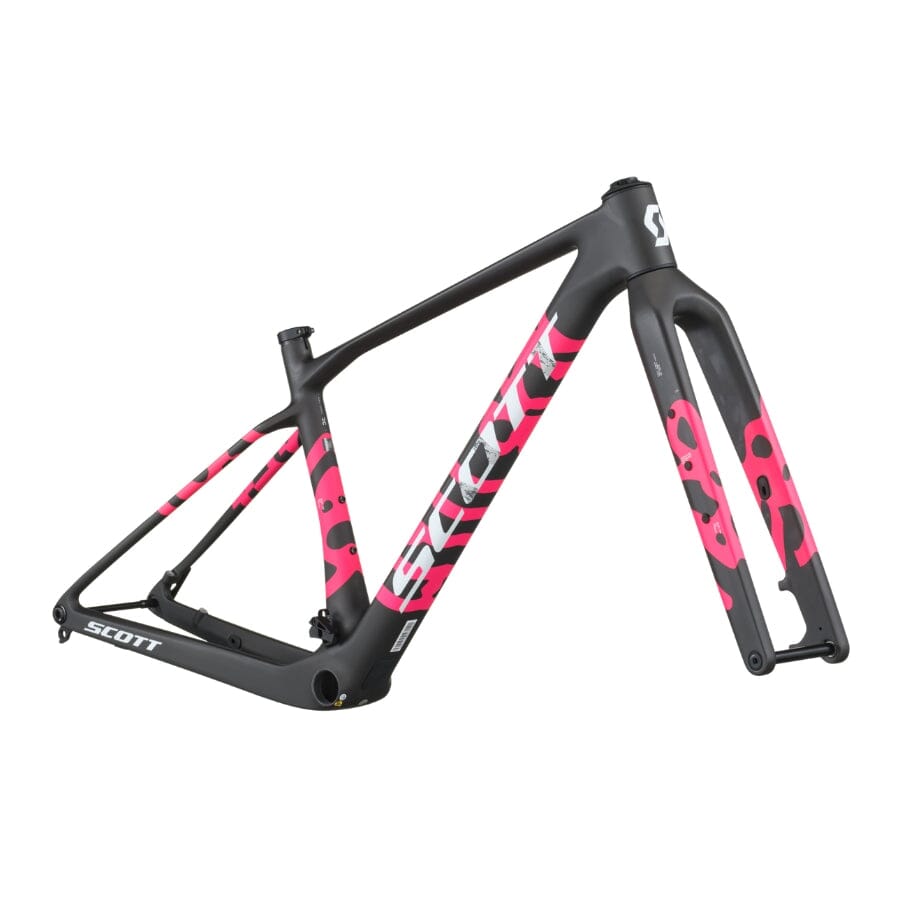

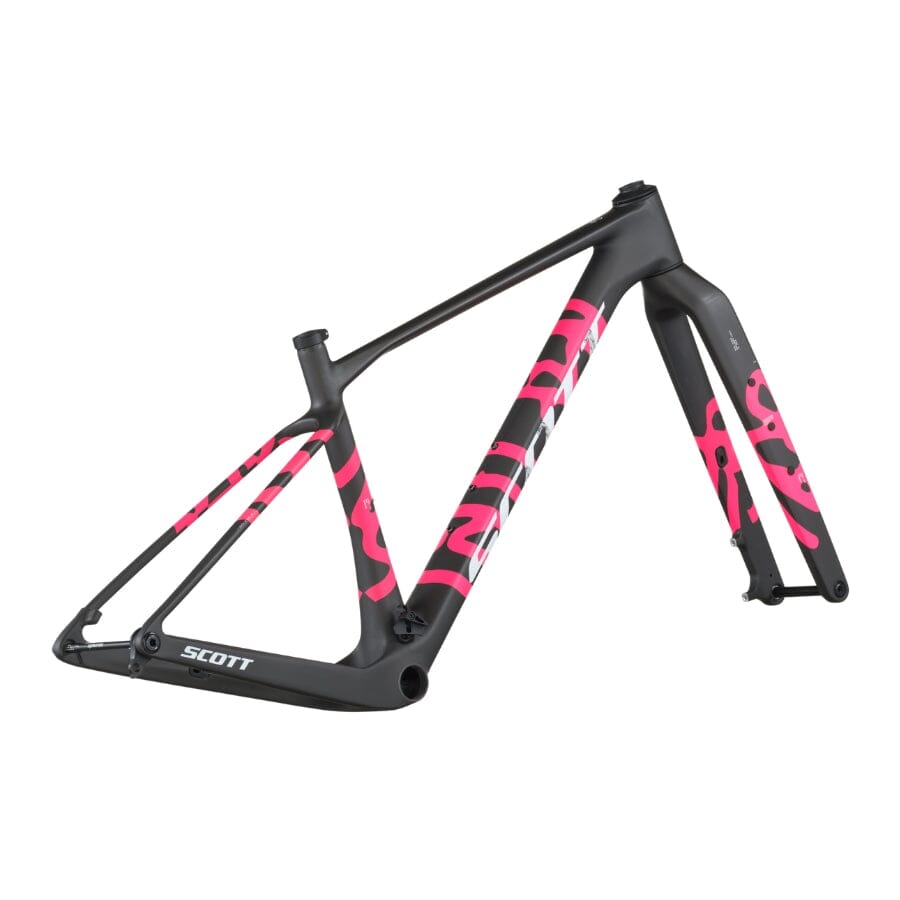

SCOTT Scale Gravel RC Frameset
Product Details
The SCOTT Scale Gravel RC Frameset is designed for riders seeking adventures with attitude, a lightweight, race-ready platform built to go the distance over any and all types of terrain in a hurry. Engineered with agile handling, superior stiffness, and multiple mounting options, this frameset combines SCOTT's hardtail race bike expertise with gravel-specific versatility to ensure you'll always get to the finish line in no time, no matter what sits between you and your destination.
Built using advanced monocoque construction, the Scale Gravel RC uses only one mold for the main section of the bike, the front triangle. Applying SCOTT's carbon expertise, the frameset consists of only three separate pieces molded together, directly translating into increased efficiency through reduced junction points. This construction decreases weight while maintaining the superior stiffness that defines SCOTT's race-proven platforms, with the full frame constructed as a system that handles forces as a unified whole.
The HMF carbon frame features innovative engineering details including a service door accessible through the downtube cover, allowing easy interior frame access for cable routing maintenance without removing the bottom bracket. The advanced hollow dropout construction enables the axle head to clamp against the inner dropout surface while sitting flush with the exterior, achieving the lightest possible construction approach with clean aesthetics, saving 7.5g at the dropout while enabling a narrower rear triangle construction that reduces an additional 20g in the HMX-SL frame area.
Perfect for riders building the ultimate gravel race machine or adventure rig, the Scale Gravel RC Frameset features adjustable head angle geometry for fine-tuning handling characteristics, Syncros Cable Integration System for clean routing of mechanical and electronic drivetrains, clearance for up to 2.4" tires for maximum versatility across terrain, and HMF carbon fork construction that matches the frame's lightweight, high-performance DNA.
Key Features
- Frame - SCOTT Scale Gravel RC HMF Carbon Monocoque with 3-Piece Construction
- Fork - SCOTT HMF Carbon
- Tire Clearance - up to 2.4" for Maximum Versatility
| Specification | Detail |
|---|---|
| Frame | HMF Adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, 12x148mm with 55mm Chainline |
| Fork | HMF, Postmount Disc Standard, Tapered Carbon steerer |
| Accessories | Syncros - Acros Pro Headset System, UDH Hanger and small parts |
| Approx weight in KG | Frame 1039g, Fork 649g |
| Approx weight in LBS | Frame 2.29 lbs, Fork 1.43lbs |
| Max. System Weight | 120kg (The overall weight includes the bike, the rider, the equipment, and possible additional luggage) |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Head Tube Length (mm) | 90.0 mm | 95.0 mm | 110.0 mm | 120.0 mm |
| Top Tube Horizontal (mm) | 575.0 mm | 600.2 mm | 626.0 mm | 656.5 mm |
| Standover Height (mm) | 752.0 mm | 781.0 mm | 800.0 mm | 835.1 mm |
| BB Offset (mm) | -62.0 mm | -62.0 mm | -62.0 mm | -62.0 mm |
| BB Height (mm) | 313.0 mm | 313.0 mm | 313.0 mm | 313.0 mm |
| Wheelbase (mm) | 1105.4 mm | 1131.1 mm | 1158.0 mm | 1189.4 mm |
| BB Center to Top of Seat Tube (mm) | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm |
| Seat Angle | 75.4° | 75.4° | 75.3° | 75.3° |
| Chainstay (mm) | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm |
| Reach (mm) | 418.5 mm | 442.3 mm | 463.6 mm | 491.2 mm |
| Stack (mm) | 600.3 mm | 604.9 mm | 618.9 mm | 628.1 mm |
| Stem Length (mm) | 50.0 mm | 60.0 mm | 70.0 mm | 80.0 mm |
| Trail (mm) | 105.0 mm | 105.0 mm | 105.0 mm | 105.0 mm |
| Fork Length (mm) | 506.0 mm | 506.0 mm | 506.0 mm | 506.0 mm |
| Maximum Seatpost Insertion (mm) | 160.0 mm | 210.0 mm | 250.0 mm | 300.0 mm |
| Crank Length (mm) | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm |
