SCOTT Spark RC SL Frame+Fork
Contender Signature Service
A complimentary $300 value covering professional assembly, tuning, inspection, and careful re-packaging by our technicians.
Request Info

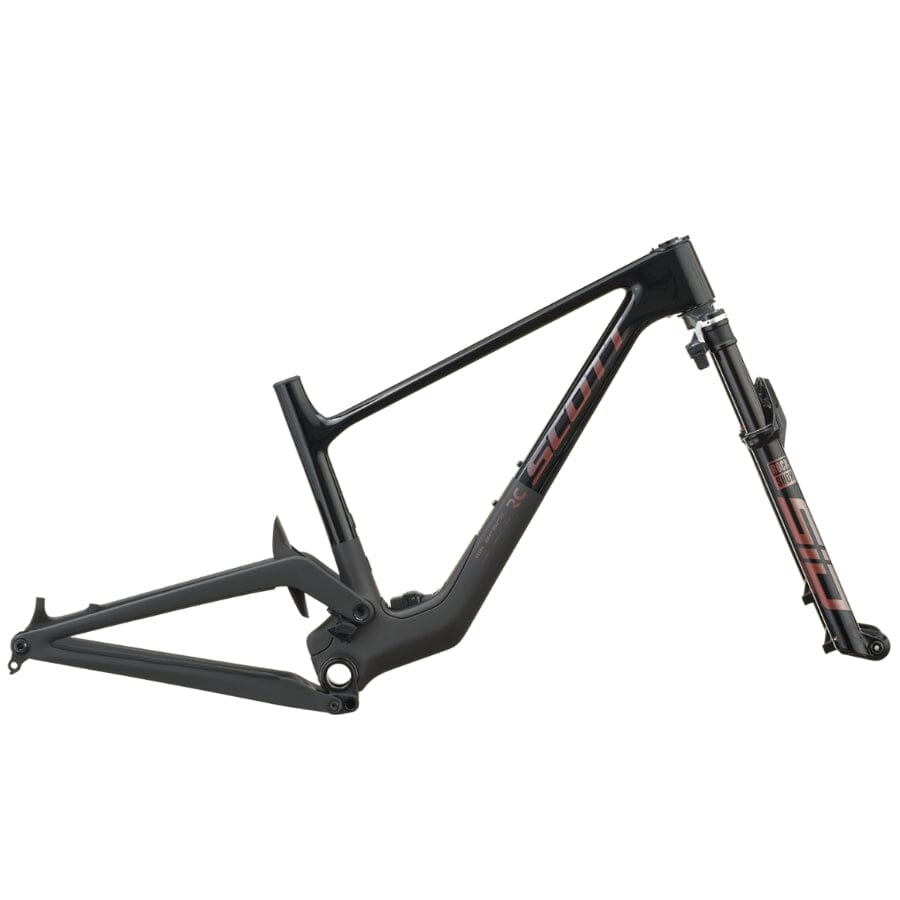

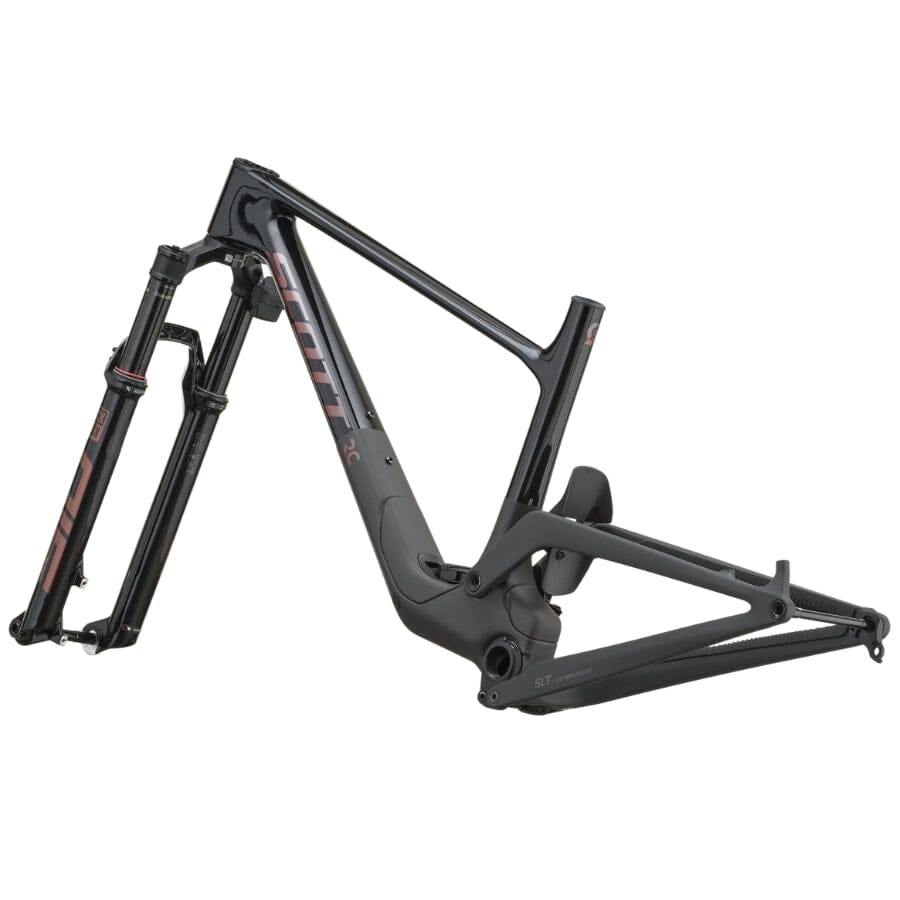

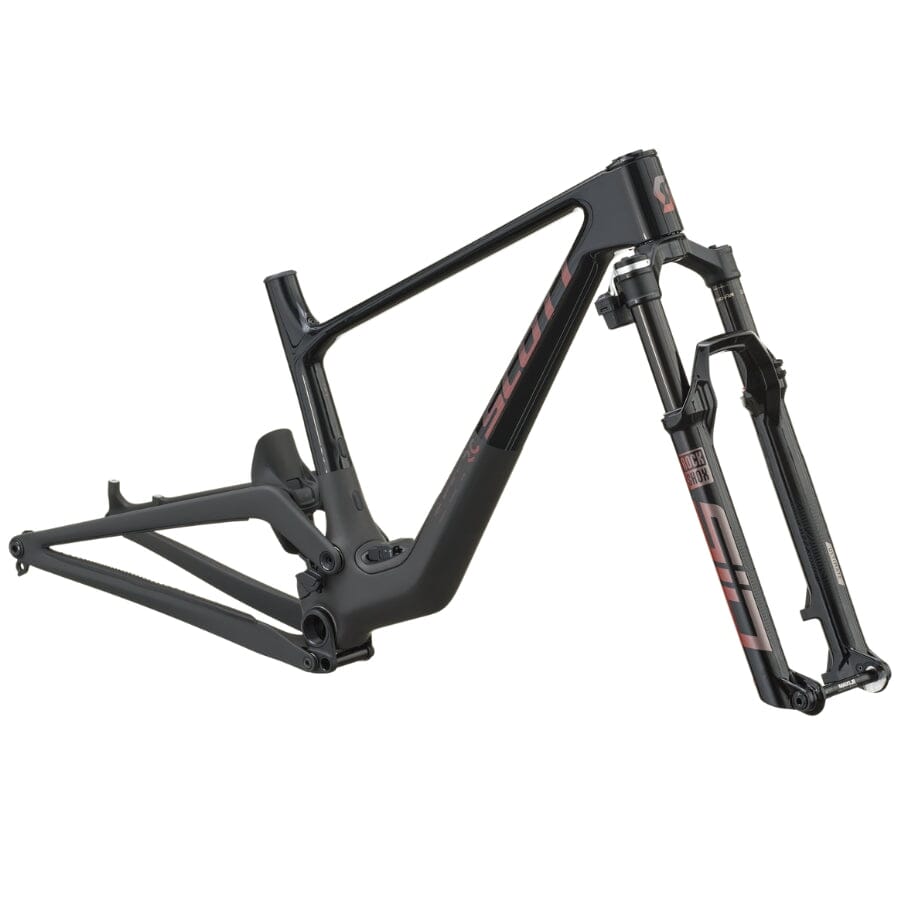

SCOTT Spark RC SL Frame+Fork
Product Details
The SCOTT Spark RC SL Frame+Fork is engineered for cross-country racers who demand the absolute lightest package without sacrificing speed, control, or reliability. Built around three uncompromising principles, lightweight efficiency, advanced ride dynamics, and seamless performance, this frame package represents the pinnacle of SCOTT's 35 years of carbon fiber expertise, proving that winning XC races is about intelligent design, not just chasing grams on a scale.
At the core sits SCOTT's HMX-SL carbon frame, weighing just 1427g in a size medium, placing it among the lightest 120mm XC frames available. However, this lightness isn't achieved through fragility or compromise. Every gram has been strategically removed to enhance power transfer and efficiency, creating a frame that rewards every pedal stroke with explosive acceleration and responsiveness. The frame employs SCOTT's proprietary kinematic design with meticulously engineered controlled flex zones that maximize grip, traction, and line control, transforming lightweight efficiency into pure race performance.
The geometry has been refined to place you in the ideal position for competitive racing. A low center of mass improves stability and precision cornering, while the shock mounting sits optimally within the chassis to maintain consistent suspension performance. The frame supports dropper posts up to 150mm on size medium, with up to 200mm on larger sizes, giving you complete control on technical descents.
Paired with RockShox SID Ultimate Flight Attendant suspension front and rear, this package delivers responsive, custom-tuned performance tailored for world-class racing. Double-sealed bearings keep the suspension pristine throughout demanding seasons. The Syncros OCT cable-routing technology provides intuitive, error-proof setup and serviceability, while magnetic frame covers offer quick access to suspension adjustments without compromising durability.
This is the frame package for riders pursuing every competitive advantage.
Key Features
-
Frame - SCOTT Spark RC HMX-SL Carbon Gen5 with carbon links, Ceramic Speed bearings, and titanium hardware
-
Suspension - RockShox SID Ultimate Flight Attendant fork with RockShox SIDLuxe Ultimate Flight Attendant rear shock
- Weight - Approximately 3.15 lbs without rear shock
| Specification | Detail |
|---|---|
| Frame | Spark RC HMX SL Carbon Gen5, carbon link, adjustable head angle and fork lock, Ceramic Speed bearings, titanium hardware, Syncros Octopus cable integration system Gen2, BB92, UDH interface, 12x148mm with 55mm chainline, lightest 120mm frame 1427g (with shock) |
| Travel | Front: 120mm, Rear: 120mm |
| Fork | RockShox SID Ultimate Flight Attendant, electronically controlled suspension, FA Race Day damper 3P, 15x110mm Maxle Stealth, tapered steerer, rebound adjustment, lockout |
| Rear Shock | RockShox SIDLuxe Ultimate Flight Attendant, electronically controlled suspension, 3P Lockout-Pedal-Descend, Solo Air, rebound adjustment, lockout, bearing hardware 20x8mm, 190x45mm |
| Remote System | Automatic electronic suspension system that listens to the rider and responds in real time |
| Chainguide | Spark RC Gen5 chainguide |
| Headset | Syncros - Acros angle adjust ±0.5°, fork lock & cable routing Gen2 system, stainless bearings, IS52 |
| Extras | Syncros Save the Day Kit IS-M100, Syncros Tool, SRAM AXS Powerpack |
| Accessories | Transport Axle |
| Approx Weight in KG | 1.427kg without rear shock |
| Approx Weight in LBS | 3.15lbs without rear shock |
| MEASUREMENT | S | M | L | XL |
|---|---|---|---|---|
| Fork Rake | 44 | 44 | 44 | 44 |
| Wheel OD | 753 | 753 | 753 | 753 |
| Head Tube Angle | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 |
| Head Tube Length | 88 | 88 | 95 | 112 |
| Top Tube Horizontal | 572.3 | 573 | 573.7 | 610.8 | 610.1 | 609.4 | 636 | 636.7 | 637.5 | 665 | 665.8 | 666.7 |
| Standover Height | 732.7 | 474.2 | 766.7 | 790.4 |
| BB Offset | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 |
| BB Height | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 |
| Wheel Base | 1159.1 | 1154.7 | 1150.2 | 1184.1 | 1179.7 | 1175.2 | 1212 | 1207.5 | 1203.1 | 1244 | 1239.5 | 1235 |
| BB Center To Top Of Seattube | 385 | 410 | 460 | 510 |
| Seat Angle | 76.5 | 76.4 | 76.3 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 |
| Chainstay | 434 | 434 | 434 | 434 |
| Reach | 429.1 | 430 | 430.9 | 454.2 | 455 | 455.9 | 479.2 | 480 | 480.8 | 504.2 | 505 | 505.7 |
| Stack | 590 | 591.1 | 592.1 | 590 | 591.1 | 592.2 | 596.3 | 597.5 | 598.6 | 611.8 | 613 | 614.2 |
| Trail | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 |
| Fork Length | 531 | 531 | 531 | 531 |
| Maximum Seatpost Insertion | 295 | 320 | 370 | 420 |
