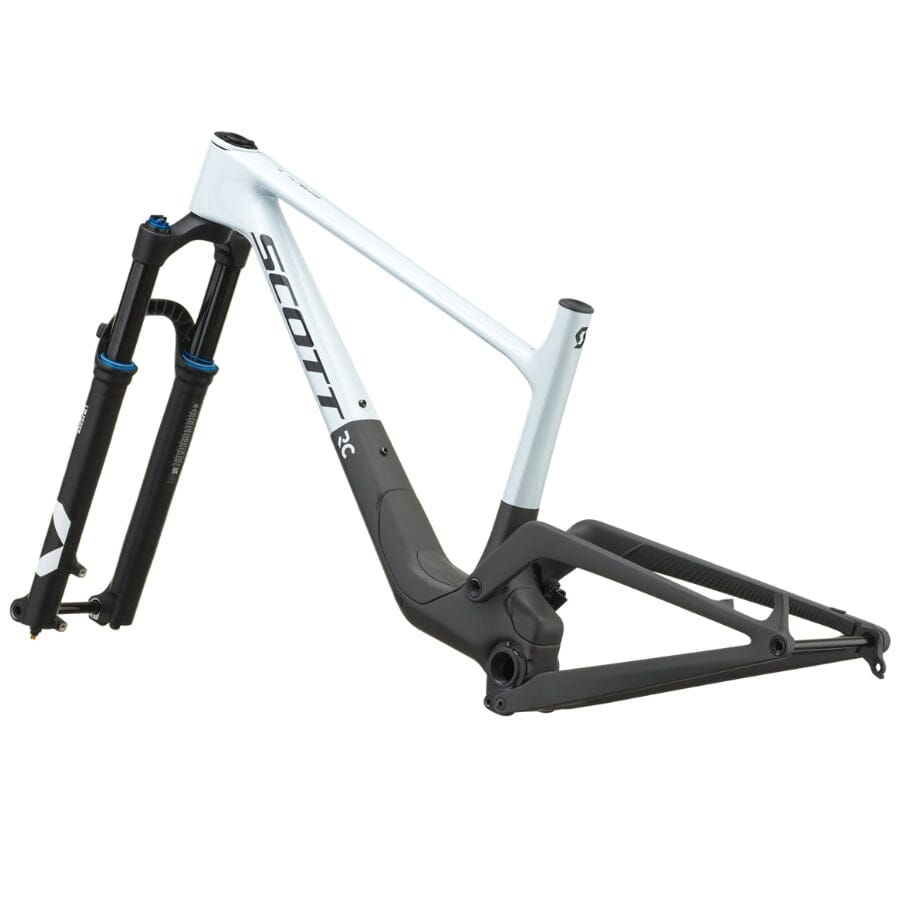

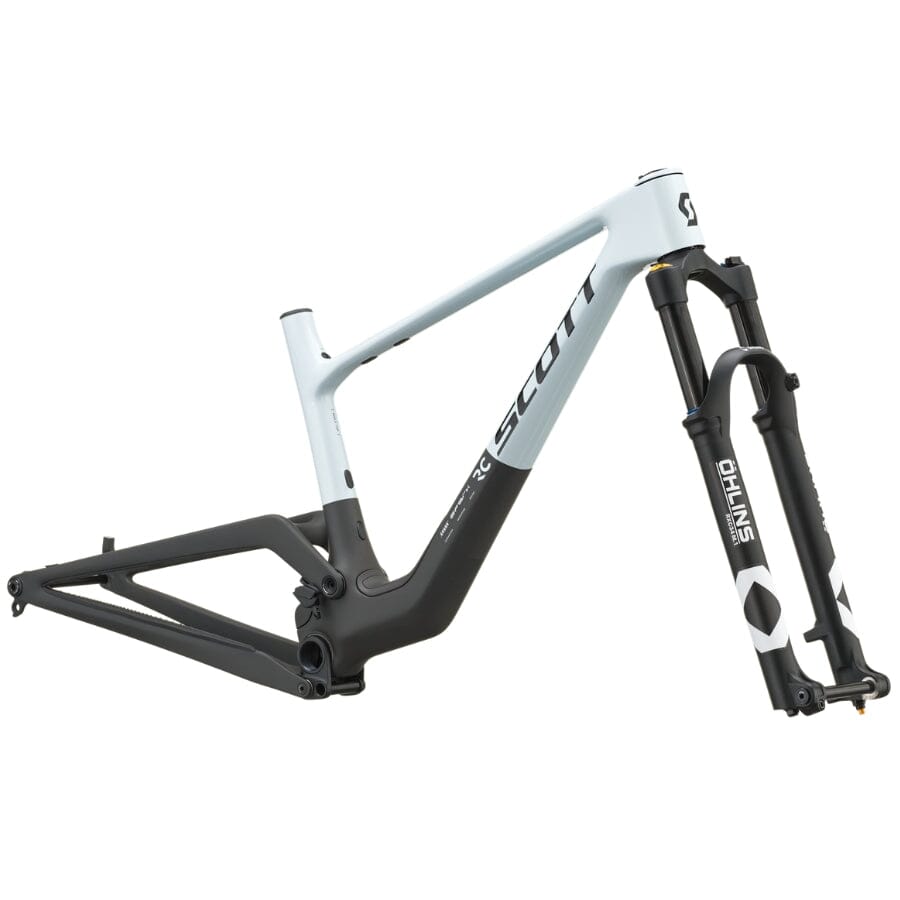

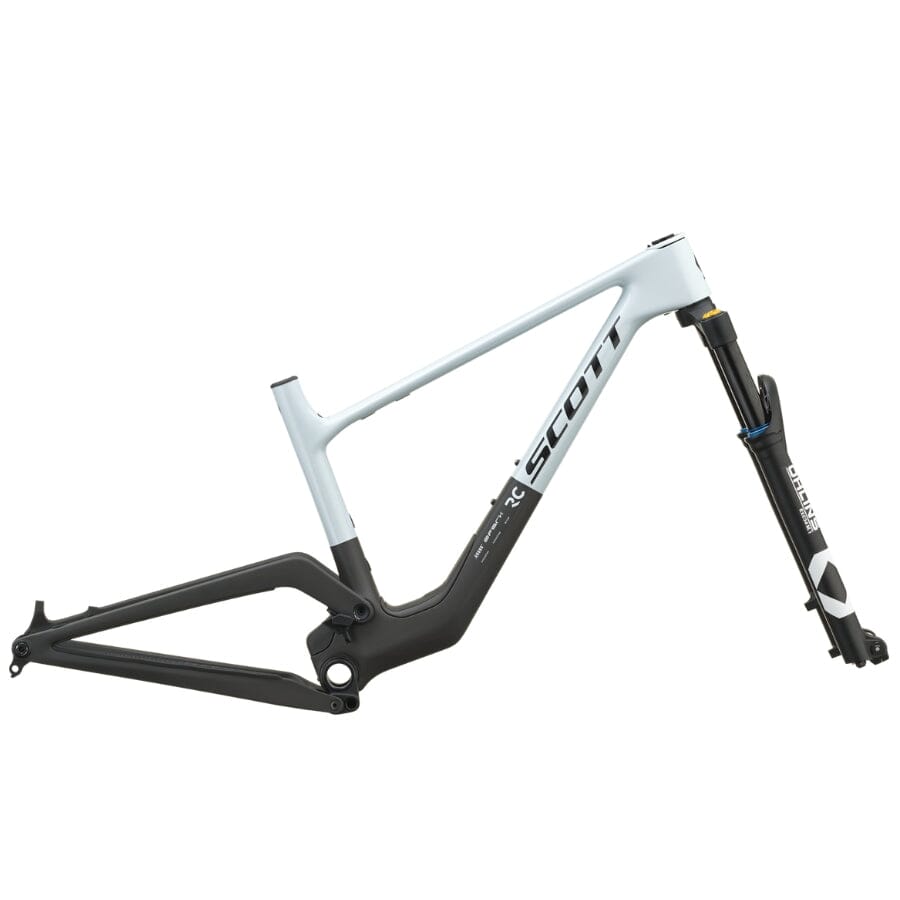

SCOTT Spark RC World Cup Frame+Fork
Product Details
The SCOTT Spark RC World Cup is a purpose-built cross-country race platform engineered for competitive riders who demand maximum efficiency without sacrificing control. This lightweight frame and fork package represents the pinnacle of XC race design, transforming every pedal stroke into race-winning speed while maintaining the responsiveness and confidence serious mountain bikers require.
The foundation is SCOTT's HMF carbon frame, this exceptional lightness isn't achieved through weight-chasing alone; every gram has been strategically removed to enhance power transfer and efficiency. The frame employs SCOTT's proprietary kinematic design with carefully engineered controlled flex zones that maximize grip, traction, and line control across technical terrain. The result is a bike that feels explosive under acceleration, planted during hard braking, and composed through challenging sections.
The geometry has been meticulously refined to place you in the ideal position for cross-country racing. You'll feel centered and in control, with cornering confidence, climbing efficiency, and descent stability all flowing seamlessly together. The shock mounting sits low within the chassis, keeping your center of mass low and direct for improved stability and precision cornering—critical advantages in competitive racing.
The Spark RC World Cup is paired with Öhlins suspension technology, featuring the RXC34 M.1 Air fork up front and the TXC2 Air Custom shock in the rear. This premium suspension package delivers responsive, tuned performance that adapts to trail conditions while maintaining the snappy character XC racers demand. Double-sealed bearings protect the entire suspension system from the elements, ensuring consistent performance throughout a demanding racing season.
Built on three uncompromising principles, lightweight performance, advanced ride dynamics, and seamless integration, this is the frame package for riders pursuing every advantage.
Key Features
-
Frame - SCOTT Spark RC HMF Carbon Gen5 with proprietary kinematic design
- Suspension - Öhlins RXC34 M.1 Air Fork with Öhlins TXC2 Air Custom Shock
- Weight - Approximately 3.95lbs without rear shock
| Specification | Detail |
|---|---|
| Frame | Spark RC HMF Carbon Gen5, adjustable head angle and fork lock, Syncros Octopus cable integration system Gen2, BSA BB, UDH interface, 12x148mm with 55mm chainline |
| Travel | Front: 120mm, Rear: 120mm |
| Fork | Öhlins RXC34 M.1 Air, OTX14R Damper 3 Modes, 15x110mm axle, tapered steerer, rebound adjustment, lockout |
| Rear Shock | Öhlins TXC2 Air Custom, 3P, rebound adjustment, lockout, hardware 20x8mm, 190x45mm |
| Remote System | SCOTT TwinLoc Technology, suspension & dropper remote with 3 suspension modes |
| Chainguide | Spark RC Gen5 chainguide |
| Headset | Syncros - Acros angle adjust ±0.5°, fork lock & cable routing Gen2 system, stainless bearings, IS52 |
| Extras | Syncros Save the Day Kit IS-M100, Syncros Tool |
| Accessories | Transport Axle |
| Approx Weight in KG | 1.793kg (without rear shock) |
| Approx Weight in LBS | 3.95lbs (without rear shock) |
| MEASUREMENT | S | M | L | XL |
|---|---|---|---|---|
| Fork Rake | 44 | 44 | 44 | 44 |
| Wheel OD | 753 | 753 | 753 | 753 |
| Head Tube Angle | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 |
| Head Tube Length | 88 | 88 | 95 | 112 |
| Top Tube Horizontal | 572.3 | 573 | 573.7 | 610.8 | 610.1 | 609.4 | 636 | 636.7 | 637.5 | 665 | 665.8 | 666.7 |
| Standover Height | 732.7 | 474.2 | 766.7 | 790.4 |
| BB Offset | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 |
| BB Height | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 |
| Wheel Base | 1159.1 | 1154.7 | 1150.2 | 1184.1 | 1179.7 | 1175.2 | 1212 | 1207.5 | 1203.1 | 1244 | 1239.5 | 1235 |
| BB Center To Top Of Seattube | 385 | 410 | 460 | 510 |
| Seat Angle | 76.5 | 76.4 | 76.3 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 |
| Chainstay | 434 | 434 | 434 | 434 |
| Reach | 429.1 | 430 | 430.9 | 454.2 | 455 | 455.9 | 479.2 | 480 | 480.8 | 504.2 | 505 | 505.7 |
| Stack | 590 | 591.1 | 592.1 | 590 | 591.1 | 592.2 | 596.3 | 597.5 | 598.6 | 611.8 | 613 | 614.2 |
| Trail | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 |
| Fork Length | 531 | 531 | 531 | 531 |
| Maximum Seatpost Insertion | 295 | 320 | 370 | 420 |
