Product Details

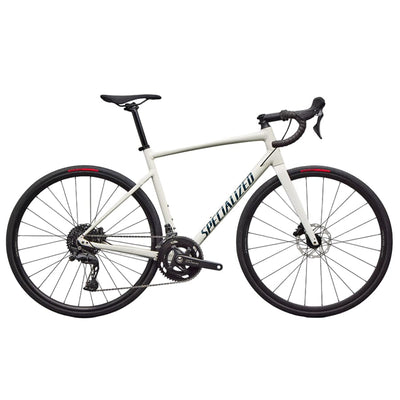

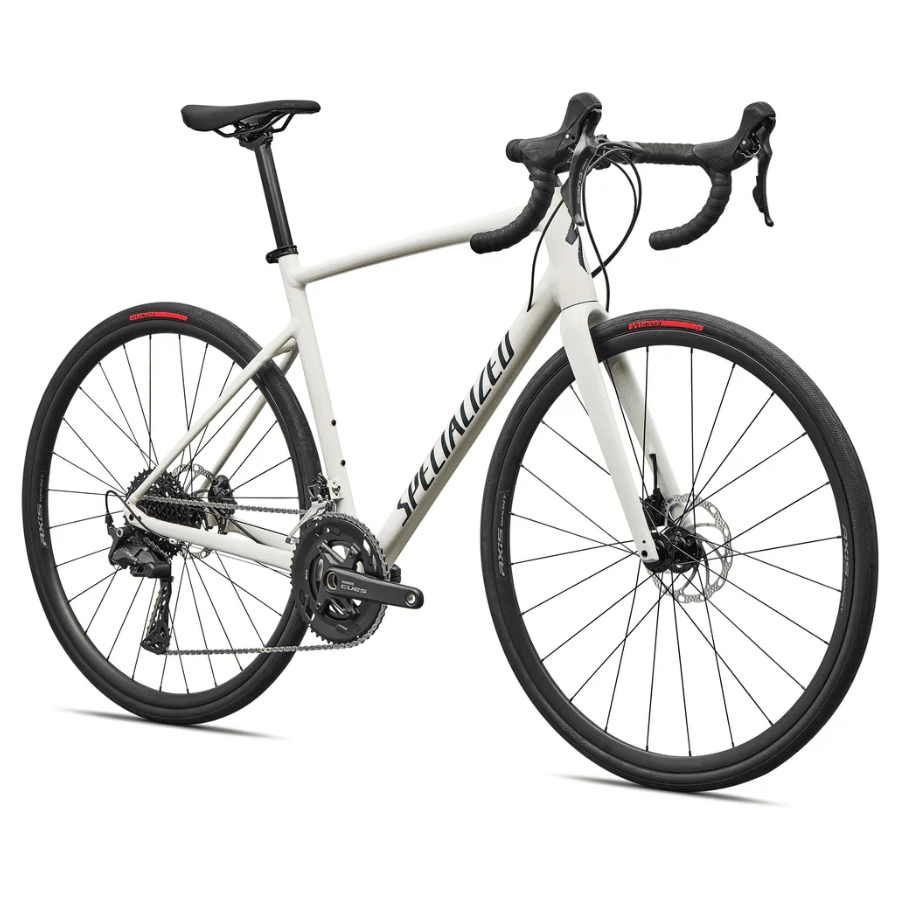

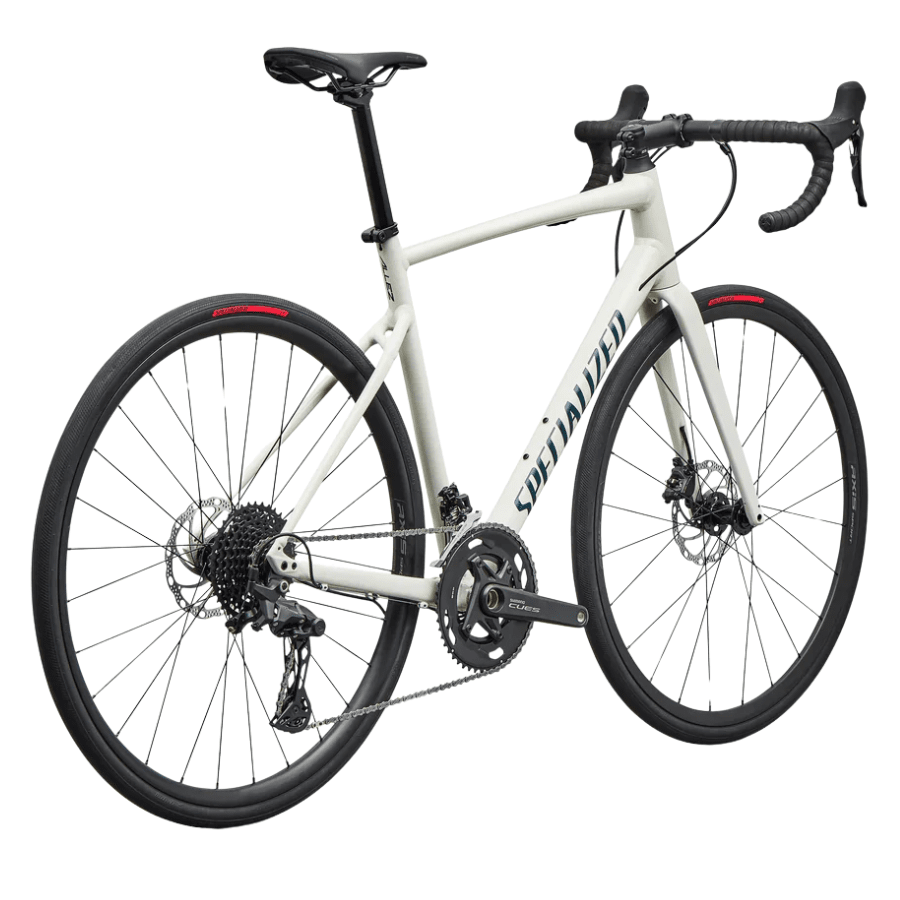

The Specialized Allez E5 delivers four decades of road cycling evolution in its lightest, most versatile iteration yet. Built for riders seeking premium alloy performance, whether beginning their road journey, commuting through the week, or chasing weekend group rides, this bike proves that serious performance doesn't require carbon fiber construction.
Starting with premium butted and double-butted E5 alloy tubing, the Allez frame achieves a class-leading 1,375 grams while maintaining the excellent stiffness-to-weight ratio that defines responsive road bikes. The full carbon fork reduces weight while smoothing road vibration. Modern components throughout the build reinforce the Allez's position as the lightest bike in its category.
The exceptional E5 alloy frame construction delivers durability and performance wrapped in clean, purposeful aesthetics. All-weather dual-piston disc brakes provide confident stopping power at any speed, while geometry borrowed from the legendary Roubaix ensures endurance-focused comfort for long miles without sacrificing the sharp handling needed for winding descents. This balance allows the Allez to dissect technical roads like a pure race bike while maintaining stability for newer riders.
Built for riders who need one bike to handle multiple roles, the Allez accommodates tires up to 35mm (32mm with fenders) for rough roads and light gravel exploration. Integrated rack and fender mounts ensure year-round utility, while wide-range gearing keeps riders spinning comfortably on steep gradients. From commuting to KOM hunting, the Allez adapts to whatever road lies ahead.
Key Features
- Frame - Specialized E5 Premium Aluminum with Full Carbon Fork
- Drivetrain - Shimano CUES RD-U6020 10-Speed
- Wheelset - AXIS Sport Disc Wheelset
| Specification | Detail |
|---|---|
| Frame | Specialized E5 Premium Aluminum, flat mount disc, fully manipulated tubing w/ SmoothWelds, internal cable routing, threaded BB, 12x142mm thru-axle |
| Fork | Specialized FACT full carbon, flat mount disc, 1-1/8" to 1-3/8" taper, fender eyelets, 12x100mm thru-axle |
| Front Brake | Shimano CUES Hydraulic Brake |
| Rear Brake | Shimano CUES Hydraulic Brake |
| Shift Levers | Shimano CUES ST-U6030 |
| Front Derailleur | Shimano CUES FD-U6030, Braze-on |
| Rear Derailleur | Shimano CUES RD-U6020, 10sp |
| Cassette | Shimano CUES, 11-39T, 10sp |
| Chain | KMC XGlide |
| Crankset | Shimano CUES FC-U6030, 50/34T |
| Bottom Bracket | Shimano Threaded BSA BB |
| Front Tire | RoadSport, 700x30 |
| Front Wheel | AXIS Sport Disc |
| Rear Tire | RoadSport, 700x30 |
| Rear Wheel | AXIS Sport Disc |
| Inner Tubes | Presta, 700x28-32mm |
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Handlebars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Tape | Supacaz Suave |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| SeatPost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |
| Seat Binder | Bolt-type, Rack Compatible 31.8mm |
| Weight | 10.0 kg (22 lb, 0.7 oz) |
| Weight Size | 56 |
| Size | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 360mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stack | 519mm | 536mm | 552mm | 569mm | 590mm | 610mm | 643mm |
| Reach | 356mm | 359mm | 364mm | 370mm | 378mm | 386mm | 392mm |
| Head Tube Length | 110mm | 125mm | 140mm | 155mm | 175mm | 195mm | 230mm |
| Head Tube Angle | 69.5° | 70.5° | 71° | 72° | 72.5° | 73° | 73° |
| BB Height | 273mm | 273mm | 273mm | 274mm | 274mm | 275.5mm | 275.5mm |
| BB Drop | 77mm | 77mm | 77mm | 76mm | 76mm | 74.5mm | 74.5mm |
| Trail | 74mm | 71mm | 64mm | 61mm | 58mm | 58mm | 81mm |
| Fork Length, Full | 378mm | 378mm | 378mm | 378mm | 378mm | 378mm | 378mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
| Front Center | 576mm | 577mm | 583mm | 585mm | 594mm | 603mm | 619mm |
| Chainstay Length | 420mm | 420mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 984mm | 984mm | 995mm | 998mm | 1008mm | 1017mm | 1033mm |
| Top Tube Length, Horizontal | 493mm | 500mm | 530mm | 541mm | 556mm | 569mm | 586mm |
| Bike Standover Height | 715mm | 739mm | 761mm | 781mm | 801mm | 821mm | 852mm |
| Seat Tube Length | 430mm | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Seat Tube Angle | 75.25° | 75.25° | 73.25° | 73.25° | 73.25° | 73.25° | 73.25° |
