Product Details

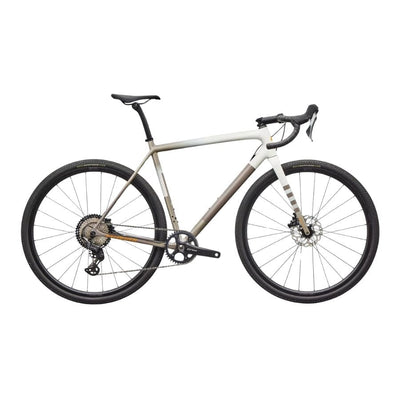

The Specialized Crux Comp brings lightweight gravel bike technology to a complete build that's ready for any adventure. Built with Specialized's advanced FACT 10r carbon frame, this bike delivers exceptional lightweight performance with the components you need to tackle everything from smooth gravel roads to technical terrain with confidence.
This complete build features Shimano's reliable GRX 12-speed drivetrain that shifts smoothly under load and gives you the gear range to conquer steep climbs and fast descents. The tough DT G540 Disc wheels are built to handle rough terrain while keeping weight reasonable, and the 700x40mm Pathfinder tires provide excellent traction and comfort with tubeless-ready convenience. At this level, you get premium frame technology with proven, dependable components.
The Crux geometry draws from decades of cyclocross racing heritage, delivering a responsive ride position that's efficient for speed but comfortable enough for long gravel adventures. Whether you're training for gravel races, exploring new backroads, or just want a bike that can keep up with your biggest ambitions, the Crux Comp makes it all accessible without compromising on the performance that made this platform famous.
Key Features:
- Frame – Lightweight FACT 10r Carbon construction with the strength needed for demanding gravel rides.
- Drivetrain – Shimano’s Complete GRX 12-speed gravel groupset delivers smooth, reliable shifting and a wide gear range.
- Wheelset –DT Swiss G540 rims and Specialized full sealed bearing hubs with tubeless Pathfinder tires to provide confidence across varied terrain.
| Specification | Detail |
|---|---|
| Frame | Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Wheelset | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Front Tire | Pathfinder 700x40, Tubeless Ready |
| Rear Tire | Pathfinder 700x40, Tubeless Ready |
| Inner Tubes | Presta, 700x32-50mm |
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
| Bar Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
| Seat Binder | Specialized Alloy, 30mm |
| Front Brake | Shimano GRX RX820 |
| Rear Brake | Shimano GRX RX820 |
| Shift Levers | Shimano GRX ST-RX820 |
| Rear Derailleur | Shimano GRX RX822-GS, 12-speed |
| Cassette | Shimano XT, 12-speed, 10-45t |
| Chain | Shimano XT M8100, 12-speed w/ quick link |
| Crankset | Shimano GRX RX820 40t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Weight | 8.66 kg (19 lb, 1.5 oz) |
| Weight (Size) | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seatpost Length | 300mm | 300mm | 300mm | 360mm | 360mm | 360mm |
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
| Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Fork Rake / Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
| Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
| Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
| Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
