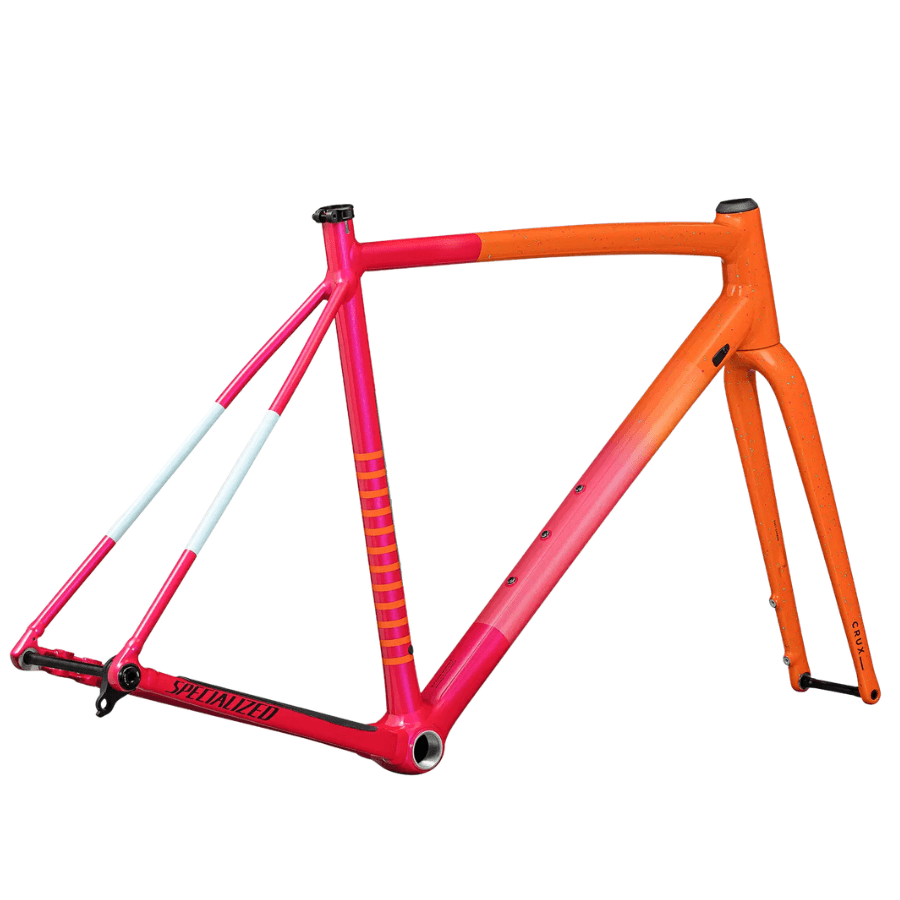

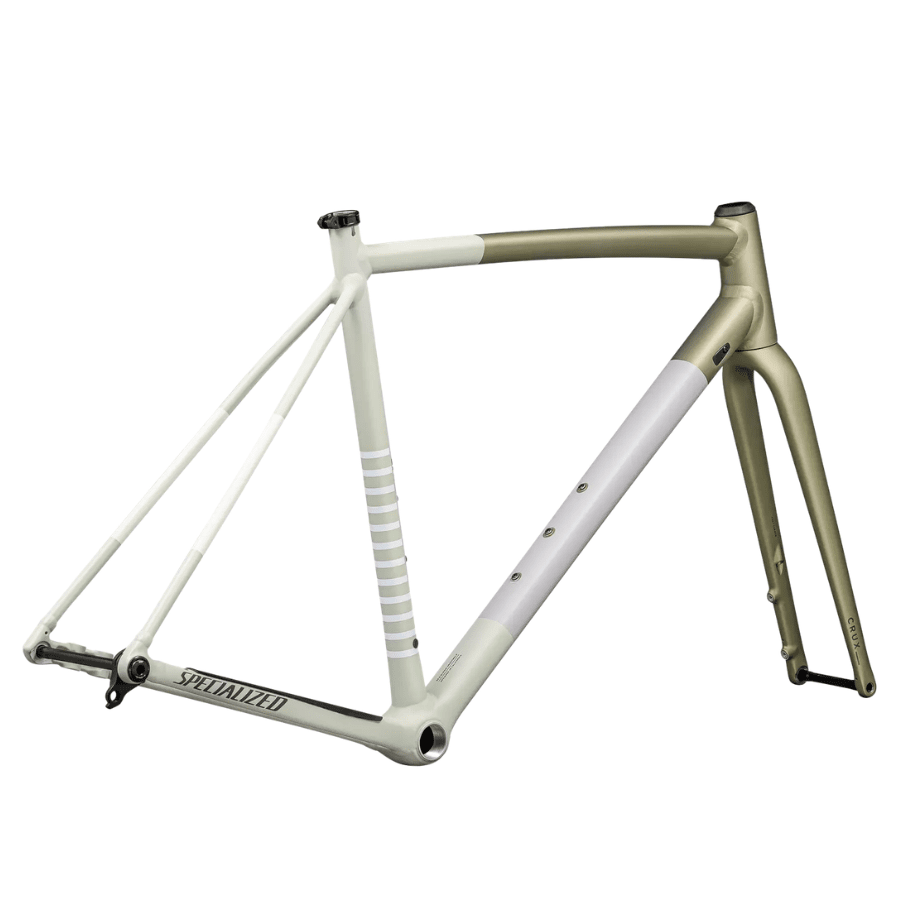

Specialized Crux DSW Frameset
Product Details
The Specialized Crux DSW Frameset is the epitome of lightweight, high-performance alloy gravel bikes, designed for those looking to build their dream ride. Leveraging our patented D’Aluisio Smartweld technology, we’ve transformed insights from the carbon Crux into an alloy marvel that’s nimble, balanced, and incredibly responsive. The Crux DSW stands as the world’s lightest alloy gravel frame at just 1399 grams* for a 56cm frame, combining with a Fact12r carbon fork to achieve an unmatched complete weight of 9.37kg.
With tire clearance up to 47mm and compatibility with 650b wheels, this frameset offers unparalleled capability and versatility. The Smartweld process ensures precise, stronger welds, delivering a frame that’s both lightweight and twice as durable as traditional alloy frames. The performance gravel geometry, longer reach, and lower stack provide confident handling and a race-influenced fit, making the Crux DSW the ultimate choice for fast, fun, and high-performance gravel riding.
| *Please note that bike specifications are subject to change without prior notice |
| Frame | Specialized E5 Premium Aluminum Disc frame with D'Aluisio Smartweld Technology, hydroformed aluminum tubing, tapered head tube, threaded BB |
|---|---|
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Seat Binder | Specialized Alloy, 30.8mm |
| Weight | 1.98kg (4 lb, 5.8 oz) |
| Weight Size | 56 |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 70 | 80 | 90 | 100 | 110 | 110 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 300 | 300 | 300 | 360 | 360 | 360 |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
