BMC Fourstroke R 01 ONE
Product Details

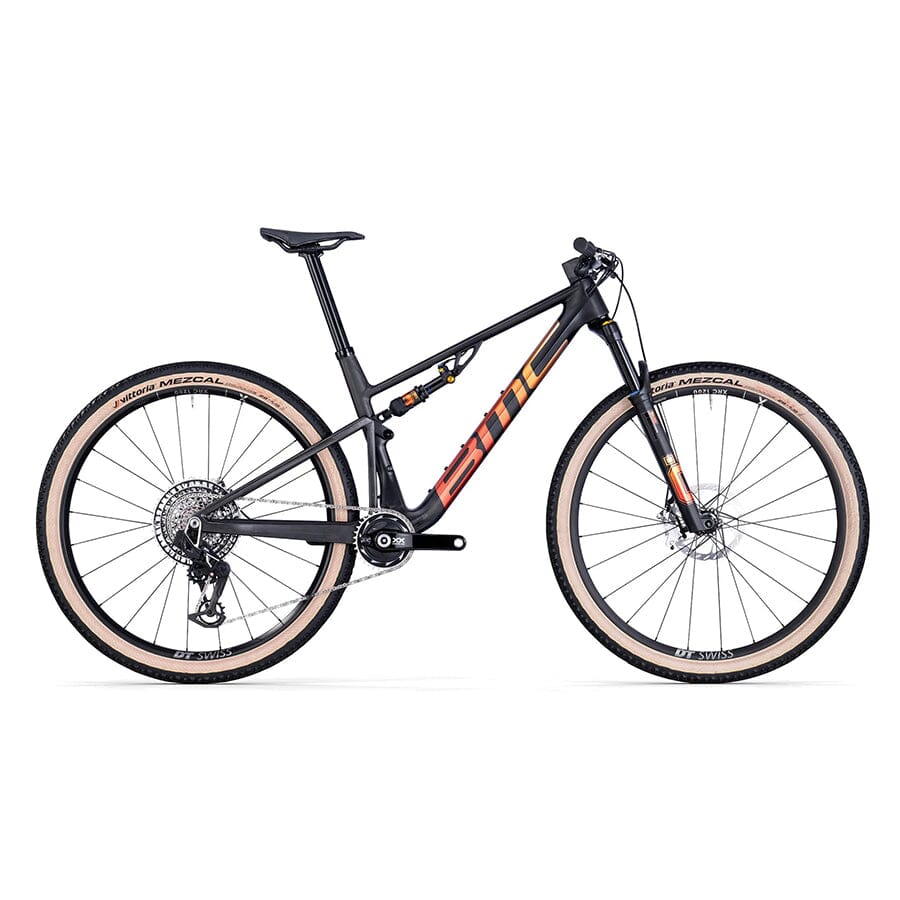

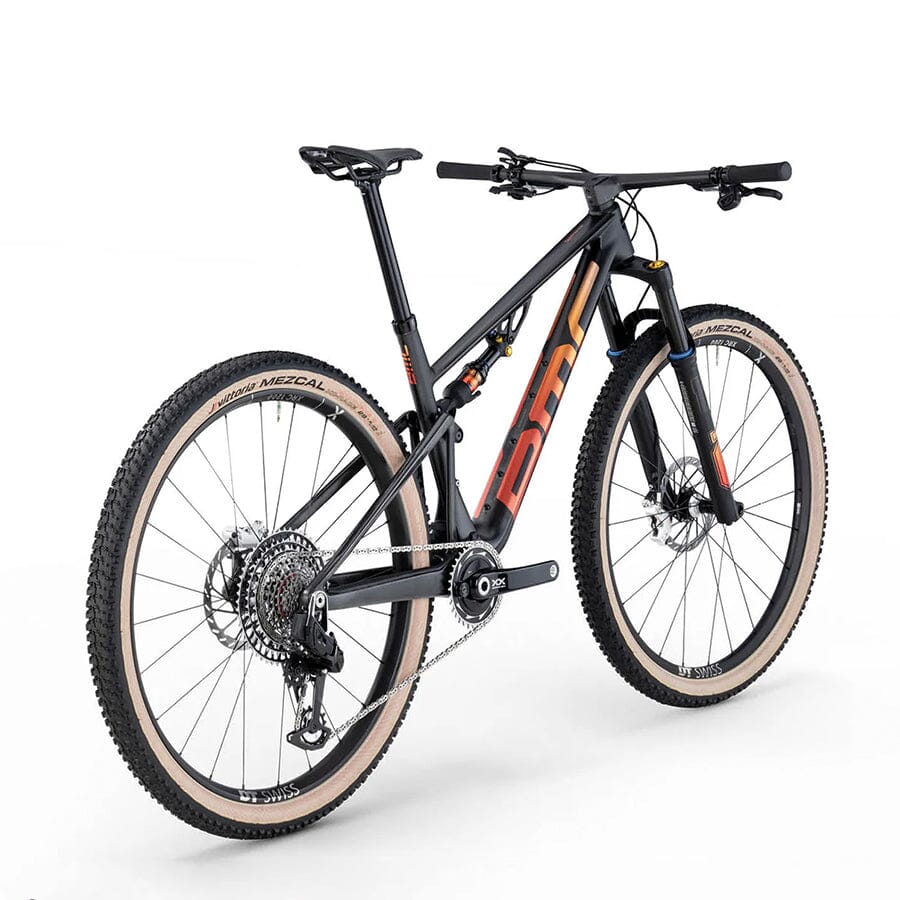

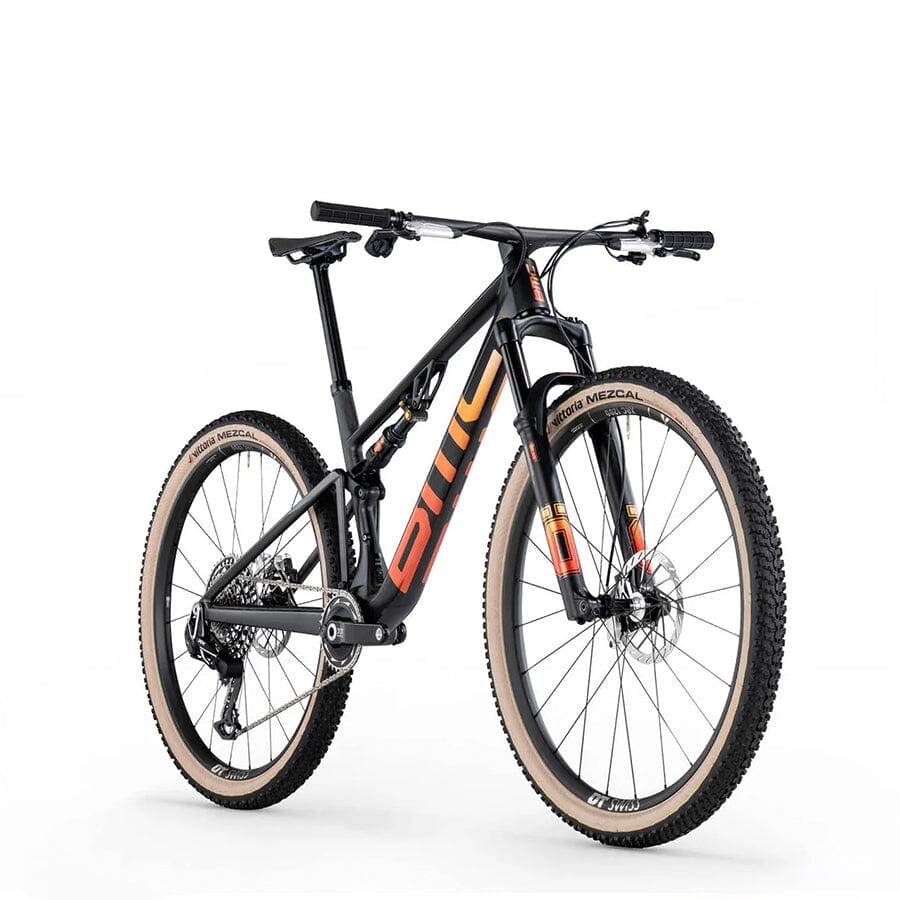

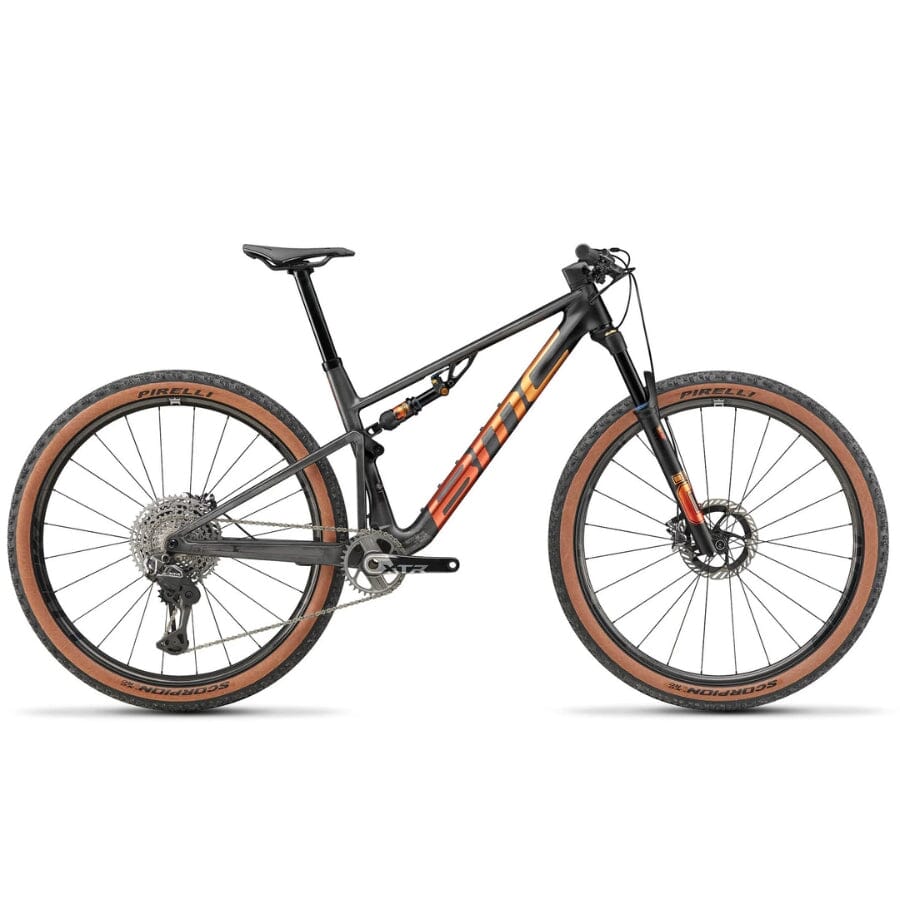

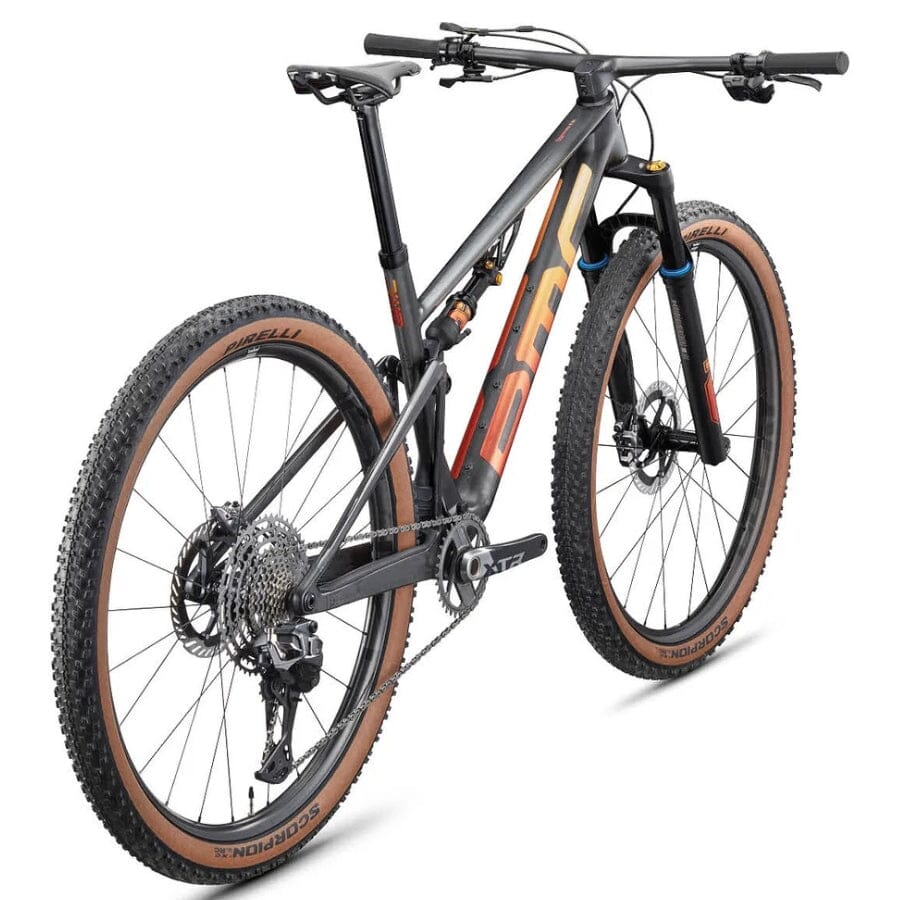

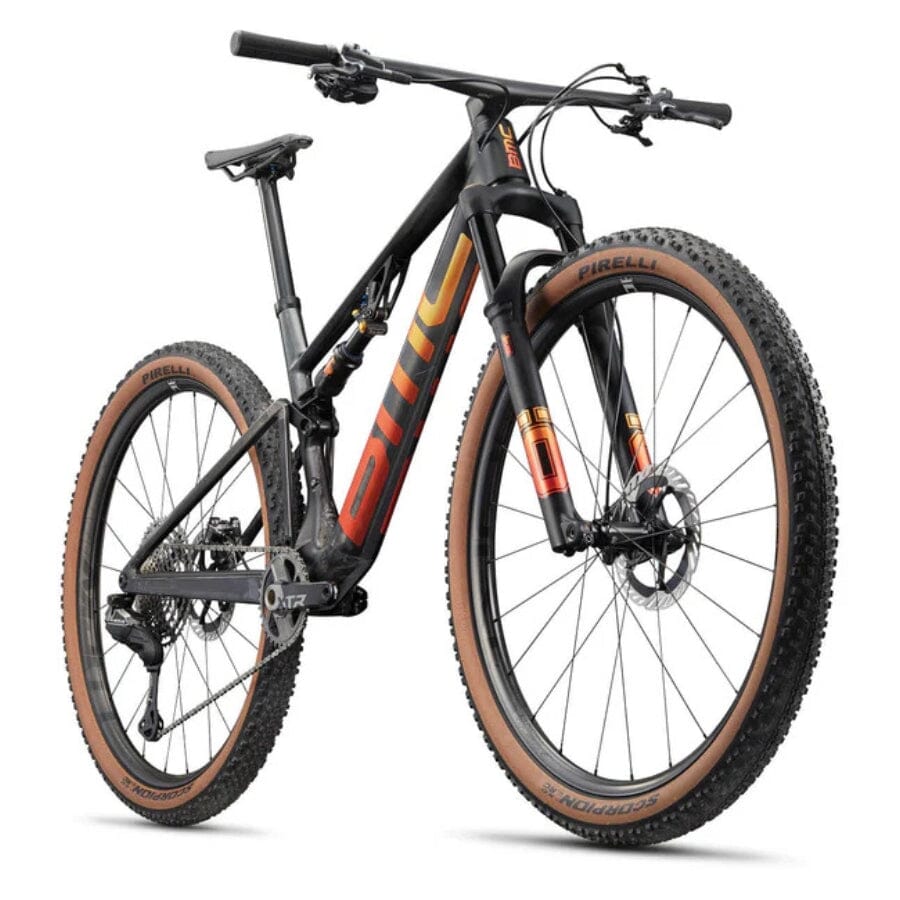

The BMC Fourstroke R 01 ONE is a race-bred full-suspension mountain bike where engineering precision meets aggressive XC performance. Built around the 01 Premium Carbon frame and refined through thousands of hours in BMC's Impec Lab and proven on the race circuit, this machine makes winning feel inevitable. Every detail has been engineered for one purpose: going faster, more often, across the most technical and demanding XC terrain.
The foundation is the 01 Premium Carbon frame, delivering ultimate efficiency and instant response on climbs while keeping the bike nimble and responsive through technical sections. BMC's Race Geometry has been carefully tuned for aggressive XC racing, with a 66.5-degree head angle and extended reach that add stability and control through the steepest and loosest terrain. Despite its race-focused geometry, the frame still accommodates two full-size bottles, along with generous 62mm tire clearance for modern, high-volume tires that deliver traction without sacrificing speed.

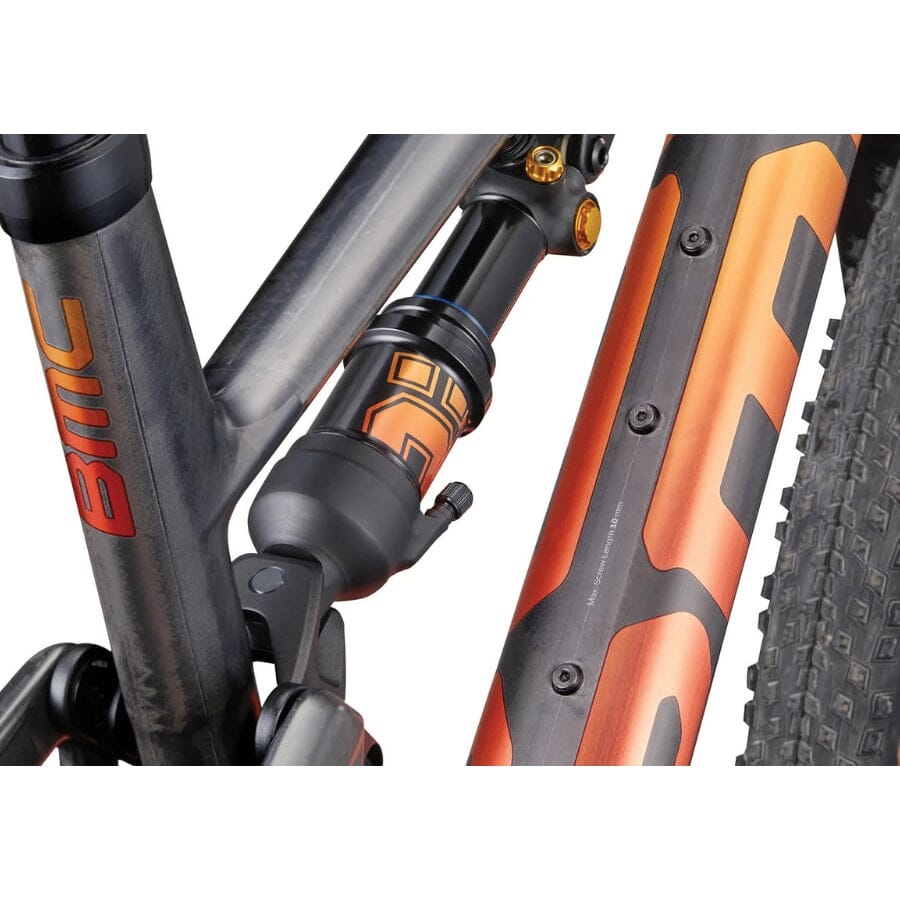

The dark magic lies in the optimized APS suspension technology. By precisely positioning suspension pivots, BMC engineered a system that boosts efficiency and maintains traction through rough, technical terrain. The 120mm Öhlins RXC34 Carbon fork paired with the Öhlins TXC2 Air shock deliver responsive, progressive suspension that keeps momentum intact while staying planted. The innovative Autodrop automatic dropper post lowers at the push of a button with no awkward squat required, more control, more speed, and more confidence when descending technical tracks.
The ICS Carbon XC one-piece cockpit provides a clean, integrated interface, while Shimano XTR Di2 drivetrain and brakes ensure unrivaled precision and modulation. Duke Lucky Jack SLS5 wheels complete this race-winning package with lightweight efficiency and durability built for relentless XC competition.
Key Features
- Frame - BMC Fourstroke R 01, 01 Premium Carbon with Autodrop Technology
- Suspension - Öhlins RXC34 Carbon fork 120mm, Öhlins TXC2 Air shock 190x45mm
- Drivetrain - Shimano XTR Di2
- Wheelset - Duke Lucky Jack SLS5
| Specification | Detail |
|---|---|
| Frame | Fourstroke R 01 | 01 Premium Carbon with Autodrop Technology | APS Suspension System | 120mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle |
| Fork | Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout | 44mm offset |
| Front Suspension | Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout | 44mm offset |
| Rear Suspension | Öhlins TXC2 Air | 190 x 45mm | DT Swiss Remote Lockout |
| Remote Lockout | DT Swiss Double Stage Remote Lockout |
| Handlebar | ICS Carbon XC | One-Piece Full Carbon Cockpit | 760mm width | 3° Up sweep | 8° Back sweep | -19° Stem angle |
| Grips | Dual Density | 132mm Width |
| Seatpost | BMC Autodrop Integrated Dropper Seatpost | 80mm Drop |
| Saddle | Prologo Dimension NDR | Nack Carbon Rail | 143mm |
| Crankset | SHIMANO XTR (FC-M9200) | 55mm chainline |
| Chainrings | 34T |
| Cassette | SHIMANO XTR (CS-M9200-12) |
| Cassette Size | 10-51T |
| Chain | SHIMANO CN-M9100 |
| Rear Derailleur | SHIMANO XTR Di2 (RD-M9250-SGS) |
| Shifters | SHIMANO XTR (SW-M9250-IR) |
| Gears | 1 x 12 |
| Bottom Bracket | SHIMANO Deore Press-Fit Bottom Bracket (BB-MT500-PA) |
| Brake Levers / Calipers | SHIMANO XTR (BL-M9200 & BR-M9200) |
| Rotors | SHIMANO Dura Ace (RT-CL900) |
| Rotor Size (F/R) | 180 / 180mm |
| Rims | Duke Lucky Jack SLS5 | 28 Spokes | Inner Width 31mm (F), 28mm (R) |
| Hubs (F/R) | Duke Badboy CL SP |
| Tires | Pirelli Scorpion XC RC | 2.4" |
| Tubeless Information | Tubeless Rim | Tubeless Tires |
| In the Box | Computer mount for Garmin, Wahoo |
| Tire Clearance | 62mm measured tire |
| Weight without Pedals | 11.0kg | Size M as pictured with all accessories |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 477 | 500 |
| Stack | 584 | 592 | 600 | 615 |
| Bar Sweep | up-sweep 3°, back-sweep 8° | up-sweep 3°, back-sweep 8° | up-sweep 3°, back-sweep 8° | up-sweep 3°, back-sweep 8° |
| Bar Width | 760 | 760 | 760 | 760 |
| BB Drop | 38 | 38 | 38 | 38 |
| Crank Length | 165 | 170 | 170 | 170 |
| Fork Length | 530 | 530 | 530 | 530 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 711 | 743 | 760 | 790 |
| Head Tube | 84 | 93 | 101 | 118 |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Rear Center | 431 | 431 | 431 | 431 |
| Seat Angle | 75.6° | 75.6° | 75.6° | 75.6° |
| Seat Tube | 420 | 440 | 470 | 490 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Seatpost Length | 389 | 414 | 414 | 414 |
| Seatpost Offset | 0 | 0 | 0 | 0 |
| Standover Height | 727 | 727 | 727 | 727 |
| Stem Angle | -19° | -19° | -19° | -19° |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 576 | 599 | 623 | 651 |
| Trail | 115 | 115 | 115 | 115 |
| Wheelbase | 1140 | 1172 | 1189 | 1219 |
