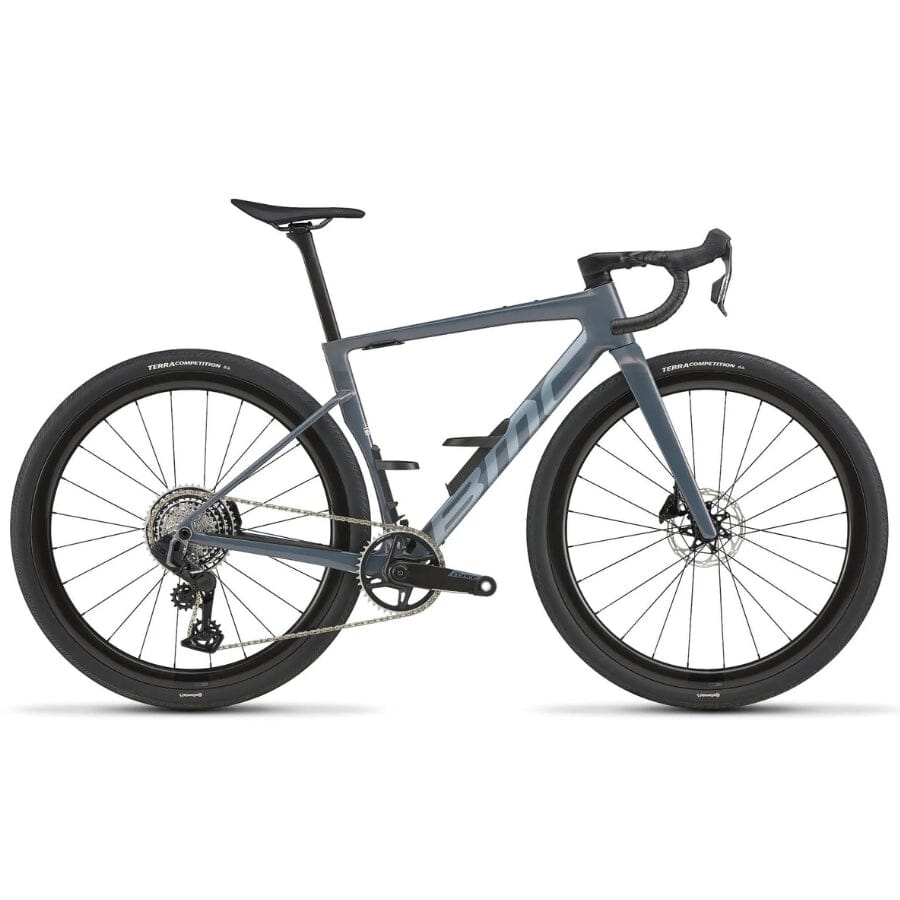

BMC Kaius 01 TWO BIKES BMC Bikes Copper Grey 51
SKU: 30008303
Low Stock
On Sale

BMC Kaius 01 TWO

Regular price $8,999.00
Regular price $8,999.00 Sale price $8,999.00
Color
Size
Your satisfaction is our top priority.

Contender Signature Service
A complimentary $300 value covering professional assembly, tuning, inspection, and careful re-packaging by our technicians.

Learn more

Product Details

The BMC Kaius 01 TWO is designed for gravel racers who demand unmatched speed, sensations like no other bike can provide, and the grip and control demanded by the best. Born from three forces of the frontier, the brother who dances with the wind, the one who moves weightless over mountains, and the one carved unbreakable from the earth, the all-new second-generation Kaius carries speed, lightness, and strength into every wild mile. This isn't just an evolution of the original Kaius; it's the answer to every gravel racer's wish.

Built around BMC's AeroSynthesis design philosophy, the Kaius 01 represents a 12% faster frameset compared to the first generation through reshaped aerodynamics inspired by the latest Teammachine SLR 01 and Teammachine R. The wide-crown Halo fork pushes airflow away from the wheel while creating generous tire clearance, the sculpted AeroCore downtube is shaped to work aerodynamically with bottles (making the bike faster with hydration in place), and the deep cross-section head tube paired with the ICS Carbon Aero cockpit confirms you're riding a machine built for pure speed. Yet despite adding aero, tire clearance, and cargo capacity, the second-generation frameset is 63 grams lighter than the original at just 1,469 grams complete (998g frame, 400g fork, 134g seatpost), proof that progress doesn't have to weigh you down.

Key Features

  • Frame - BMC Kaius 01 Gen 2 Premium Carbon with AeroCore Design and TCC Race Compliance
  • Drivetrain - SRAM Force XPLR AXS with Single-Side SRAM Force XPLR AXS Power Meter
  • Wheelset - BMC CG 39 Carbon
*Please note that specifications are subject to change without prior notice
Specification Detail
Frame Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Handlebar ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips BMC Tacky 3mm
Seatpost Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle Fizik Vento Argo X3 | Kium rails | 140mm
Crankset SRAM Force AXS Wide (FC-FRC-1WP-E1)
Chainrings 42T
Power Meter SRAM Force XPLR AXS Power Meter | Single Side (FC-FRC-1WP-E1)
Cassette SRAM Force XPLR (CS-XG-1371-E1)
Cassette Size 10-46T
Chain SRAM Force (CN-FRC-E1)
Rear Derailleur SRAM Force XPLR AXS (RD-FRC-1E-E1)
Shifters SRAM Force AXS (ED-FRC-E1)
Gears 1 x 13
Bottom Bracket SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1)
Brake Levers / Calipers SRAM Force AXS (ED-FRC-E1)
Rotors SRAM CenterLine X Rotor (RT-CLN-X-A2)
Rotor Size (F/R) 160 / 160mm
Rims CG 39 Carbon | Tubeless Ready | 39mm
Hubs (F/R) CG 39 | Star Ratchet System | Straightpull Design | Center Lock
Tires Continental Terra Competition Race Rapid | Tubeless | 45mm
Tubeless Information Tubeless Rim | Tubeless Tires
In the Box Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount
Tire Clearance 52mm measured tire
Weight without Pedals 7.8kg | Size 54 as pictured with all accessories
ASTM Classification Level 2
System Weight Limit 120kg
Measurement 47 51 54 56 58 61
Rider Height <166 166–174 172–180 178–186 184–192 >190
Reach (mm) 385 392 396 400 405 409
Stack (mm) 521 541 561 581 606 631
Bar Drop (mm) 125 125 125 125 125 125
Bar Reach (mm) 70 70 70 70 70 70
Bar Width (mm) 390 / 438 390 / 438 390 / 438 410 / 458 410 / 458 430 / 478
BB Drop (mm) 79 79 79 79 79 79
Crank Length (mm) 165 165 170 170 172.5 172.5
Fork Length (mm) 397 397 397 397 397 397
Fork Rake (mm) 50 50 50 45 45 45
Front Center (mm) 597 611 614 619 633 645
Head Tube Length (mm) 88 109 126 147 173 199
Head Tube Angle (°) 70.8° 70.8° 70.8° 71.6° 71.6° 71.6°
Rear Center (mm) 425 425 425 425 425 425
Seat Angle (°) 74.3° 74.3° 73.8° 73.8° 73.8° 73.8°
Seat Tube Length (mm) 429 449 471 485 509 533
Seatpost Length (mm) 335 335 385 385 405 405
Seatpost Offset (mm) 0 0 10 10 10 10
Standover Height (mm) 739 758 779 795 815 838
Stem Angle (°) -8° -8° -8° -8° -8° -8°
Stem Length (mm) 80 90 90 100 100 110
Top Tube Length (mm) 531 544 559 569 587 598
Trail (mm) 72 72 72 72 72 72
Wheelbase (mm) 1010 1024 1027 1032 1045 1058
