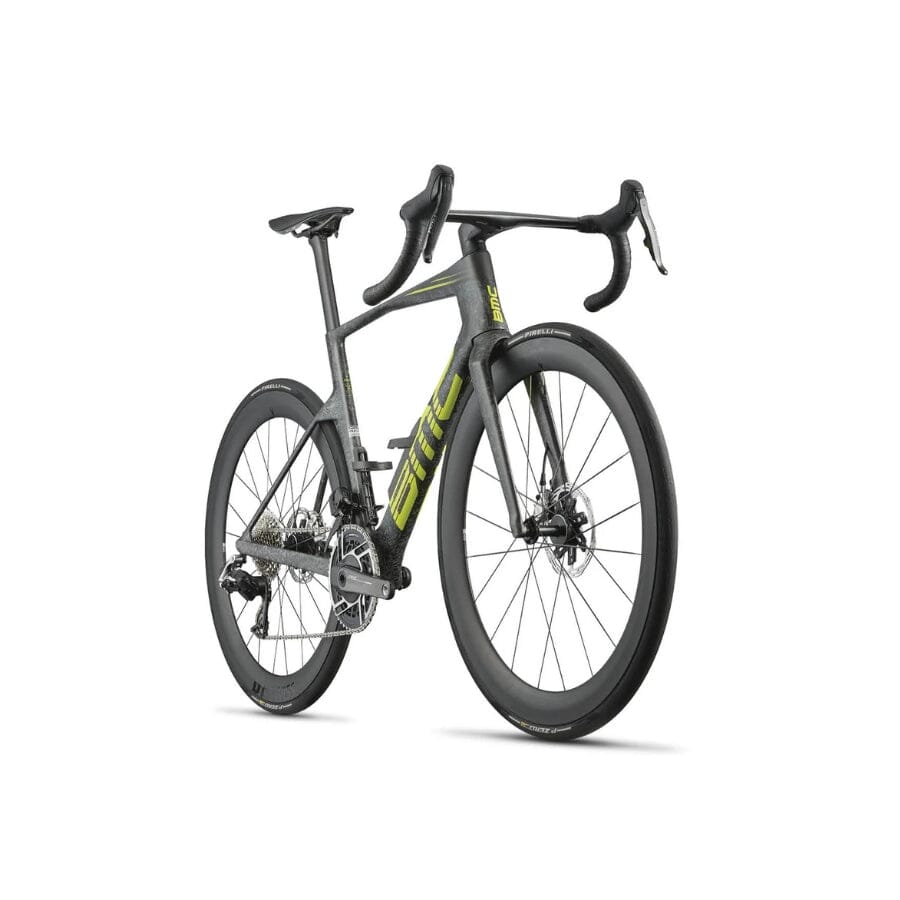

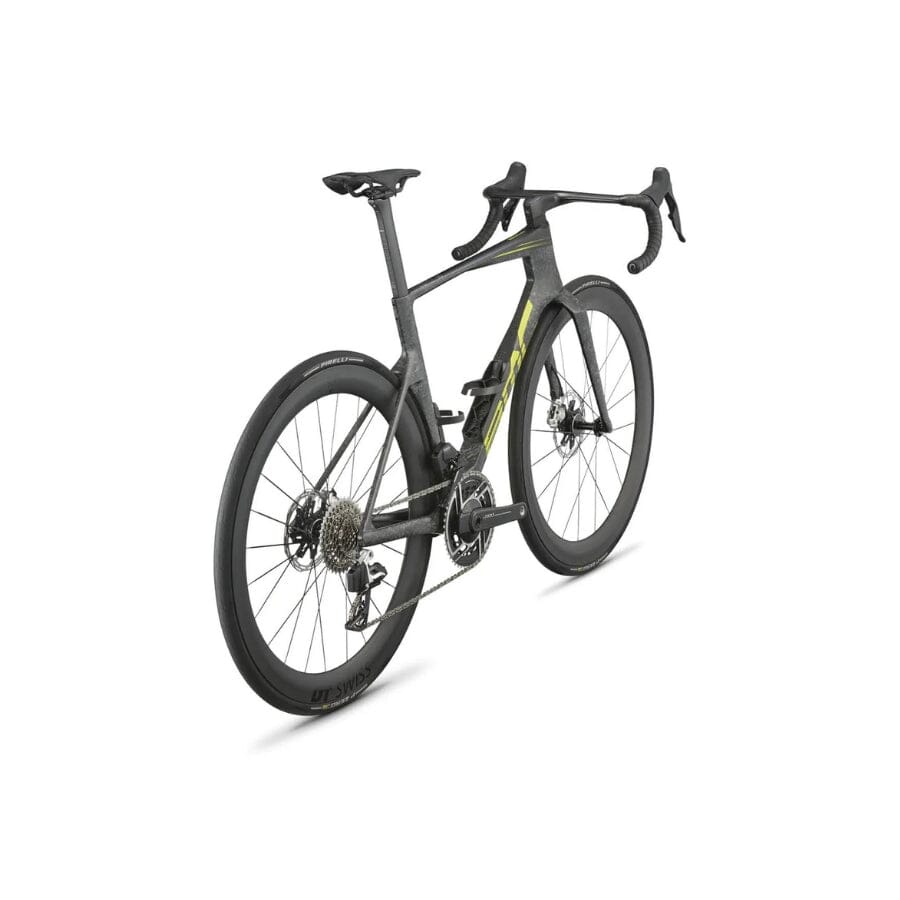

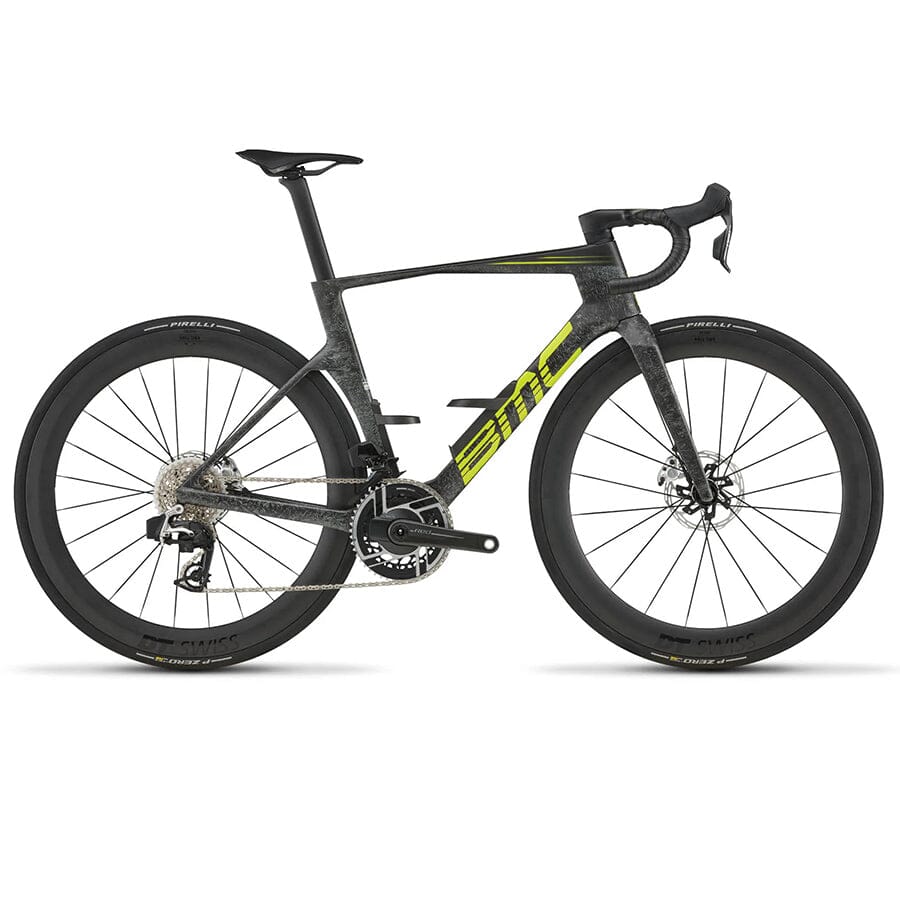

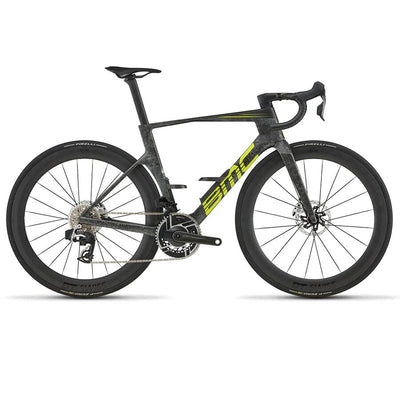

BMC Teammachine R 01 ONE
Product Details
The BMC Teammachine R 01 ONE is the ultimate expression of race-bike innovation. Developed in collaboration with Red Bull Advanced Technologies and honed across the Swiss Alps, cobbled Classics, and Grand Tour sprints, this bike is engineered for one purpose: pure speed. Every tube shape, carbon layup, and aerodynamic innovation is designed to deliver measurable advantages in performance, whether attacking a climb, dominating a sprint, or powering through the technical demands of the Classics.

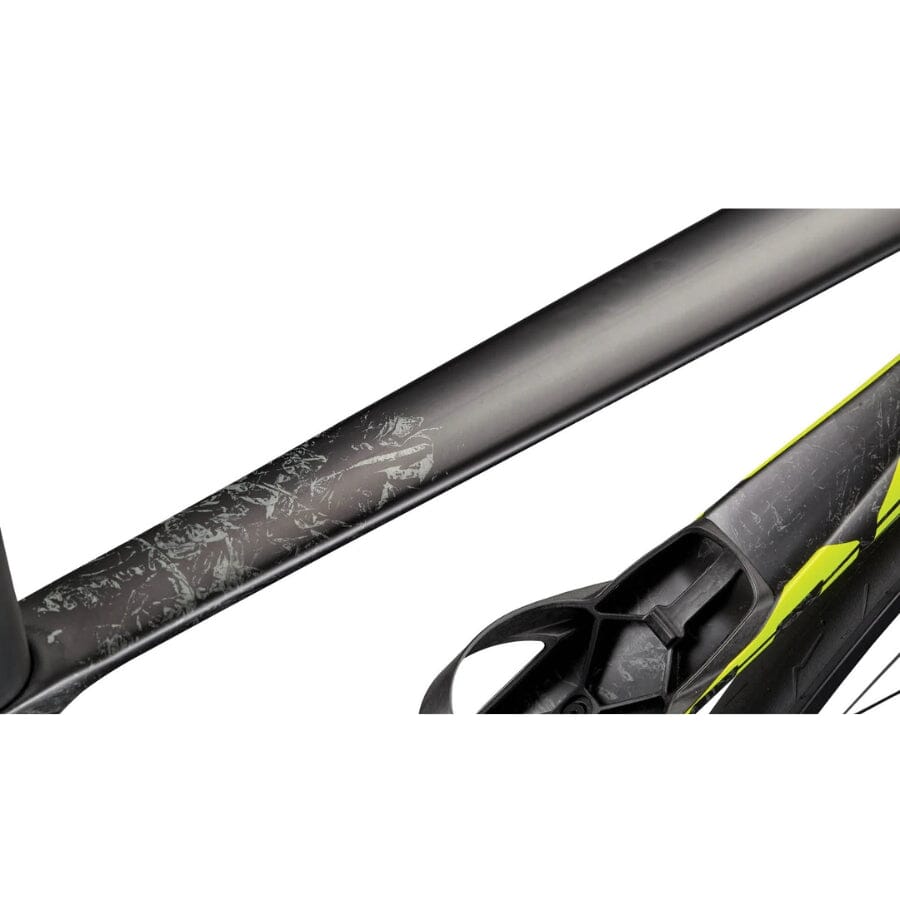

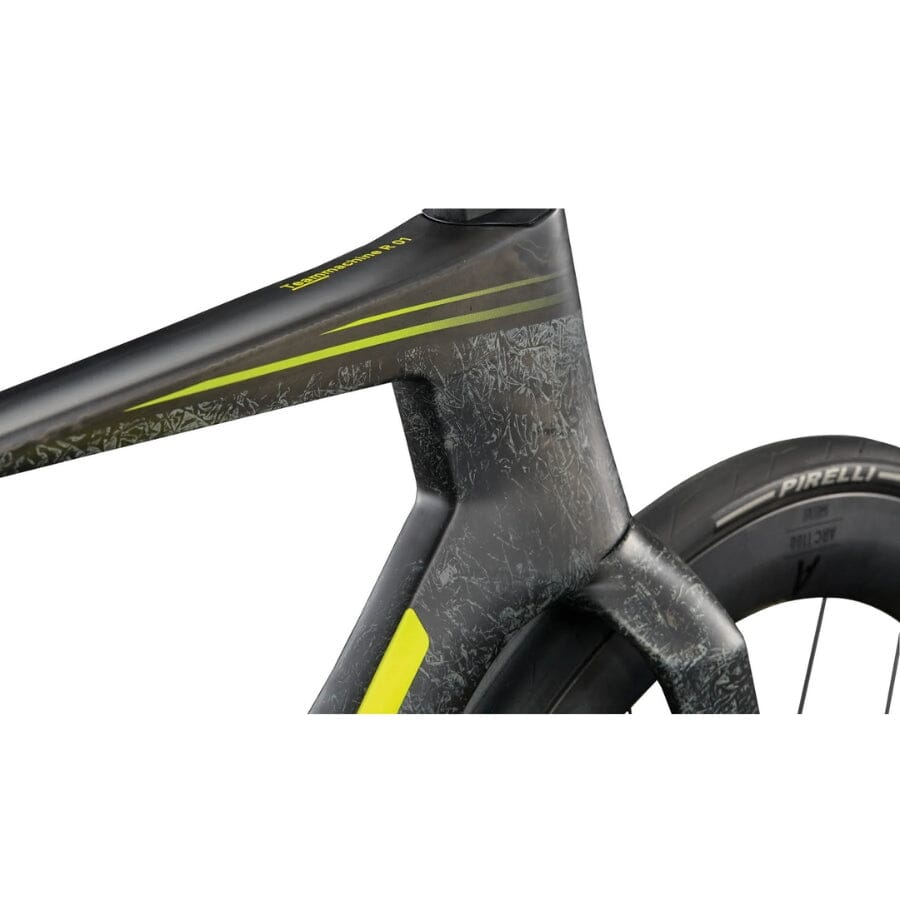

At the heart of the Teammachine R 01 ONE is the 01 Premium Carbon frame with Aerocore design, exceptionally light yet optimized for stiffness exactly where a racer needs it. The Halo Fork stabilizes airflow around the front wheel, reducing turbulence and unlocking aerodynamic gains visible and tangible on every ride. A deep Mariana Bottom Bracket ensures cleaner airflow while maintaining power transfer efficiency, making every watt count.
Integration and performance extend through the cockpit and drivetrain. The ICS Aero Gen 2 cockpit provides a stiffer, more comfortable, and more aerodynamic interface, while the SRAM RED AXS 2x12 with power meter reacts instantly to every pedal input. The system is completed with DT Swiss ARC 1100 DICUT wheels, offering lightweight, aero-optimized performance for sustained speed in every racing scenario.
Designed for professional racing but ready for any rider seeking uncompromised speed and precision, the Teammachine R 01 ONE is the culmination of every podium, victory, and innovation in BMC’s storied history. Every detail has been obsessively refined to give you the edge you need—every pedal stroke, every race, every ride.
Key Features
- Frame – Teammachine R 01 | 01 Premium Carbon with Aerocore Design
- Drivetrain – SRAM RED AXS 2x12 with Power Meter
- Wheelset – DT Swiss ARC 1100 DICUT with DT Swiss 180 DICUT hubs
| Specification | Detail |
|---|---|
| Frame | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Handlebar | ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare |
| Grips | BMC Tacky 3mm |
| Seatpost | Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 |
| Saddle | Selle Italia SLR Carbon | Advanced Carbon Rails | 145mm |
| Crankset | SRAM Red AXS (FC-RED-P-E1) |
| Chainrings | 48-35T |
| Power Meter | SRAM Red AXS Power Meter (FC-RED-P-E1) |
| Cassette | SRAM Red (CS-XG-1290-E1), 10-36T |
| Chain | SRAM RED (CN-RED-E1) |
| Front Derailleur | SRAM RED AXS (FD-RED-E-E1) |
| Rear Derailleur | SRAM Red AXS (RD-RED-E-E1) |
| Shifters | SRAM Red AXS (ED-RED-E1) |
| Gears | 2 x 12 |
| Bottom Bracket | SRAM DUB PressFit Bottom Bracket (BB-DUB-PF-A1) |
| Brake Levers / Calipers | SRAM Red AXS (ED-RED-E1) |
| Rotors | SRAM Paceline X Rotor (RT-PLN-X-A1), 160 / 160mm (F/R) |
| Rims | DT Swiss ARC 1100 DICUT | 55mm |
| Hubs (F/R) | DT Swiss 180 DICUT | Ratchet EXP 36 |
| Tires | Pirelli P Zero Race TLR RS | Tubeless | 28mm |
| Tubeless Info | Tubeless Rim | Tubeless Tires |
| Accessories In the Box | Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers, 2x3mm spacers |
| Tire Clearance | 30mm measured tire |
| Weight without Pedals | 7.1kg | Size 54 as pictured with all accessories |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach (mm) | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack (mm) | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Drop (mm) | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach (mm) | 81 | 81 | 81 | 81 | 81 | 81 |
| Bar Width (mm) | 370 / 420 | 370 / 420 | 390 / 440 | 390 / 440 | 390 / 440 | 390 / 440 |
| BB Drop (mm) | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length (mm) | 165 | 167.5 | 170 | 170 | 172.5 | 172.5 |
| Fork Length (mm) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center (mm) | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube (mm) | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle (°) | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle (°) | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube (mm) | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length (mm) | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset (mm) | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height (mm) | 721 | 755 | 781 | 799 | 813 | 836 |
| Stem Angle (°) | -17° | -17° | -17° | -17° | -17° | -17° |
| Stem Length (mm) | 80 | 90 | 90 | 100 | 110 | 110 |
| Top Tube (mm) | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 968 | 986 | 989 | 999 | 1015 | 1030 |
