BMC Teammachine R 01 Three
Product Details
The BMC Teammachine R 01 Three is a race focused road bike engineered to deliver uncompromising speed, efficiency, and control when every watt matters. Developed through BMC's collaboration with Red Bull Advanced Technologies, the Teammachine R represents a ground-up approach to race bike development, combining advanced aerodynamic simulation with BMC's expertise in carbon engineering and race-proven design. The result is a highly refined platform built to maintain speed across flat roads, fast descents, technical courses, and demanding climbs.
At the heart of the Teammachine R 01 Three is an 01 Premium Carbon frameset designed to balance low weight with exceptional stiffness and efficient power transfer. The frame's aerodynamic shapes were developed using computational fluid dynamics and extensive simulation, allowing BMC engineers to optimize airflow across the entire bike rather than focusing on individual components in isolation. Deep tube profiles, a massive bottom bracket area, and the distinctive wide-stance fork work together to manage airflow and reduce drag while maintaining the stiffness and responsiveness required for high-level racing.

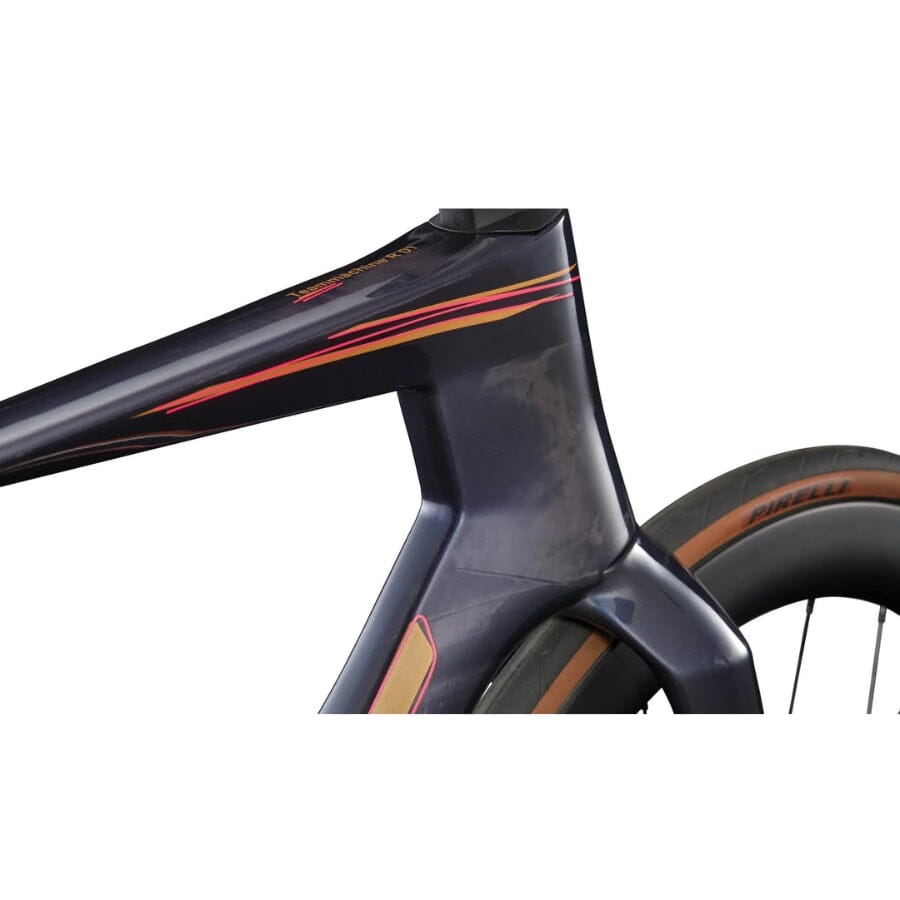

The ultrawide fork legs are a defining feature of the Teammachine R, helping isolate turbulent air generated around the front wheel from the rest of the frame. This aerodynamic approach is paired with the integrated ICS Aero Gen 2 cockpit, creating a cohesive front end with a low, race-oriented position and clean cable integration. Together, these features help the bike hold speed efficiently while providing the precise handling needed when racing at full pace.
The Teammachine R is designed to climb as well as it accelerates. Its lightweight carbon construction and efficient chassis provide an immediate response under power, allowing riders to attack climbs and accelerate out of corners without the compromises traditionally associated with highly aerodynamic race bikes. Clearance for tires up to 30mm provides the opportunity to run fast, modern road tires while maintaining appropriate frame clearance.
SRAM Force AXS electronic shifting delivers fast, precise gear changes, while the integrated power meter provides riders with real-time performance data for structured training and race-day pacing. Completing the build is the CR 50 SL Carbon tubeless-ready wheelset, providing an aerodynamic and responsive foundation for maintaining speed across the course.
Built for riders who want a true race machine rather than a compromise between categories, the BMC Teammachine R 01 Three combines aerodynamic efficiency, lightweight performance, and uncompromising power transfer into one cohesive package.
Key Features
- Frame - Teammachine R 01 Premium Carbon with Aerocore Design
- Drivetrain - SRAM Force AXS with Power Meter
- Wheelset- CR 50 SL Carbon
| Specification | Detail |
|---|---|
| Frame | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Handlebar | ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare |
| Grips | BMC Tacky 3mm |
| Seatpost | Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 |
| Saddle | Selle Italia SLR Elite | Lightweight Tubular Steel Rails | 145mm |
| Crankset | SRAM Force AXS (FC-FRC-P-E1) |
| Chainrings | 48-35T |
| Power Meter | SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1) |
| Cassette | SRAM Force (CS-XG-1270-E1) |
| Cassette Size | 10-36T |
| Chain | SRAM Force (CN-FRC-E1) |
| Front Derailleur | SRAM Force AXS (FD-FRC-E-E1) |
| Rear Derailleur | SRAM Force AXS (RD-FRC-E-E1) |
| Shifters | SRAM Force AXS (ED-FRC-E1) |
| Gears | 2 x 12 |
| Bottom Bracket | SRAM DUB PressFit Bottom Bracket (BB-DUB-PF-A1) |
| Brake Levers / Calipers | SRAM Force AXS (ED-FRC-E1) |
| Rotors | SRAM CenterLine X Rotor (RT-CLN-X-A2) |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | CR 50 SL Carbon | Tubeless Ready | 50mm |
| Hubs (F/R) | TXC-812 & TXC-2406 Center Lock |
| Tires | Pirelli P Zero Race TLR | Tubeless | 28mm |
| Tubeless Information | Tubeless Rim | Tubeless Tires |
| In the Box | Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers, 2x3mm spacers |
| Tire Clearance | 30mm measured tire |
| Weight without Pedals | 7.5kg | Size 54 as pictured with all accessories |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 81 | 81 | 81 | 81 | 81 | 81 |
| Bar Width | 370/420 | 370/420 | 390/440 | 390/440 | 390/440 | 390/440 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 165 | 167.5 | 170 | 170 | 172.5 | 172.5 |
| Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height | 721 | 755 | 781 | 799 | 813 | 836 |
| Stem Angle | -17° | -17° | -17° | -17° | -17° | -17° |
| Stem Length | 80 | 90 | 90 | 100 | 110 | 110 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
